BMX Bicycles

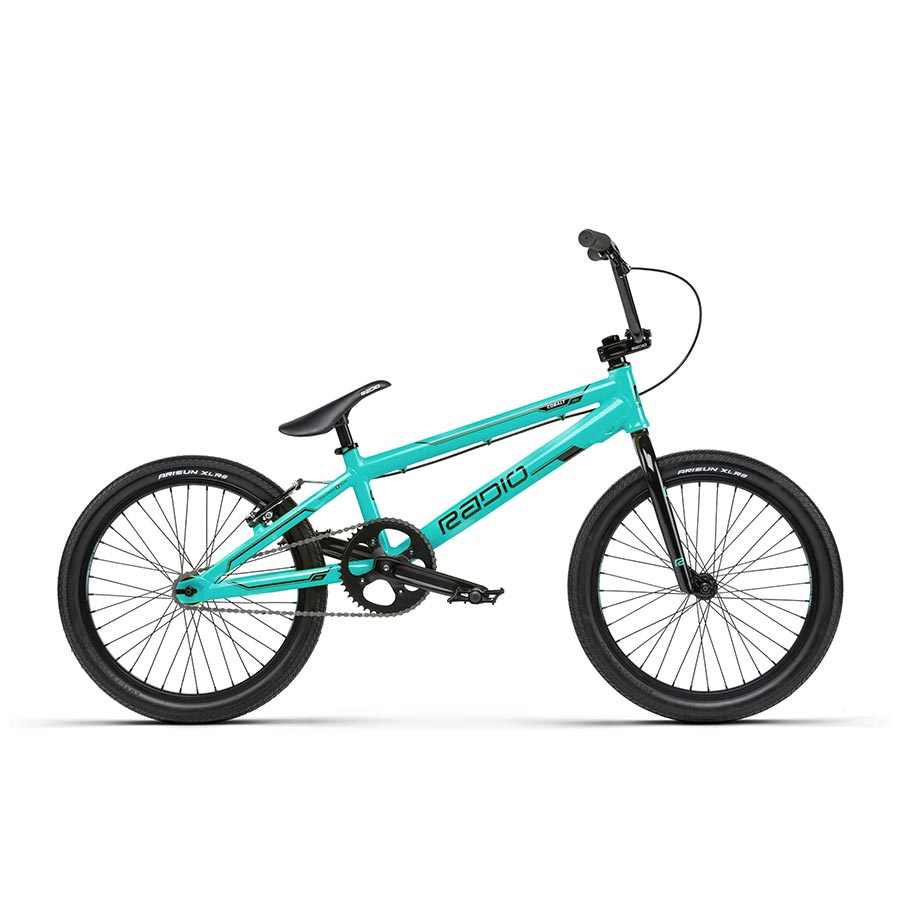

• FRAME: RADIO "Xenon", 6061-T6, Integrated chaintensioner
• FORK: CRMO, 1 1/8" butted steerer, 30mm offset
• BARS: 4130 CRMO
• STEM: RADIO RACELINE "XENON PRO" toploader, 53mm length, cold forged/CNC alloy
• HEADSET: RADIO RACELINE "PRO" integrated, threadless, 1-1/8" - 1.5"
• CRANKS: RADIO RACELINE "XENON PRO" 2pc, Cold forged alloy, CNC machined, 175mm length, XL: 180mm length
• BOTTOM BRACKET: RADIO RACELINE, BSA24
• FRONT HUB: RADIO RACELINE "XENON", Alloy CNC, 32h (XL:36h), 3/8" axle
• REAR HUB: RADIO RACELINE "XENON", Alloy CNC, 32h (XL:36h), Disc brake, Cassette, 3/8" axle
• TIRES: RADIO RACELINE "OXYGEN", Front: 20" x 1.75" and Rear: 20" x 1.6"
• TOP TUBE LENGTH: 20.75", Expert XL:21.25"
• CHAIN STAY LENGTH: 14.25", Expert XL: 14.8"

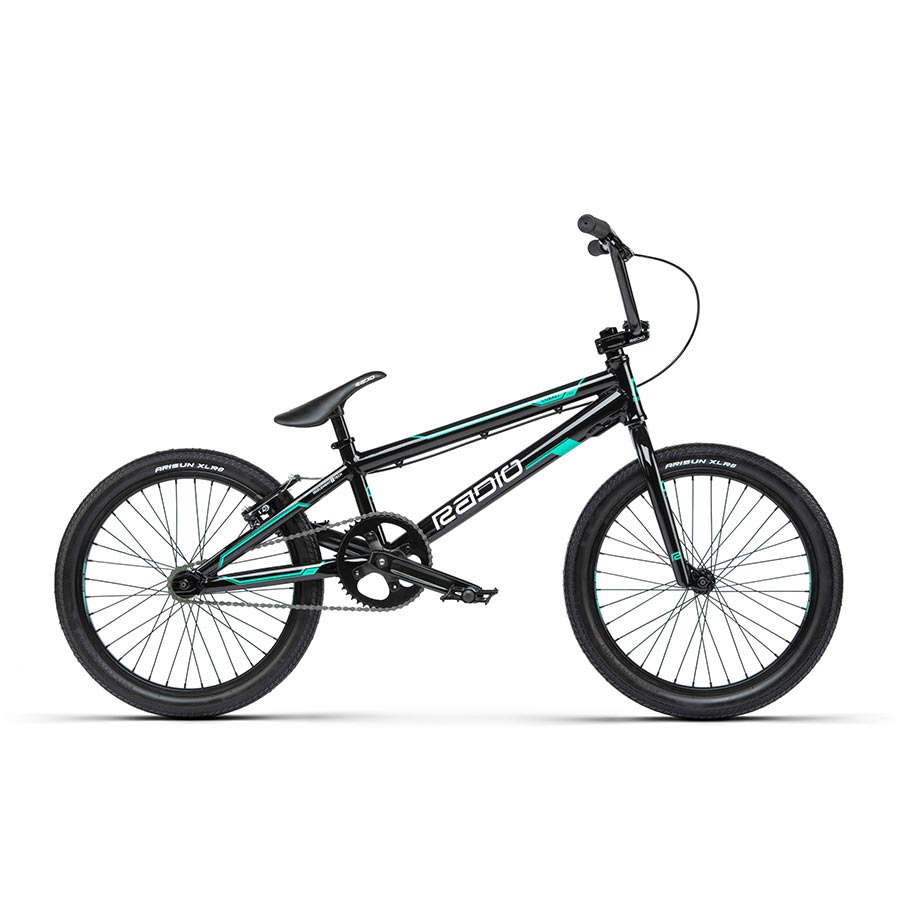

• FRAME: RADIO "Cobalt", 6061-T6, Integrated chaintensioner
• FORK: CRMO, 1 1/8" butted steerer, 30mm offset
• BARS: 4130 CRMO
• STEM: RADIO RACELINE "COBALT" toploader, 50mm Reach
• HEADSET: FSA "No.28" integrated, 1-1/8"
• CRANKS: RADIO RACELINE "COBALT" 3pc crank, forged alloy, 175mm
• BOTTOM BRACKET: RADIO RACELINE, BSA square taper
• FRONT HUB: RADIO RACELINE "COBALT", Alloy CNC, 36h, 3/8" axle
• REAR HUB: RADIO RACELINE "COBALT", Alloy CNC, 36h, flip flop, 3/8" axle
• TIRES: ARISUN "XLR8", Front: 20" x 1.95" and Rear: 20" x 1.75"
• WEIGHT: 9.95kg / 21.93lbs
• TOP TUBE LENGTH: 20.75''
• CHAIN STAY LENGTH: 14''

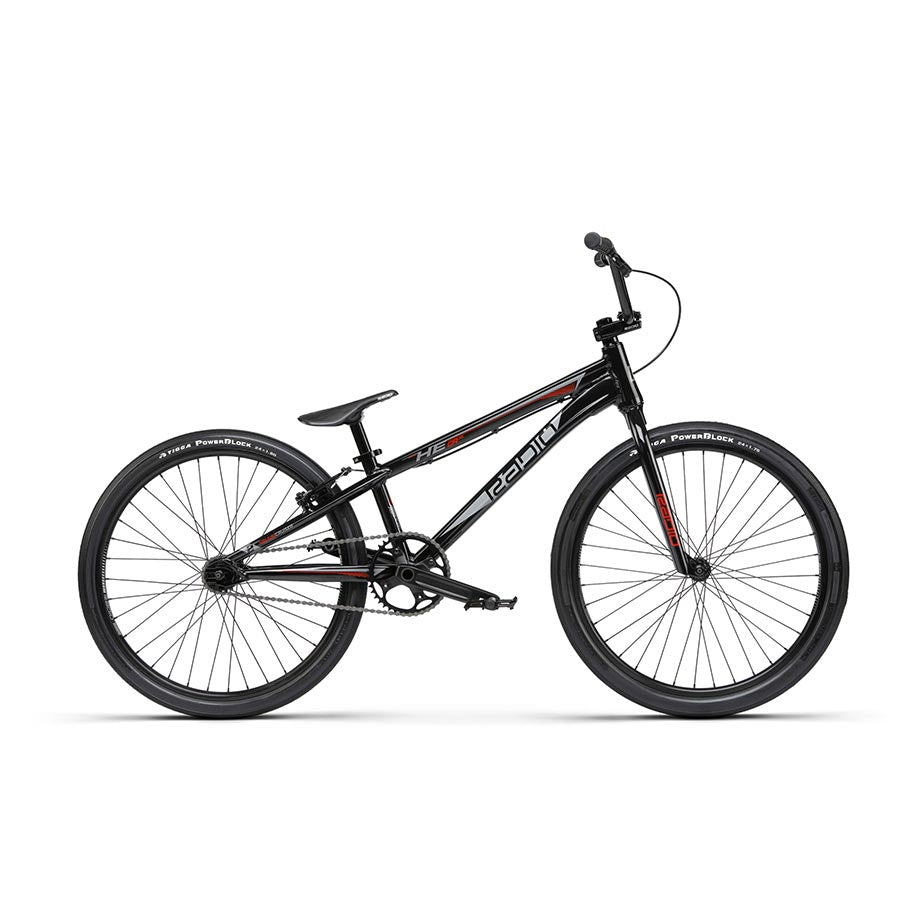

• FRAME: 6061-T6 Alloy "Helium Cruiser"
• FORK: CRMO fork, 1-1/8" butted steerer, 30mm offset
• BARS: 4130 CRMO
• STEM: RADIO RACELINE "XENON PRO" toploader, 53mm Reach
• HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
• CRANKS: RADIO RACELINE, Xenon Pro 2pc, Cold forged/CNC, Alloy, 180mm length, 24mm spindle
• BOTTOM BRACKET: RADIO RACELINE "BSA24", CNC machined
• FRONT HUB: RADIO RACELINE "XENON", Alloy CNC, 36h, 3/8" axle
• REAR HUB: RADIO RACELINE "XENON", Alloy CNC, 36h, disc brake, cassette, 3/8" axle
• TIRES: 24" TIOGA "POWER-BLOCK", Front: 1.75", Rear: 1.6"
• WEIGHT: 10.24kg / 22.79lbs
• TOP TUBE LENGTH: 22"
• CHAIN STAY LENGTH: 15.15"

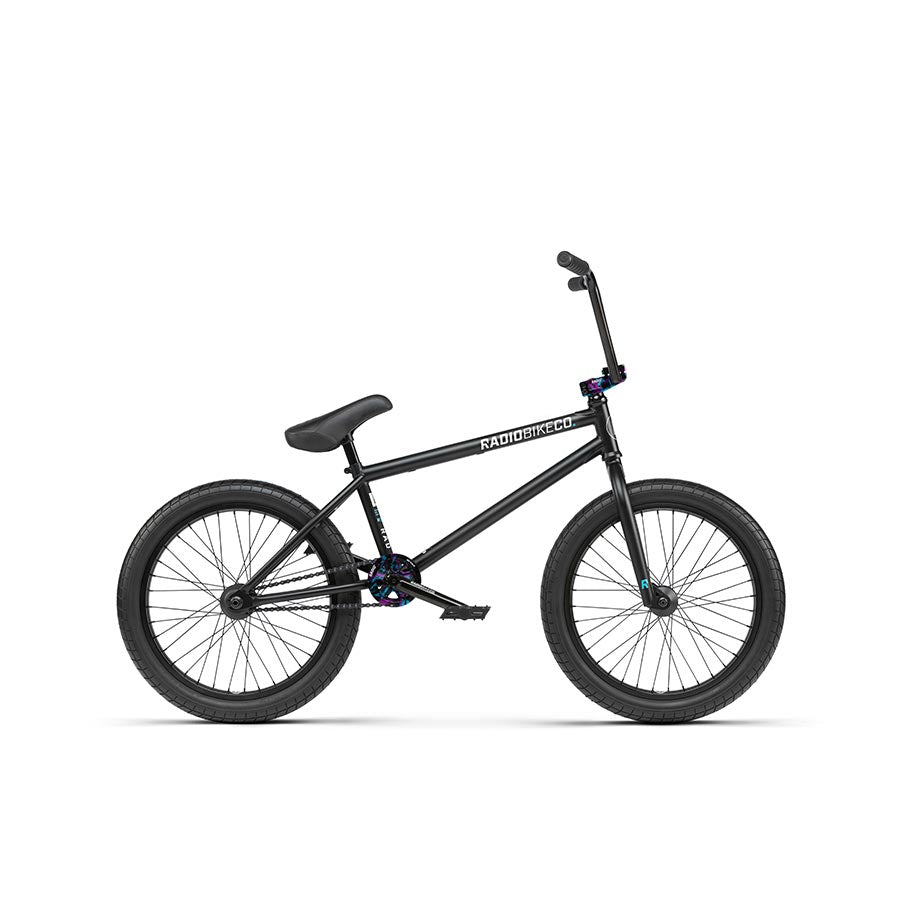

• FRAME: RADIO "COMRAD" frame, full crmo, removable brake mounts & guides
• FORK: RADIO "PRO" fork, full crmo, crmo steerer, 26mm offset
• BARS: SALTPLUS "HQ" bar, full crmo, 4pc
• STEM: RADIO "AXIS" topload stem, 50mm reach
• HEADSET: SALT "PRO" integrated headset, sealed bearing
• CRANKS: RADIO "PRO" 3pc crank, tubular, crmo, 165mm, 8 spline
• Bottom bracket: RADIO "MID" bb set, press fit, sealed bearing
• FRONT HUB: SALT "EX" hub, alloy, sealed, 3/8"s male axle, 36h, with x2 SALTPLUS "PRO" nylon hubguards
• REAR HUB: SALTPLUS "VERTEX" freecoaster hub, alloy, sealed, 9t, 14mm hollow axle, 36h, with x2 SALTPLUS "PRO" Nylon hubguards
• TIRES: SALTPLUS "BURN" tires, 2.35", front & rear
• WEIGHT: 12.65kg / 27.89lbs
• TOP TUBE LENGTH: 21"
• CHAIN STAY LENGTH: 13.2"

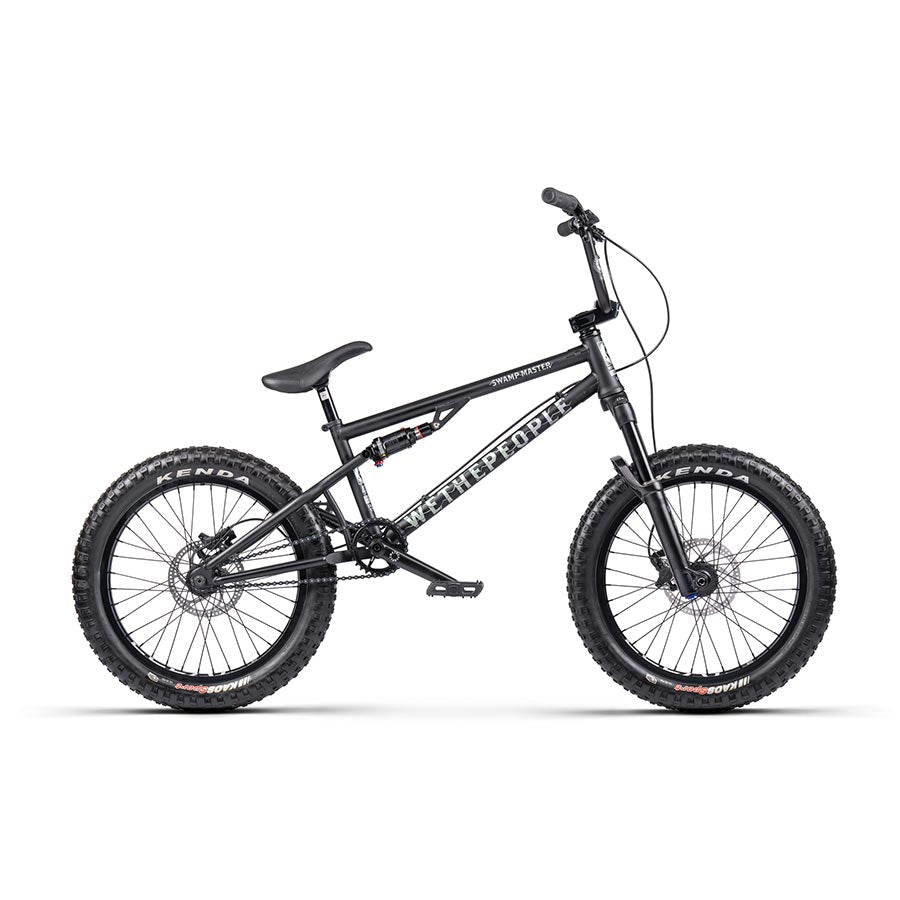

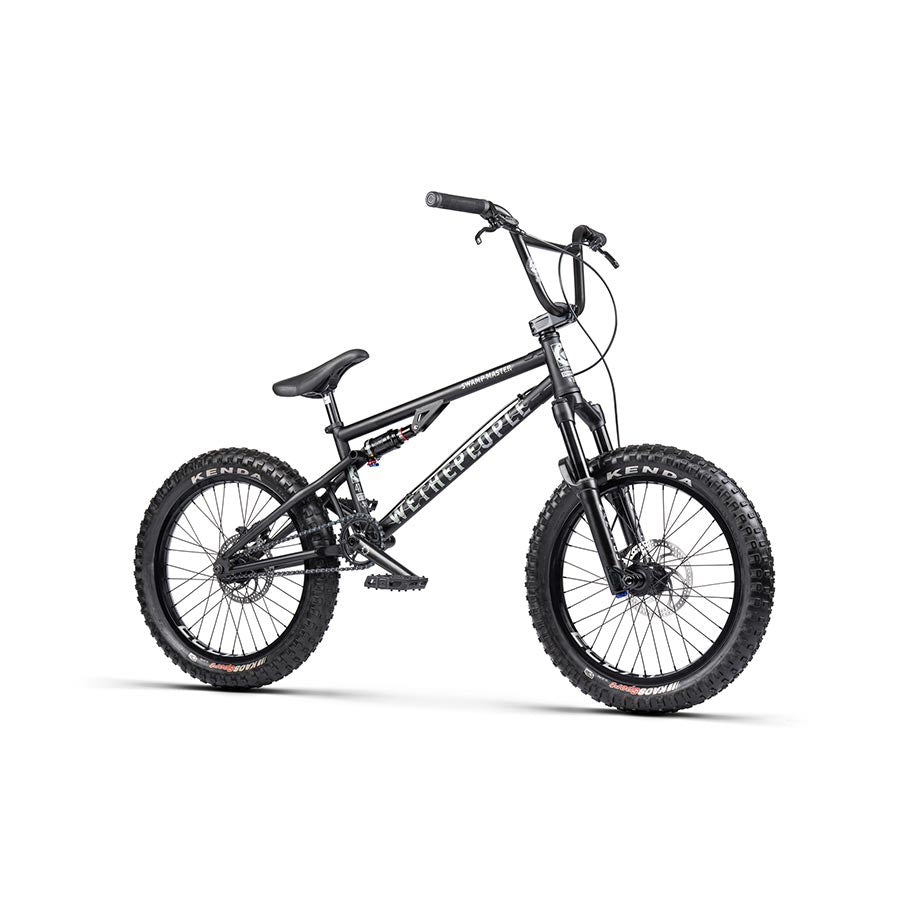

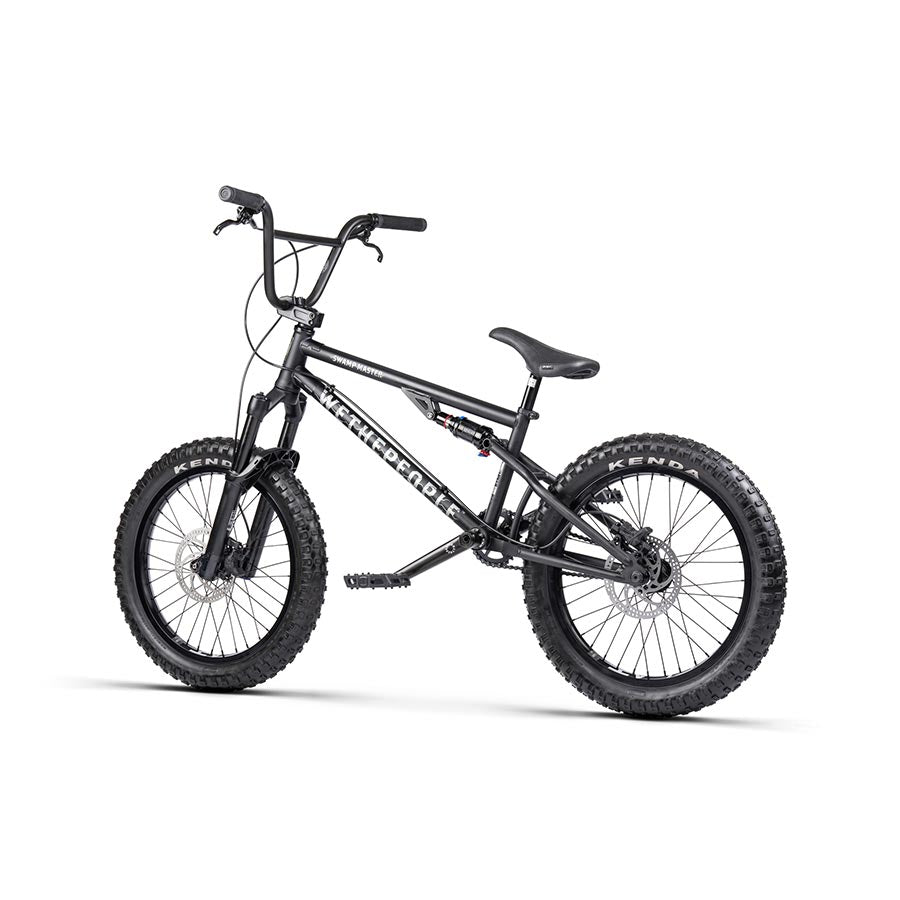

• FRAME WETHEPEOPLE "SWAMP MASTER" frame, 4130 full crmo, Rockshox Monarch RL shock - 152x31 (or Suntour Raidon Lo shock - 152x31 depending on availability)
• FORK MANITOU "MACHETE J-UNIT EXPERT" fork, adult tuning , 100mm travel
• BARS WTP "SWAMP MASTER" bar, post liquid heat-treated 4130 crmo
• STEM ÉCLAT "BURNS" topload stem, cnc alloy, 50mm reach, 23mm rise
• HEADSET WTP "COMPACT" tapered int. headset, sealed
• LEVER BENGAL "ARES 3" disc brake levers
• BRAKES BENGAL "ARES 3" hydraulic disc brakes, 160 mm rotors
• CRANKS WTP "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
• BB WTP "COMPACT" bb, 22mm, press fit, sealed bearing
• PEDALS WTP "LOGIC" pedals, nylon/fiberglass
• SPROCKET WTP "PATROL" sprocket, cnc, 6061-T6 alloy, 28t
• FRONT HUB ÉCLAT "EXILE" disc front hub, BOOST 120mm, fully sealed, 15mm thru axle, 36h
• REAR HUB ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h
• RIMS ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h

• FRAME: WETHEPEOPLE "AVENGER" frame, 4130 full crmo
• FORK: WETHEPEOPLE "AVENGER" fork, 4130 full crmo, 33mm offset
• BARS: WETHEPEOPLE "AVENGER" bar, 4130 full crmo
• STEM: WETHEPEOPLE "AVENGER" topload stem, cnc, 1-1/8", 49mm reach
• BRAKES: SHIMANO BL-MT200 HYDRAULIC DISC BRAKE, 160mm Rotors (subject to change with Clarks Clout model)
• CRANKS: SALT "AVENGER" tubular 3pc "TSS" crank, crmo, 175mm, 8 spline
• DRIVER: cassette driver, 18t cog, sealed bearing
• FRONT HUB: WETHEPEOPLE "AVENGER" disc front hub, fully sealed, M6 female bolts, 36h
• REAR HUB: WETHEPEOPLE "AVENGER" disc cassette hub, fully sealed, 3/8" female bolts, 36h
• HUB GUARDS: SALTPLUS PRO hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
• TIRES: WTB "RANGER" tires, 27.5"x 2.25", front & rear
• WEIGHT: 14.80kg / 32.63lbs
• TOP TUBE LENGTH: 25" (actual), 26.2" (effective)
• CHAIN STAY LENGTH: 17.9"

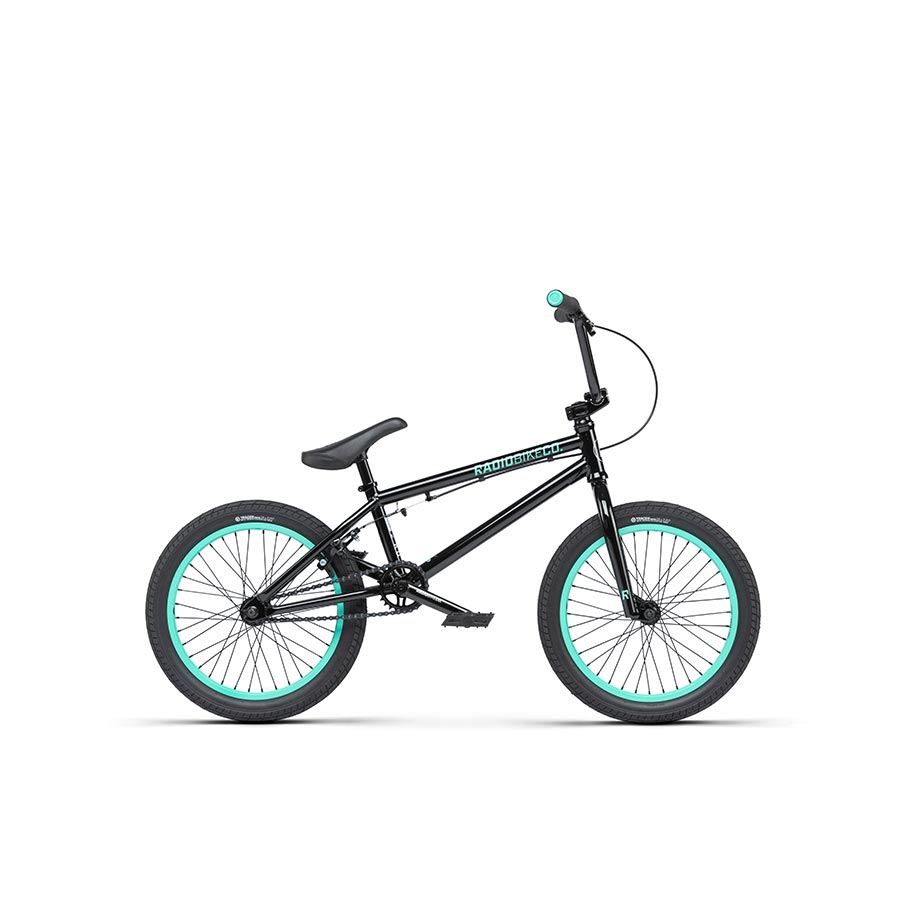

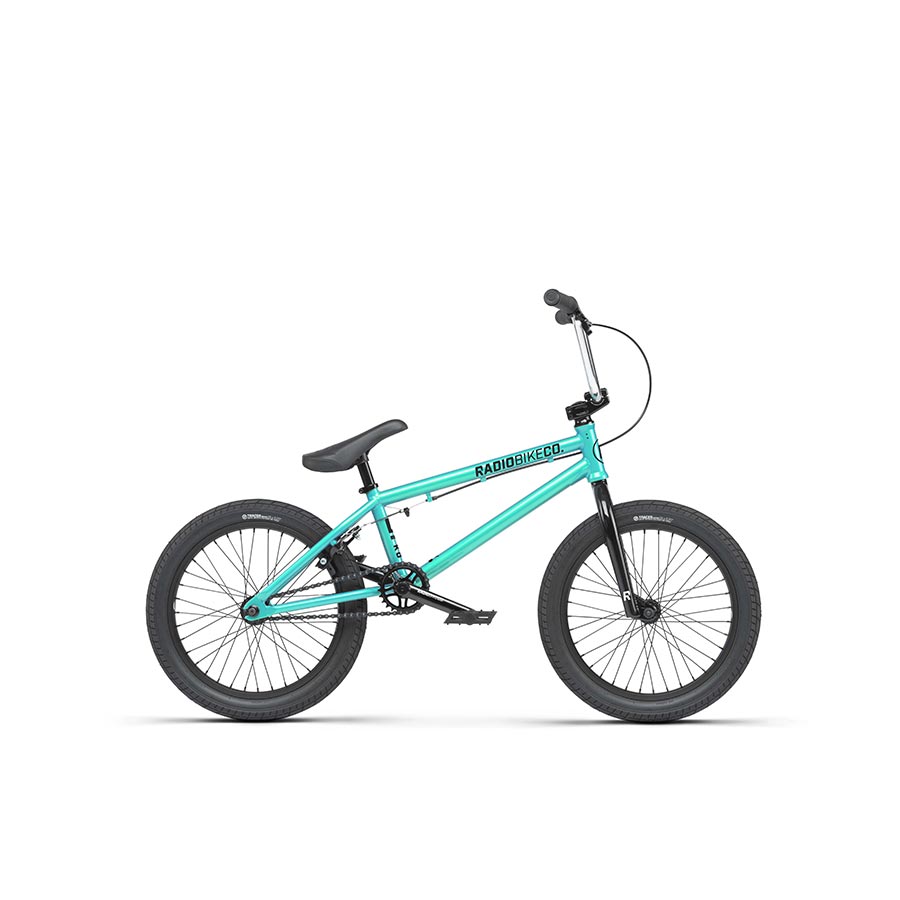

• FRAME: RADIO “SAIKO 18” frame, crmo down tube, 1020 hi-ten
• FORK: RADIO “SAIKO 18” fork, 1020 hi-ten, crmo steerer, tapered legs
• BARS: RADIO “AM 18” bar, 1020 hi-ten
• STEM: SALT “JUNIOR” top loading stem, 40mm reach
• HEADSET: SALT “PRO” int. headset, sealed bearing
• CRANKS: RADIO “AM” 3pc crank, tubular, crmo, 152mm, 8 spline
• Bottom bracket: Mid size, press fit, sealed bearing
• FRONT HUB: RADIO “AM” hub, alloy, loose ball, 3/8 male axle, 36h
• REAR HUB: RADIO “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
• TIRES: SALT “TRACER” tires, 2.2 front & rear
• WEIGHT: 10.62kg / 23.41lbs
• TOP TUBE LENGTH: 18"
• CHAIN STAY LENGTH: 12.2
