FSA

• Cold forged AL6061/T6 aluminum crank arms
• Forged AL7050 BB386EVO spindle
• AL7075 100% CNC chainrings
• Chromoly chainring bolts
• Fits Shimano and SRAM 10-11 speed systems

• 12 speed compatible

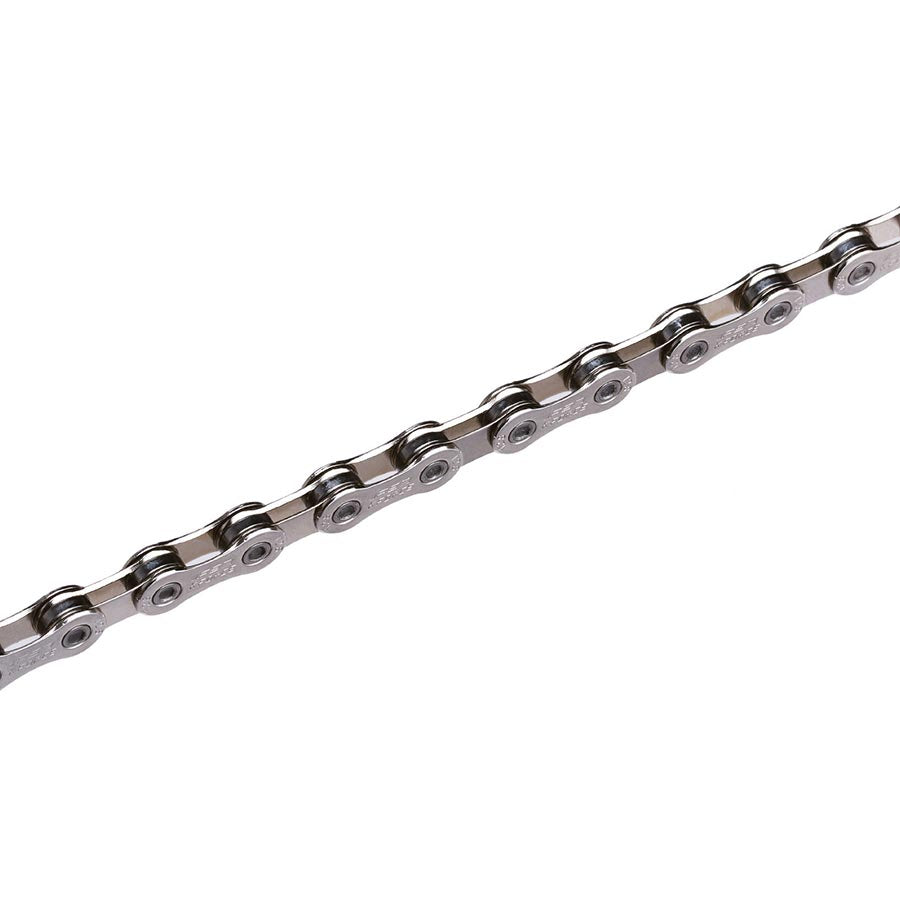

• Quiet, efficient performance and superior durability
• 5.25mm width
• Nickel outer plated finish, Black inner plated finish
• 250 grams (116 Links)

• Solid forged crank arm
• Square interface
• Length - 170mm, 172.5mm, 175mm

• Solid forged crank arm
• Square interface
• Steel Megatooth chainring
• Length - 165 mm, 170mm, 172.5mm, 175mm
• BCD - 120mm
• Chainrings - 44T, 42T, 40T
• 741 grams

• Die cast alloy crank arms
• Monocoque crank arm/spider
• AL7075 stamped and CNC machined outer chainring
• Heat treated chromoly inner chainring
• Chromoly chainring bolts
• Available for 10 and 11 speed system
SIZES
• Length - 170mm, 172.5mm, 175mm
• Chainline - 44mm (118mm)
• Q-Factor - 147mm
CHAINRINGS
• BCD - 110/80mm
• 46/30T (WB001/wc093)
FINISH
• Polished painted black
• Printed graphics
WEIGHT
• 820 grams

• Convertible spider design
• Solid forged alloy crank arms
• Thick-Thin tooth design
• 24mm forged chromoly spindle
• Direct mount forged AL7075 chainring
• Fits Shimano and SRAM 11-12 speed system
SIZES
• Length - 170mm, 175mm
CHAINRINGS
• BCD - Direct Mount
• 32T (WA027)
AVAILABLE SEPARATELY
• 28T - 38T
FINISH
• Anodized black finish
• Laser graphics
WEIGHT
• 854 grams (32T)

• BB Mega Exo Lite MW454

• Forged chromoly spindle for JIS square taper
• Industrial 6002KRS cartridge sealed bearings with oversized Ø3/16” balls
• Cold forged aluminum cups
• Double seals for water and dirt protection
• 295 grams

• Aerodynamic integrated Cable Routing (ACR)
• Alloy handlebar is designed for Adventure, Gravel and Cyclocross
• Sculpted contact points for the “hoods” and “drops” riding positions for better ergonomics
• Flared drops for better control and clearance when descending
SIZES
• Ø31.8mm x W400, 420, 440mm
• 120mm drop, 80mm reach
• 15° outward bend
FINISH
• Bead blasted anodized black
WEIGHT
• 292 grams (420mm)

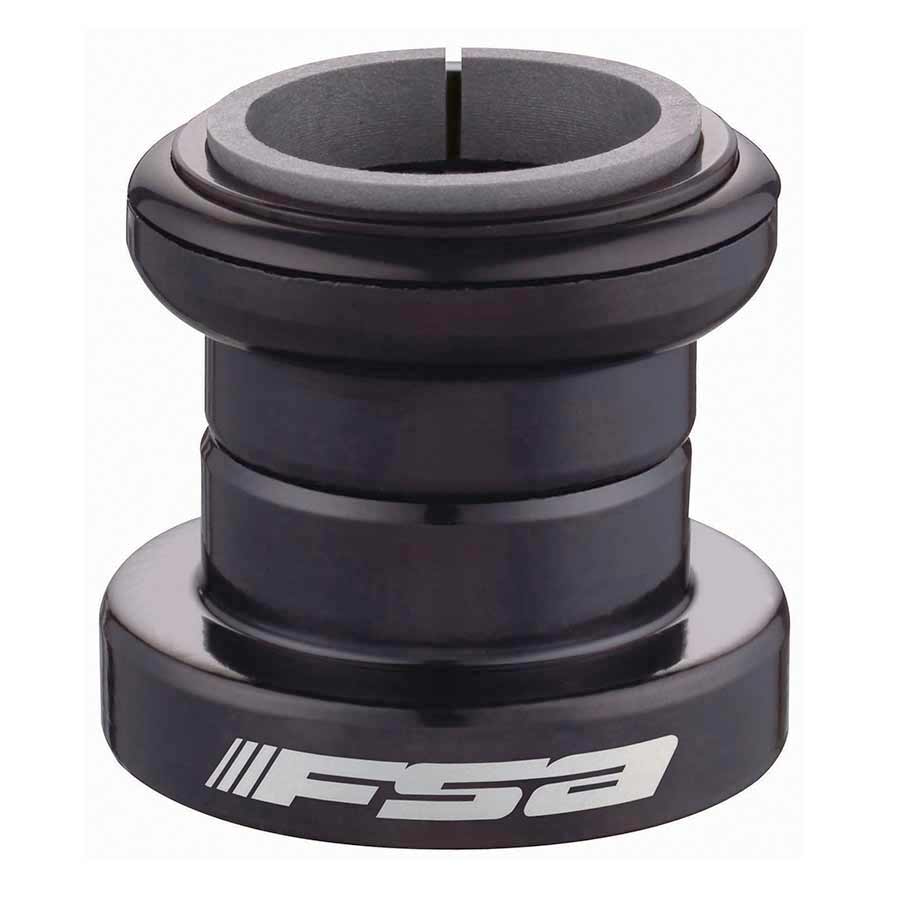

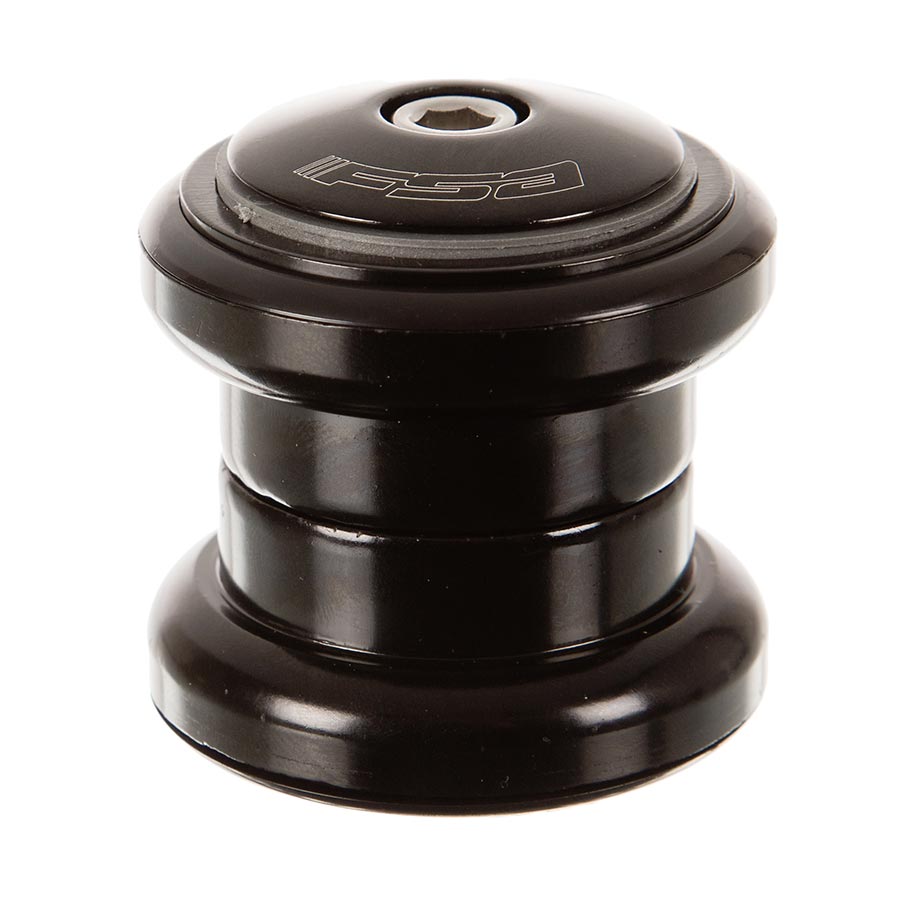

• Threadless Black 1-1/8"Headset
• Retainer Bearings

• 3D forged and CNC machined AL6061/T6
• 4-bolt cold forged alloy faceplate
• Cr-Mo bolts
• 40 mm stach height
• 122 g (70 mm)

• 3D Forged and CNC machined from AL7050/T73
• 3D Forged AL6061/T6 faceplate
• 4-bolt cold-forged alloy faceplate
• Cr-Mo hardware
• 40mm fork clamp stack height
• 162g (80mm)

• 3D forged and CNC machined AL2014
• 4 bolt sculpted faceplate with titanium hardware
• 40mm stack height
• 113g (100mm)

• Replacement crank bolt for BB30 cranksets
• QR-16 with Self Extracting Cap 30mm Spindle / M30 Cap
• Sold by the unit

• Semi integrated cable routing
• Reinforced clamping areas
• DI2 compatible
• Length: -01: 400, -02: 420, -03: 440 mm
• Diameter: Ø 31.8 mm
• Drop Reach: 125 mm 80 mm
• 44°Outward bend
• Double butted and tapered AL7050
• 34mm Ergo flat top
• 110mm wide round center section
• Bead blasted black with polished anodized black
• Weight: 269 grams (420mm)

• Double butted, tapered and shot-peened AL6066
• 34mm ergo flat top
• 120mm wide round center section makes it easy to mount accessories

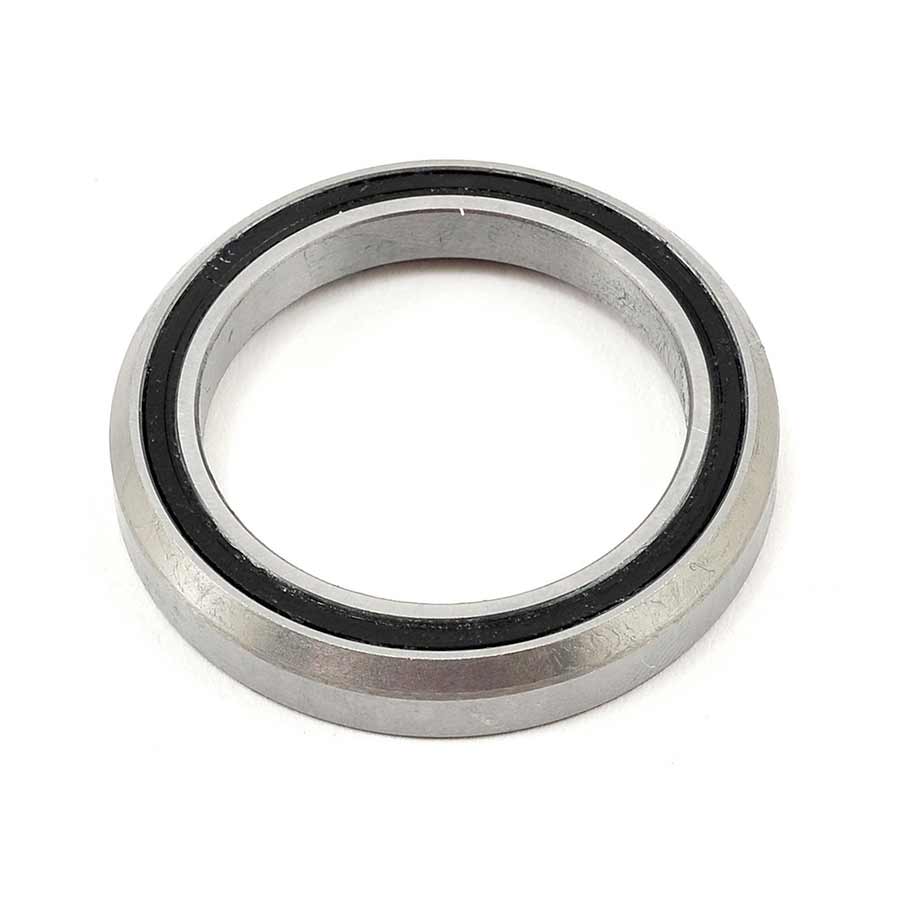

• MR132 replacement bearing for 1-1/8" headsets

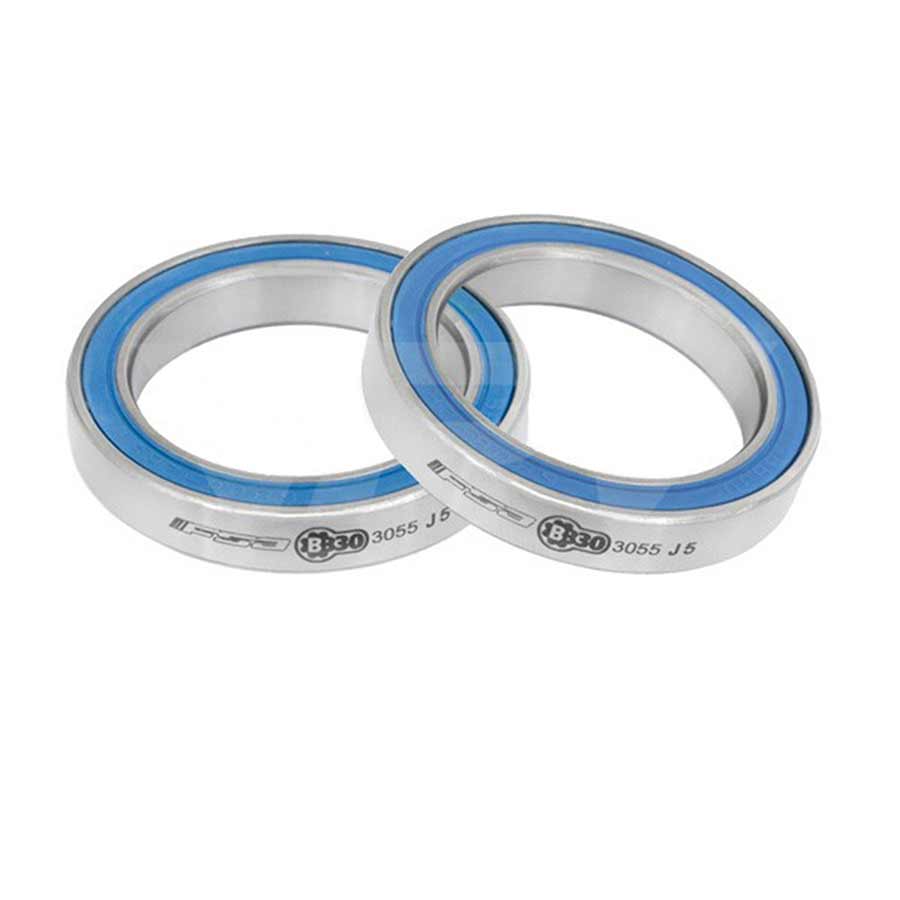

• BB30 Bearing, Pair, 230-5026

• For use with FSA modular cranks
• Lockring holds spider or chainring in place

• Mega Exo crank bolt
• M-17
• Self extracting
• Hollow carbon
• Black
• Pair
• K-Force Light, SLK Light

• Double butted tapered and shot-peened AL-6061
• 31.8mm bar clamp diameter with 34x21ergonomic oval section
• 125mm drop, 80mm reach
• 12 degree side flare
• 320g

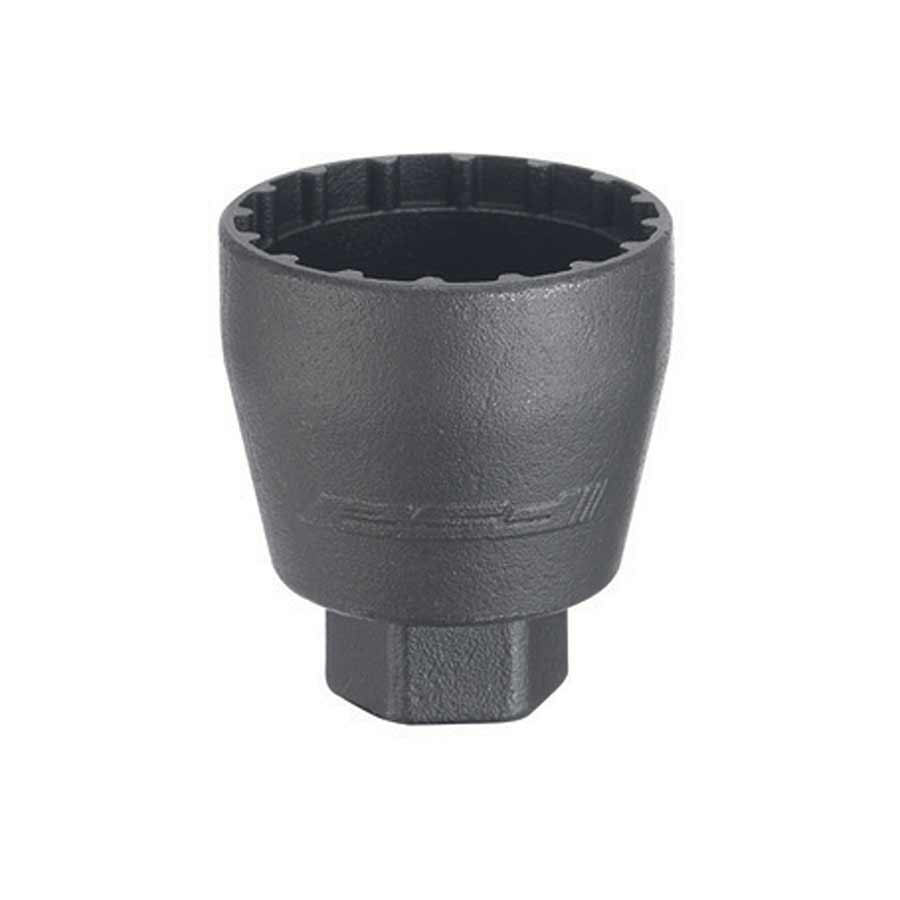

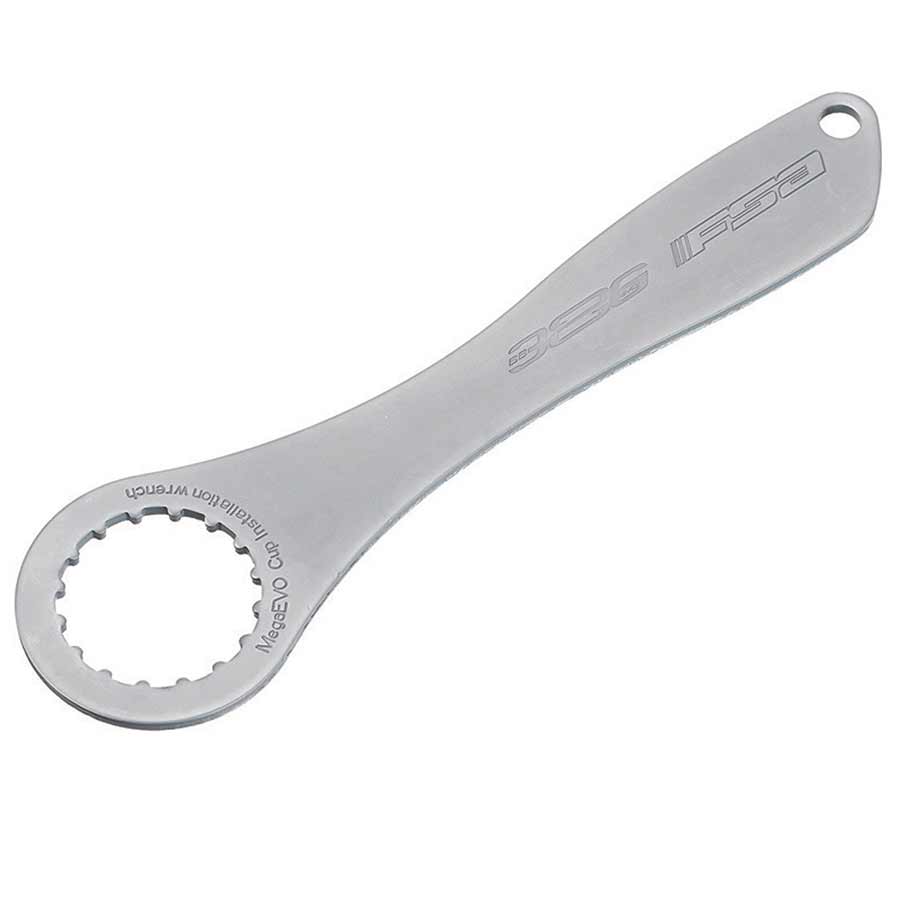

• Installs and removes threaded cups for 386Evo cranks
• Socket type tool for 1/2" drive socket wrenches

• Installs and removes threaded cups for 386Evo cranks

• 10 and 11 speed Shimano and SRAM compatible

• Alloy ring for use with 50T outer rings

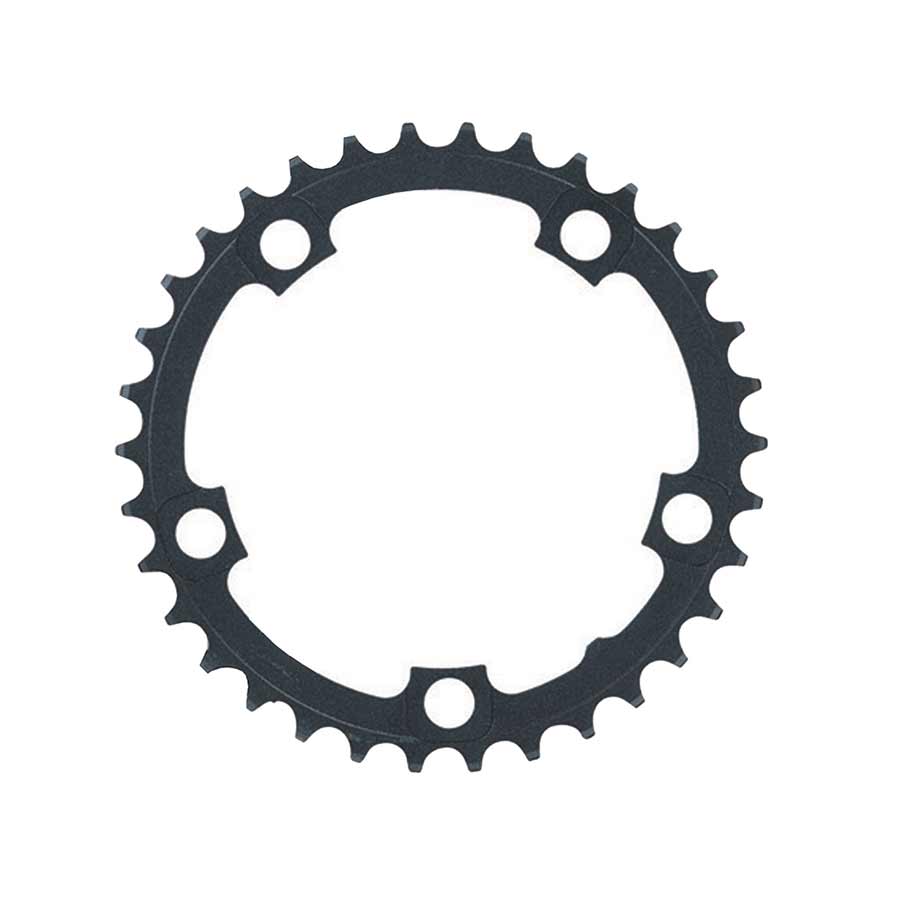

• 30t inner ring for road triples

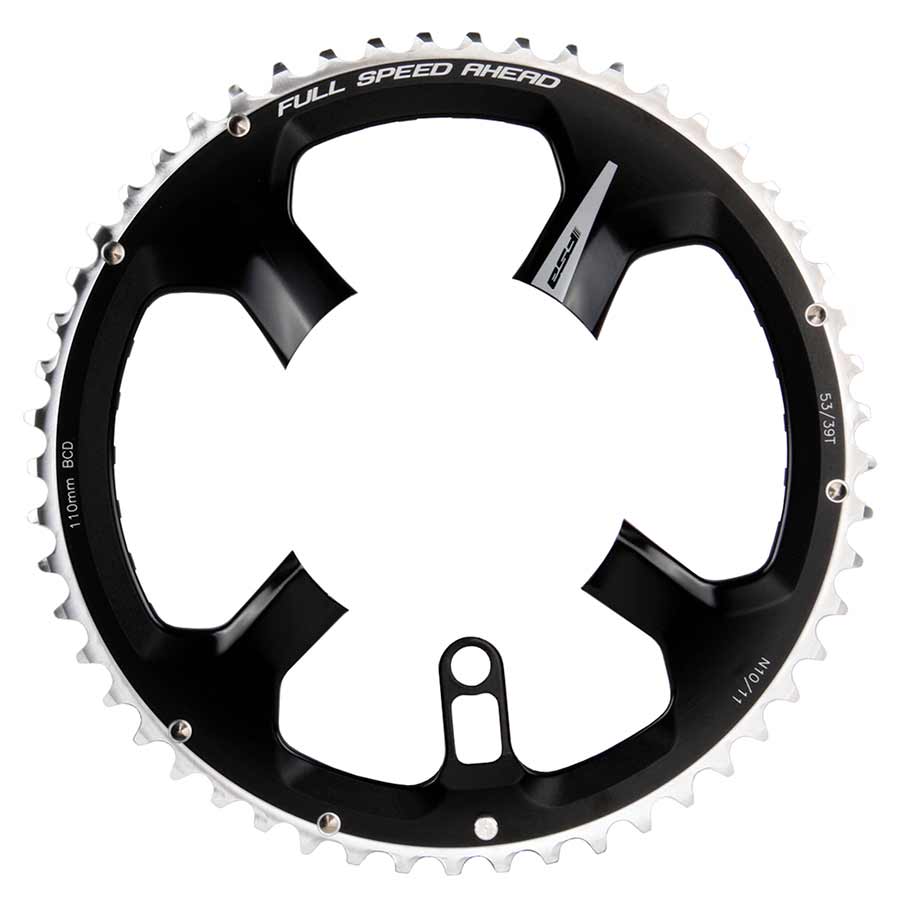

• Replacement chainring for FSA ABS cranks

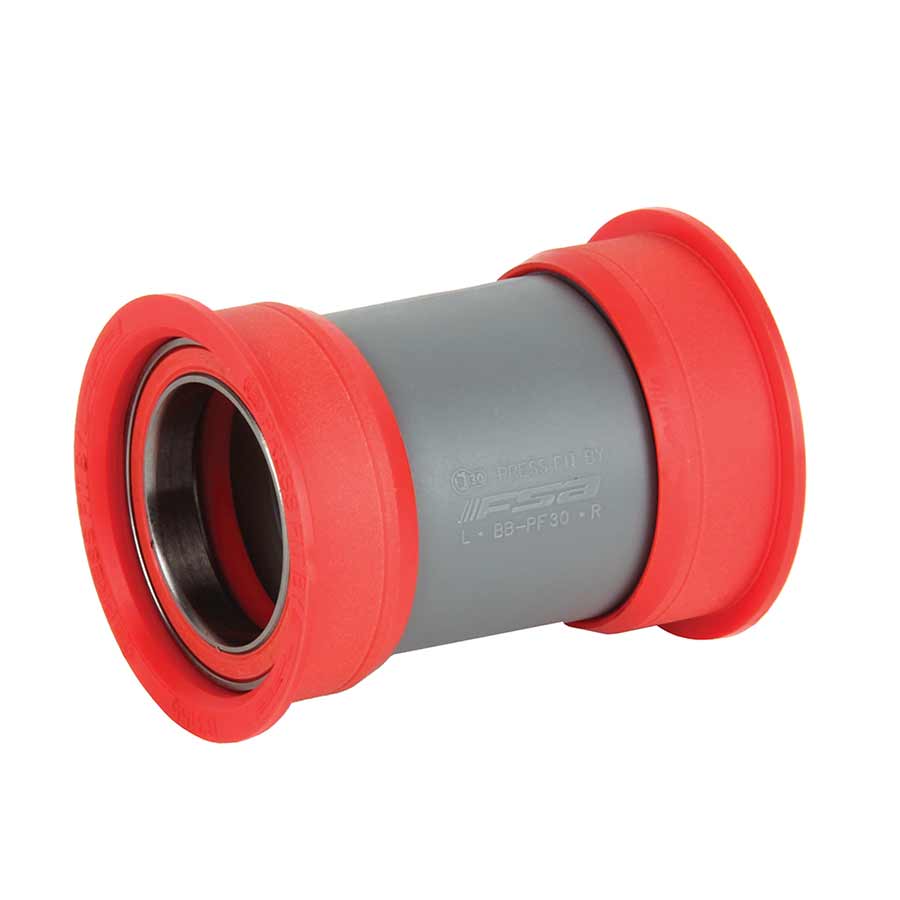

• PressFit30 bearings for FSA road cranksets
• Also compatible with 386 Evo frames and cranks
• Ceramic bearings
• 73g

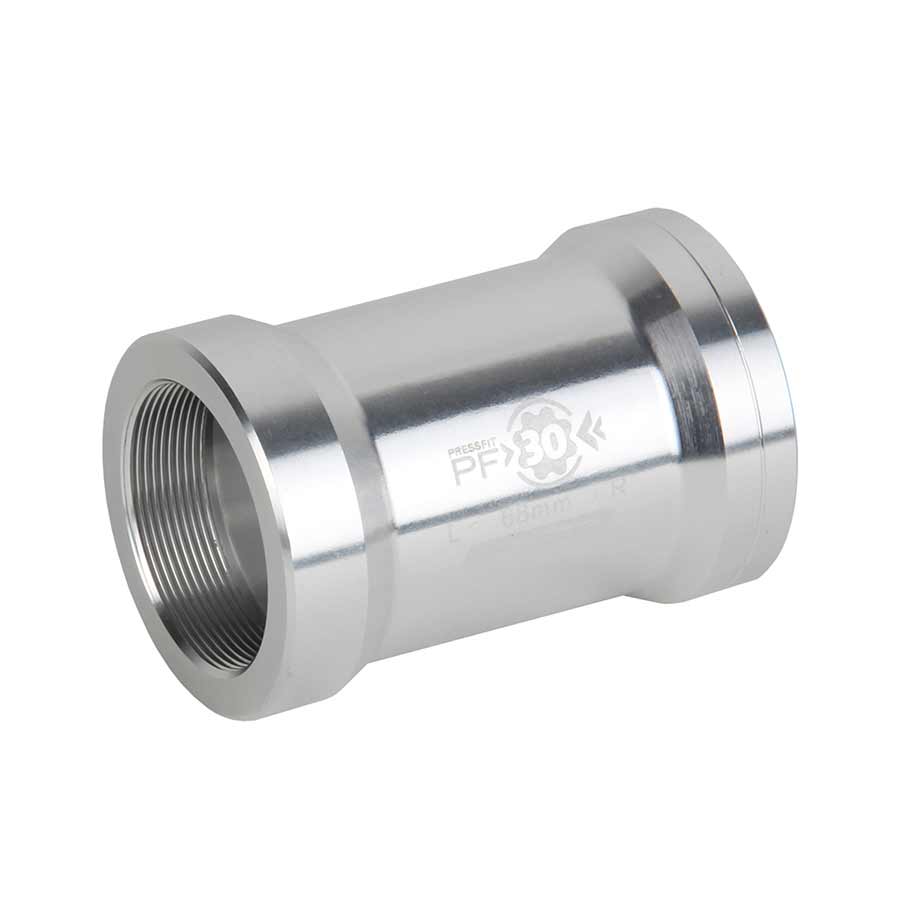

• Threaded insert for PF30 frames
• Allows the use of any English threaded 68mm bottom bracket

• 12mm "Deep Cup" design
• Nylon top cover
• Forged and CNC machined steel cups
• 5/32" x 20 upper bearings
• 3/16" x 20 oversized lower bearings
• 24.7mm stack height
• 149g
