Bike Cranksets for Efficient Power & Smooth Pedaling

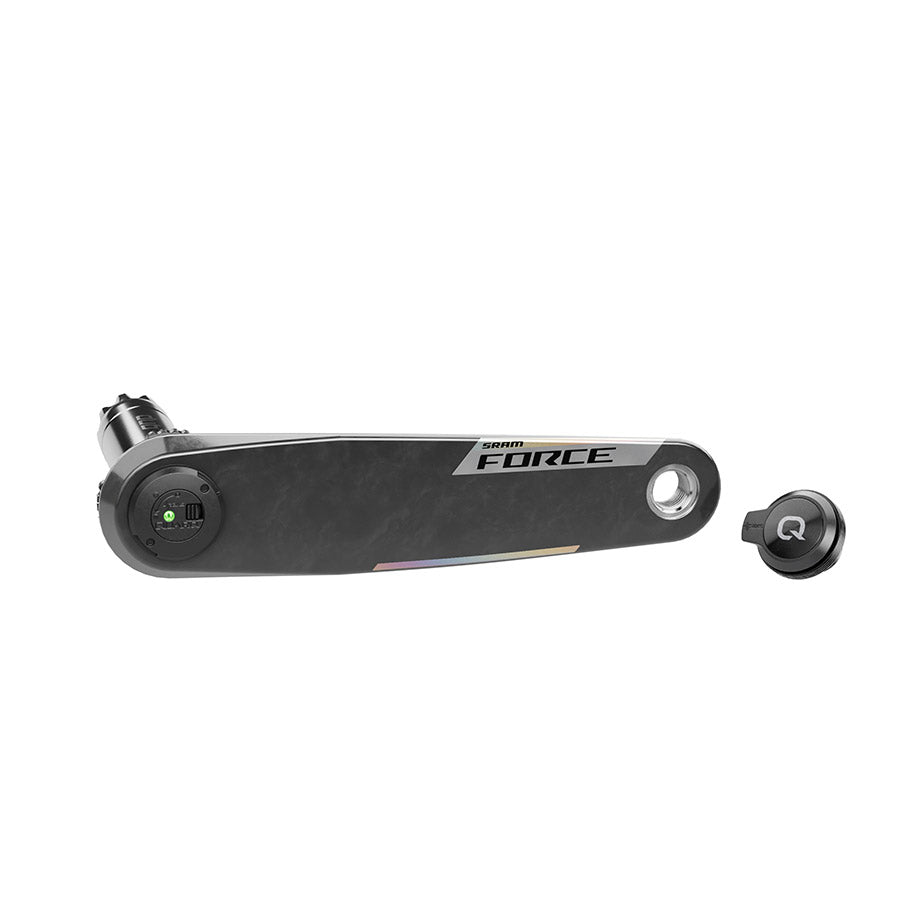

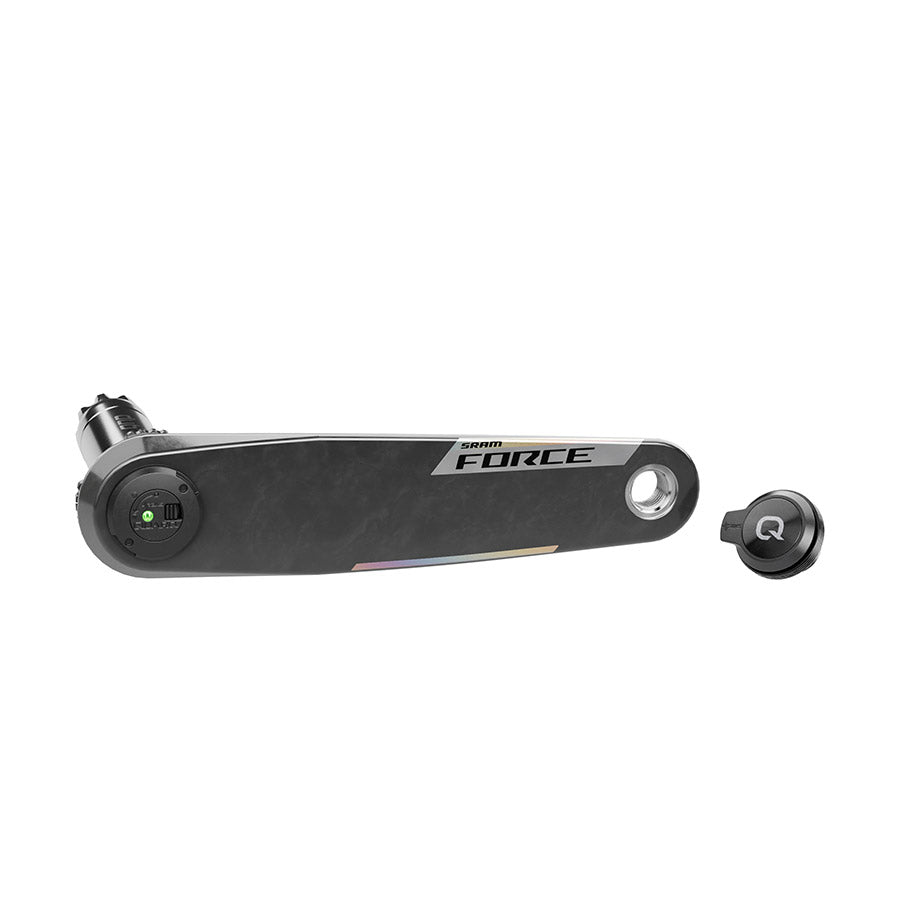

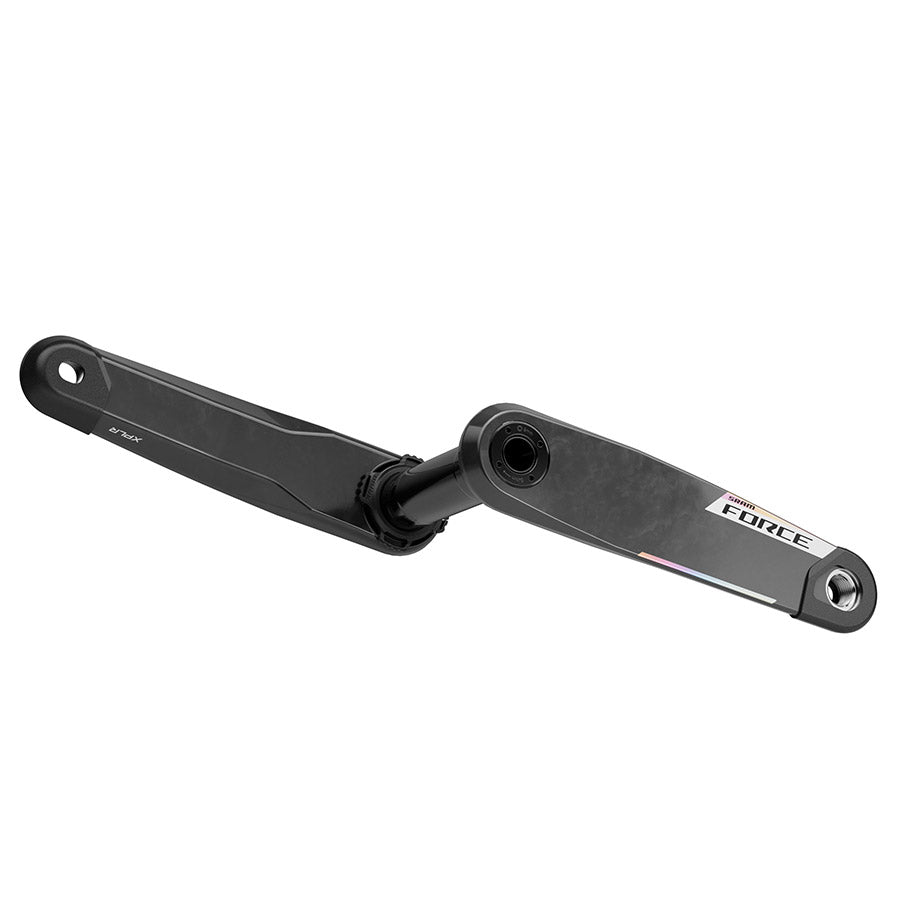

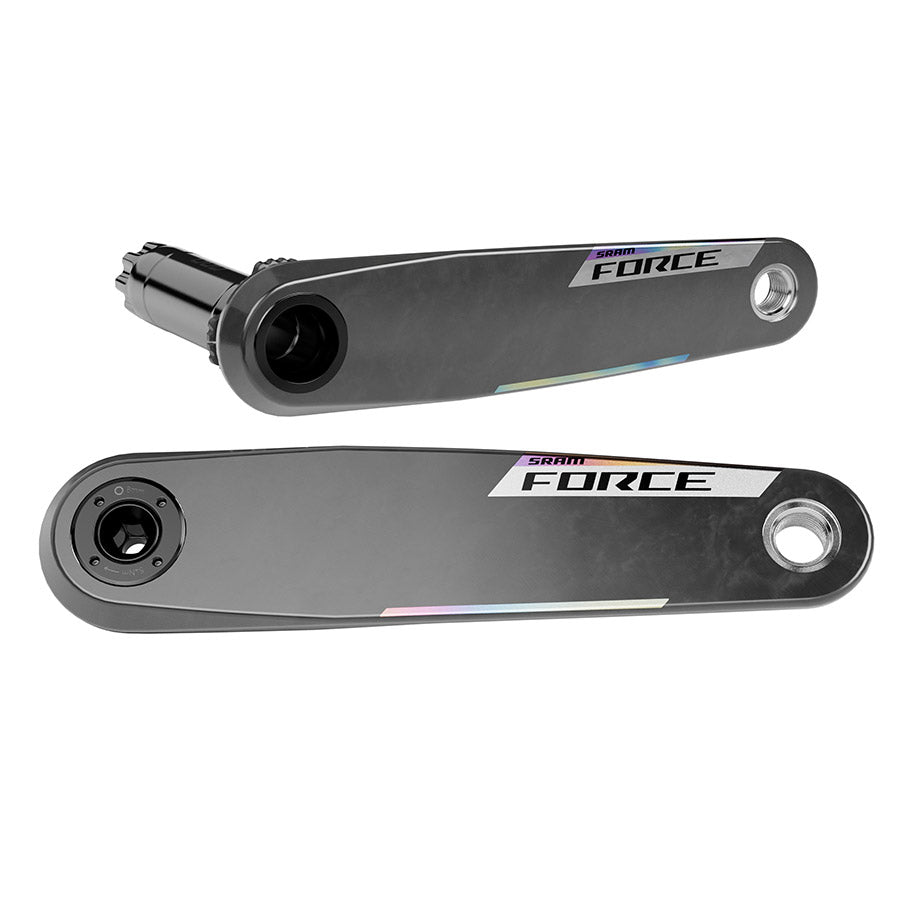

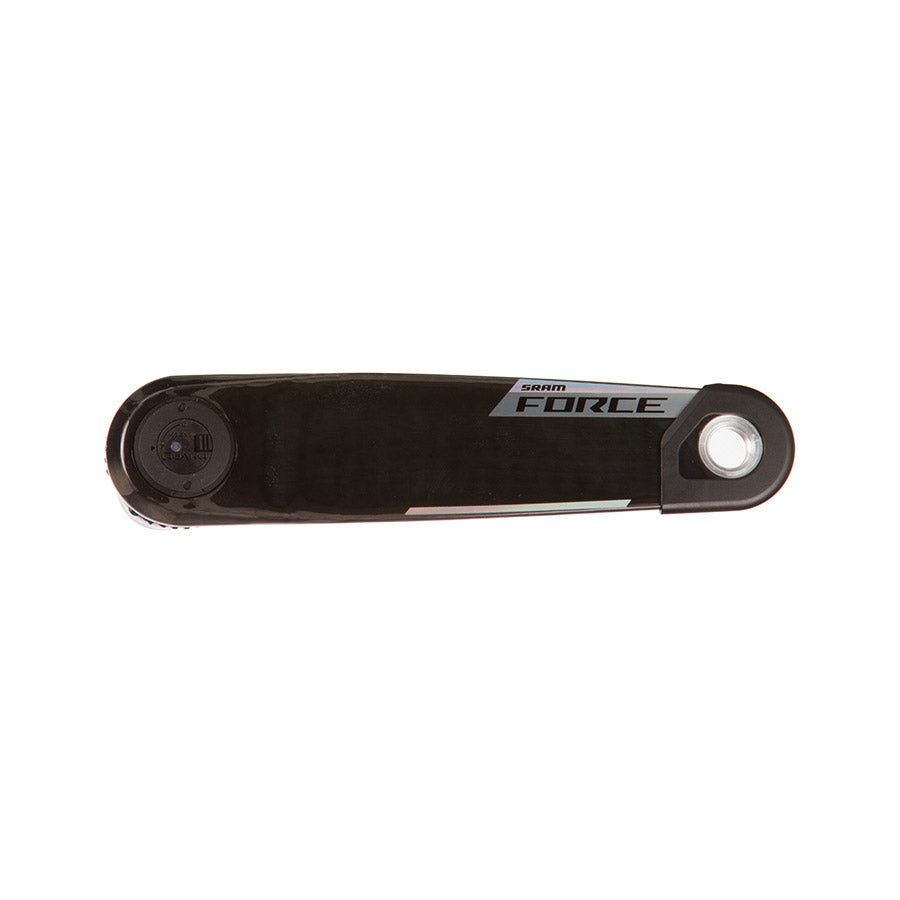

• Upgrade your existing Force XPLR (Wide) E1 crank with a spindle based power meter
• Proven Quarq reliability and accuracy
• Long battery life to power a season of rides
• Waterproof (IPX7) waterproof to 1 meter for 30 minutes)
• Spindle-based unit measures left side power to calculate total watts
• SRAM Model ID: PM-FRC-ASSY-E1

• Material: Carbon
• Chain Compatibility: SRAM 11 sp
• Pedal Spindle: 9/16''
• Bottom Bracket: Not included

• Carbon technology
• 11 speed X Glide R chainrings
• For Force22 11sp YAW FD and shifters
• AL 7075-T6 hidden spider
• SRAM Model ID: FC-FRC-2X11-A1

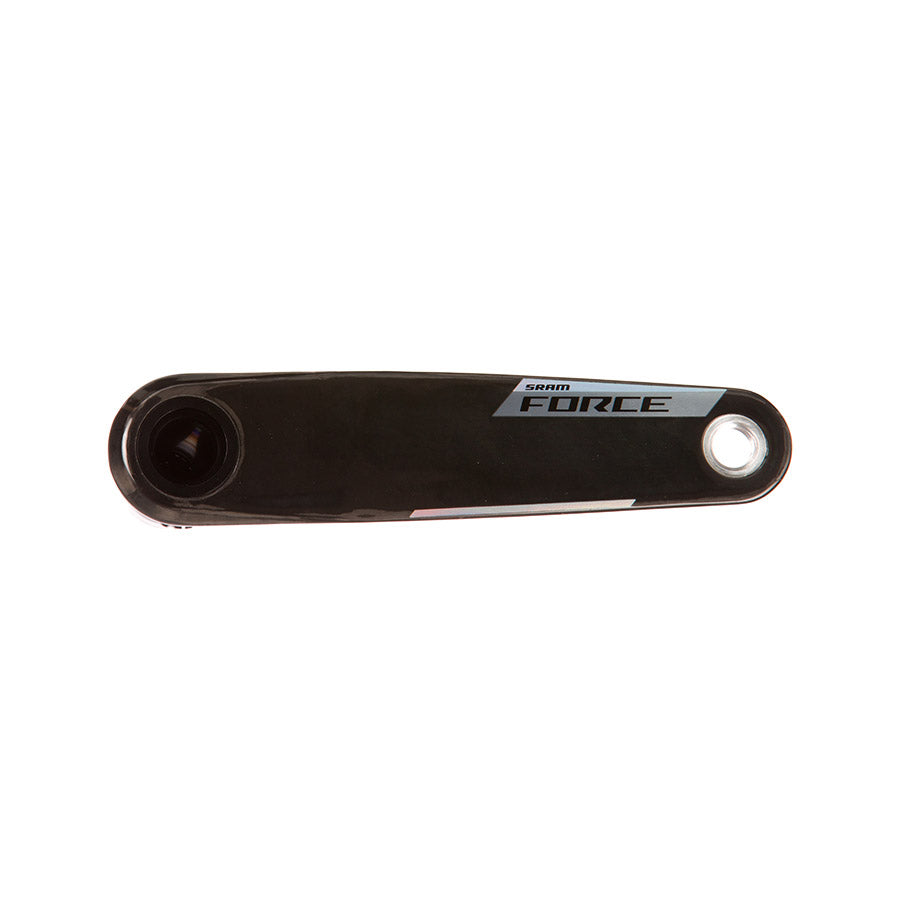

• Upgrade your existing Force E1 crank with a spindle based power meter
• Proven Quarq reliability and accuracy
• Long battery life to power a season of rides
• Waterproof (IPX7) waterproof to 1 meter for 30 minutes)
• Spindle-based unit measures left side power to calculate total watts
• SRAM Model ID: PM-FRC-ASSY-E1

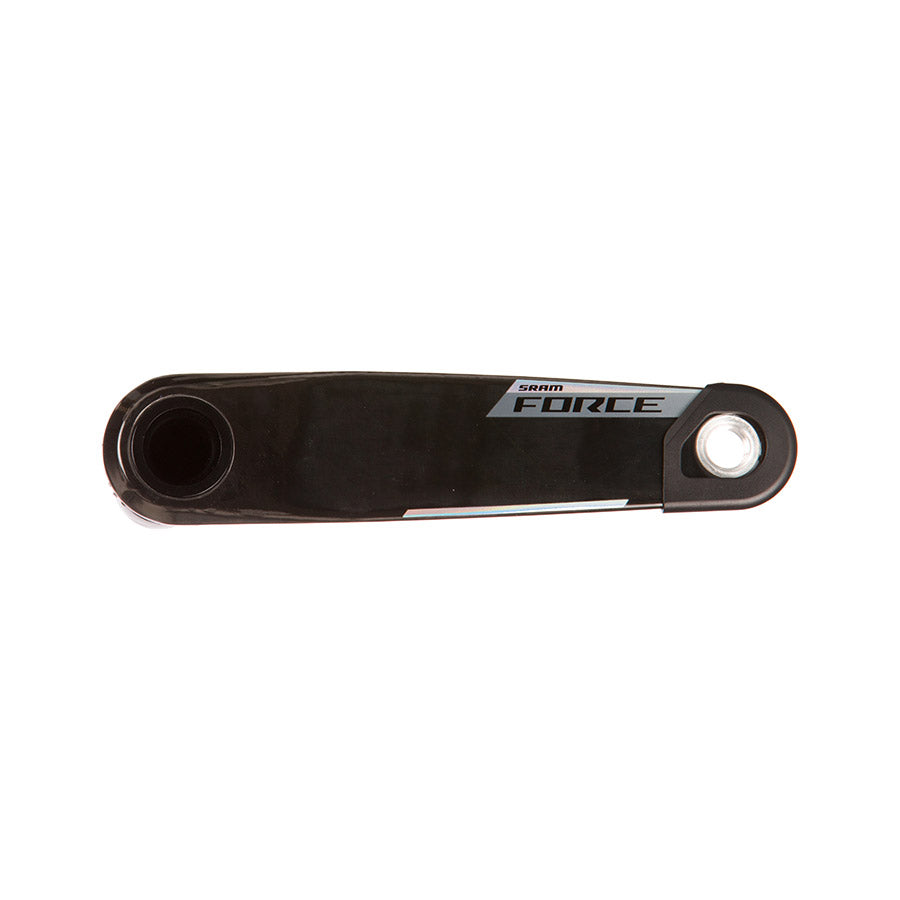

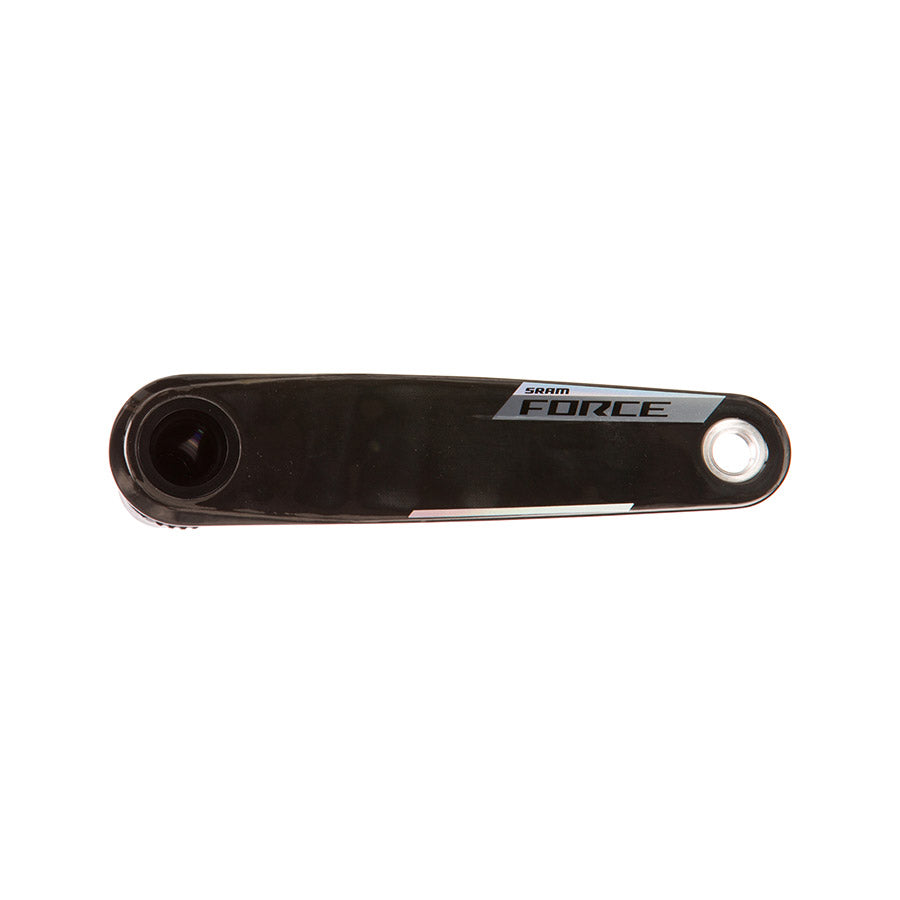

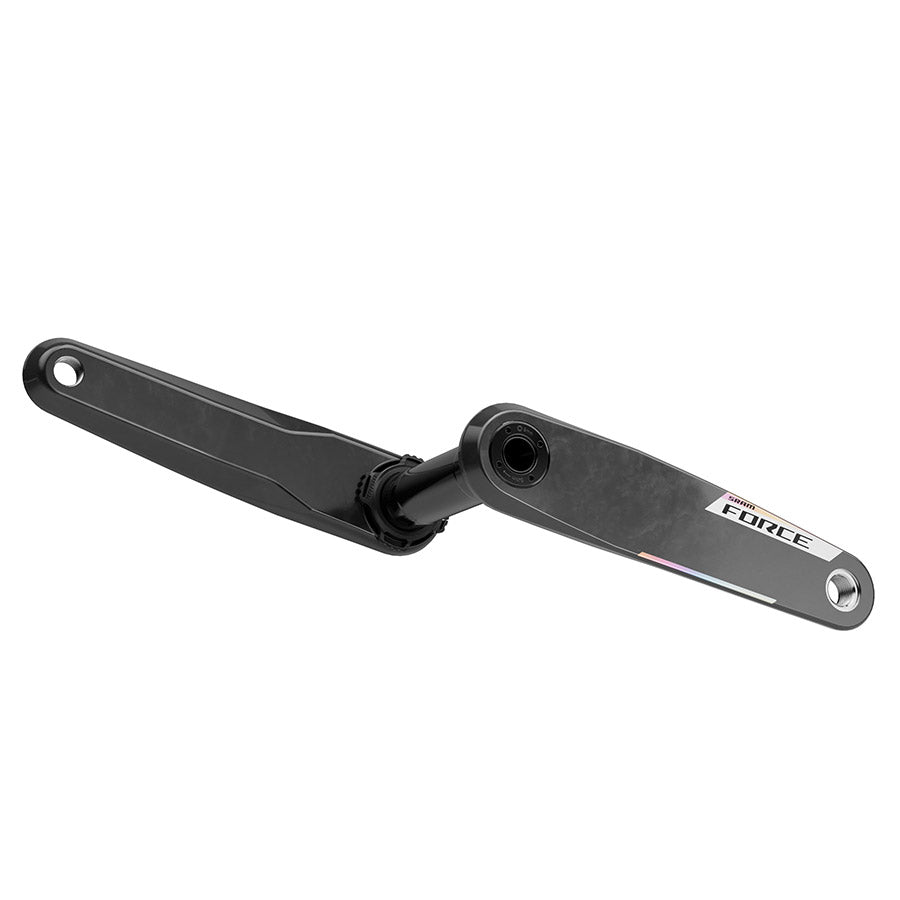

Form and function. The design of the Force crankarm is a wonder of carbon; light and stiff to effortlessly propel you forward. The 8-bolt interface will fit any SRAM AXS spider or integrated chainring, with or without power. The light, stiff, and durable DUB spindle interface also fits nearly any frame.

Form and function. The design of the Force crankarm is a wonder of carbon; light and stiff to effortlessly propel you forward. The 8-bolt interface will fit any SRAM AXS spider or integrated chainring, with or without power. The light, stiff, and durable DUB spindle interface also fits nearly any frame.
• SRAM Model ID FC-FRC-ASSY-E1

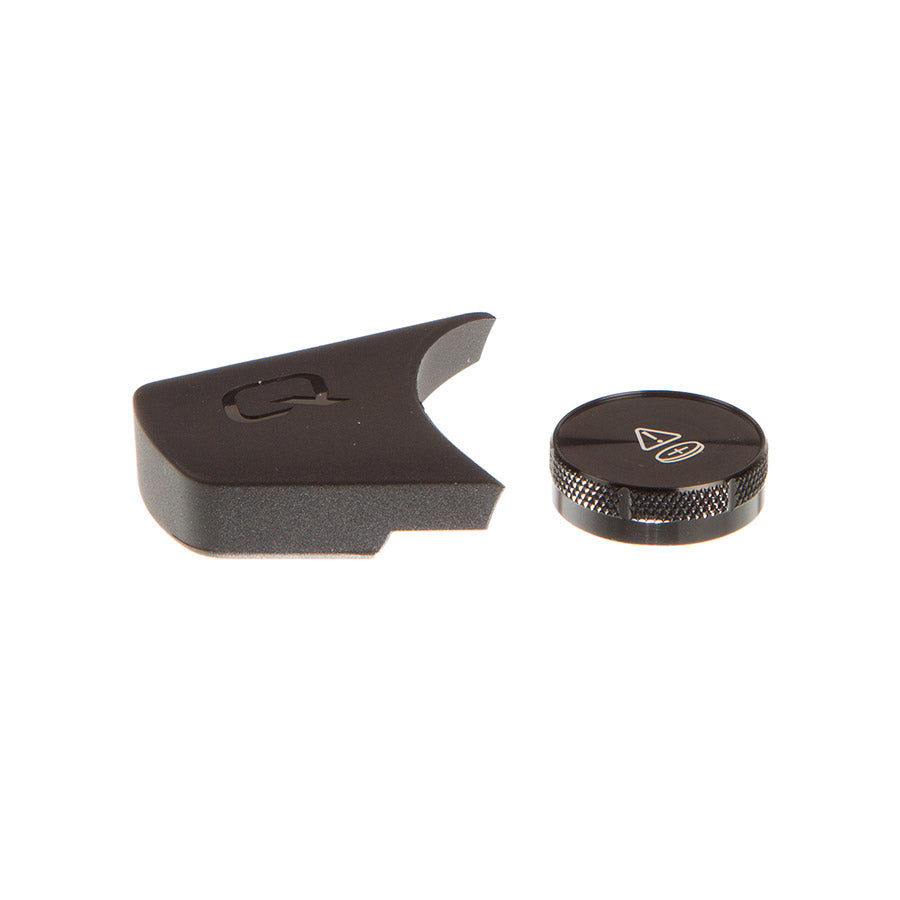

• POWERMETER BATTERY LID AND COVER QUARQ ETAP AXS FORCE 2X/1X & RED 1X
• SRAM Model ID: PM-SPP-A0

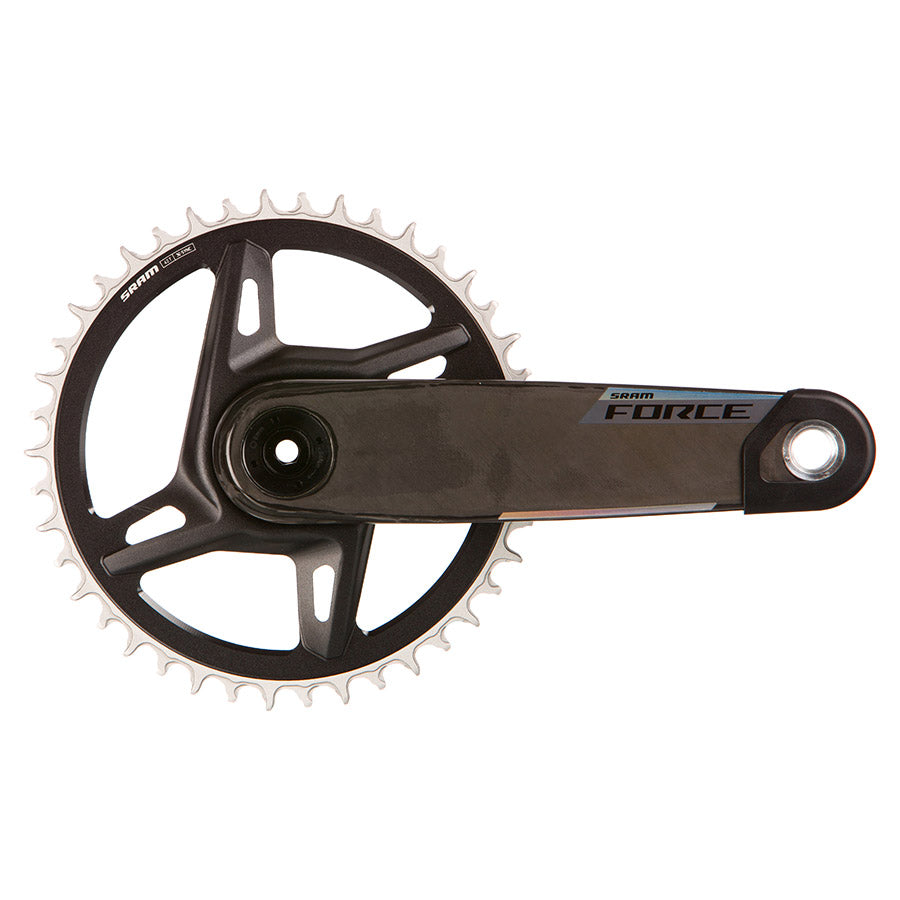

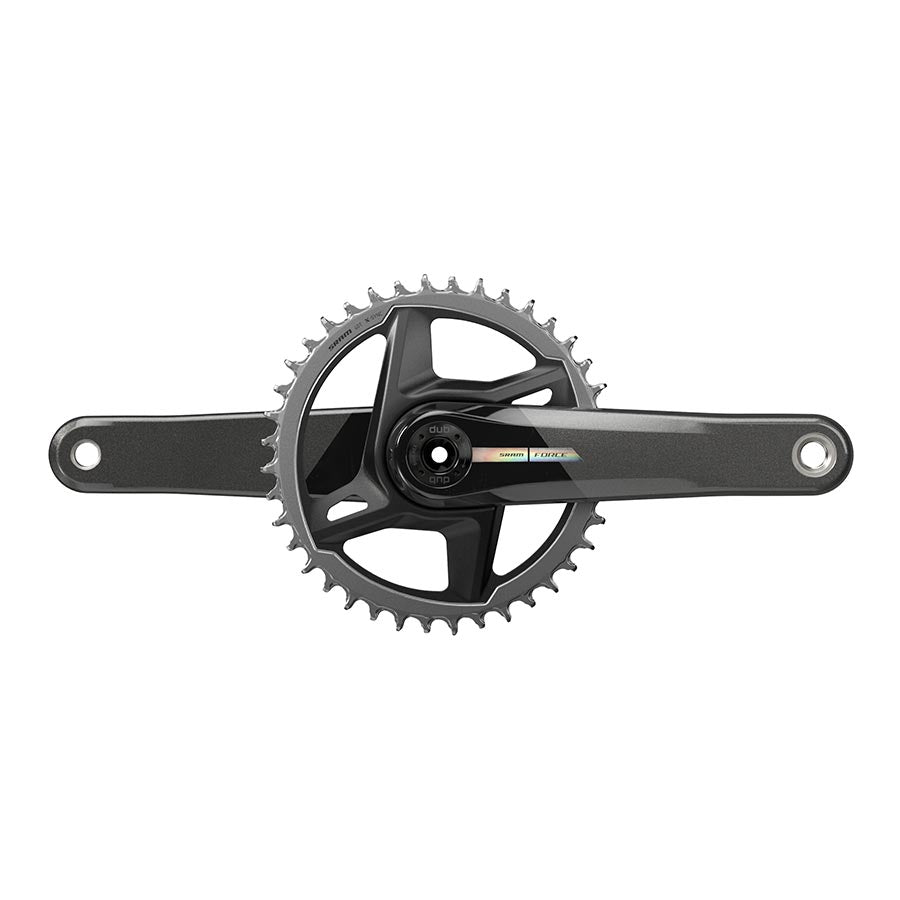

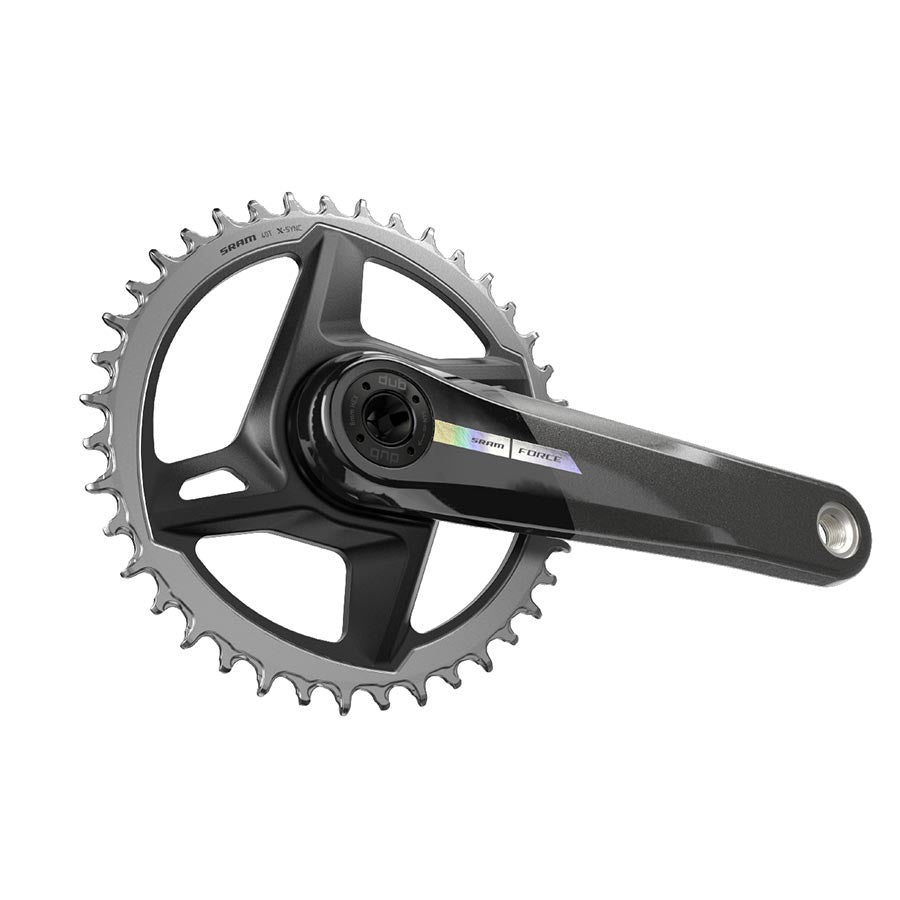

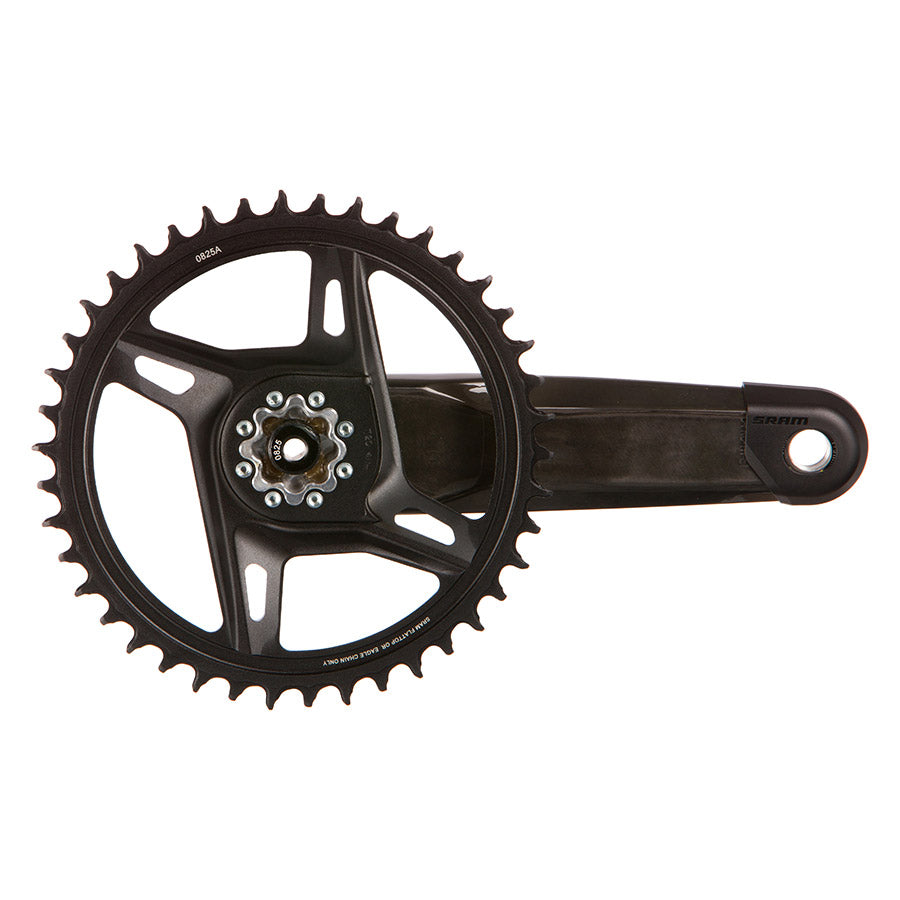

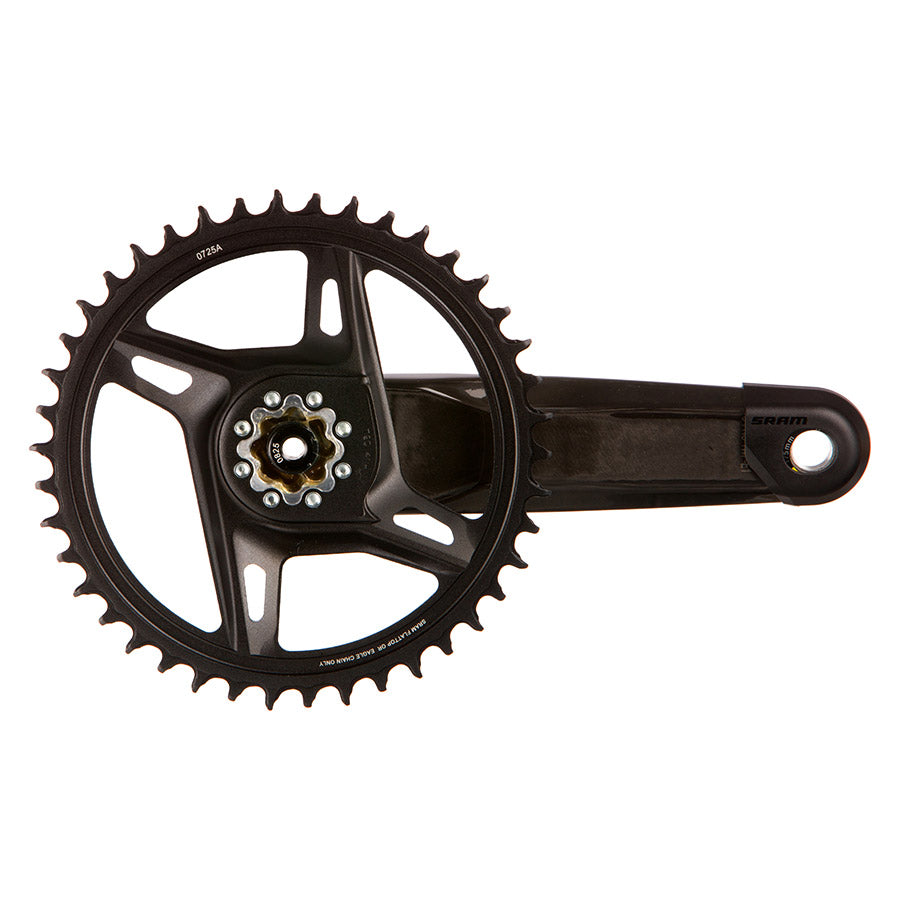

A single chainring with a wide-range cassette is a wonderfully clean way to tackle so many disciplines. Gravel, TT, tri or crits: just pick the right chainring size and go. Lightweight and strong direct mount chainrings feature X-SYNC tooth technology to maximize chain retention, and they bolt to carbon arms with a spectacular but subtle finish.

• Single-ring drivetrain simplifies functionality and reduces weight
• Direct mount chainrings are lighter and stiffer than traditional spider-based rings
• SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
• DUB bottom bracket adds durability and simplicity
• Can be upgraded to a power meter
• SRAM Model ID: FC-FRC-1-D2

• The Force XPLR AXS power meter is elegantly hidden inside the DUB Wide spindle, which lets you stealthily gather the data you need to progress
• Spindle-based unit measures left side power to calculate total watts
• User replaceable AAA battery provides a season (400+ hours) of rides
• Less than 40g heavier than standard crankset
• SRAM Model ID: FC-FRC-1WP-E1

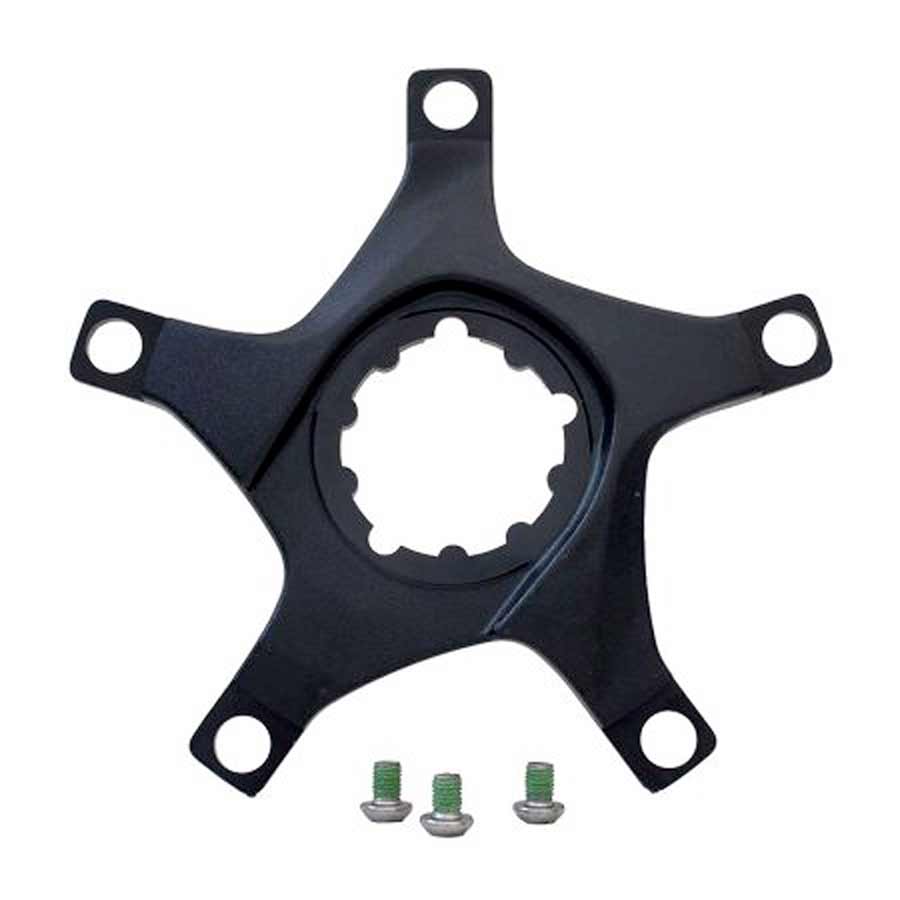

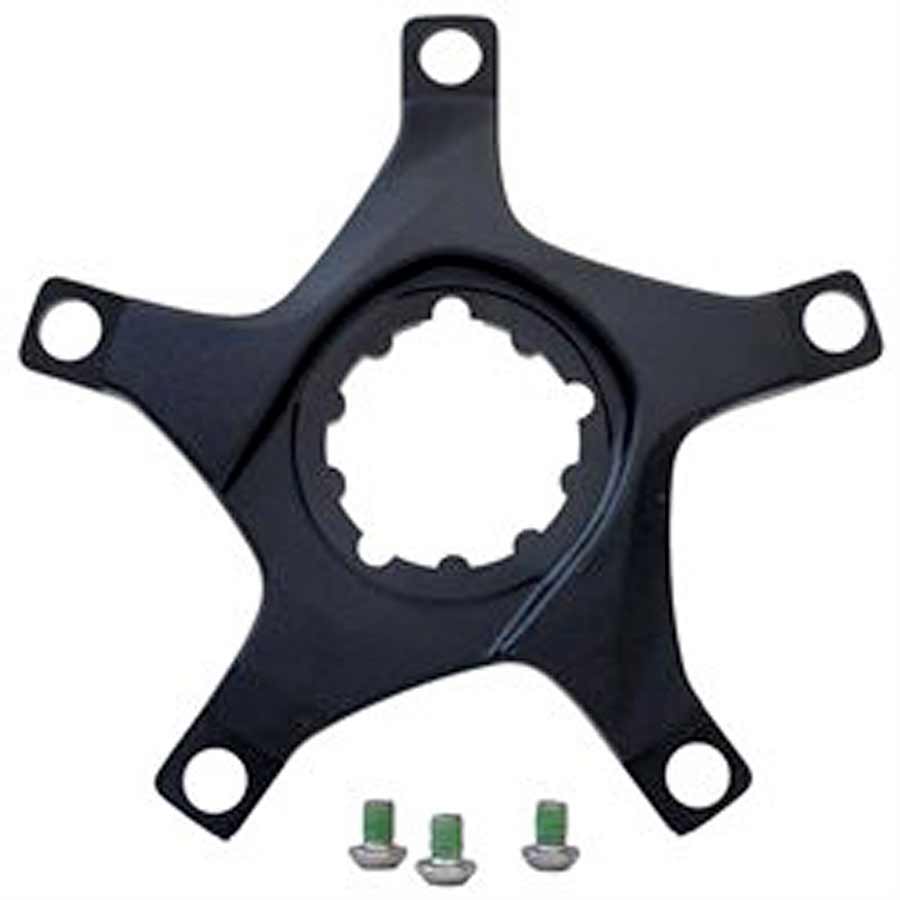

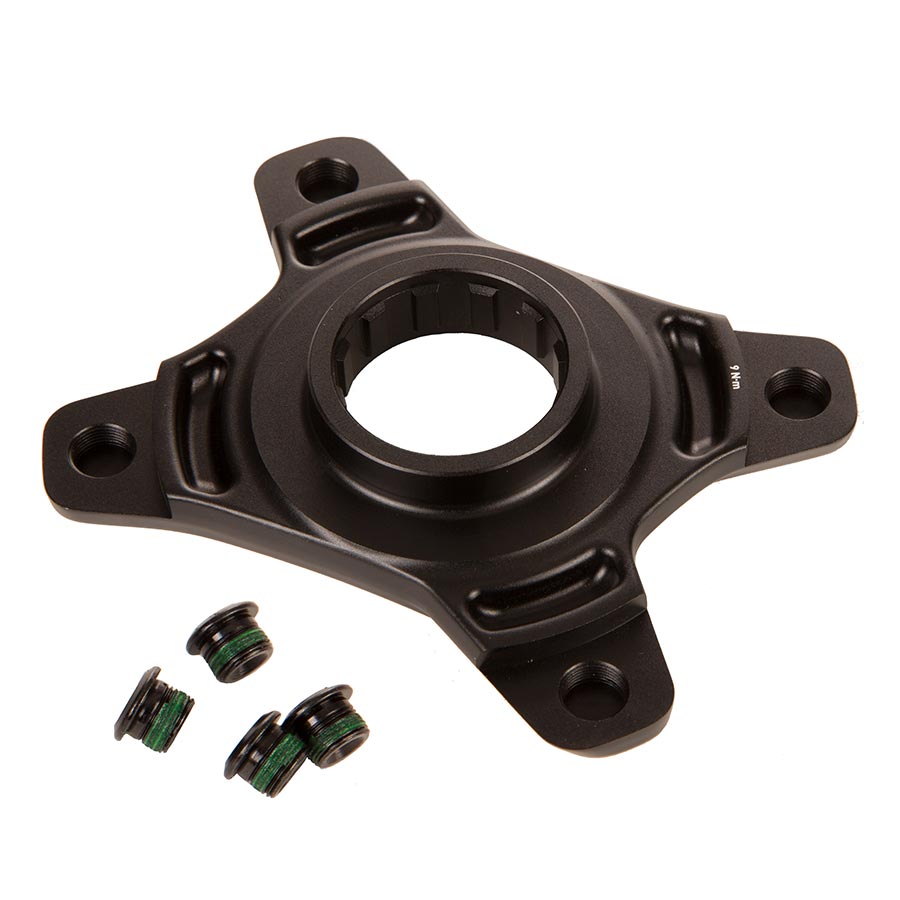

• Replacement spider for Force cranks
• Compatible with 2x or 1x setups
• SRAM Model ID: FC-SPP-A0

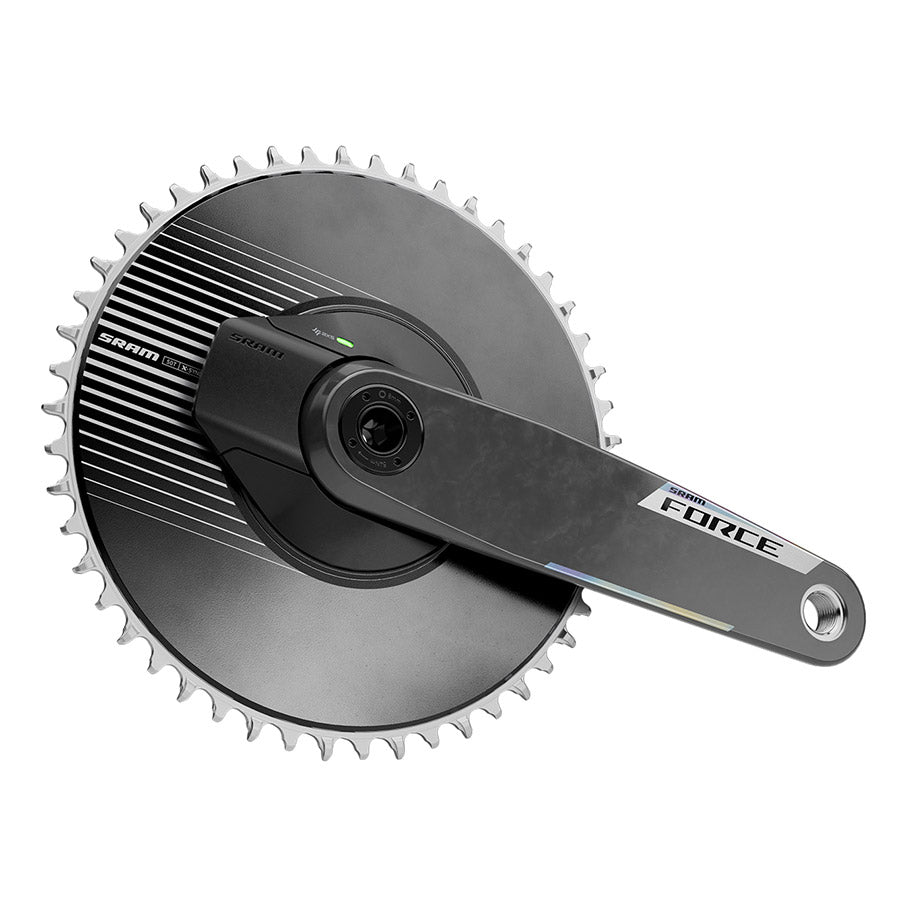

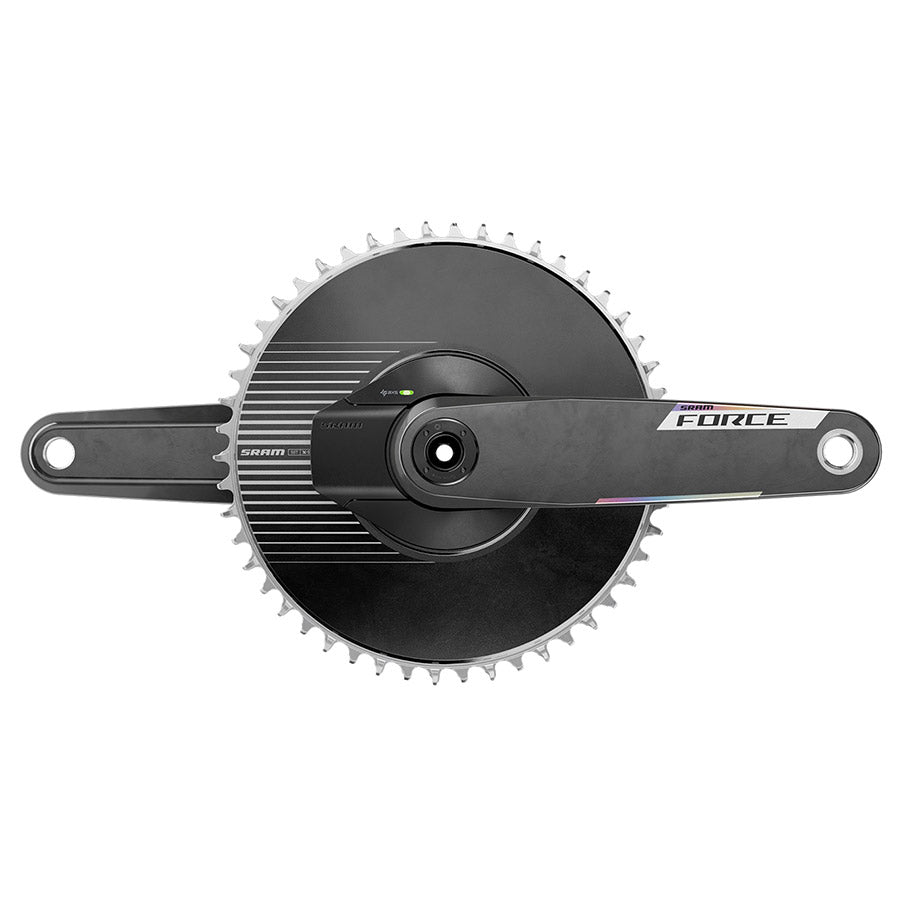

• Measure your ride power data more accurately than ever with the Force 1 AXS power meter. It’s the lightest and stiffest integrated Force power meter yet.
• Accurate to +/-1.5% and unaffected by temperature changes
• Power meter is fully integrated into the chainring for lighter weight and greater accuracy
• Measures right and left leg power balance
• SRAM Model ID: FC-FRC-1P-E1

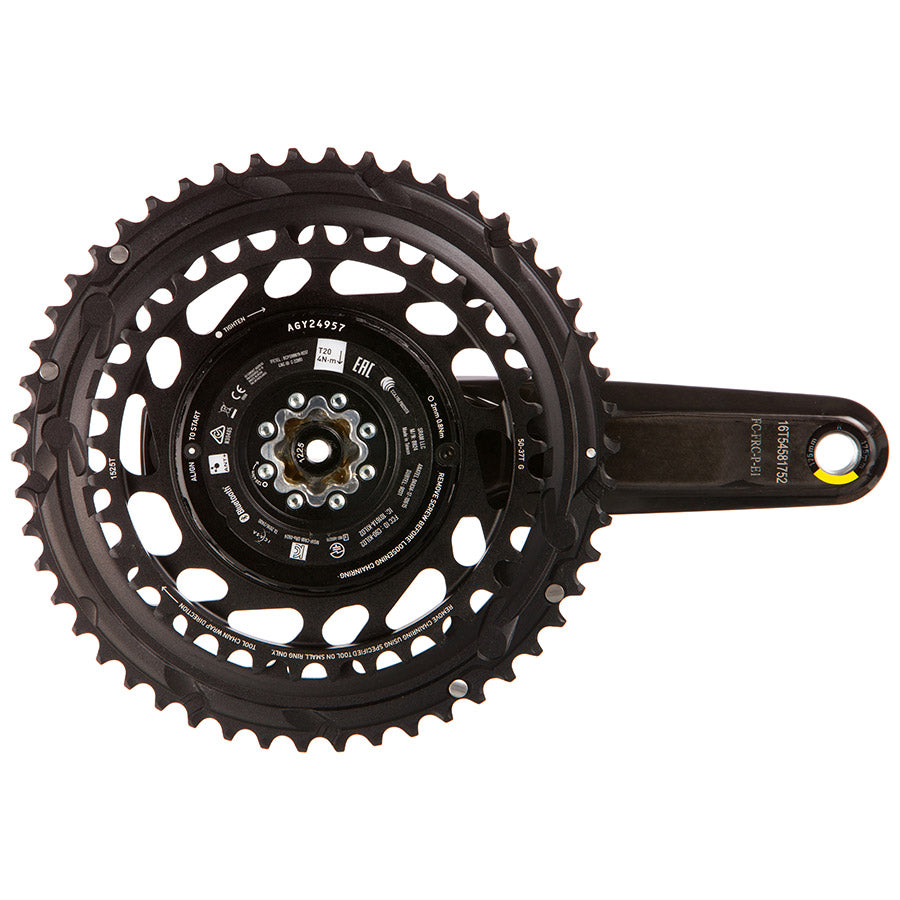

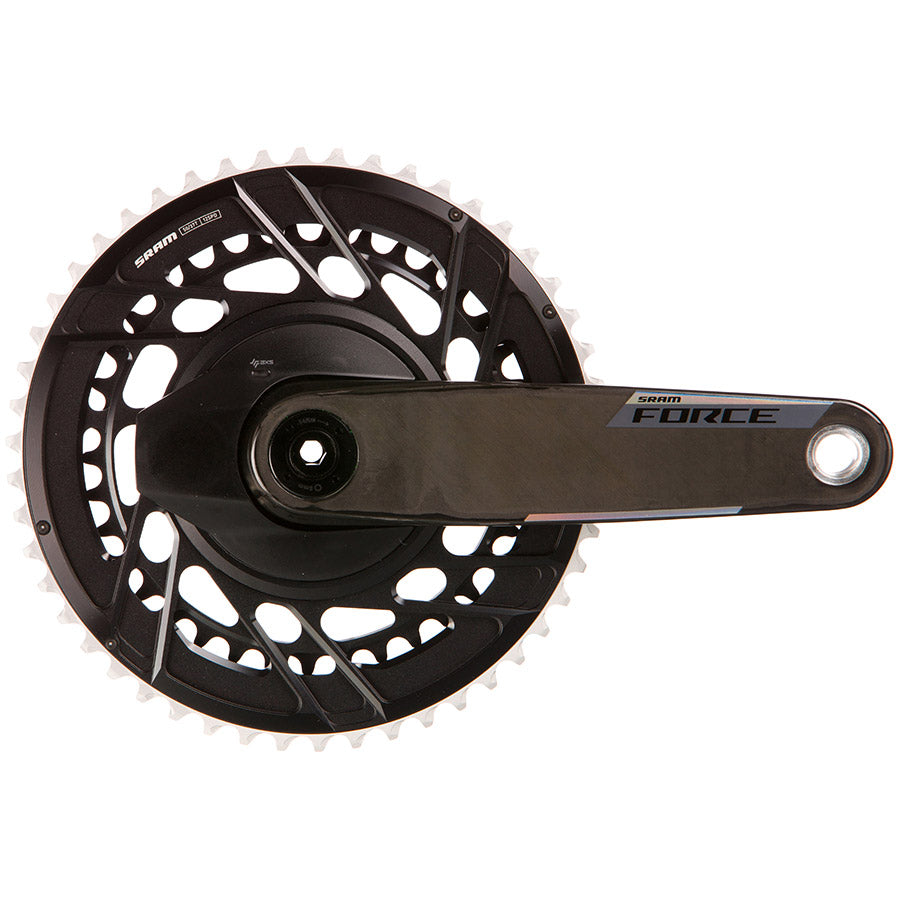

• Built upon the stability and accuracy of the RED AXS integrated power meter, now providing riders even more options for customization and serviceability at the Force level.
• Spider based powermeter measures right and left power, and allows riderto thread on and off desired chainring sizes for unmatched performance.
• Power readings are accurate within +/-1.5% and aren’t affected by climate conditions during a ride
• SRAM Model ID: FC-FRC-P-E1

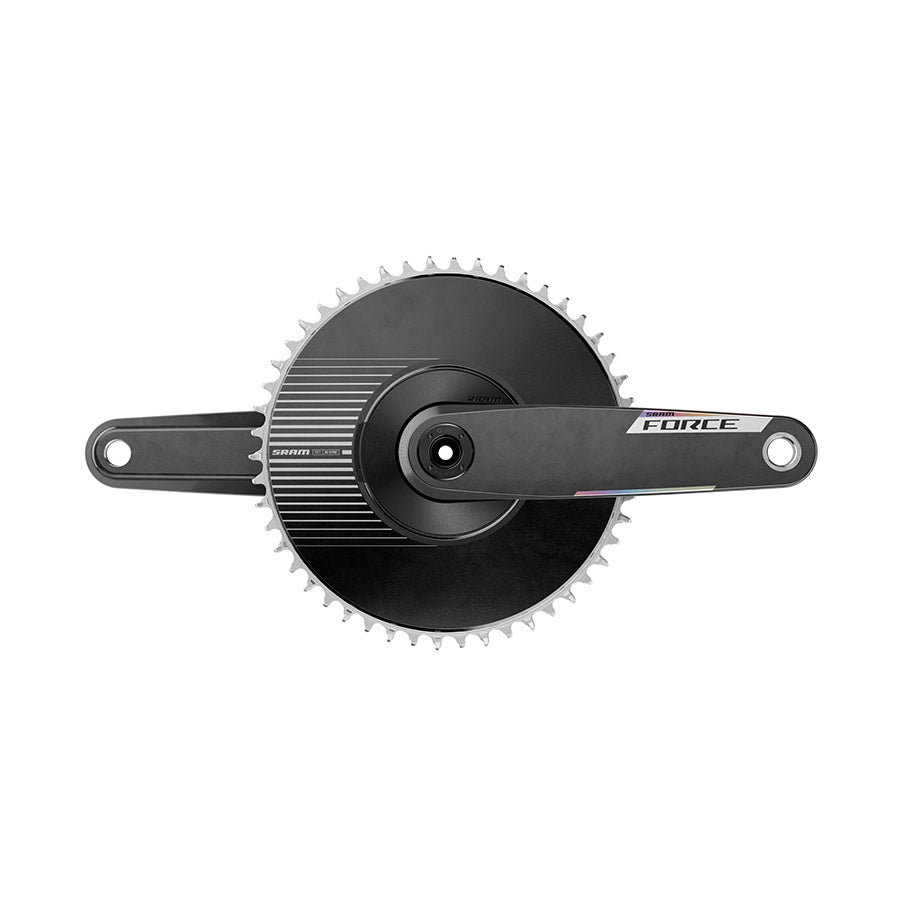

• Single-ring drivetrain simplifies functionality and reduces weight
• Direct mount aero chainrings for better aerodynamics
• X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
• DUB bottom bracket adds durability and simplicity
• Can be upgraded to a power meter
• SRAM Model ID: FC-FRC-1-E1

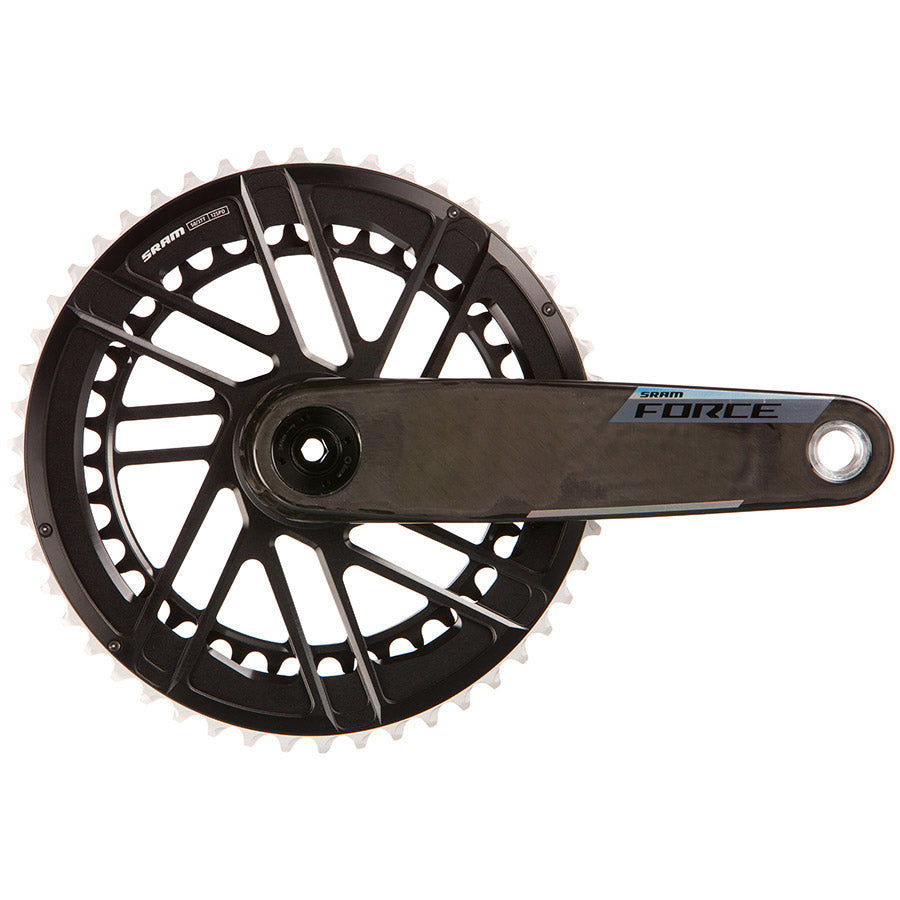

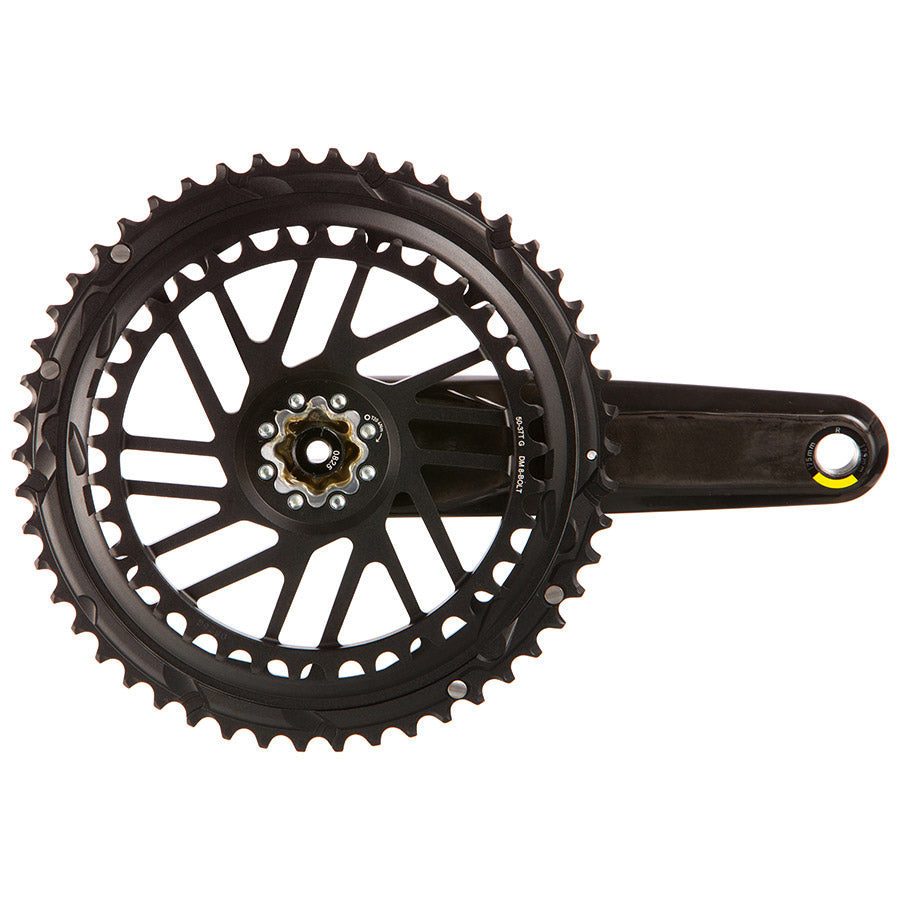

• One-piece 2x chainring results in a lighter weight, stiffer, more durable crankset
• X-Range gearing technology gives you more range and a smoother gear progression, so you’re always in the right gear
• Crisp and accurate front shifts
• DUB bottom bracket adds durability and simplicity
• 46/33T, 48/35T or 50/37T chainring combinations available
• Can be upgraded to a power meter
• SRAM Model ID: FC-FRC-E1

• Single-ring drivetrain simplifies functionality and reduces weight
• X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
• DUB Wide bottom bracket adds durability and simplicity
• Can be upgraded to a power meter
• SRAM Model ID: FC-FRC-1W-E1

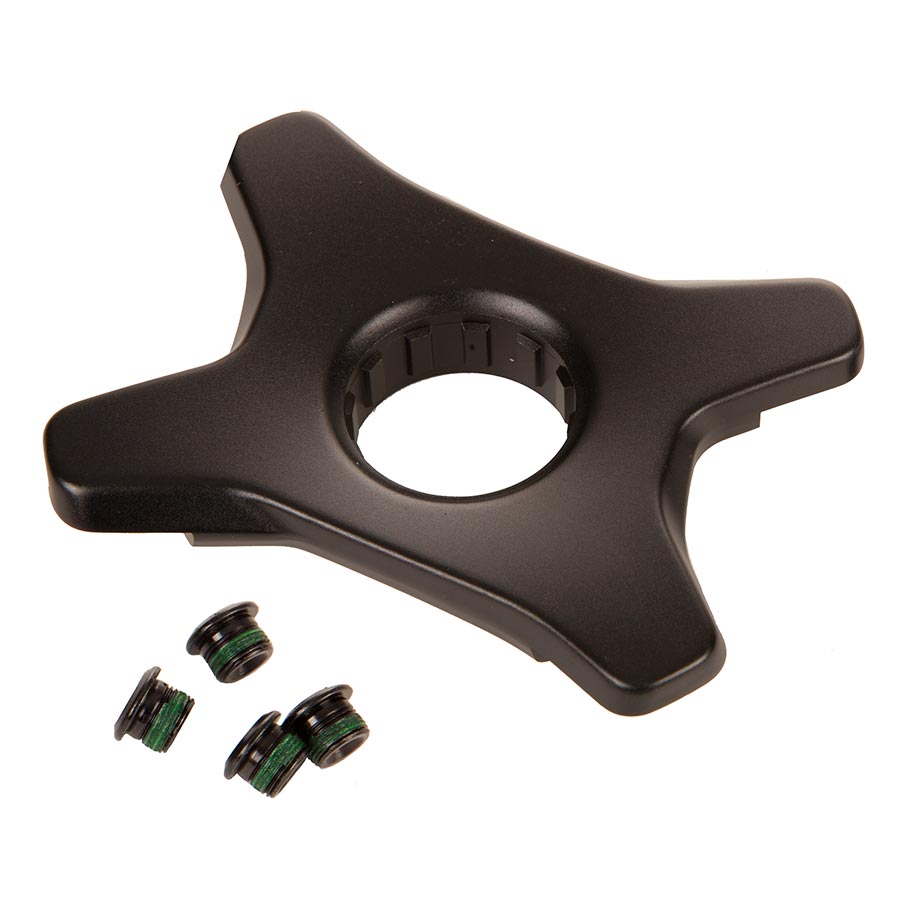

• Crank Spider Fazua 107Bcd (No Chain Ring, Including Chainring Bolts)
• SRAM Model ID: FC-SPP-A0

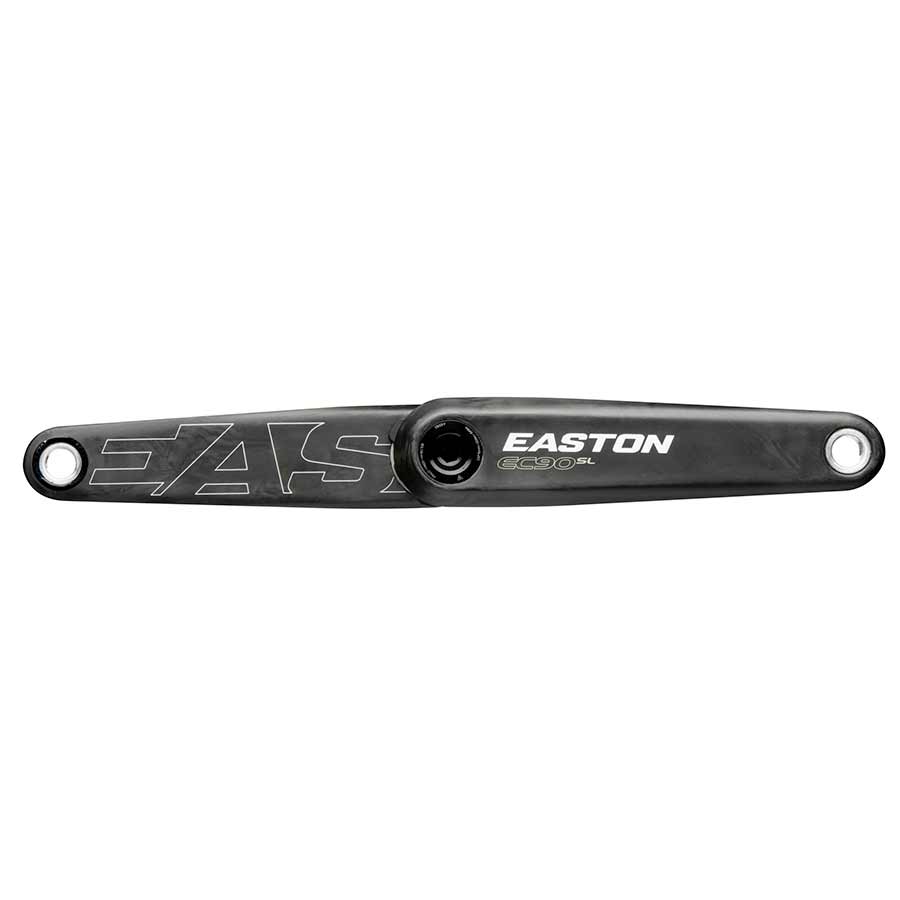

• High performance carbon layup makes a strong crankset
• 30mm spindle
• 504g (w/o chainring)
• Fits standard 68/73 BB shell

• Forged aluminum - durable and robust design
• 30mm spindle

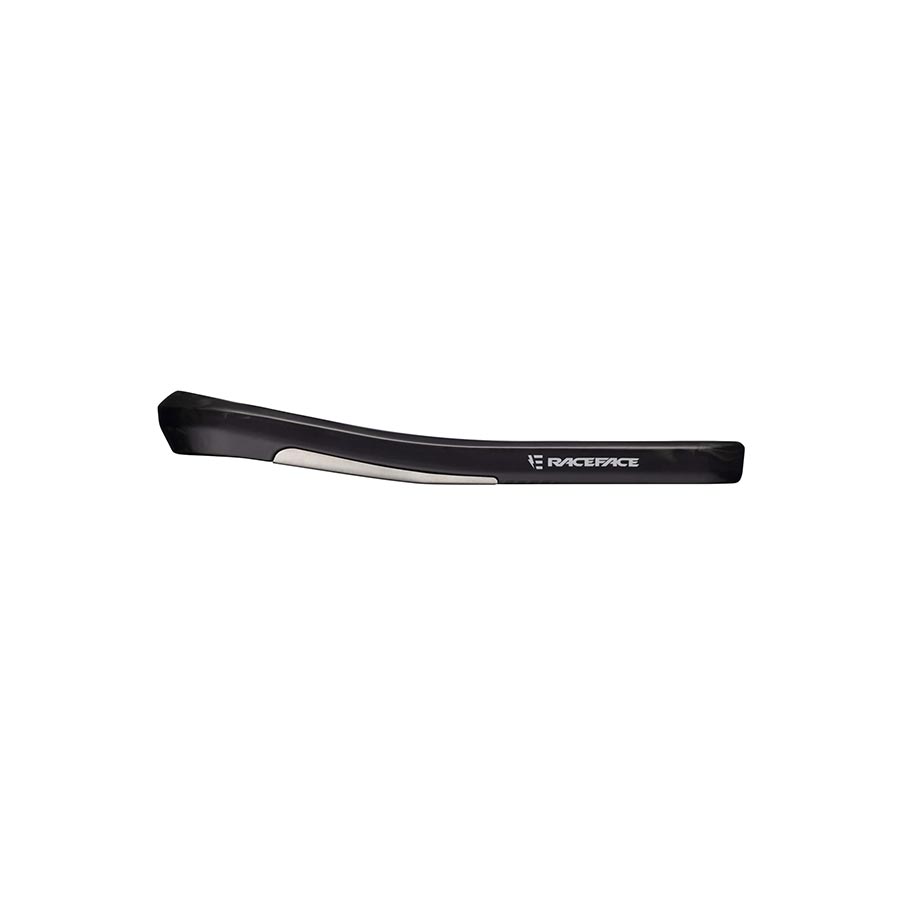

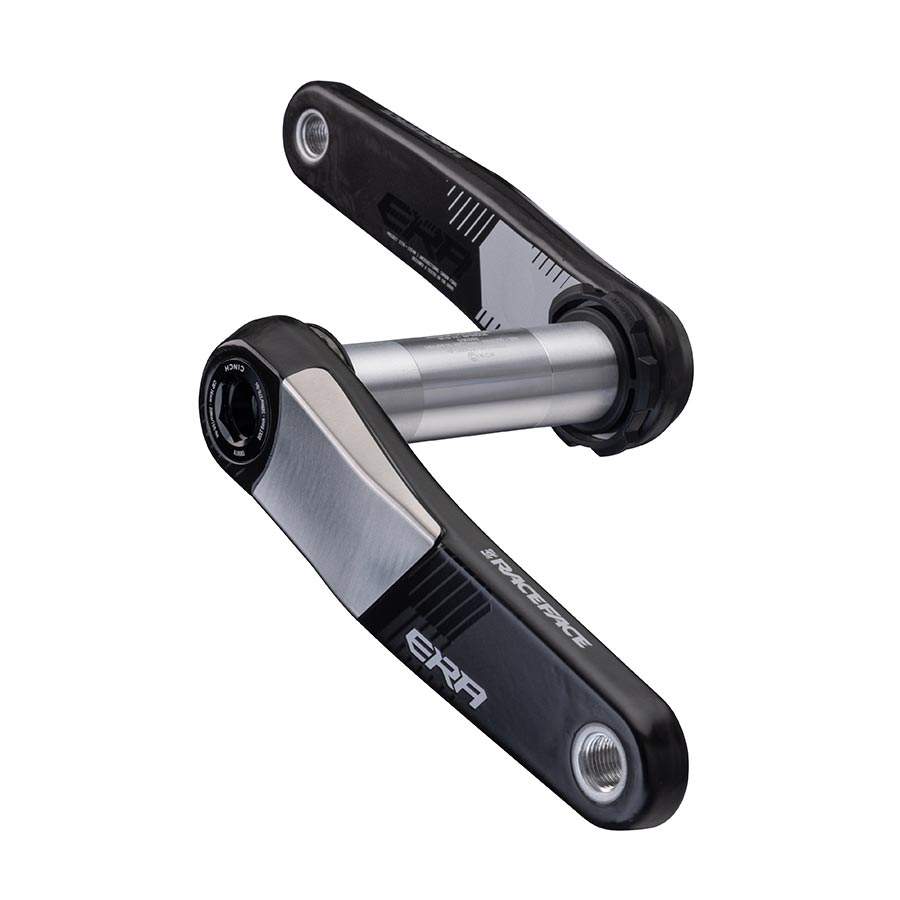

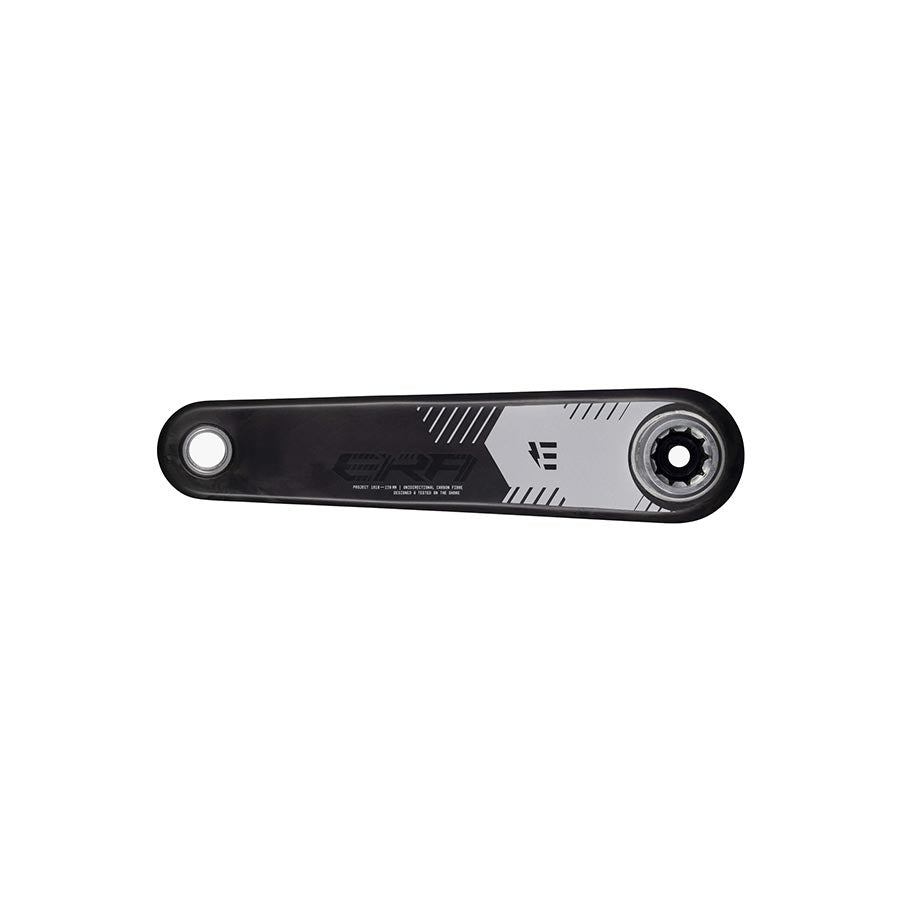

• The strongest, stiffest and most durable carbon crankever created by Race Face
• Stainless steel wear plate guards against the damage caused by footwear friction while adding additional impact protection
• Redesigned pedal inserts from previous generation cranks
• e-Bike rated

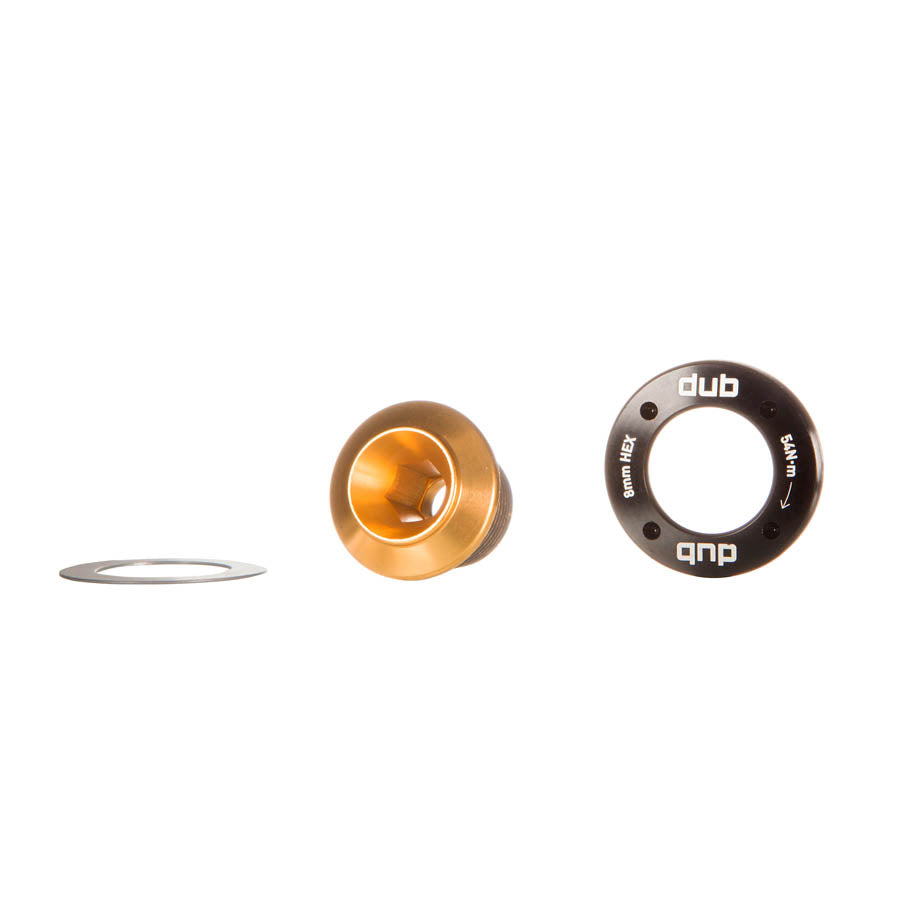

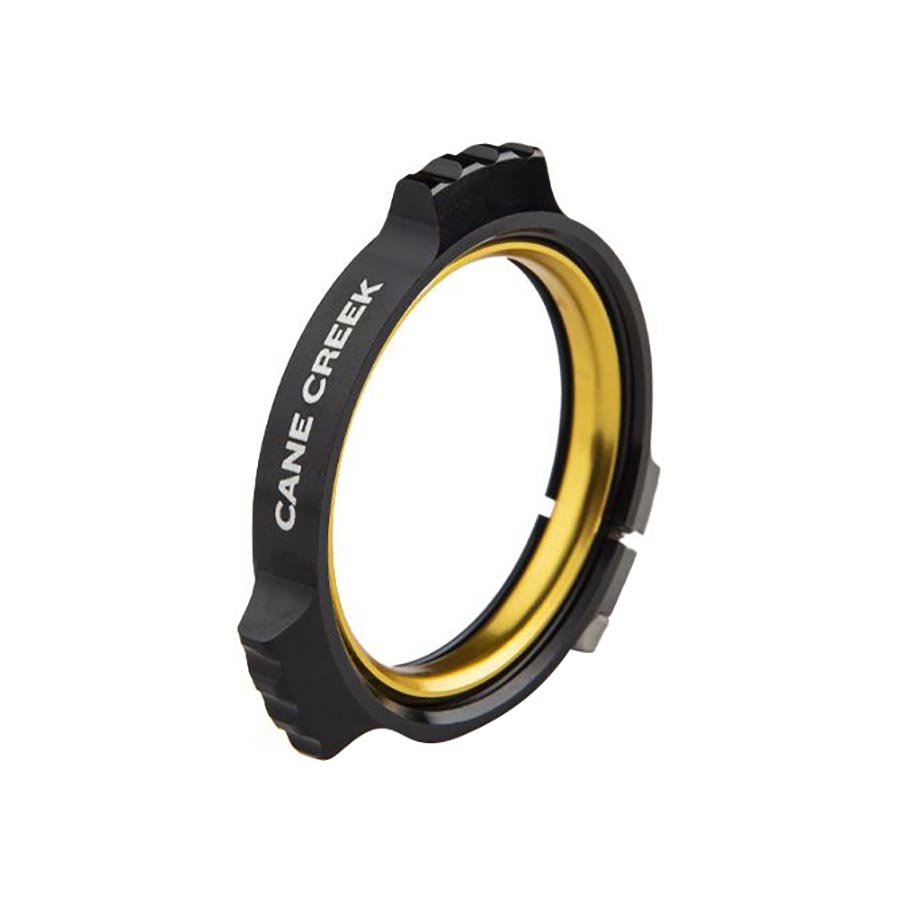

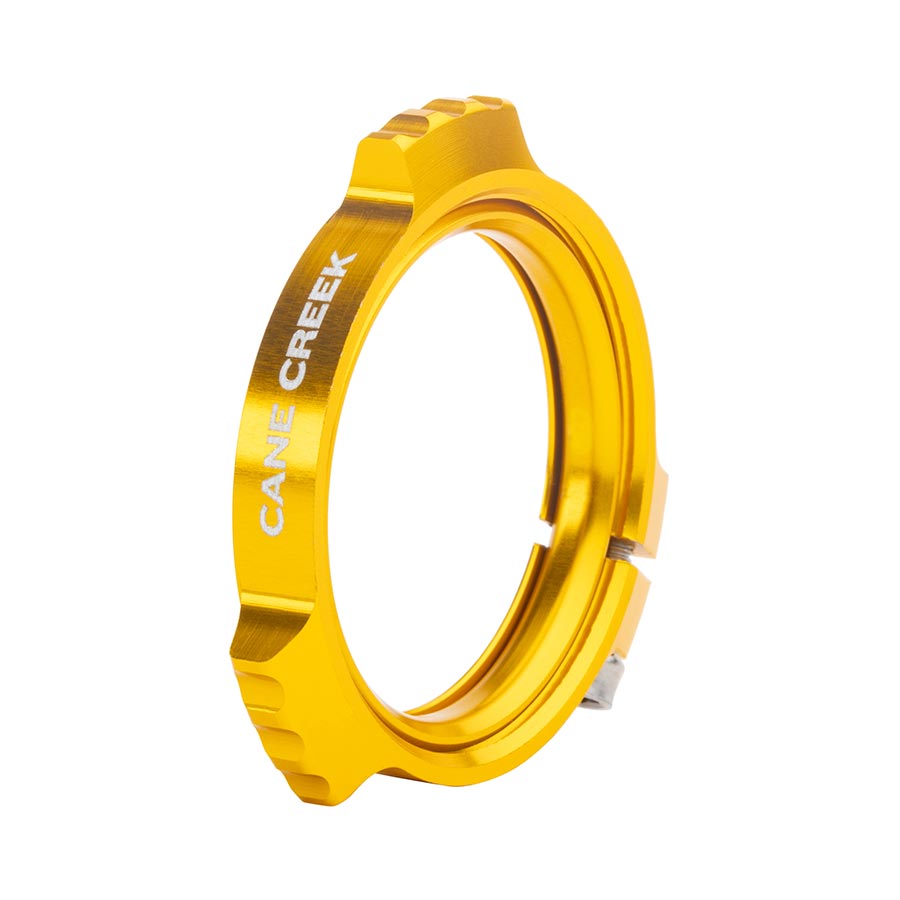

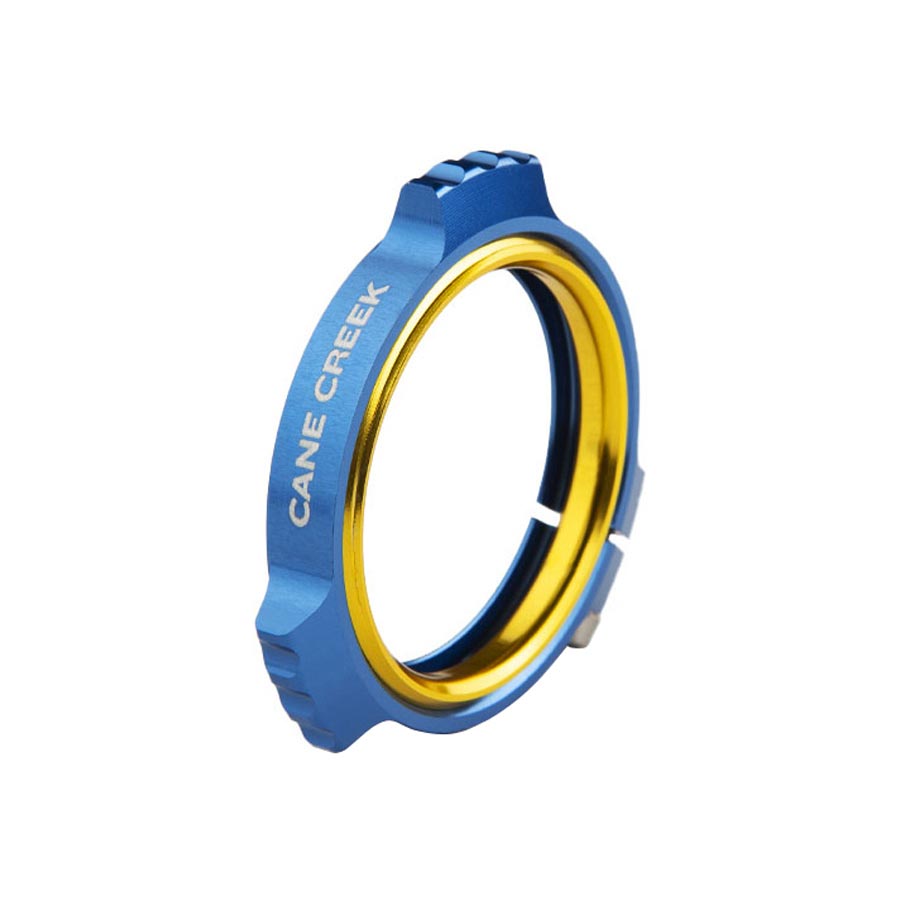

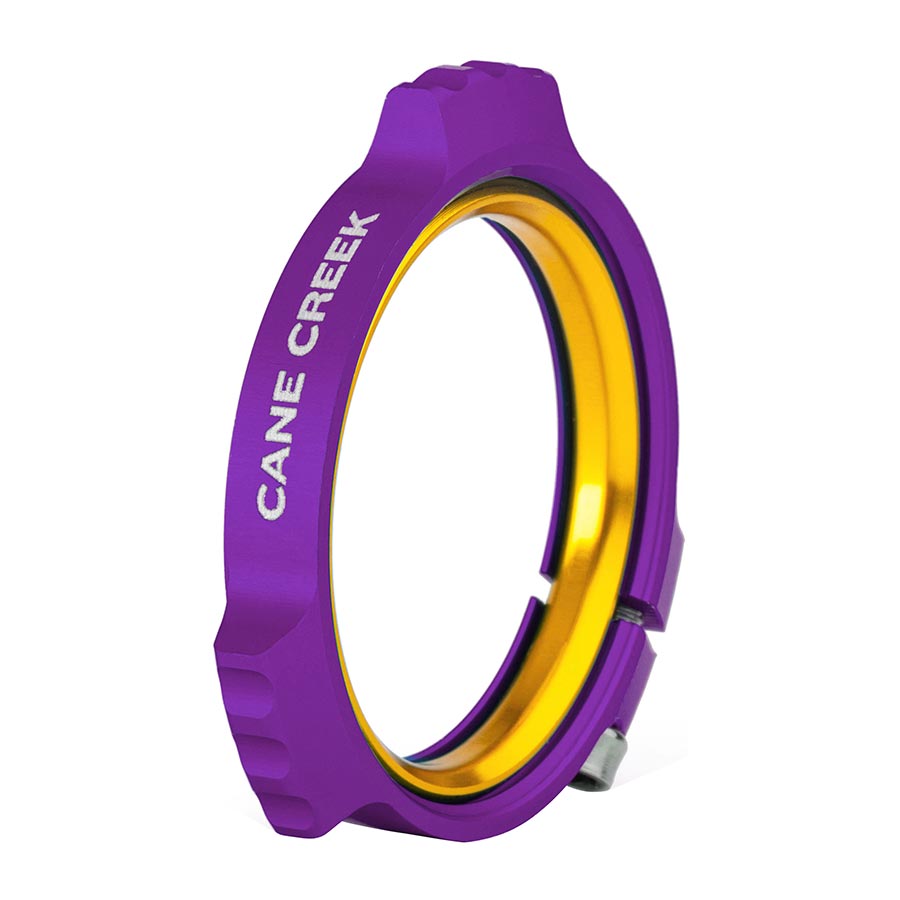

• Black aluminum spacer preload ring, a gold aluminum thread ring, and a titanium 2.5mm hex fastening bolt
• Designed to fit onto 30mm crank spindles from SRAM and Raceface
• Loose the plastic preload on your crankset, add piece of mind

• Cinch Direct Mount Technology for 1x
• Direct power transfer from stiff carbon fibre construction
• Built for Road, CX, Gravel, Tri, TT
• Chainline: 1x = 47mm, 2x = 45mm
• Weight: 442g (40t, 1x), 590g (2x)
• Q-Factor: 149mm
• Bottom bracket/spider sold seperately
• For 2x configurations, removeable spider required.

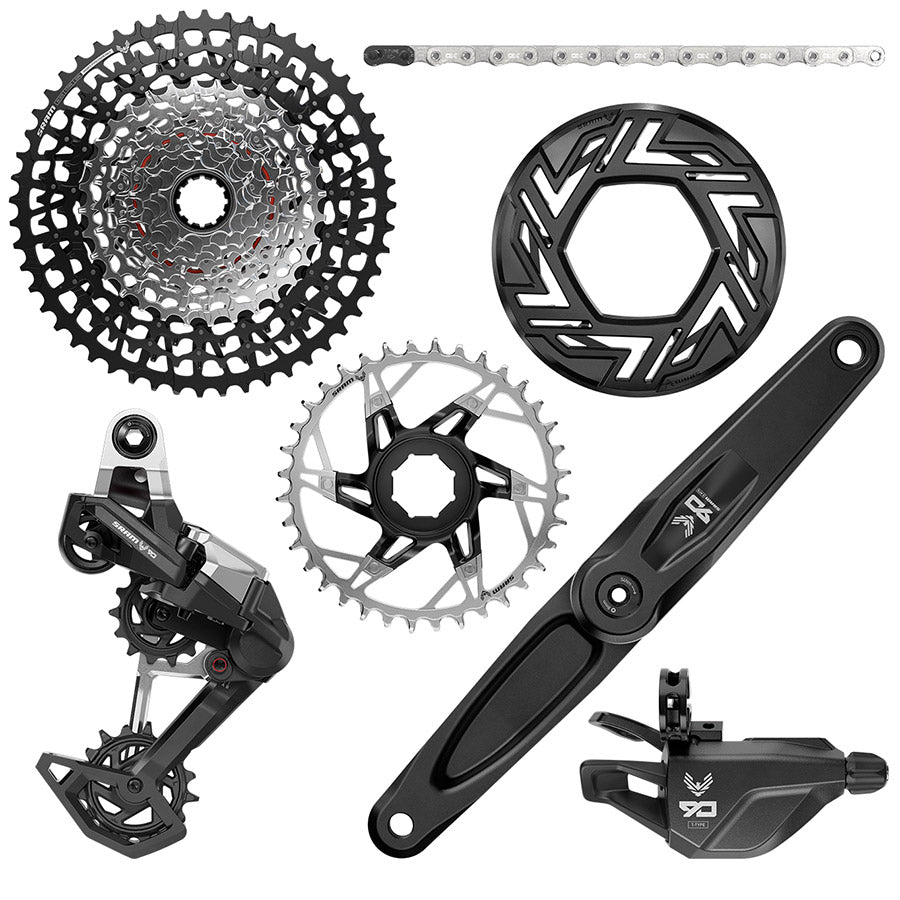

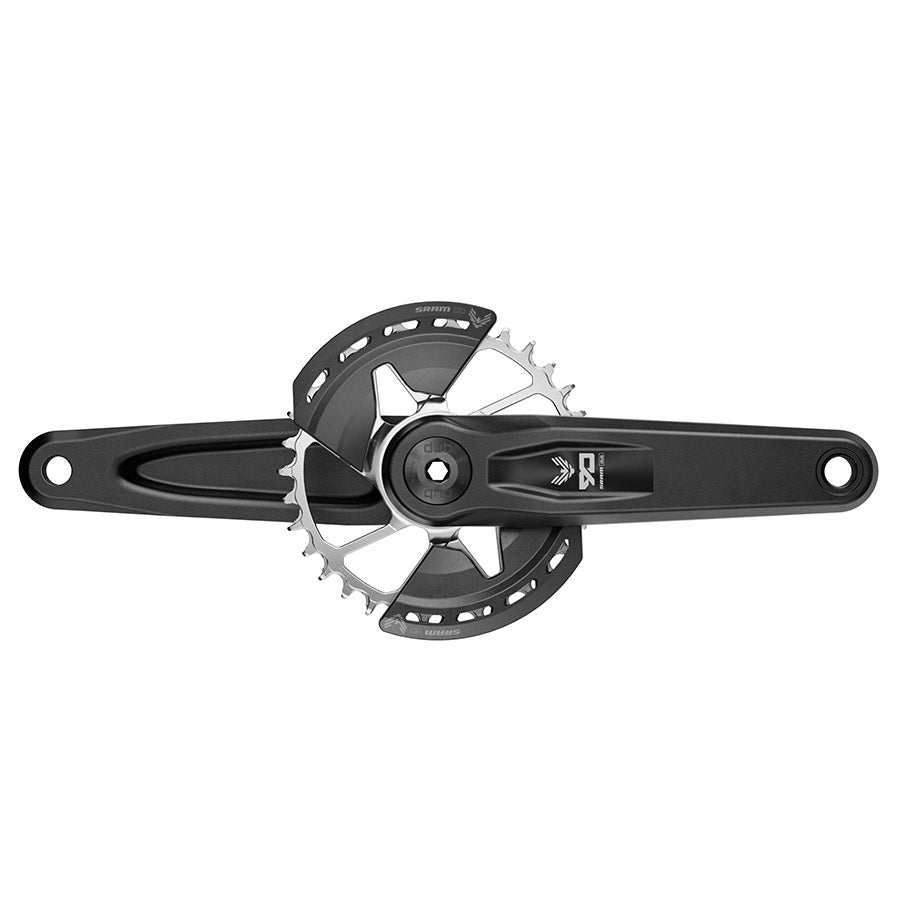

• Forged aluminum crankarm with 8-bolt T-Type chainring compatibility
• Stamped steel chainring for maximum durability
• Two independently removeable composite bashguards shared with GX and X0
• DUB Wide spindle for 55mm chainline
• SRAM Model ID: FC-90-A1

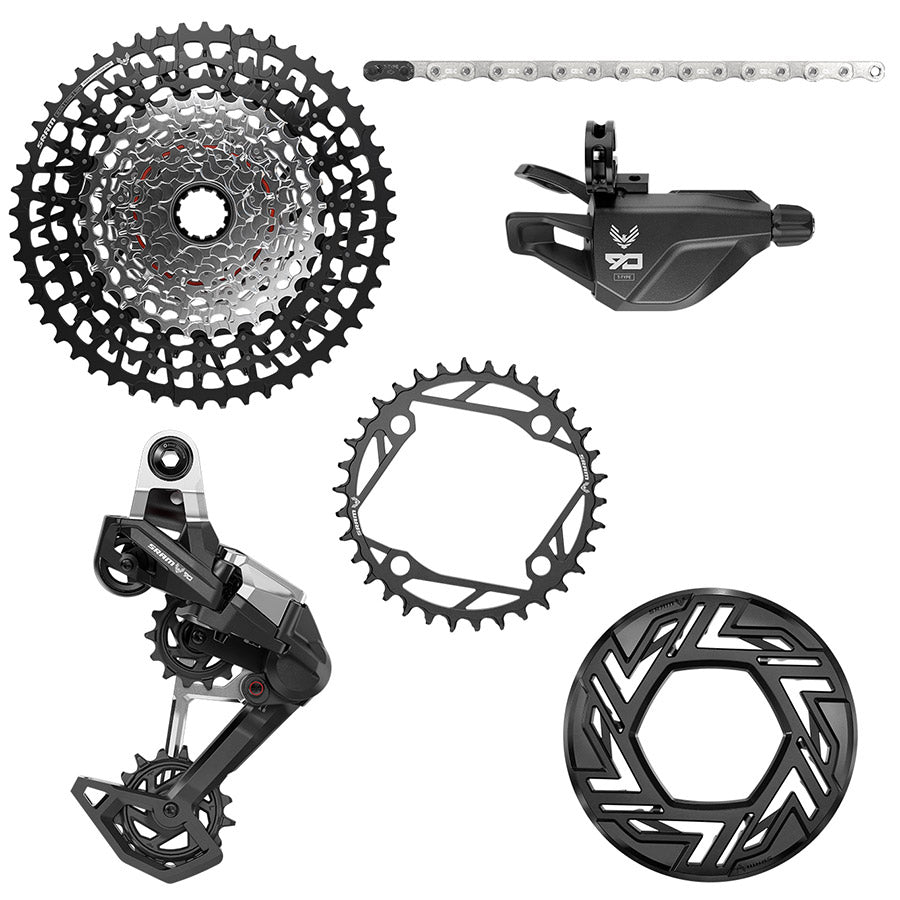

• Forged aluminum arms with GapCap for an integrated look
• SRAM Powertrain, Brose, Bosch, and Bosc CX BDU38 options
• Crank arm GapGap removeable for compatibility with other ISIS spindle-based motor systems
• SRAM Model iD: FC-90-PA-A1

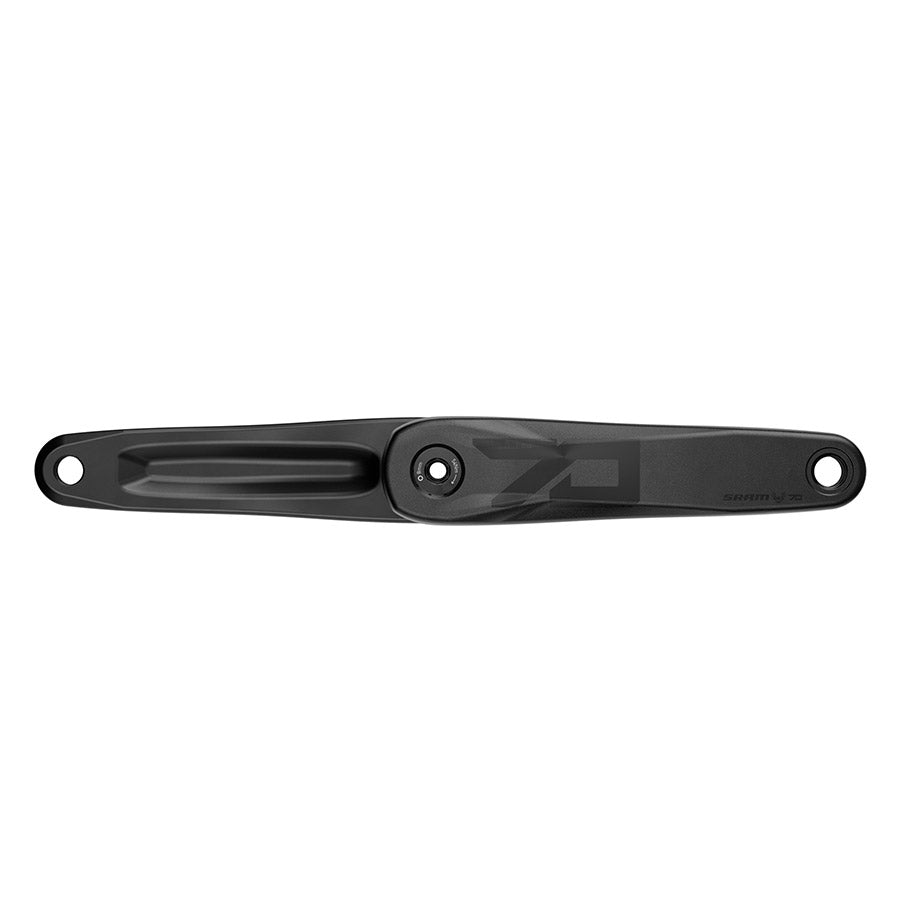

• ISIS spindle interface for broad compatibility
• SRAM Model ID: FC-70-PA-A1

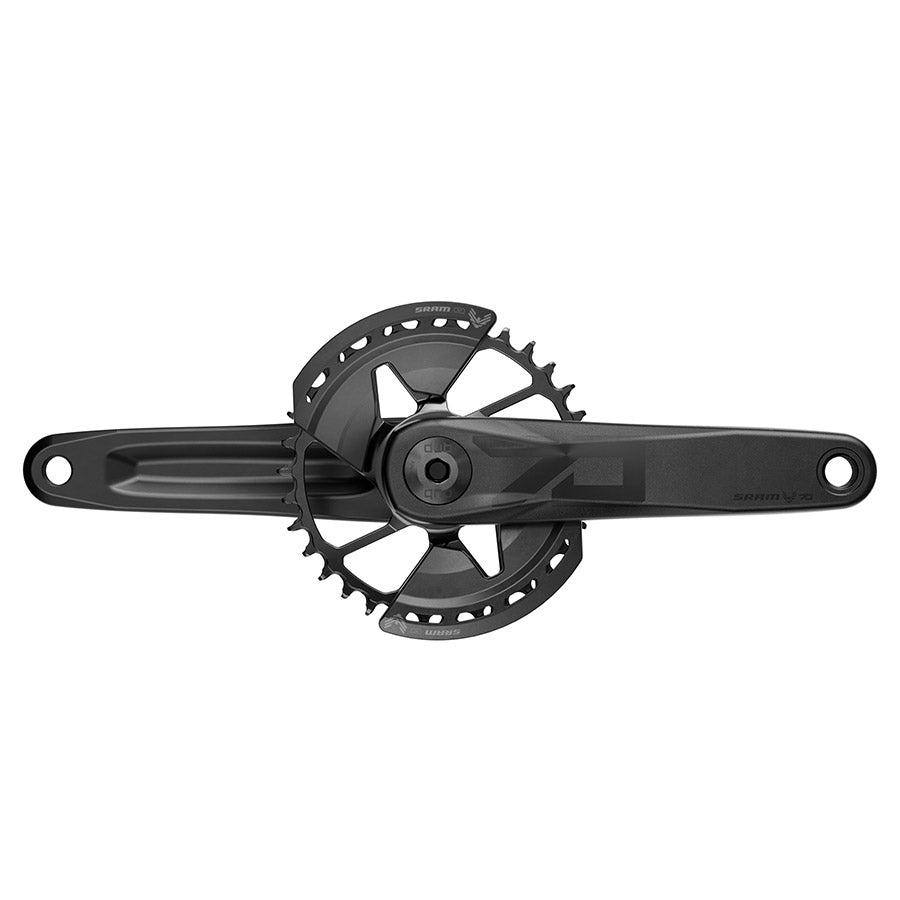

• Aluminum crankarm with 3-bolt T-Type chainring
• Bashguards shared with 90, GX and X0
• 6061 DUB Wide spindle for 55mm chainline
• SRAM Model ID: FC-70-A1

• Magic Zero: Automatically check and recalibrates your power meter to ensure it is always accurate.
• AXS™ app: Easily update firmware and view power meter metrics.
• OmniCal: Swap chainrings without affecting accuracy.
• 10K TEMPERATURE COMPENSATION: Each power meter is programmed with over 10,000 data points to eliminate temperature effects on power measurement.

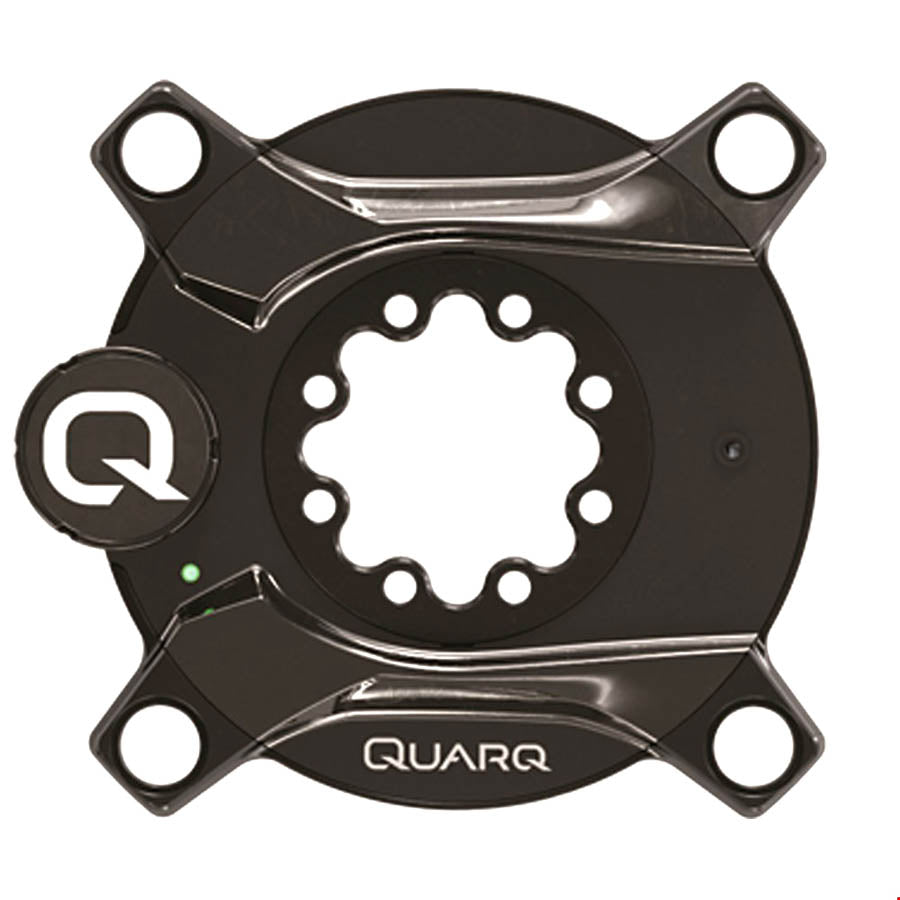

• For use with XX1 Eagle DUB 8 bolt cranks only.
• Not compatible with 3 bolt cranks.
• SRAM Model ID: PM-DZ-SPDM-D1

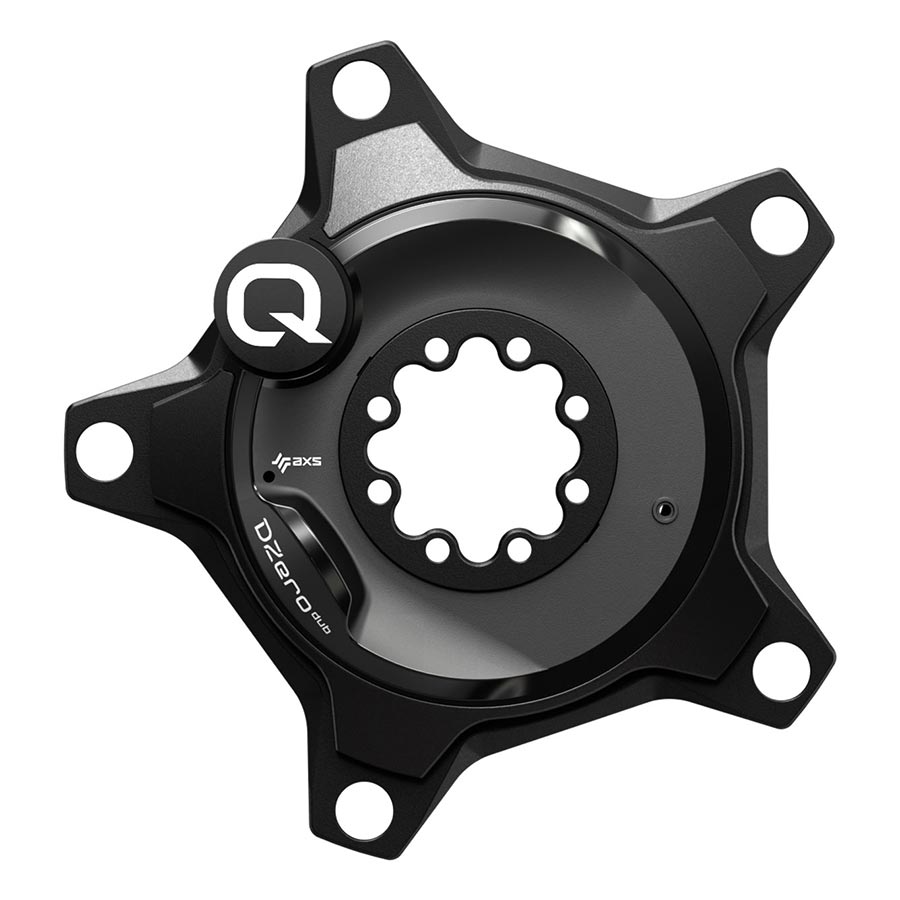

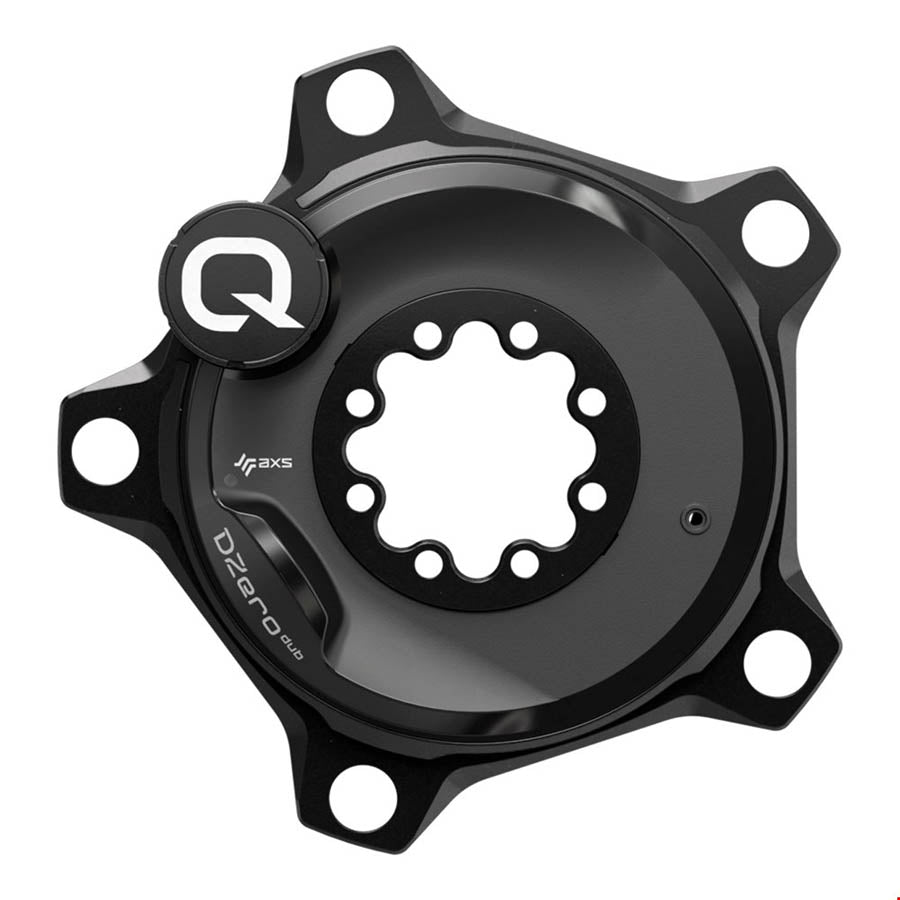

• Combine any length Quarq DUB crank arm with 110 BCD or 130 BCD DZero DUB power meter for
traditional 10- and 11-speed chainrings.
• Magic Zero: Automatically check and recalibrates your power meter to ensure it is always accurate.
• AXS™ app: Easily update firmware and view power meter metrics.
• OmniCal: Swap chainrings without affecting accuracy.
• 10K TEMPERATURE COMPENSATION: Each power meter is programmed with over 10,000 data points to eliminate temperature effects on power measurement.
• For use with Red D1, Force D1, or Quarq D1 crank arms
• SRAM Model ID: PM-DZ-SPDR-D1

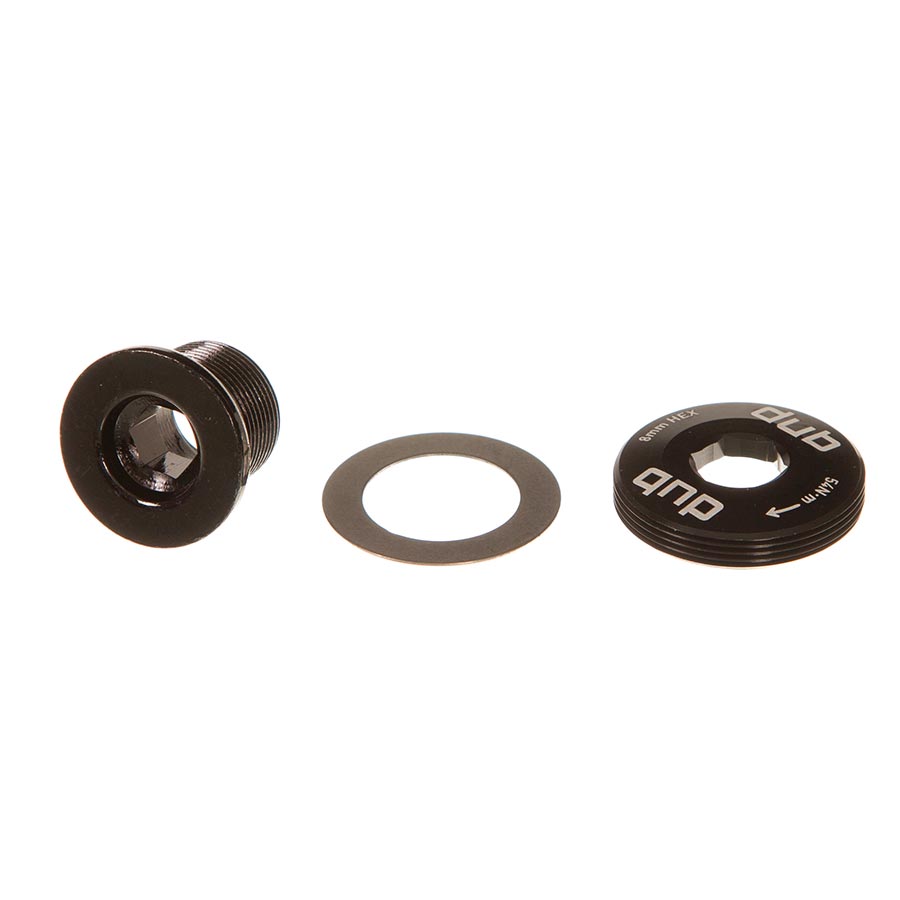

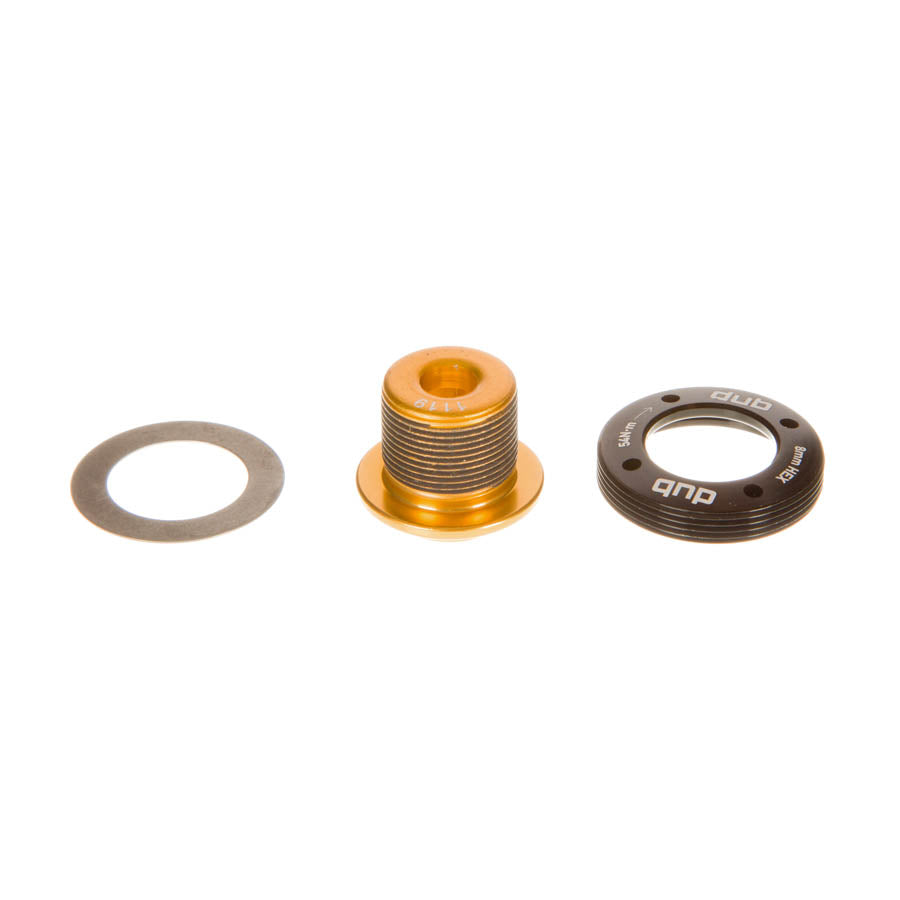

• CRANK ARM BOLT KIT SELF-EXTRACTING M18/M30 DUB STEEL BLACK
• SRAM Model ID: FC-SPP-A0

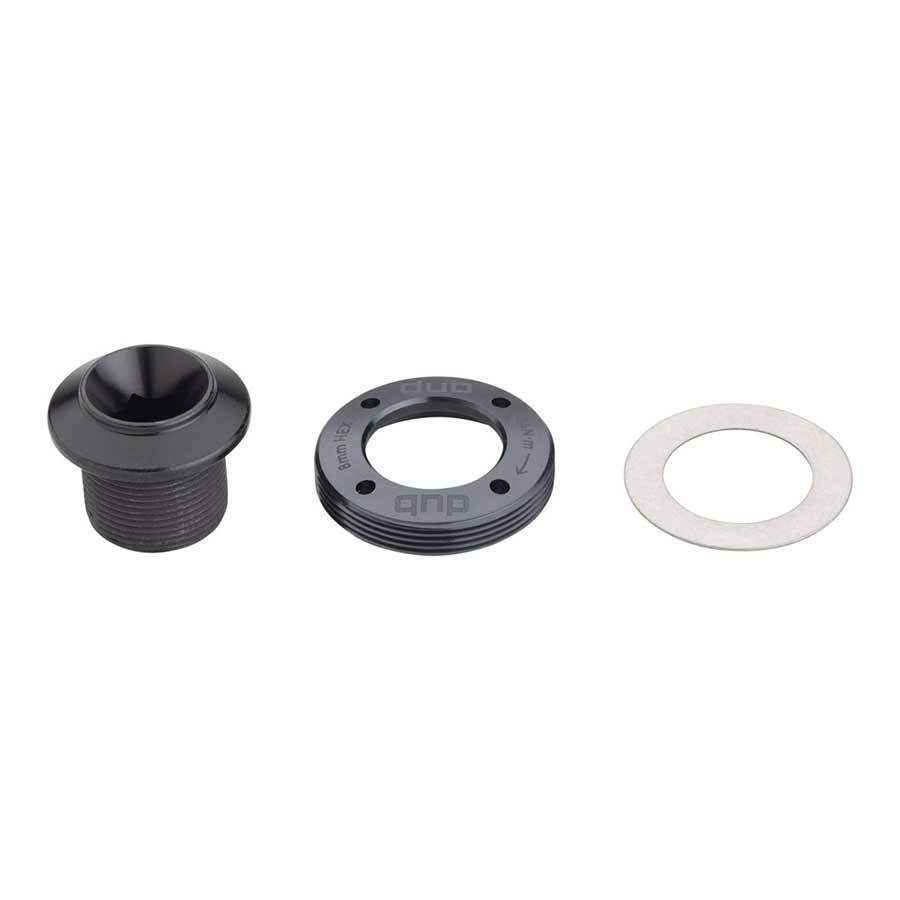

• Replacement bolt for DUB cranks
• SRAM Model ID: FC-SPP-A0

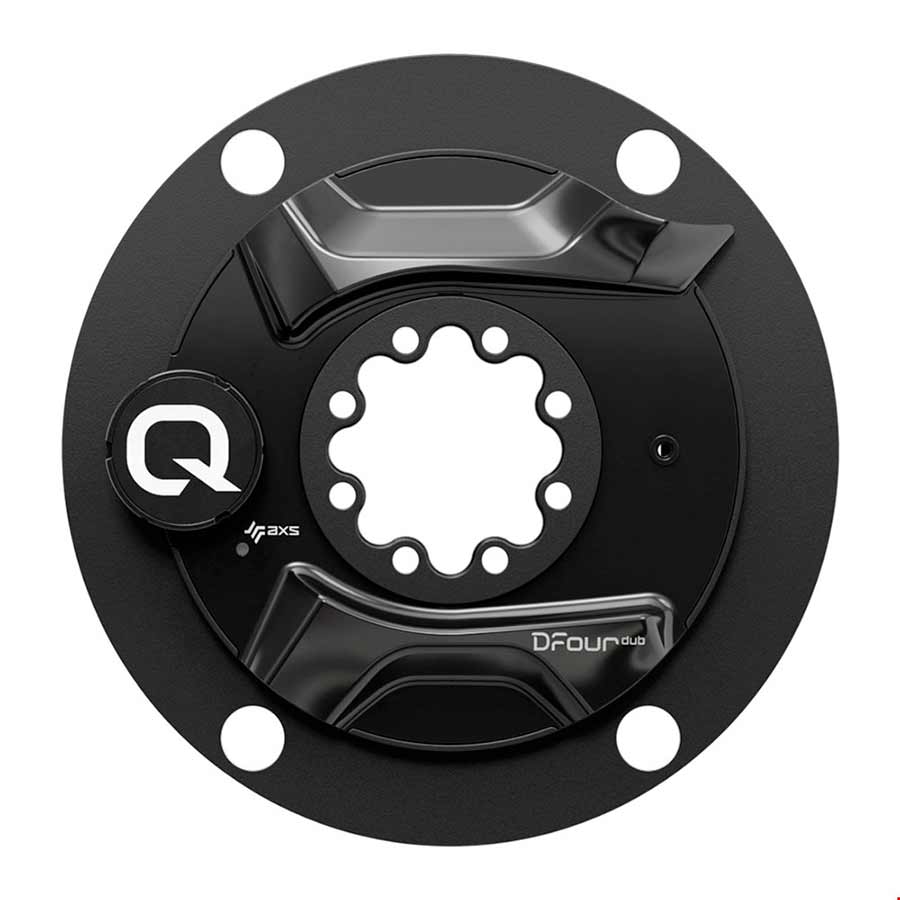

• Combine any length Quarq DUB crank arm with DFour DUB power meter for Shimano® R9100
11-Speed groupset.
• Designed for R9100 chainring. Compatible but not aesthetically pleasing with Shimano’s R8000 chainrings
and Shimano's R700 chainrings.
• Magic Zero: Automatically check and recalibrates your power meter to ensure it is always accurate.
• AXS™ app: Easily update firmware and view power meter metrics.
• OmniCal: Swap chainrings without affecting accuracy.
• 10K TEMPERATURE COMPENSATION: Each power meter is programmed with over 10,000 data points to eliminate temperature effects on power measurement.
• For use with Red D1, Force D1, or Quarq D1 crank arms
• SRAM Model ID: PM-D4-SPDR-D1

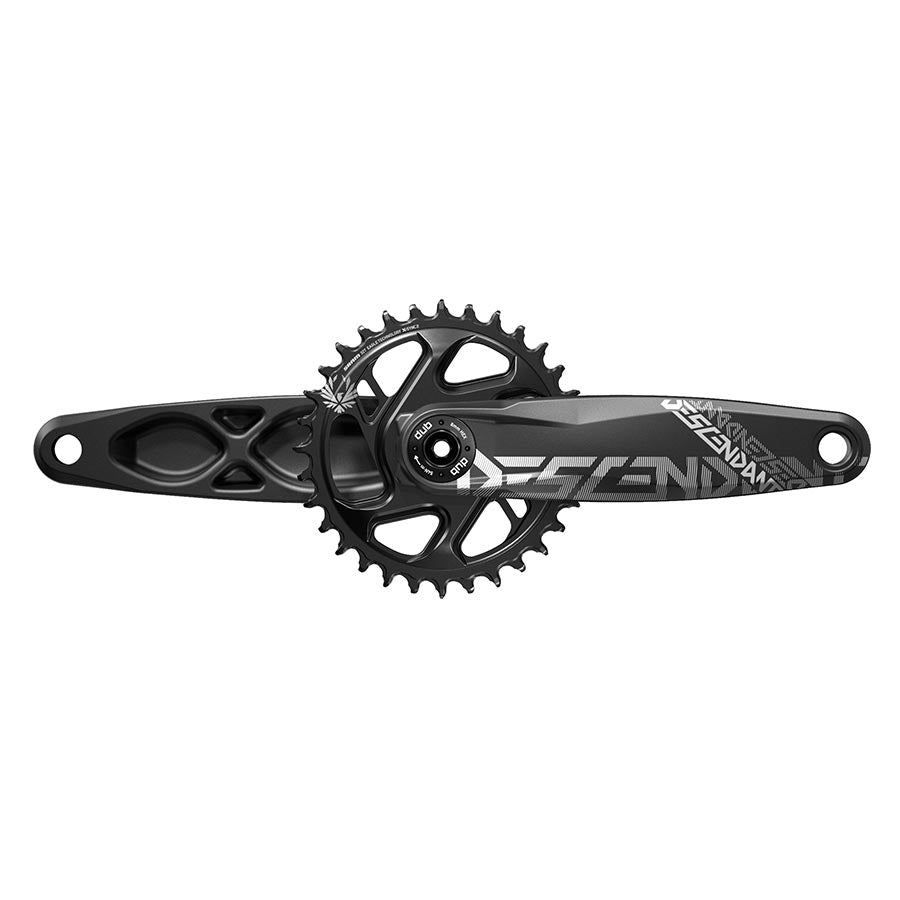

• Optimized 7000 series forged aluminum arms
• SRAM DUB technology features a uniform approach to bottom bracket fitment, better sealing against contamination and is forward and backward compatible.
• Direct mount ring
• SRAM Model ID: FC-DESC-7K-B1
