Hardtail MTB Bicycles

• Frame: Radio Asura Pro frame, full 4130 Cr-Mo
• Fork: Manitou Circus Comp fork, 100mm travel
• Bars: Radio Asura bar, 6061-T6 alloy, 31.8mm
• Stem: Radio Zoom frontload stem, alloy, 40mm reach
• Headset: Salt Pro int. headset, sealed bearing
• Cranks: Radio Pro tubular 3pc crank Cr-Mo, 170mm, 8 spline
• Bottom bracket: Mid size, press fit, sealed bearing
• Front Hub: Radio Pro-DJ disc hub, sealed, 3/8'' Cr-Mo axle, 32h
• Rear Hub: Radio Pro-DJ disc hub, sealed, 3/8'' Cr-Mo axle, 32h
• Tires: Maxxis DTH tires, 2.3'', front & rear
• Weight: 12.74kg / 28.10lbs
• Top Tube Length: 22.7''
• Chainstay Length: 15''

• FRAME: RADIO "FIEND" frame, 6061-T6 alloy, tapered head tube
• FORK: RST "OMEGA T26" fork, 100mm travel
• BARS: RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
• STEM: RADIO "DJ" frontload stem, alloy, 40mm reach
• HEADSET: FSA "NO.57E" integrated A-headset, 1-1/8"-1.5"
• CRANKS: RADIO "PRO" 2pc crank, forged alloy, 170mm, 24mm spindle
• Bottom bracket: RADIO "BSA24" bb set, sealed bearing
• FRONT HUB: RADIO "AM-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
• REAR HUB: RADIO "AM-DJ" disc cassette hub, alloy, sealed, 3/8"s male axle, 32h
• TIRES: RADIO "ROOKIE" tires, 2.2", front & rear
• WEIGHT: 13.74kg / 30.32lbs
• TOP TUBE LENGTH: 22.3"
• CHAIN STAY LENGTH: 15.8"

• Frame: 6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
• Fork: ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
• Handlebar: BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter
• Levers/ shifters: SRAM LEVEL hydraulic, SRAM SX-EAGLE 12-speed trigger shifter
• Brakes: SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
• Crankset: TRUVATIV STYLO 6K aluminium crank, Boost DUB
• Bottom Bracket: SRAM DUB BSA 73 mm
• Cassette: SRAM PG-1210 EAGLE 12-speed, 11 - 50 T
• Deraileur: SRAM SX EAGLE, clutch, long cage
• Hubs: Bombtrack GRAD Boost sealed hubs, HG driver, 6-bolt disc
• Rims: WTB ST i29 double wall, TCS 2.0, 32h
• Seat Post: KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 485 mm length
• Tires: KENDA HELLCAT PRO ATC 29'' x 2.4" TLR, tubeless ready
• Weight: 13.8 kg

• Frame: Radio Asura frame, Cr-Mo top tube & down tube, 1020 hi-ten
• Fork: RST Dirt RA 100mm travel
• Bars: Radio Asura bar, 6061-T6 alloy, 31.8mm
• Stem: Radio Zoom frontload stem, alloy, 40mm reach
• Headset: FSA NO.28 Aheadset
• Cranks: Radio Pro tubular 3pc crank Cr-Mo, 170mm, 8 spline
• Bottom bracket: Mid size, press fit, sealed bearing
• Front Hub: Radio Rookie-DJ disc hub, alloy, loose ball, 3/8 Cr-Mo axle, 32h
• Rear Hub: Radio Rookie-DJ disc hub, alloy, sealed, 3/8 Cr-Mo axle, 32h
• Tires: Radio DJ1131 tires, 2.0'', front & rear
• Weight: 14.04kg / 30.89lbs
• Top Tube Length: 22.7''
• Chainstay Length: 15.5''

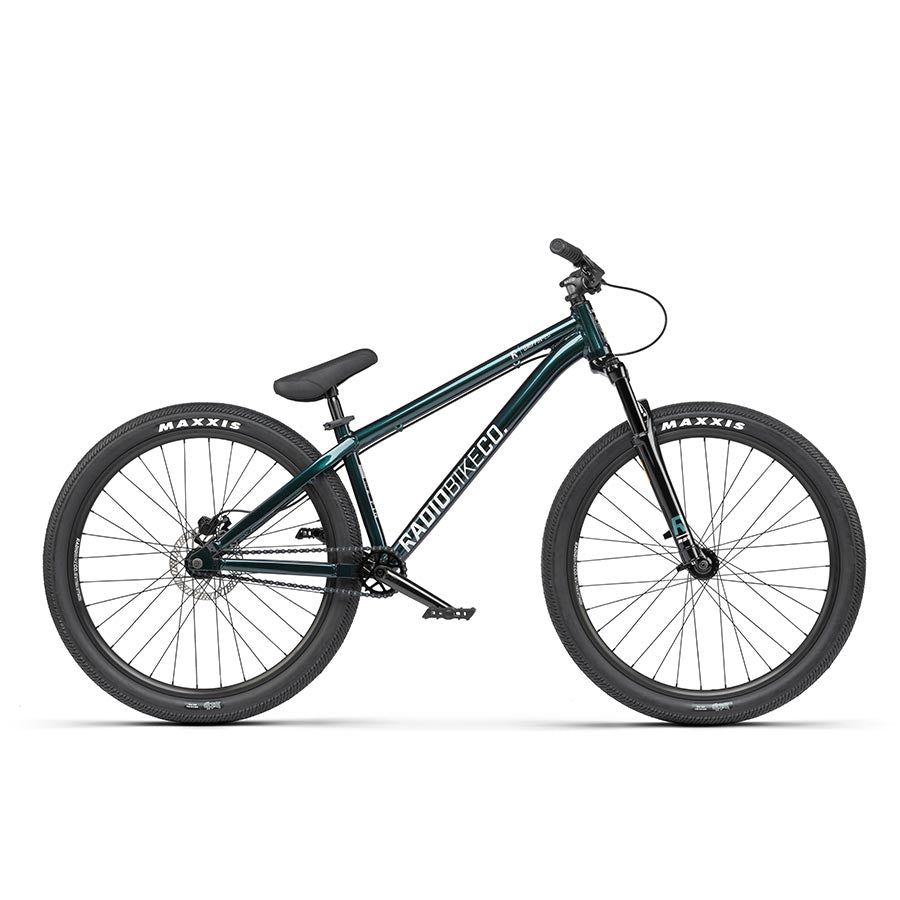

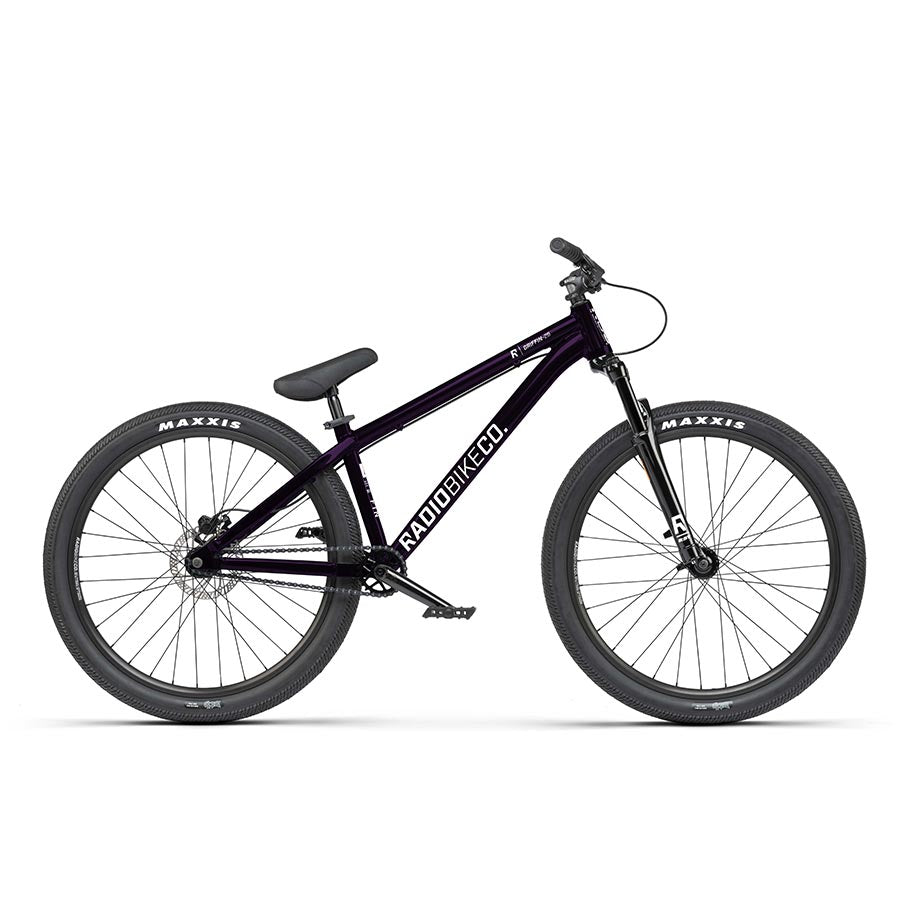

• FRAME: RADIO “GRIFFIN” frame, 6061-T6 alloy, tapered head tube, forged yoke
• FORK: RST “DIRT RA” fork, 100mm travel
• BARS: RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
• STEM: RADIO “ZOOM” frontload stem, alloy, 40mm reach
• HEADSET: FSA “NO.42/ACB-A” integrated A-headset, 1-1/8-1.5
• CRANKS: SALTPLUS “ULTRA” 3pc crank, TSS, crmo, 170mm, 8 spline
• Bottom bracket: RADIO “BSA19” bb set, sealed bearing
• FRONT HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8 male axle, 32h
• REAR HUB: RADIO “PRO-DJ” disc hub, sealed, 3/8 crmo axle, 32h
• TIRES: MAXXIS “DTH” tires, 2.3 front & rear
• WEIGHT: 13.01kg / 26.68lbs
• TOP TUBE LENGTH: 22.6"
• CHAIN STAY LENGTH: 15"

• FRAME: RADIO “MINOTAUR” frame, 6061-T6 alloy, tapered head tube, forged yoke
• FORK: RADIO “MINOTAUR” fork, full crmo, tapered crmo steerer, 28mm offset
• BARS: RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
• STEM: RADIO “ZOOM” frontload stem, alloy, 40mm reach
• HEADSET: FSA “NO.57E” integrated A-headset, 1-1/8-1.5
• CRANKS: SALTPLUS “ULTRA” 3pc crank, TSS, crmo, 170mm, 8 spline
• Bottom bracket: RADIO “BSA19” bb set, sealed bearing
• FRONT HUB: RADIO “AM-DJ” disc hub, alloy, sealed, 3/8 male axle, 32h
• REAR HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8 male axle, 32h
• TIRES: RADIO “HELIX” tires, 2.3, front & rear
• WEIGHT: 11.87kg / 26.17lbs
• TOP TUBE LENGTH: 22.6"
• CHAIN STAY LENGTH: 15"
