MTB Hydraulic Disc Brakes

• Re-designed Swinglink architecture for more predictable power delivery and lighter engagement
• 18-millimeter pistons for best-in-class power
• Easily tuneable across Gravity, E-MTB, Enduro and Trail bikes
• Stiff 4-piston caliper with best heat management
• Stealth lever architecture for a sleeker, more modern ride
• Mineral Oil for low maintenance and performance
• Designed for use with Maxima Mineral Brake Oil only
• Ultimate worthy carbon Lever blade and Titanium hardware
• Contact Point Adjust and tool-free Reach Adjust
• SRAM Model ID: DB-MVN-ULT-B1

• Re-designed Swinglink architecture for more predictable power delivery and lighter engagement
• 18-millimeter pistons for best-in-class power
• Easily tuneable across Gravity, E-MTB, Enduro and Trail bikes
• Stiff 4-piston caliper with best heat management
• Stealth lever architecture for a sleeker, more modern ride
• Mineral Oil for low maintenance and performance
• Designed for use with Maxima Mineral Brake Oil only
• Bold black anodized finish with black hardware for stealth builds
• A new lightweight forged lever blade with machined cut-outs
• Contact Point Adjust and tool-free Reach Adjust
• SRAM Model ID: DB-MVN-SLV-B1

• Stealth parallel body designed to complement AXS cockpits
• Heavy-duty power in a modern XC package, for today’s races
• Tool-free reach adjust for easy customization
• Titanium hardware and carbon lever blade with bearing pivot.
• Ultimate worthy Blasted Clear anodized finish with polished machined edges.
• Designed for use with Maxima Mineral Oil only.
• Caliper features Bleeding Edge bleed port for drip-free maintenance
• SRAM Model ID: DB-MOTV-ULT-A2

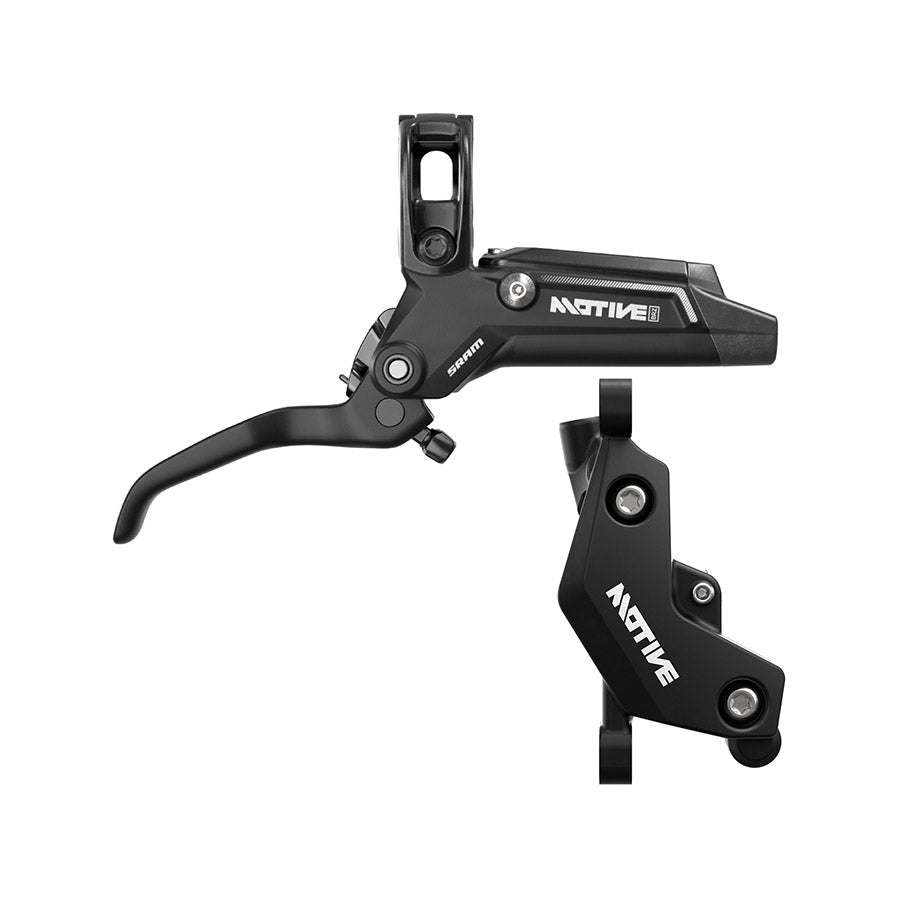

• Stealth parallel body designed to complement AXS cockpits
• Heavy-duty power in a modern XC package, for today’s races
• Tool-free reach adjust for easy customization
• Polished Black anodized finish.
• Alloy lever blade with bearing pivot.
• Designed for use with Maxima Mineral Oil only.
• Caliper features Bleeding Edge bleed port for drip-free maintenance.
• SRAM Model ID: DB-MOTV-SLV-A2

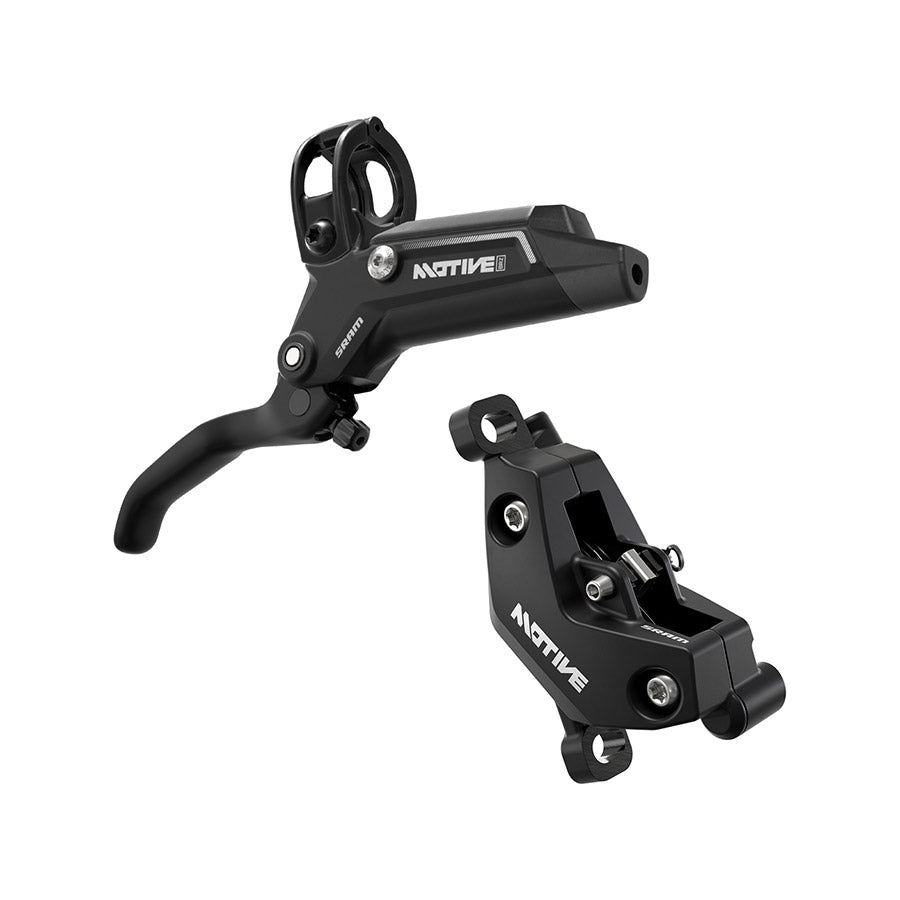

• Stealth parallel body designed to complement AXS cockpits
• Heavy-duty power in a modern XC package, for today’s races
• Tool-free reach adjust for easy customization
• Blasted Black anodized finish.
• Alloy lever blade.
• Designed for use with Maxima Mineral Oil only.
• Caliper features Bleeding Edge bleed port for drip-free maintenance.
• SRAM Model ID: DB-MOTV-BRZ-A2

Designed to match the capabilities of modern XC-race and trail bikes
• Stealth body designed to complement AXS cockpits
• Heavy-duty power in a modern XC package, for today’s races
• Tool-free reach adjust for easy customization
• Titanium hardware and carbon lever blade with bearing pivot
• Designed for use with Maxima Mineral Oil only
• Designed for use with SRAM Mineral Oil Bleed Kit only
• Caliper features Bleeding Edge bleed port for drip-free maintenance
• SRAM Model ID: DB-MOTV-ULT-A1

Low maintenance Mineral Oil system uses all new lever architecture which features easy adjustment
access and ergonomic comfort.
• Stealth lever architecture pairs perfectly with mechanical Eagle Transmission shifters
• Left and right specific levers feature tooled lever reach adjust
• Code-like heavy-duty power
• Uses SRAM Large brake pads
• Designed for use with Maxima Mineral Oil only
• Designed for use with SRAM Mineral Oil Bleed Kit only
• SRAM Model ID: DB-DB6-A1

• Directlink lever and a stiff 4-bolt caliper
• More range than ever before to tune the ride qualities with different pad materials and rotor sizes
• Organic pads come standard for the best modulation and the quietest ride
• Stealth lever architecture for a sleeker, more modern ride
• Tool-free lever reach adjust
• Mineral Oil for low maintenance and performance
• Designed for use with Maxima Mineral Brake Oil only
• Caliper features Bleeding Edge bleed port for drip-free maintenance
• SRAM Model ID: DB-MVN-BSE-A1

• Designed to match the capabilities of XC-race and trail bikes.
• Stealth body designed to complement AXS cockpits
• Heavy-duty power in a modern XC package
• Tool-free reach adjust for easy customization
• Alloy lever blade with bearing pivot
• Designed for use with Maxima Mineral Oil only
• Designed for use with SRAM Mineral Oil Bleed Kit only
• Caliper features Bleeding Edge bleed port for drip-free maintenance
• SRAM Model ID: DB-MOTV-SLV-A1

• Designed to match the capabilities of XC-race and trail bikes.
• Stealth body designed to complement Eagle Transmission cockpits
• Heavy-duty power in a modern XC package–
• Tool-free reach adjust for easy customization
• Designed for use with Maxima Mineral Oil only
• Designed for use with SRAM Mineral Oil Bleed Kit only
• Caliper features Bleeding Edge bleed port for drip-free maintenance
• SRAM Model ID: DB-MOTV-BRZ-A1

• Low maintenance Mineral Oil system uses all new lever architecture featuring easy adjustment access and ergonomic comfort.
• Right and left specific stealth lever body design brings the hose parallel to the bar, allowing for an organized cockpit that pairs perfectly with mechanical Eagle Transmission.
• Code-like heavy-duty power.
• Uses SRAM Large brake pads.
• Designed for use with Maxima Mineral Oil only.
• Designed for use with SRAM Mineral Oil Bleed Kit only.
• SRAM Model ID: DB-DB4-A1

• Perfect for the heavy demands of Enduro and DH
• 4 piston forged caliper for maximum braking performance
• 1-Finger HC lever blade is 12mm shorter than the standard MT5 2-finger lever blade

• One finger HC3 lever blade with Ratio Adjust so riders can adjust their braking force
• Includes 6-bolt Magura Storm HC Rotors (203mm Front and 203mm Rear), with 2mm rotor thickness
• Carbotecture SL® radial master cylinder
• Black and Red Master Cylinder & Mystic Gray Caliper
• 4 pad system, 8.P brake pads included
• 5-year leak proof guarantee

Born from technology proven in World Cup DH and tuned for the demands of Aggressive XC, Trail and E-MTB’s bikes, the Slate EVO takes modulation and braking power to an entirely new level of control.
• 4-Piston caliper
• Replaceable ergonomic lever blade (200975-01)
• 10mm internal brake lever piston
• Adjustable lever reach
• Shifter adapters for I-Spec B, I-Spec EV, TRP and MMX
• Hinged lever clamp
• Stainless steel pistons
• 5mm brake hose
• Made for 2.3mm thick rotors
• Not compatible with Metallic brake pads
• Top loading pad design
• Banjo hose connection

Working with the world’s best downhill riders has allowed us to develop top-level braking performance. When designing the all-new Trail EVO we wanted to create a brake system for the specific needs of modern mountain bikes.
• 4-Piston caliper
• Replaceable ergonomic lever blade (200975-01)
• 10mm internal brake lever piston
• Adjustable lever reach
• Shifter adapters for I-Spec B, I-Spec EV, TRP and MMX
• Hinged lever clamp
• Stainless steel pistons
• 5mm brake hose
• Made for 2.3mm thick rotors
• Top loading pad design
• Banjo hose connection

An affordable, great performing hydraulic disc brake that's suitable for everything from off-road riding to urban commuting.

• A dual-piston, open hydraulic system that boasts easy installation, adjustment and maintenance
• Features independent pad adjustment as well as a barrel adjustor for easy tuning
• Two finger lever blade
• Uses non-corrosive mineral oil with excellent heat expansion and non-water absorbing properties
• Available in post mount configuration only
• Hose length: Front = 1900mm / Rear = 1900mm
• Hose diameter: Ø5.0mm
• Compatible with 1.8mm rotor thickness
• Rotor, adaptor & mounting bolts sold separately
• Brake does not come fully assembled allowing for hose to be cut to size
• Weight: Front – 285g / Rear – 305g

• Replacement rear brake for Roam Scooter

• Replacement front brake for Roam Scooter

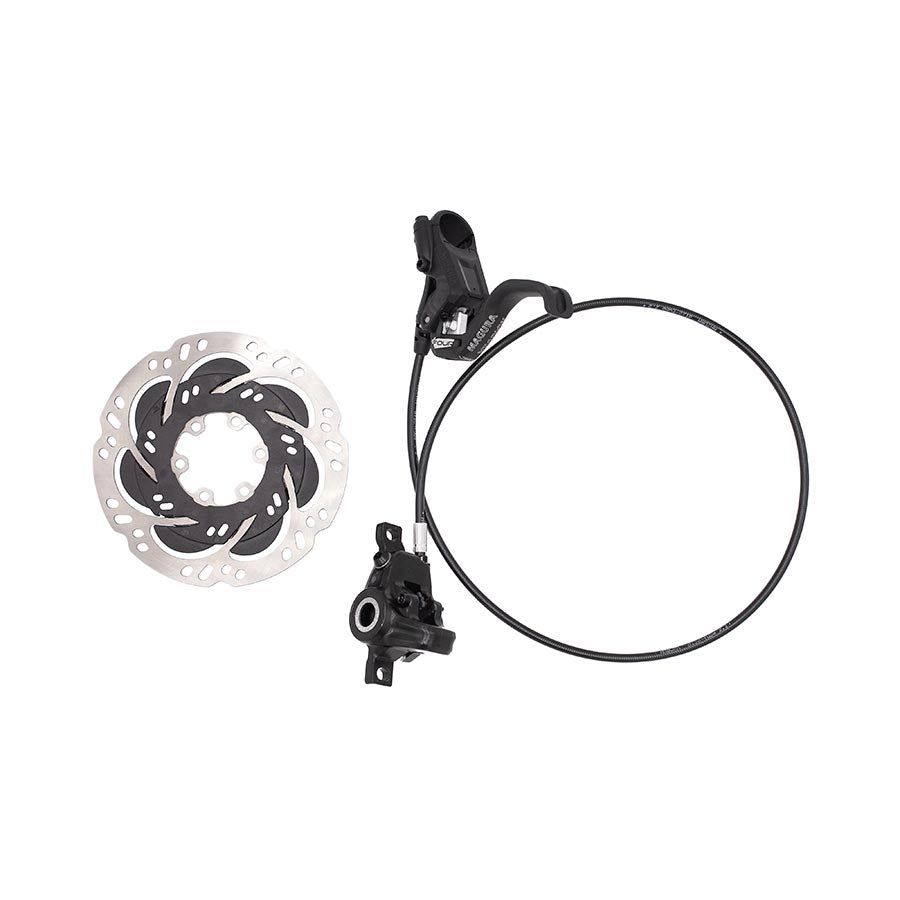

• Kid-Friendly hydraulic brake
• Magura MT4 brake with Magura HC1 lever
• Lever specifically designed for small hands
• Comes with disc brake cover to protect kids fingers and hands from contacting the rotor

• Simple, robust, powerful brake for riders who prefer to work with Mineral oil.
• The lever is designed with proven lever technologies and features easy adjustment access and superior ergonomic comfort.
• The caliper is based on the Code downhill brake and utilizes the same pads.
• Designed for use with Maxima Mineral Oil only.
• SRAM Model ID: DB-DB8-A1

• Ergonomic lever blade
• Advanced 9mm internal brake lever piston
• 5mm hydraulic brake hose
• High performance hydraulic brake fluid
• Hybrid pistons
• High performance resin pad compound
• New high flow caliper
• 2.3mm thick rotors
• CNC machined and marked adapters
• Compatible with 223/220/203/180/160/140mm rotors (sold separately)
• Weight: 310g (Front without rotor and adapter)

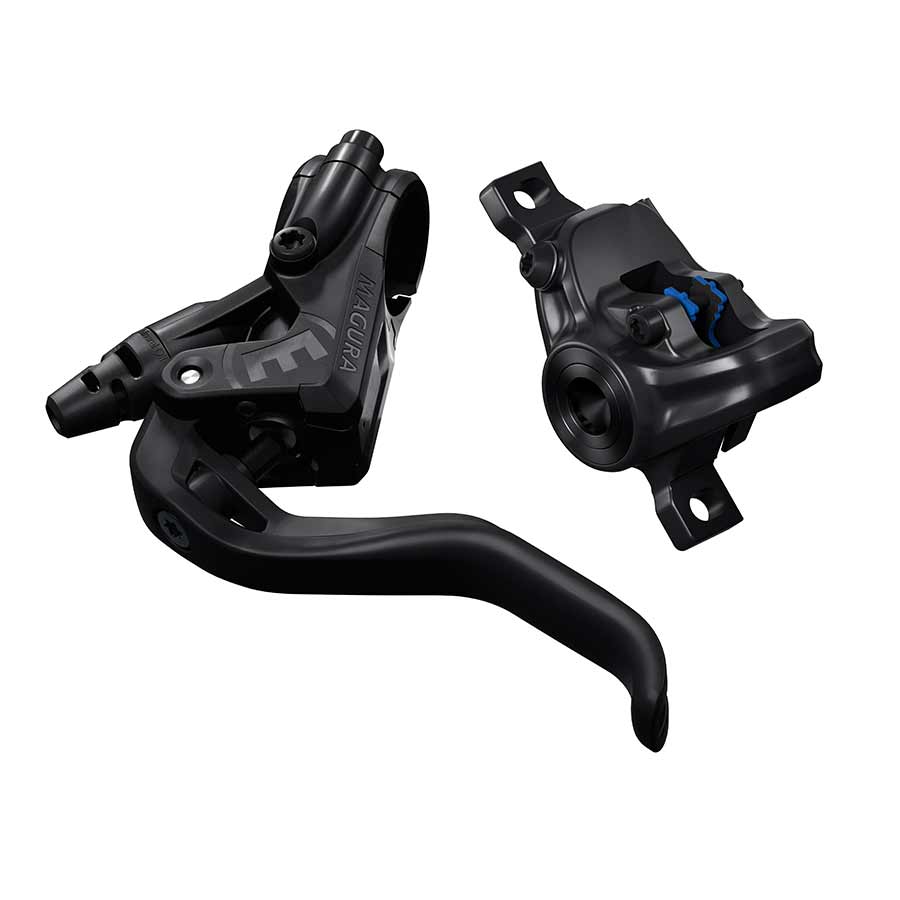

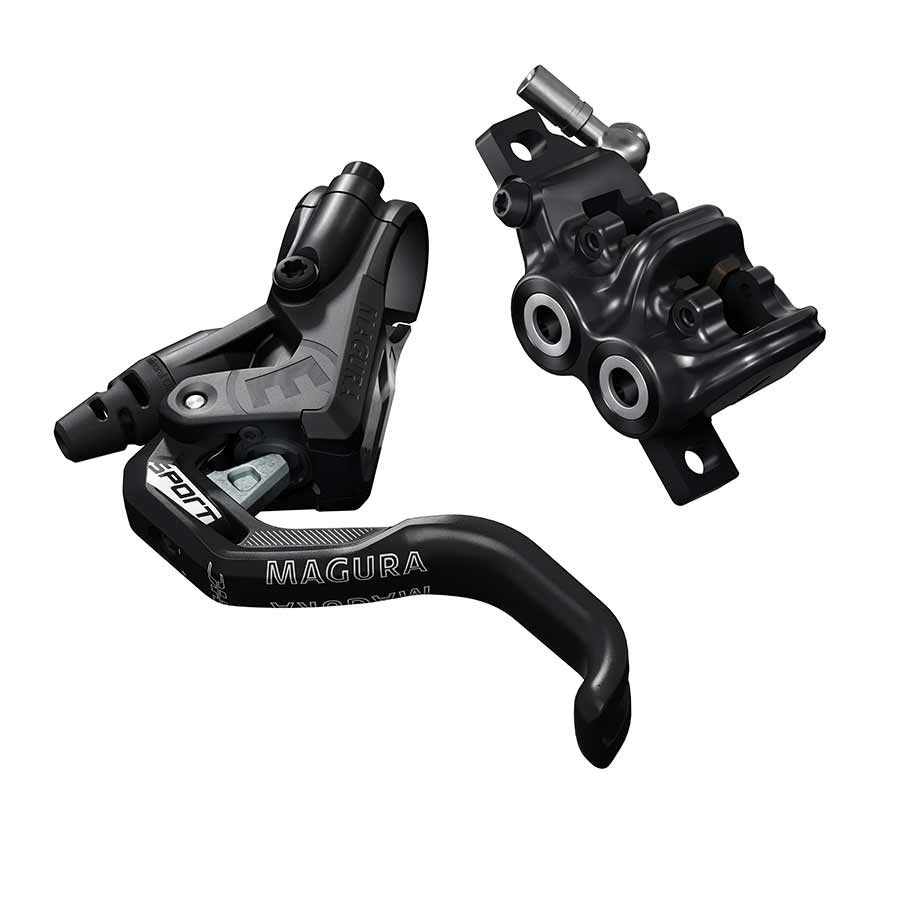

• Entry level to the MAGURA MT world with all of the high-tech features of German engineering skill
such as lightweight Carbotecture® components and the improved MAGURA disctube for safe stopping on tour and in the city
• suitable for mounting left or right

• Excellent eBike upgrade or repair brake
• Flip-Flop, easy bleed design
• Carbotecture lever-blade and handlebar clamp
• 4-piston forged monobloc caliper
• Adjustable banjo fitting

• Class adapted for use on eBike´s, motorcycle racing's proven 4-piston technology creates an absolute maximum of braking force.
• Motor cut off
• HIGO Closer
• For E-Bikes up to 45 km/h

• 4 front pistons for maximum braking power, 2 rear pistons for perfect modulation
• Short HC lever mean that it can reliably deliver full braking power at the touch of just one finger.

• Clearly defined bite point and maximum power make it the first choice for gravity and high-speed pilots
• 1-finger HC lever blade modulates the enormous braking power as desired
• Suitable for mounting left or right

• The same performance as the high-end MT8 SL model at an attractive price
• Equipped with a 1-finger HC aluminium lever blade
• Suitable for mounting left or right
