Pedals

• Knurled top surface
• Replaceable pins on both sides to improve pedal life
• Strong crmo spindle
• Slim lightweight design

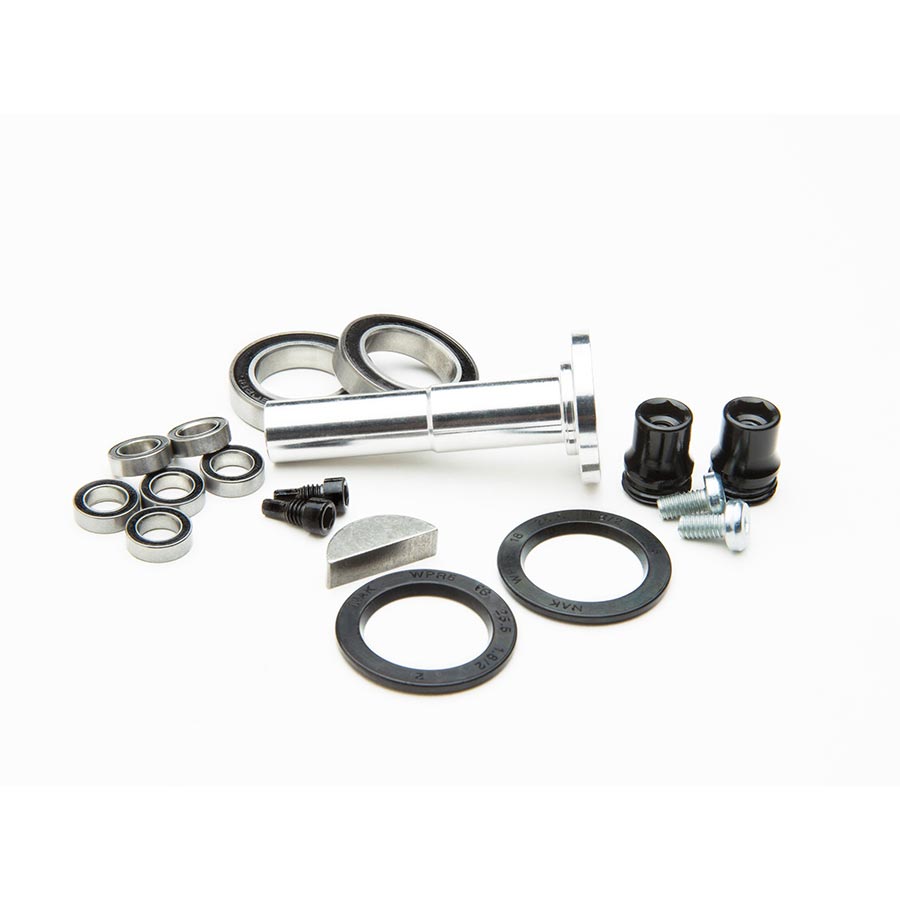

• Extend the life of your Atlas pedals
• Bearing rebuild kit
• For previous generation Atlas pedals: Atlas Pedal V1 - 2013-2021

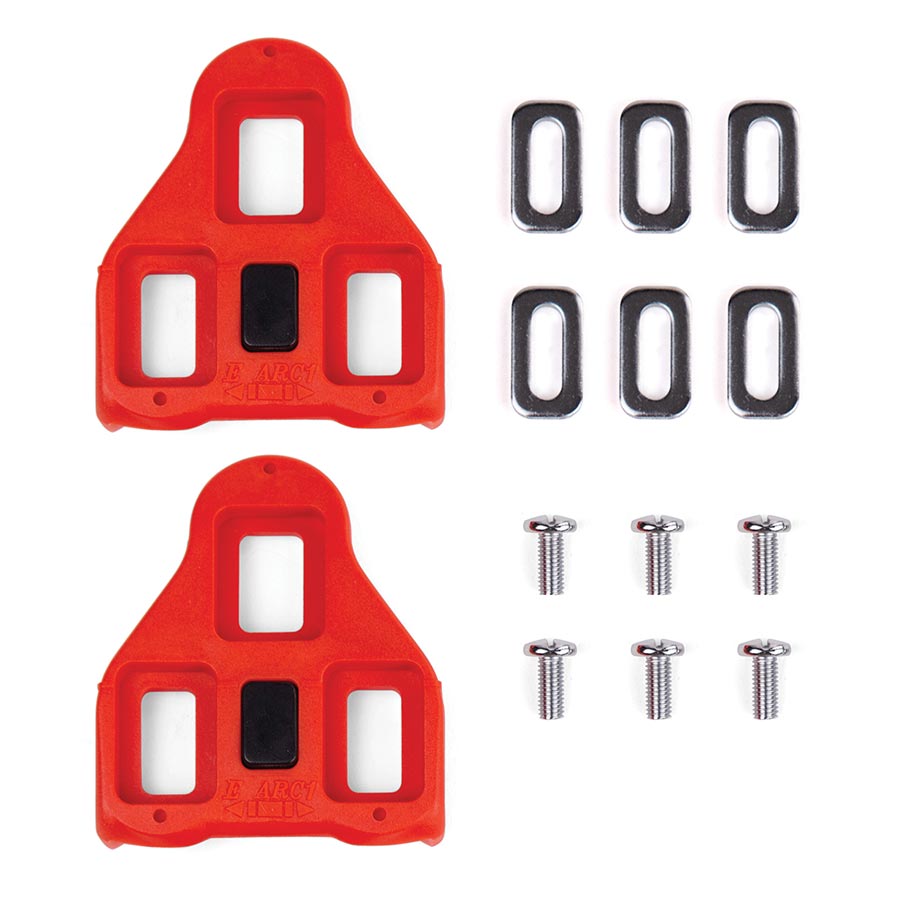

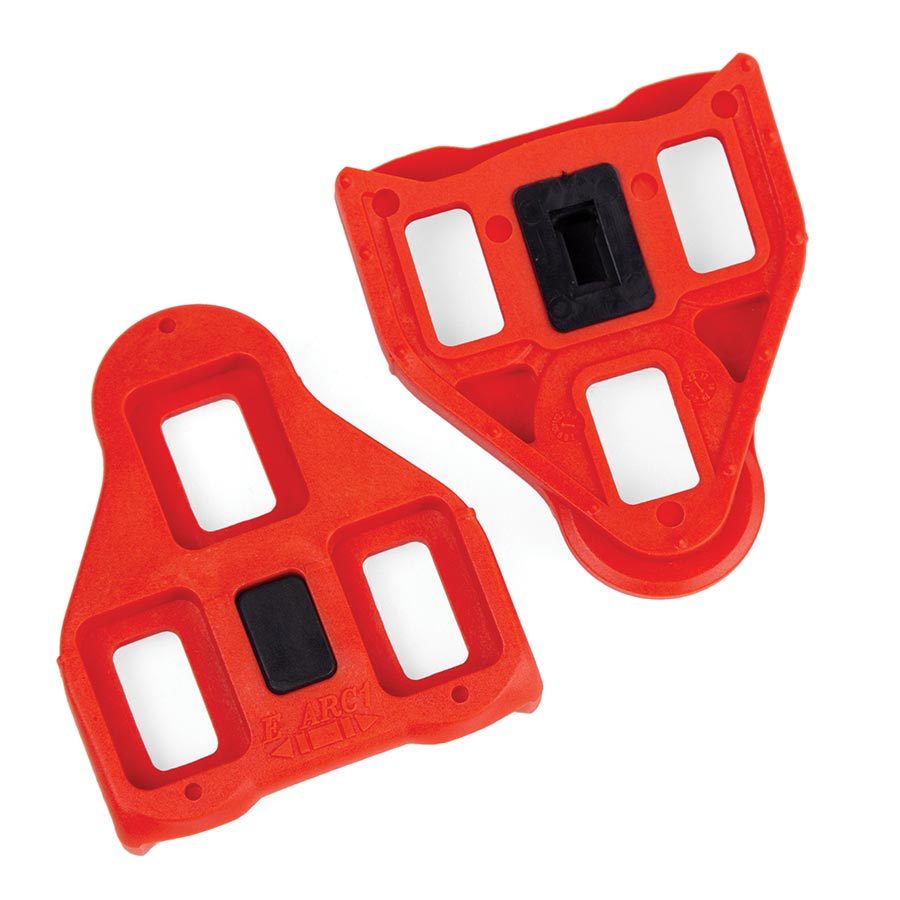

• Look ARC Delta compatible
• 9° rotation allows natural foot movement
• Includes mounting hardware

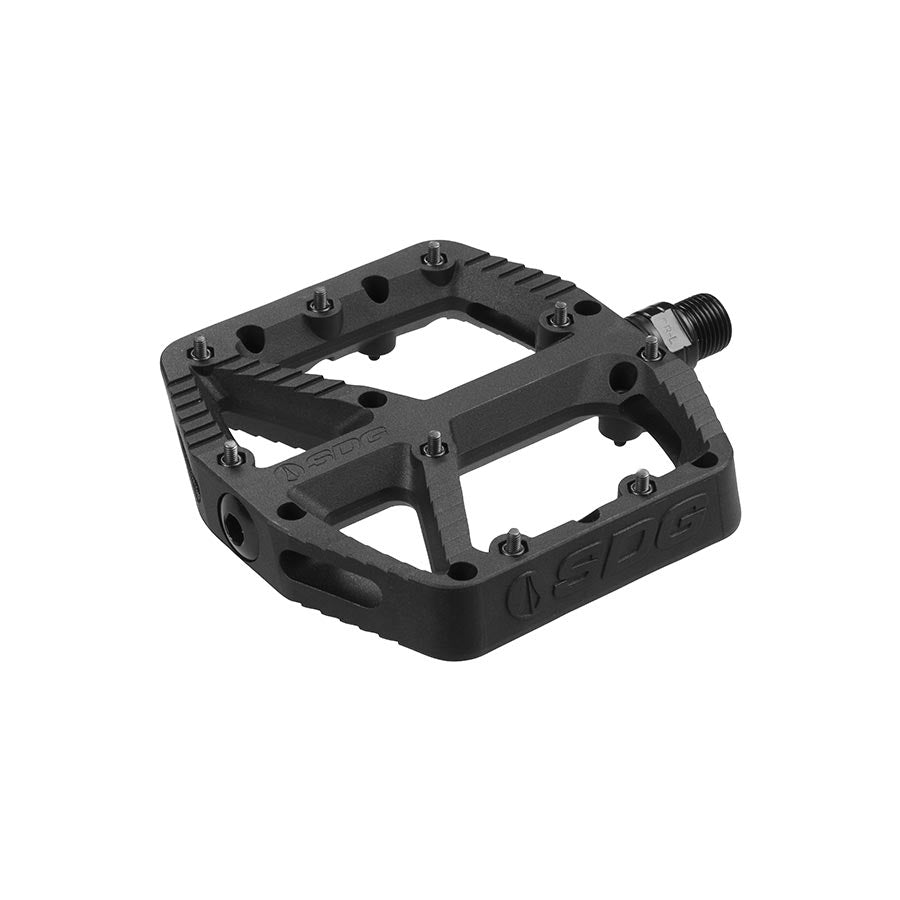

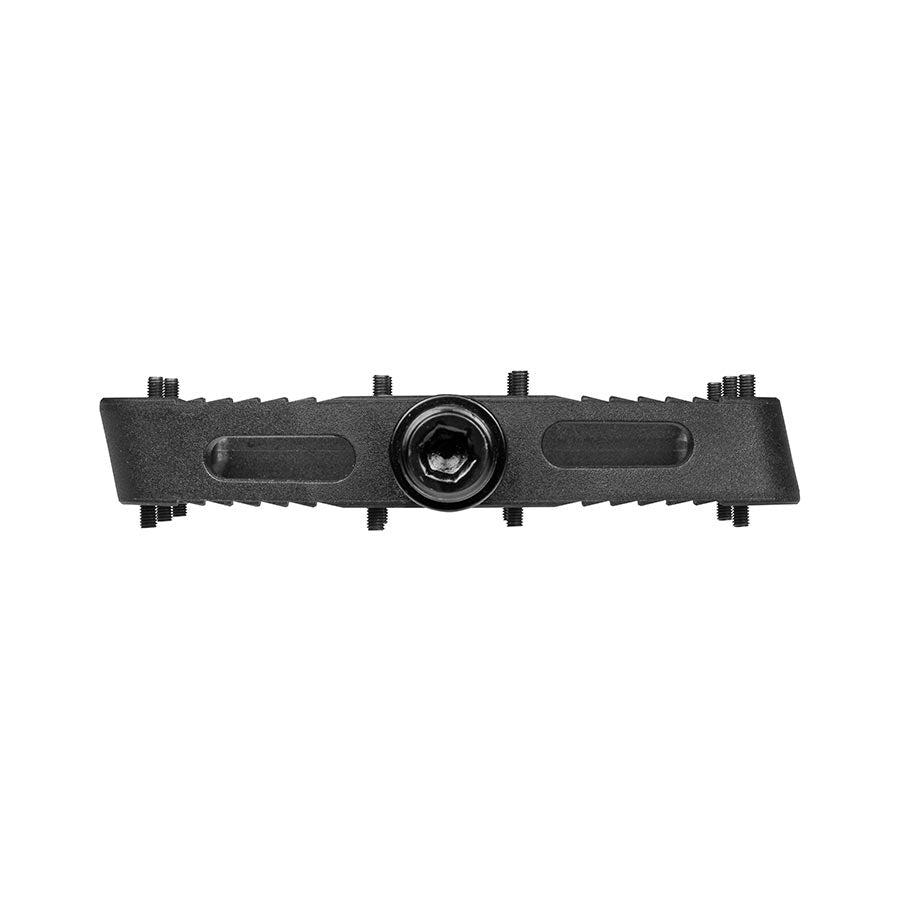

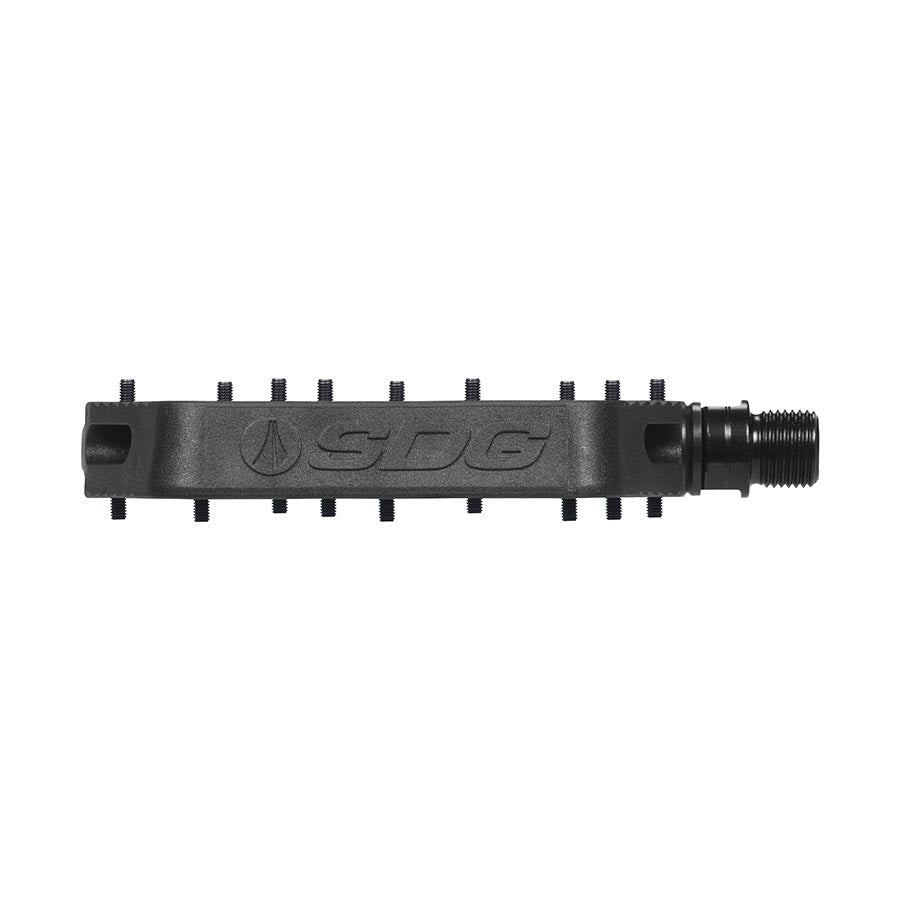

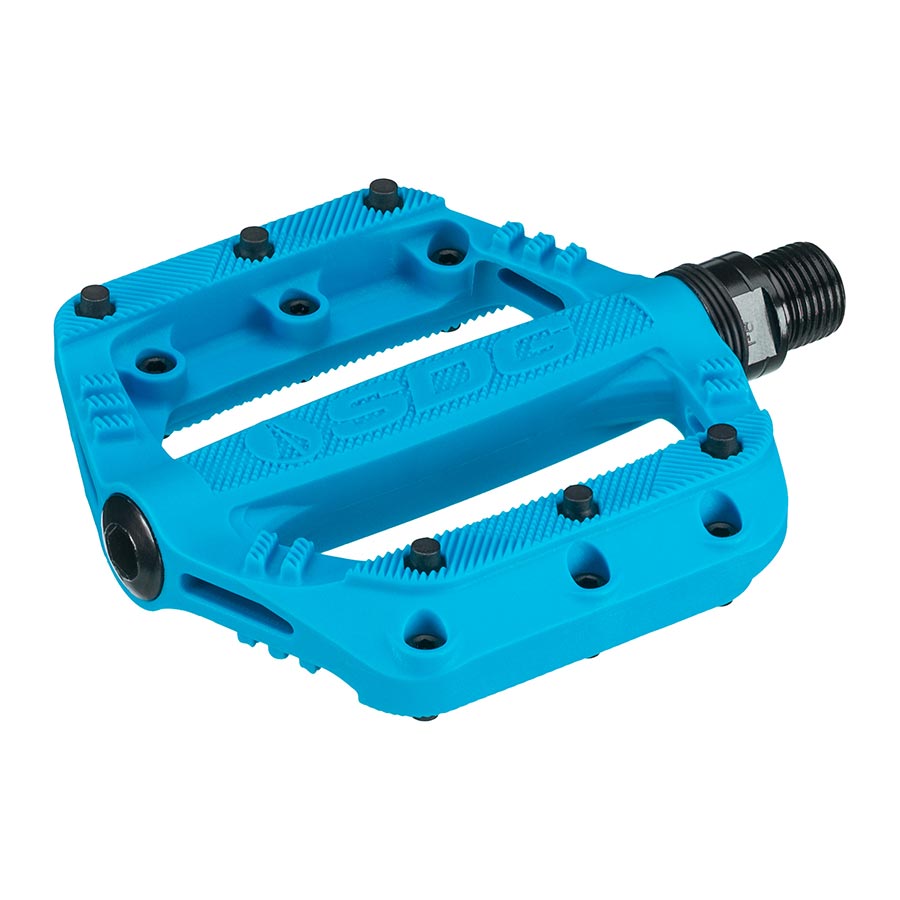

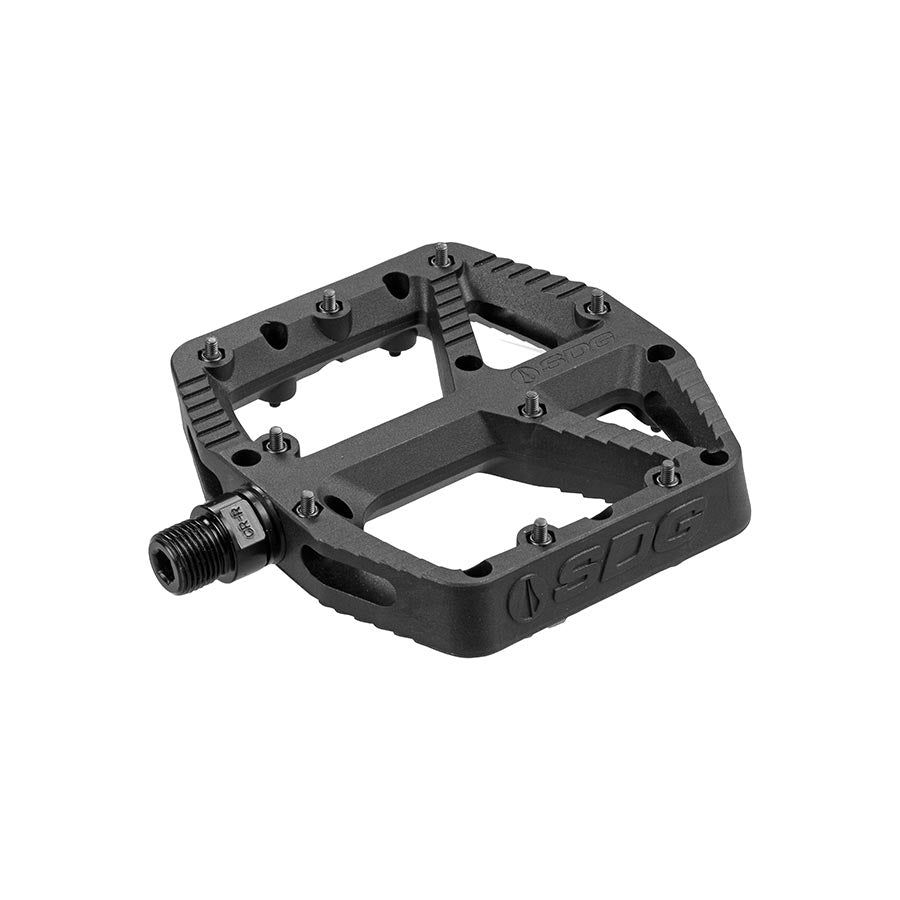

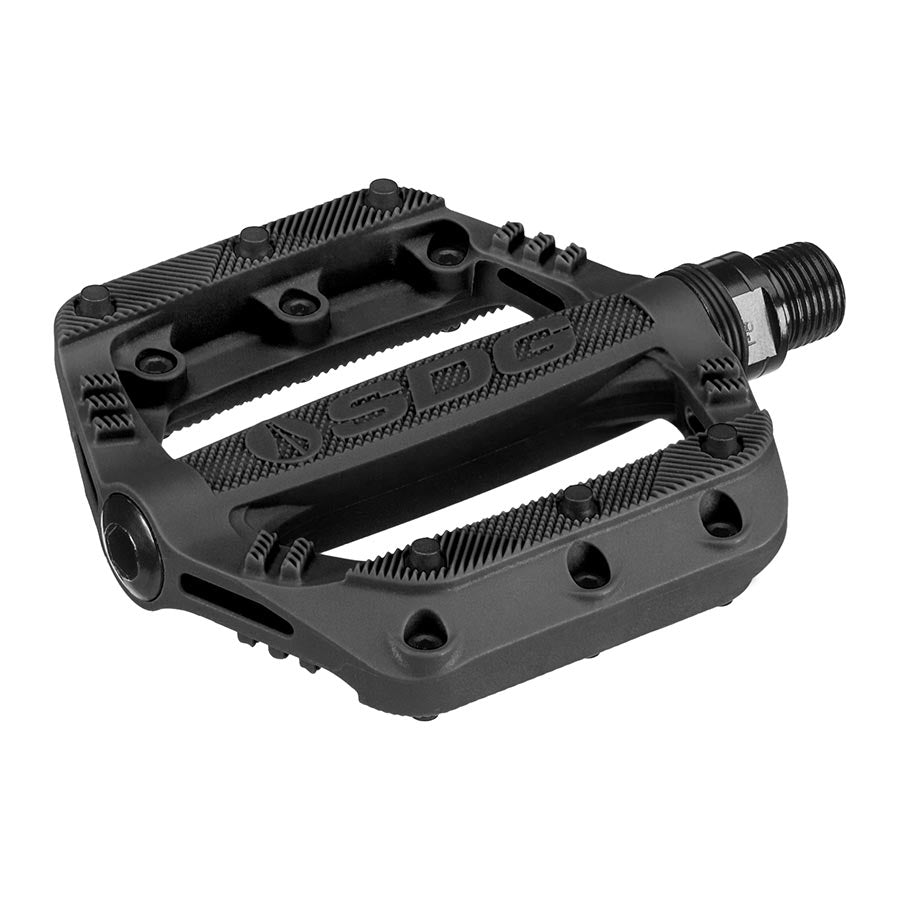

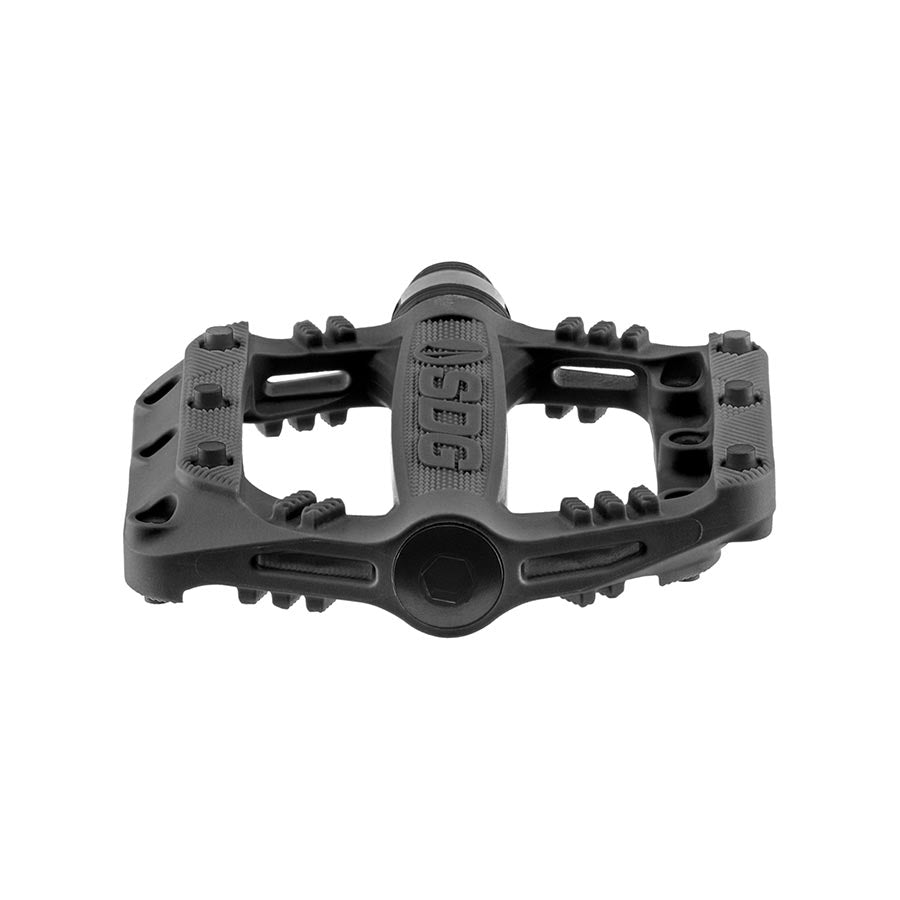

• 100% SDG DNA in the design of these pedals
• Utilizes a flat profile which allows optimal grip for flat pedal shoes
• Composite body design
• Minimal 17mm pedal body height maximizes the pedal feel
• 105mm x 110mm Platform
• Ramped and undercut traction pad
• 18 pins, replaceable, bottom loaded
• Bearing/bushing design for maximum durability. Fully rebuildable pedal design
• Cro-Mo axle

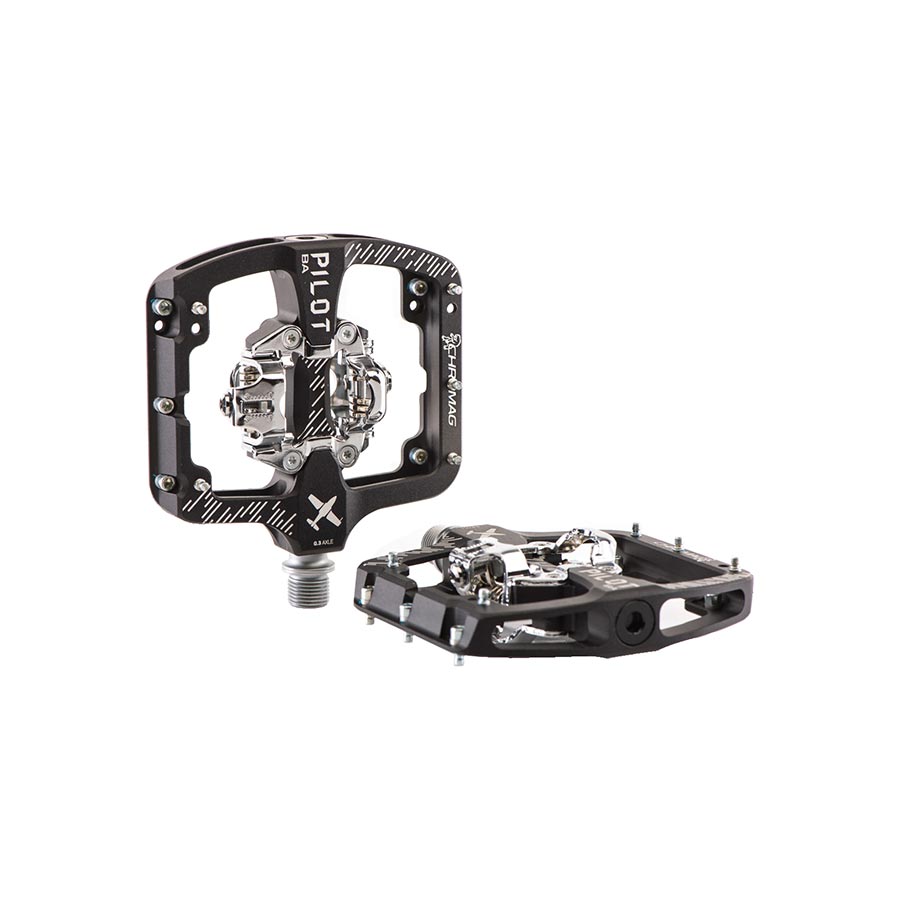

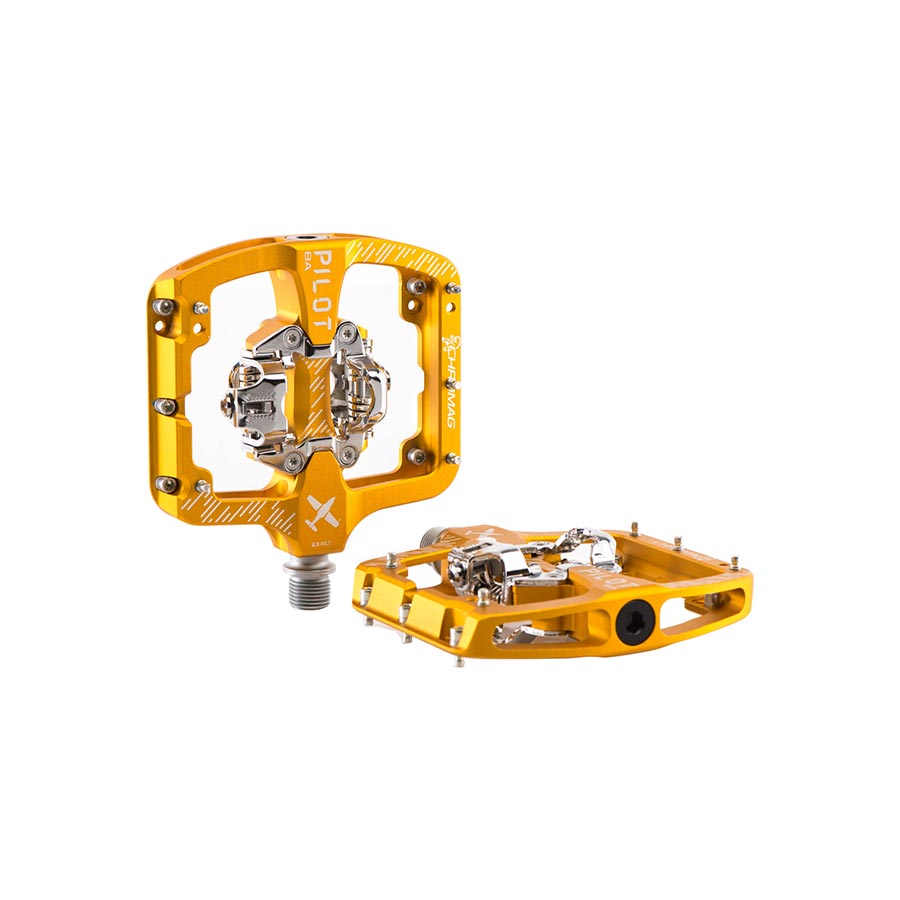

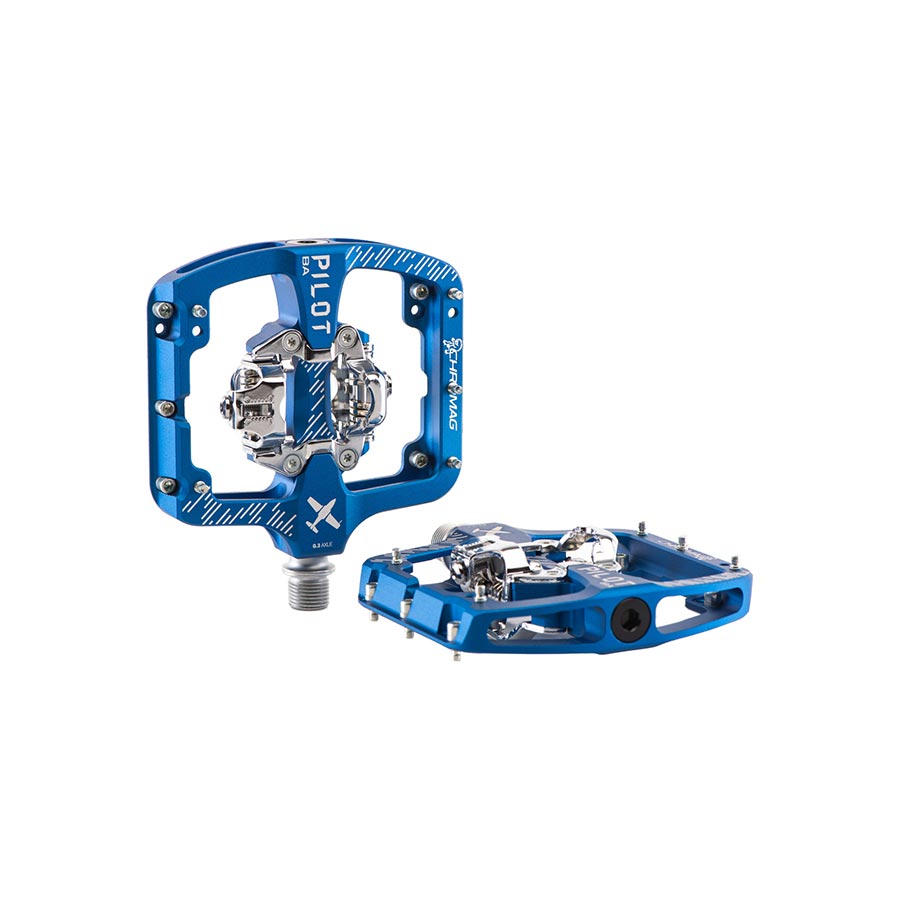

•Pilot = medium platform

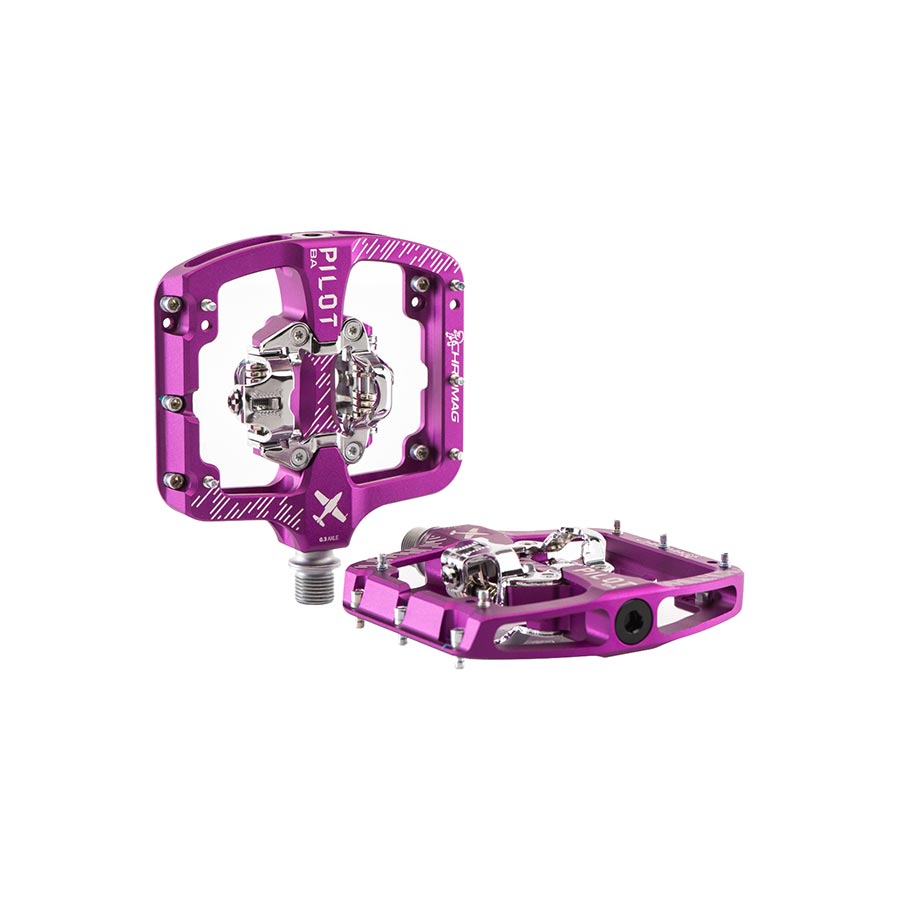

•Pilot BA = large platform
•SPD compatible (2 bolt designs)
•Adjustable pin height
•Machined alloy body, CNC finish
•Sealed bearing and bushing
•Tried and tested chromoly heat treated axle

• Designed to fit kids' feet in the age range of approximately 4-10 years old
• Made with the same precision axle and bearing system as the Contact and Scarab models for smooth running and long durability
• Low thickness at platform centre, 13mm
• Lightweight extrusion design with custom pins and unique concave platform shape
• Fully serviceable

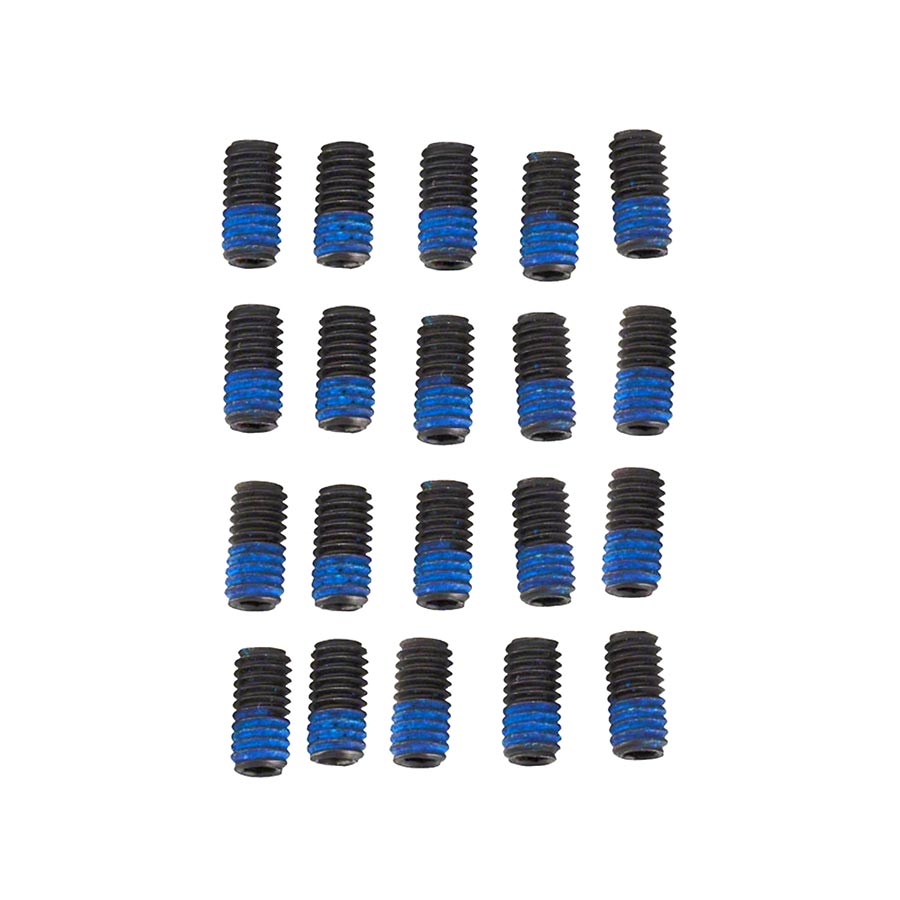

• Pedal Grip pins/bolts and 4 tension screws TIME SPECIALE 8/12 (TIME partnumber T2HB005)
• SRAM Model ID: PD-SPP-A0

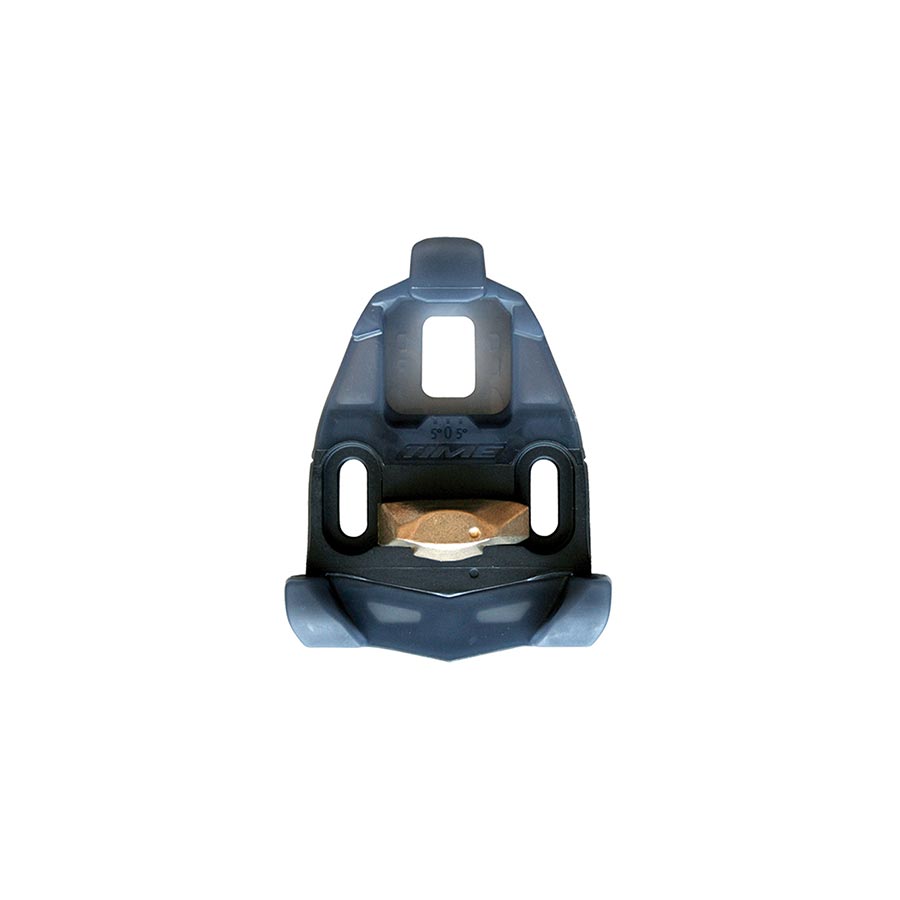

• Works with all RXS and Impact pedals.
• Five degrees of heel float and 2.5mm of lateral float along the pedal axle.
• Compatible with all three-hole road shoes, but the included shim may be required for shoes that have a large curvature in the forefoot area. Full details are included in the easy-to-use instructions.
• SRAM Model ID: PD-RXS-CLTS-A1

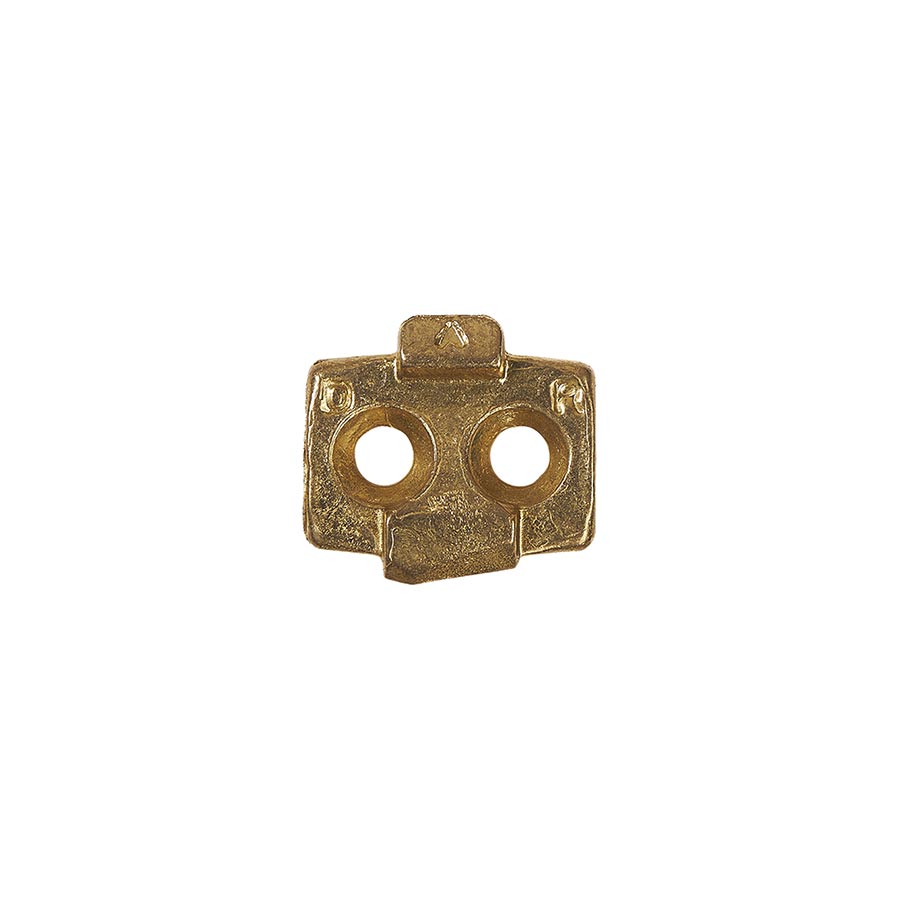

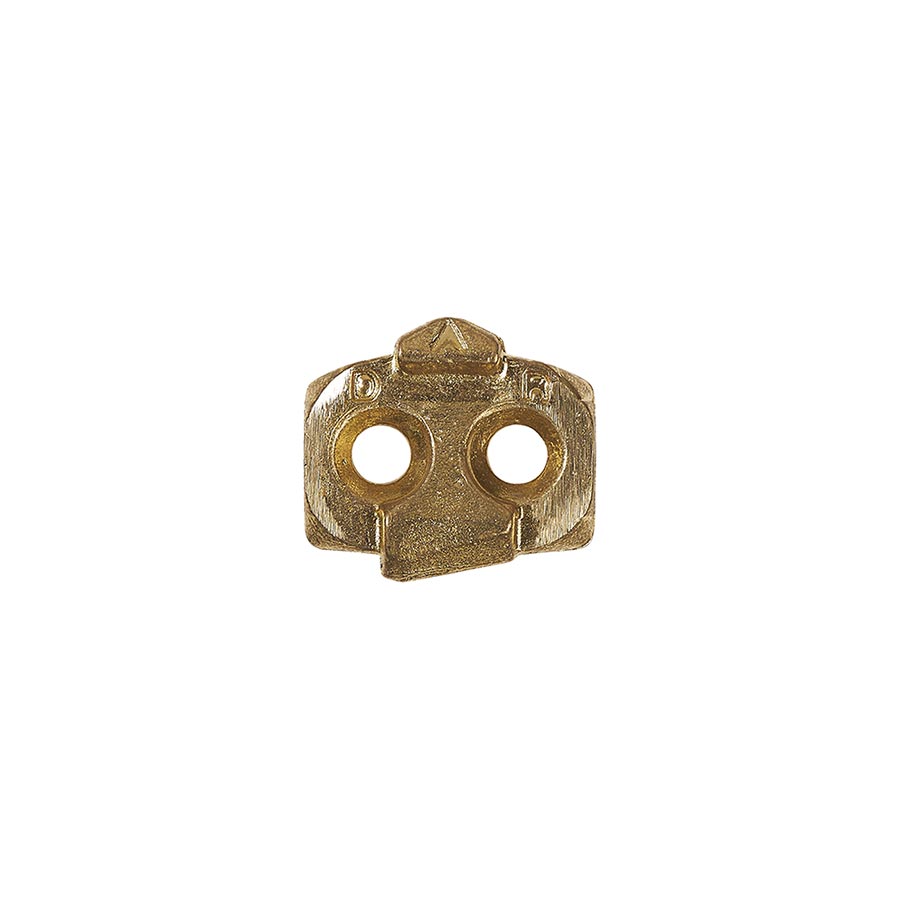

• The ATAC EASY 10° cleat works with all TIME mountain pedals.
• Included with mountain pedal models numbered “2” and “4.”
• Release angle of 10 degrees and is compatible with all two-hole cycling shoes.
• Don’t let the “Easy” name fool you. If you are a high-performance rider looking to reduce the release angle from our 17 or 13 degrees, this is the choice for you.
• SRAM Model ID: PD-ATAC-ECLT-A1

• The ATAC 13/17° cleat works with all TIME mountain pedals.
• Included with all mountain pedal models numbered “6” and higher
• Release angles of 13 degrees or 17 degrees depending on how the cleat is set up on the shoe
• Compatible with all two-hole cycling shoes.
• SRAM Model ID: PD-ATAC-CLTS-A1

• Pedal Weight (pair): 398g
• Size: 110 x 100 x 17 mm
• Body Material: aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: sealed bearings / IGUS bushings
• Pins: replaceable SAP (1/8" x 9 mm) pins / 1 mm washer

• Pedal Weight (pair): 260g
• Size: 102 X 96 X 11 mm
• Body Material: magnesium extruded / CNC machined
• Spindle: CNC machined, cr-moly
• Pedal Bearings: thrust bearings / IGUS bushings
• Pins: replaceable SAP (1/8" x 8mm) pins

• Pedal Weight (pair): 377g
• Cleat Weight (pair): 64g
• Size: 68 x 84 x 17 mm
• Body Material: Aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: Sealed bearings / IGUS bushings
• Cleat System: X1 / X2 (HT exclusive system)
• Pins: replaceable SP7 (M4 x 6mm) pins

• Pedal Weight: (pair) 377g
• Cleat Weight: (pair) 64g
• Size: 68 x 84 x 17 mm
• Body Material: aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: sealed bearings / IGUS bushings
• Cleat System: X1 / X1F (HT exclusive system)
• Pins: replaceable SP7 (M4 x 6mm) pins

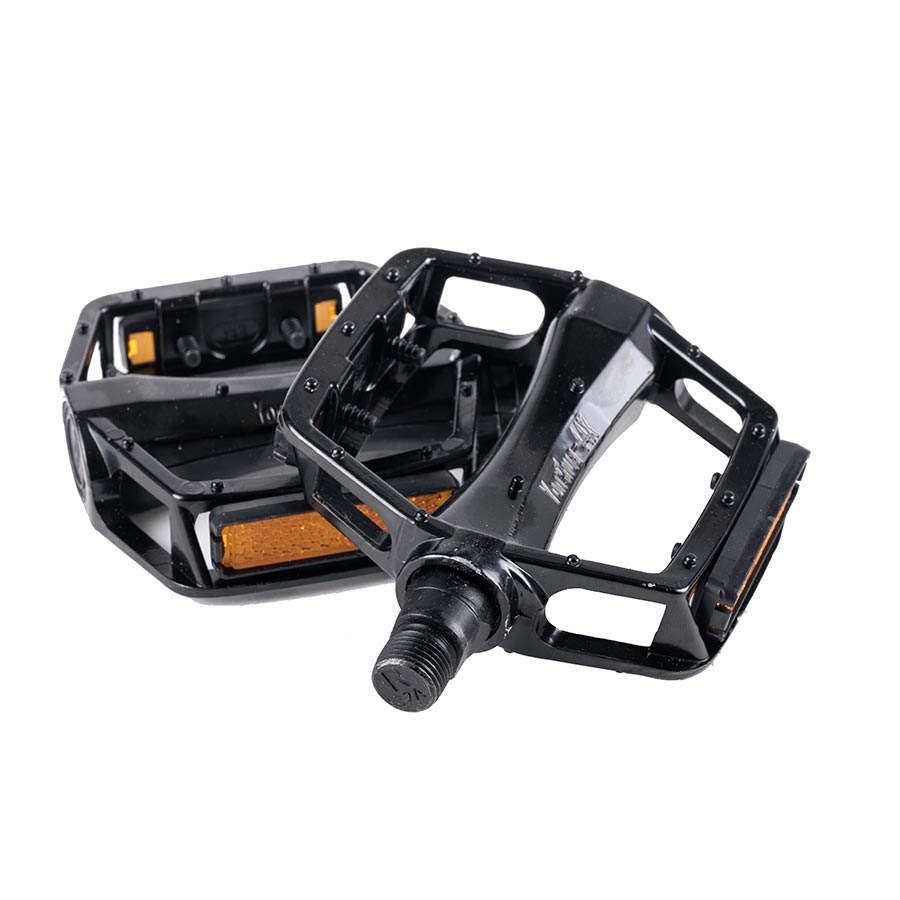

• For Dually V1
• Platform
• Black

• Designed with smaller feet in mind
• 90mm x 90mm Small Platform
• Cro-Mo Axle
• 6 rear loading, replaceable pins
• Gripper profile for enhanced pedal traction
• Fully sealed and lightweight DU bushing design

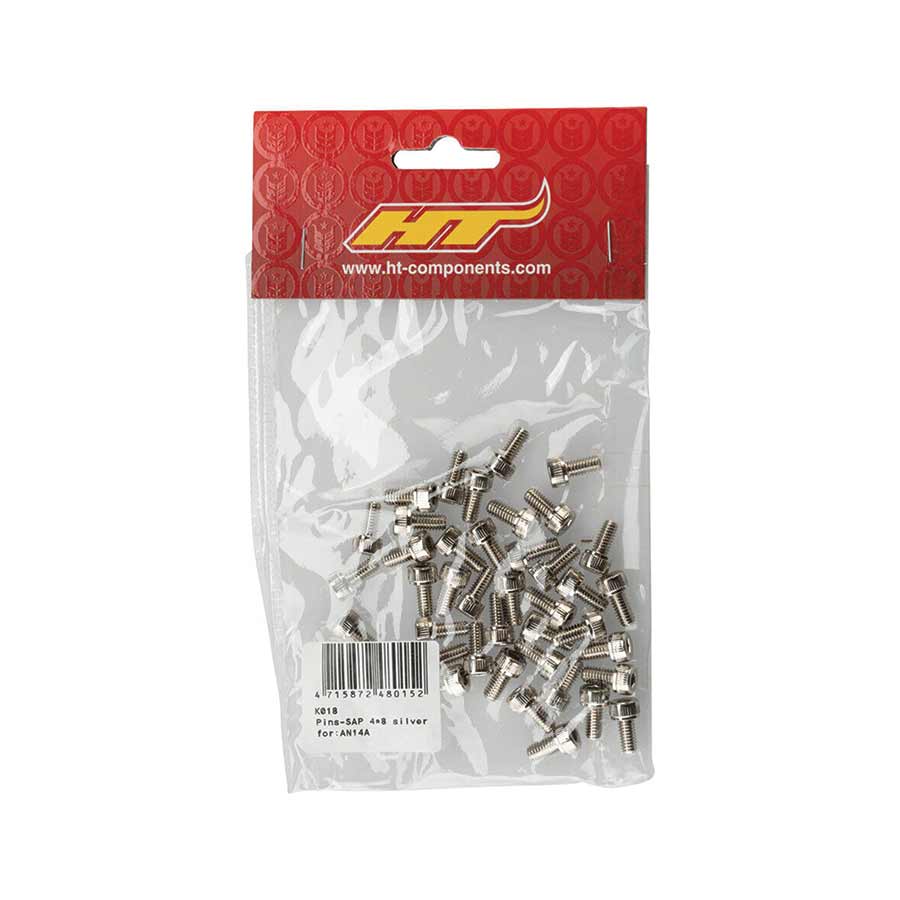

• Steel pins/ SP7/ M4* 8mm length / 40pcs
• For AN01 / AN06

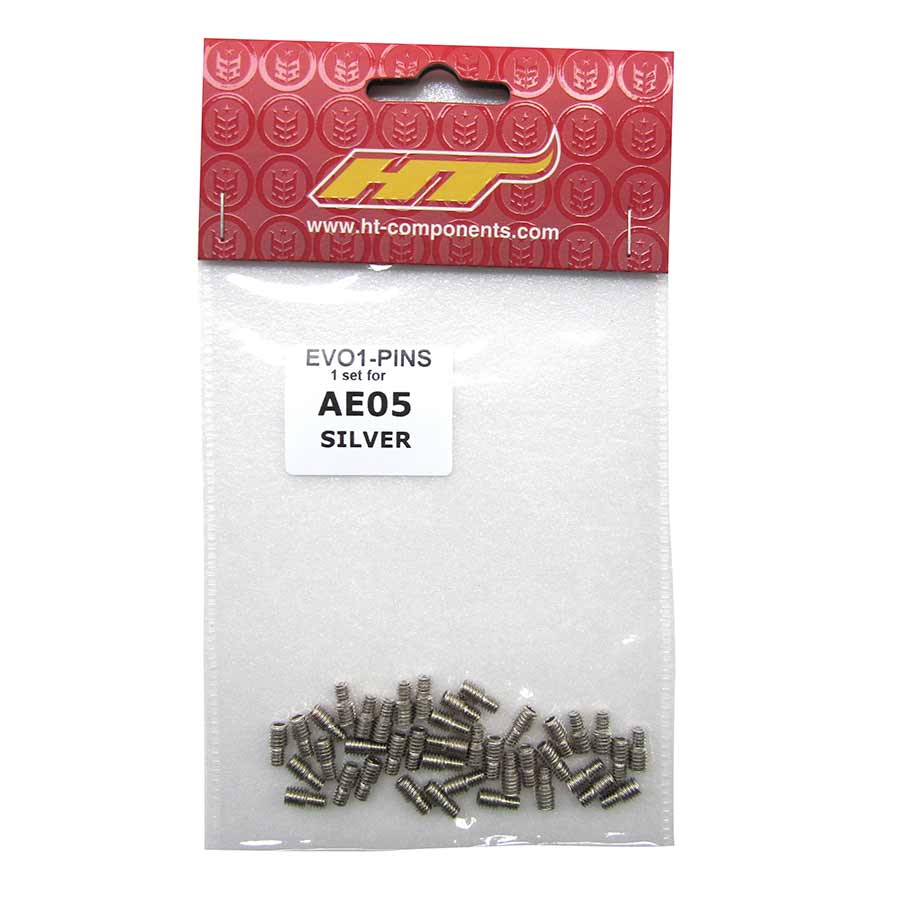

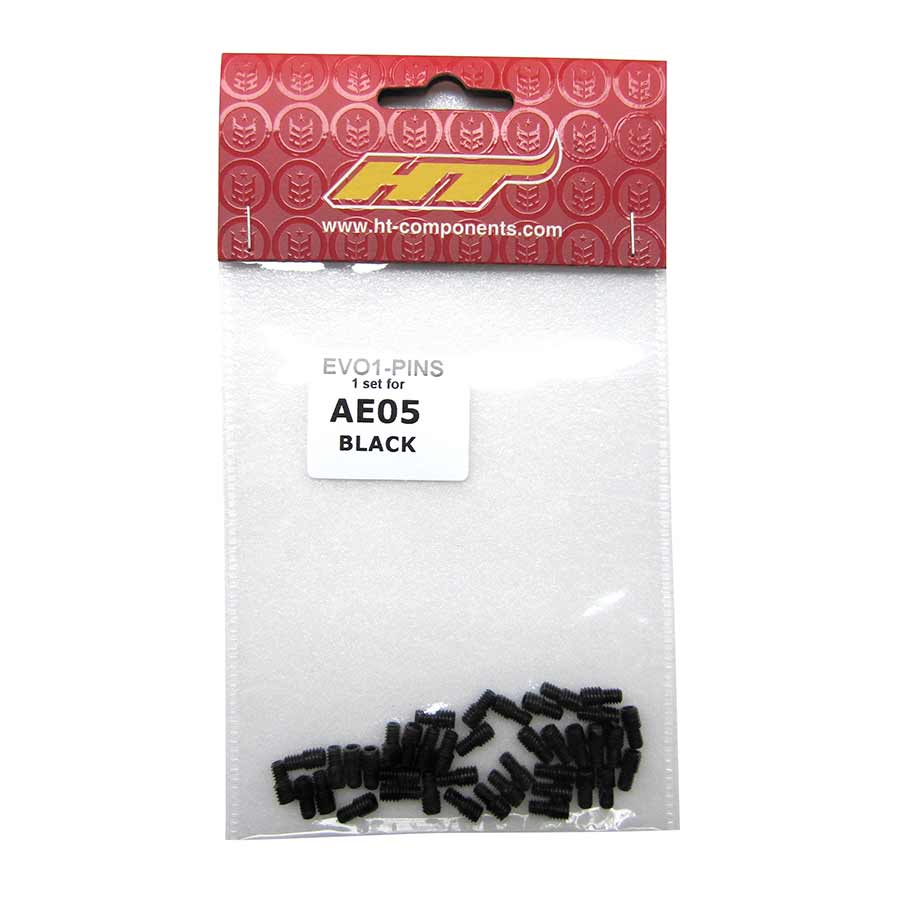

• Steel pins/ EVO1/ M3-M4* 8mm length / black / 40pcs
• For AE05/ ME05 / New ME02

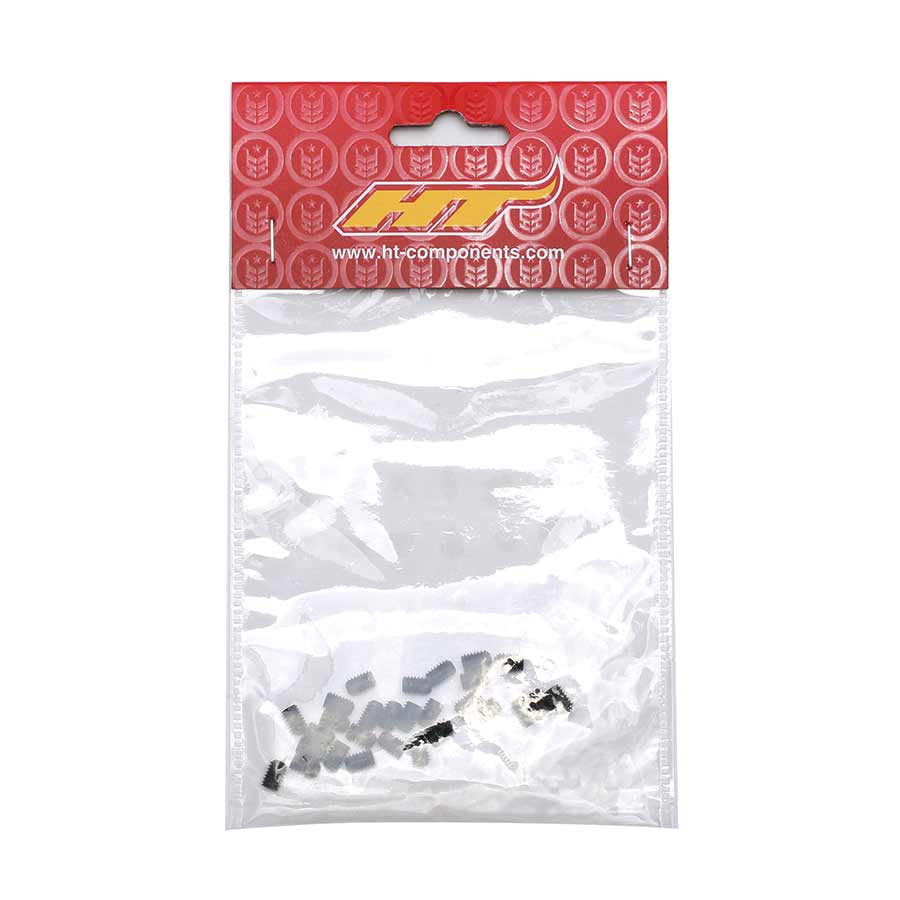

• Steel pins/ M4* 6mm length / 28pcs
• For X2, X1, T1, D1

• PA01, PA12,PA12A

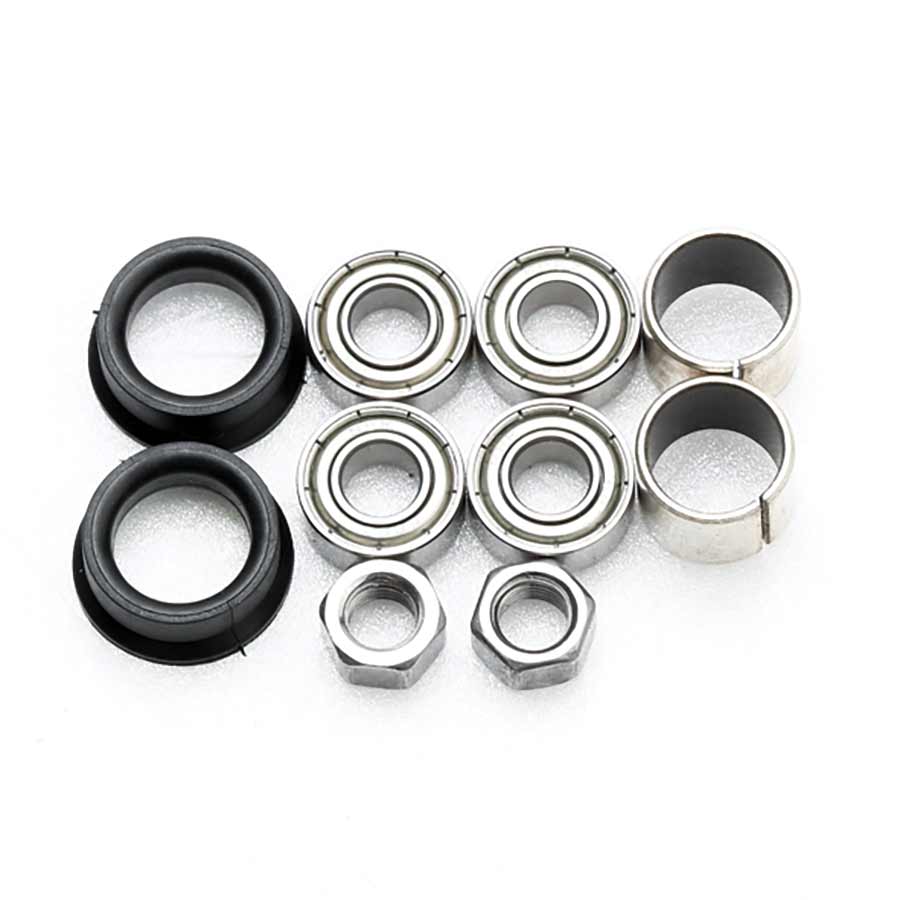

• Sealed Bearing ( 686 ) QTY 4
• Dust seal QTY 2
• 1010 DU Bushing QTY 2
• Nut (M6) QTY 2

• AN01, AN06, AN14A
• Sealed Bearing ( 686 ) QTY 4
• Dust seal QTY 2
• 1010 DU Bushing QTY 2
• Nut (M6) QTY 2

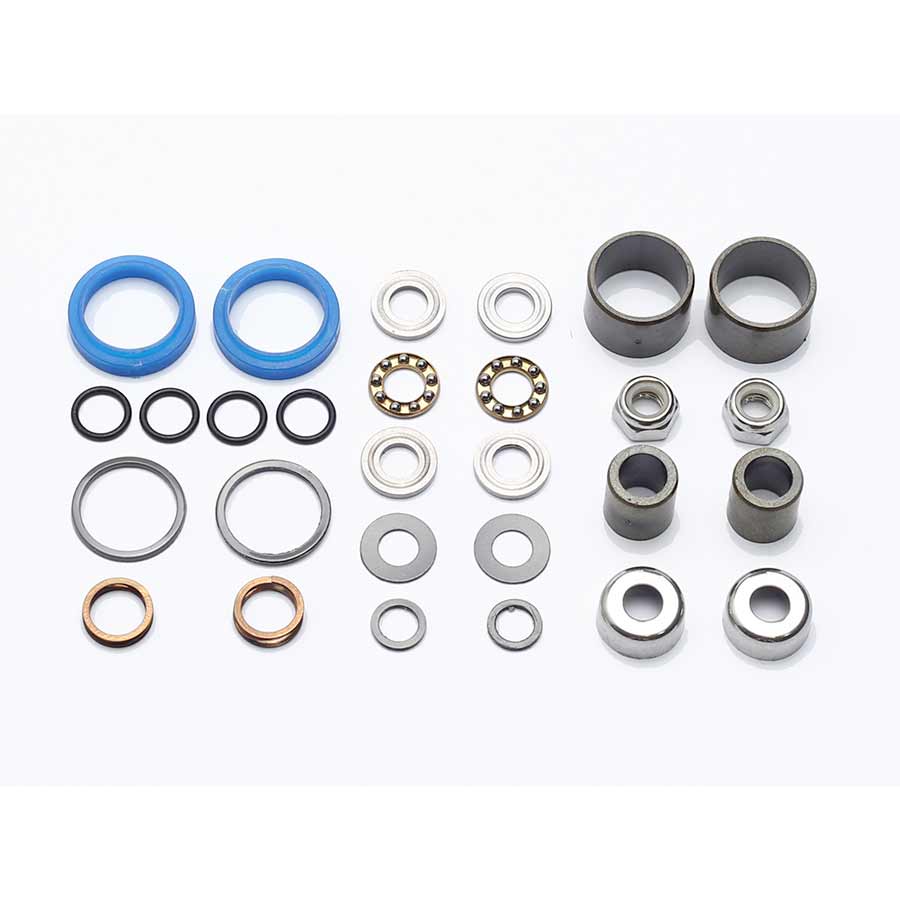

• AE03, AE05, ME03, ME05, ME02
• 1mm Black Washer QTY 2
• Dust seal QTY 2
• IGUS 121410 Bushing QTY 2
• IGUS 060910 Bushing QTY 2
• O-ring QTY 4
• 0.4mm Black Washer QTY 2
• 0.8mm Positioning Washer QTY 2
• Ware Springs QTY 2
• Unique Trust Bearings QTY 2
• End Cap QTY 2
• Self Locking Nut ( L , R thread ) QTY 2

• Features HT PRO cleat system
• Cleat Weight (pair): 64g
• Body Material: Steel
• Cleat System: HT exclusive system / 4° lateral floating / multi-release cleats allowing your shoe to be disengaged by rolling or twisting the foot in any direction

• Features New for Kids BMX Racing
• Pedal Weight (pair): 260g
• Size: 68 x 83.5 x 17 mm
• Body Material: aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: sealed bearings / DU bushings
• Pins: replaceable grip pins

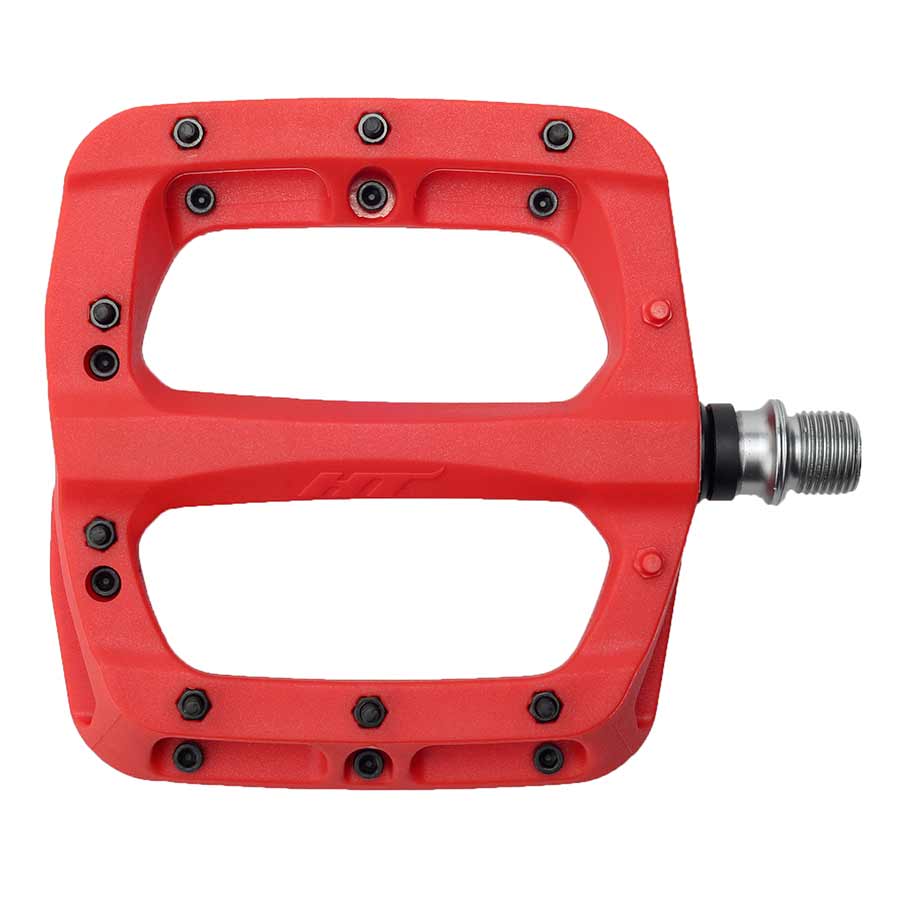

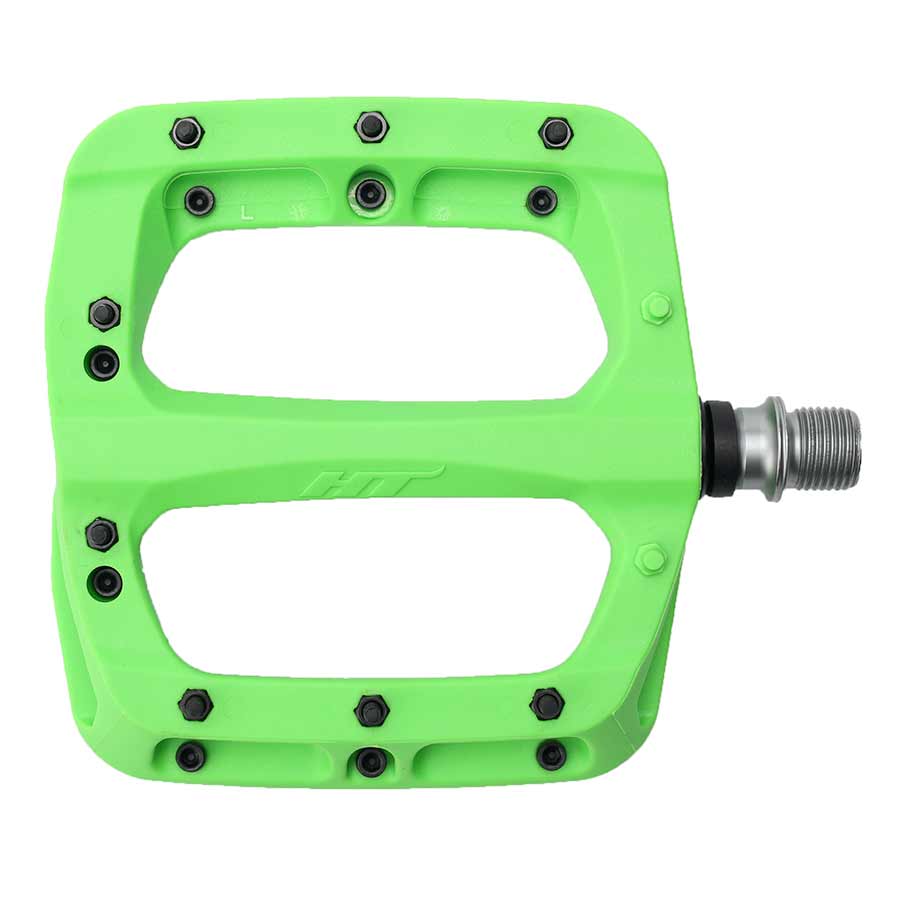

• Pedal Weight (pair): 345g
• Size: 107 X 105 X 18 mm
• Body Material: Nylon reinforced composite
• Spindle: CNC machined Crmo
• Pedal Bearings: dual sealed bearing + one DU bushing
• Pins: replaceable grip pins

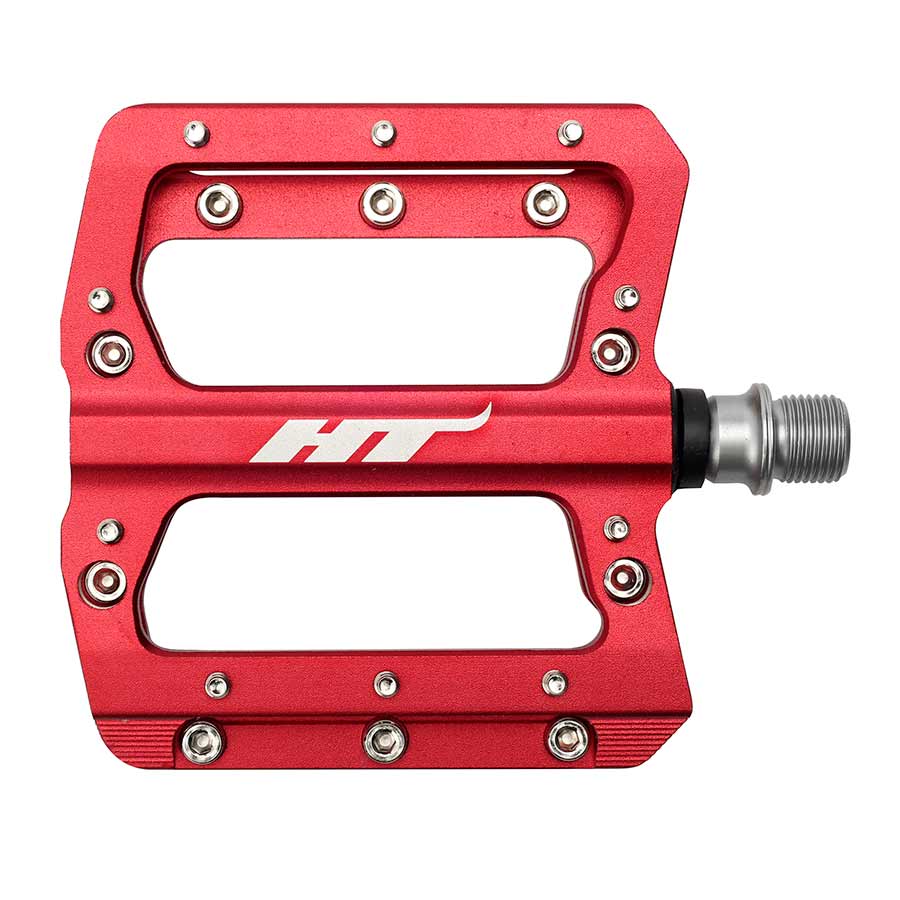

• Based off of technoloy for the AN14A pedal

• Pedal Weight (pair): 475g
• Size: 94 X 95 X 17 mm
• Body Material: aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: 2 X sealed bearings / DU bushings

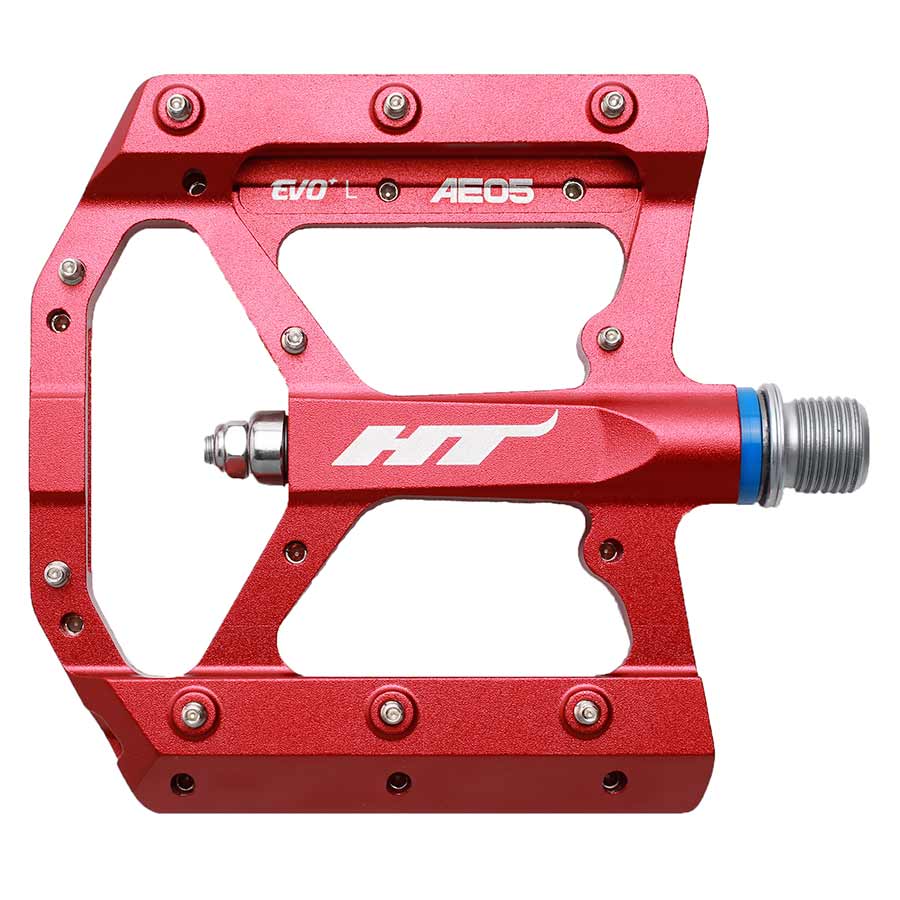

• Pedal Weight: (pair) 360g
• Size: 100 x 96 x 17 mm (12 mm center )
• Body Material: aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: EVO+ system
• Pins: EVO1 replaceable grip pins

• Pedal Weight (pair): 460g
• Cleat Weight (pair): 64g
• Size: 85 x 94 x 14 mm
• Body Material: Aluminum extruded / CNC machined
• Spindle: CNC machined cr-moly
• Pedal Bearings: Sealed bearings / IGUS bushings
• Cleat System: X2 / X1/ X1F (HT exclusive system)
• Pins: Replaceable grip pins

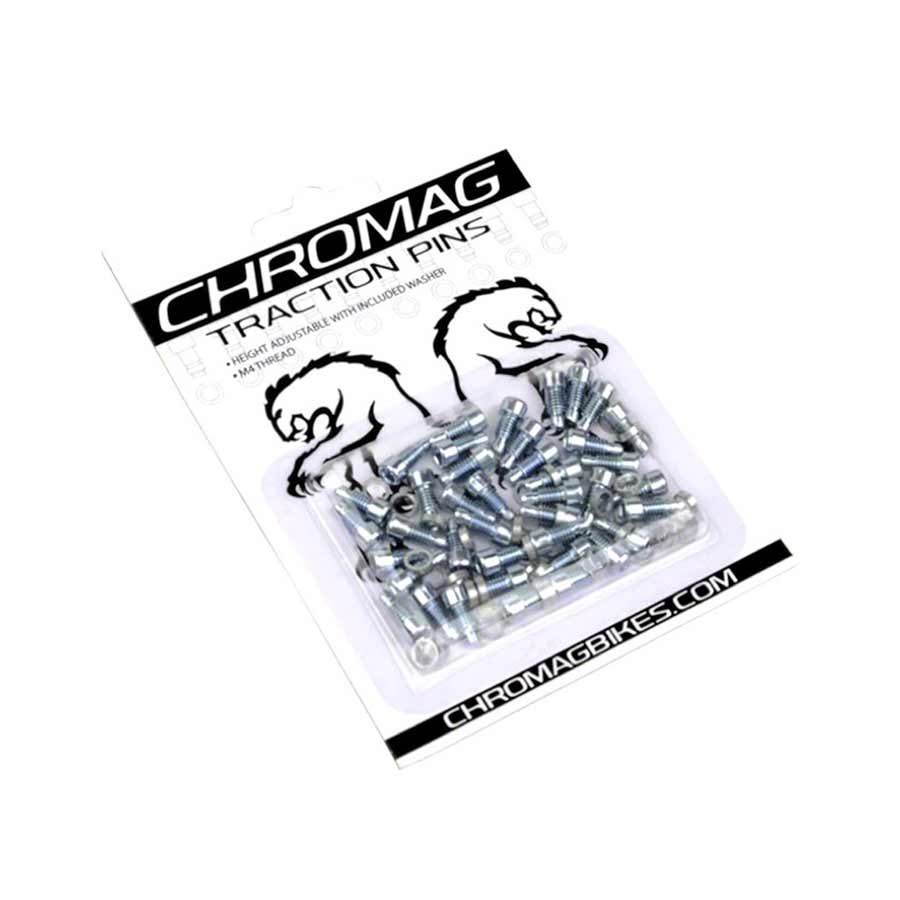

• Replacement pedal pins for Synth pedals
• 40pcs, black

• Designed in collaboration with Chris Kovarik – one of the forefathers of downhill and flat pedal riding.
• Kovarik’s unique and high impact riding style inspired the Dagga’s key features – Chromag's largest platform and widest stance ever.
• Meant to be ridden with thick soled shoes, the Dagga offers improved stability, power and articulation of the bike.
• The Dagga features the same high strength chromoly axle system as other models with a double seal, inner bushing and outer cartridge bearing.
