Road / Drop Handlebars

• Aerodynamic integrated Cable Routing (ACR)
• All carbon construction
• Di2 compatible with integrated junction box compartment and wiring conduits
• 5mm offset drops providing wider, more stable sprinting platform and allowing faster transitions from hoods to drops
• Stem angle: -6°
• Compact 125mm drop, 80mm reach
• Forward angle 10°

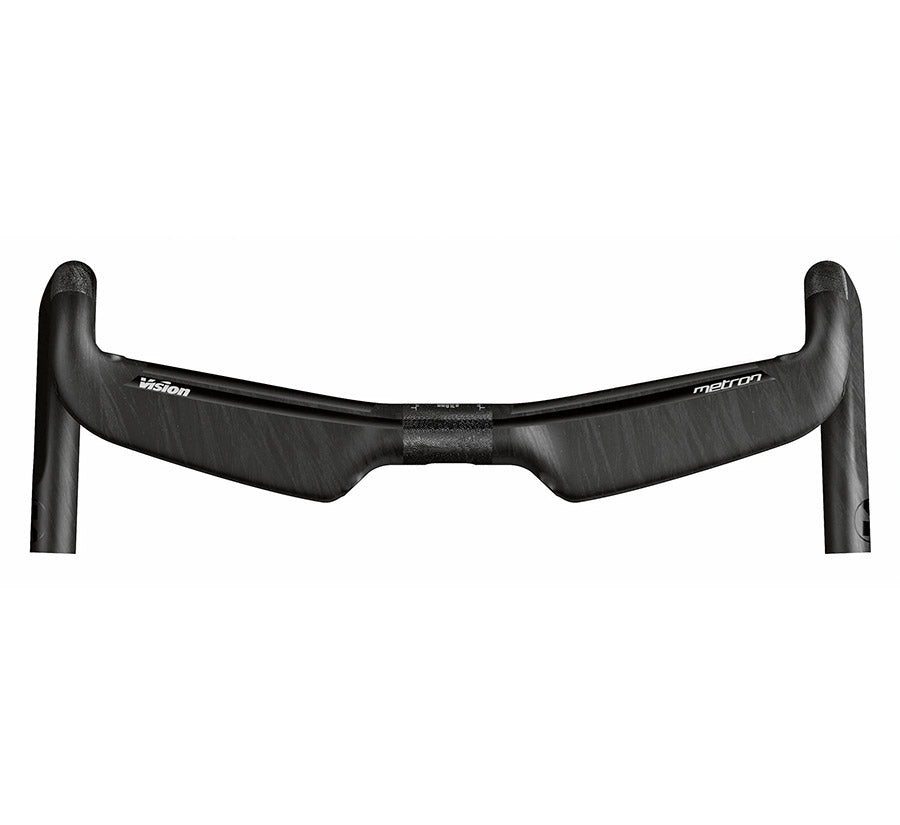

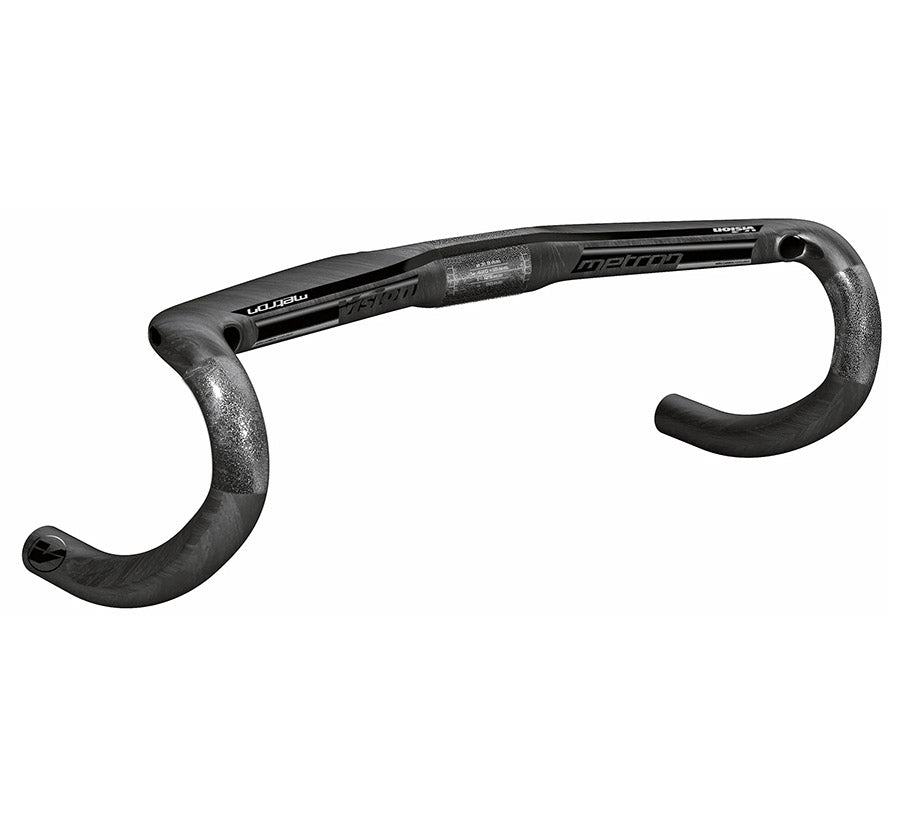

The Metron Aero handlebar combines the proven ergonomics and aerodynamics of the Metron 4D Flat with an increased surface area on the top section for additional hand positioning. Eliminating the MAS mounting system creates a cleaner look for riders not interested in mounting clip-on aerobars.
• 10° Forward angle
• Cable groove compatible with new Di2 systems w/larger internal cable tunnel
• Ø31.8mm x W380+10mm, 400+10mm, 420+10mm, 440+10mm (c-c)
• 125mm drop, 80mm reach
• 2° outward bend

• Designed for integration with SRAM RED E1, Force D2, Rival AXS and APEX AXS.
• Defined locators for placement of SRAM AXS Wireless Blips
• Hidden external routing for hydraulic hose routing into the stem
• 5° drop Flare and 11° drop outsweep creates a drops position 6cm wider than hoods
• 240g for 44cm bar
• Matte Black Finish
• Lifetime Warranty
• SRAM Model ID: HB-DBSL-70X-A1

The SES AR One-Piece Handlebar delivers the innovative shape and performance of our most popular handlebar in a lightweight one-piece version.
Each SES AR One-Piece is made right here in Ogden, Utah at ENVE HQ and features compound-flared drops, ergo shaping, aero profile, and IN-Route System hidden routing compatibility.
Originally available on the Custom Road and through select custom builders, the U.S.-made SES AR One-Piece Handlebar features compound-flared drops, ergo shaping, aero profile, and IN-Route System integration. Compatible with the ENVE Melee, MOG, and a variety of custom-built frames featuring ENVE’s IN-Route System internal routing.
ENVE’s SES Pro Team One-Piece Handlebar that was designed for Tadej Pogacar and the UAE Team Emirates.
• K-Edge Combo Computer/Accessory Mount included
• Includes: (3) 10mm Spacers (2) 5mm Spacers (1) 10mm Bypass Spacer

The SES AR One-Piece Handlebar delivers the innovative shape and performance of our most popular handlebar in a lightweight one-piece version.
Each SES AR One-Piece is made right here in Ogden, Utah at ENVE HQ and features compound-flared drops, ergo shaping, aero profile, and IN-Route System hidden routing compatibility.
Originally available on the Custom Road and through select custom builders, the U.S.-made SES AR One-Piece Handlebar features compound-flared drops, ergo shaping, aero profile, and IN-Route System integration. Compatible with the ENVE Melee, MOG, and a variety of custom-built frames featuring ENVE’s IN-Route System internal routing.
ENVE’s SES Pro Team One-Piece Handlebar that was designed for Tadej Pogacar and the UAE Team Emirates.
• K-Edge Combo Computer/Accessory Mount included
• Includes: (3) 10mm Spacers (2) 5mm Spacers (1) 10mm Bypass Spacer

The SES AR One-Piece Handlebar delivers the innovative shape and performance of our most popular handlebar in a lightweight one-piece version.
Each SES AR One-Piece is made right here in Ogden, Utah at ENVE HQ and features compound-flared drops, ergo shaping, aero profile, and IN-Route System hidden routing compatibility.
Originally available on the Custom Road and through select custom builders, the U.S.-made SES AR One-Piece Handlebar features compound-flared drops, ergo shaping, aero profile, and IN-Route System integration. Compatible with the ENVE Melee, MOG, and a variety of custom-built frames featuring ENVE’s IN-Route System internal routing.
ENVE’s SES Pro Team One-Piece Handlebar that was designed for Tadej Pogacar and the UAE Team Emirates.
• K-Edge Combo Computer/Accessory Mount included
• Includes: (3) 10mm Spacers (2) 5mm Spacers (1) 10mm Bypass Spacer

• Designed for use with the SRAM RED AXS groupset, featuring an overhang to cover the brake hose where it exits the hood. This shelf creates a platform that mates with the brake lever, providing an ideal perch for your hands while riding on the hoods.
• Refined drop shape to give the rider easy access to the brake lever while riding in the drops.
• Defined locators marked on the drops and the bar top for easy placement of SRAM Wireless Blips.
• Includes heat-shrink grip that hides hoses and blips and provides a no-slip surface to hold.
• Hidden external routing for hydraulic hose routing into the stem
• 80mm reach and 125mm drop for ideal race position
• New 5° drop Flare and 8° drop outsweep with slight down sweep
• 250g for 42cm bar
• Matte Black Finish
• Lifetime Warranty
• SRAM Model ID: HB-DBSL-80R-A1

• A purpose built carbon drop bar specifically designed to improve the off-road drop bar ride experience.
• For riding and racing gravel, the right amount of flare in the drops can provide more control and confidence in nearly every situation where riding in the drops is preferred.
• Refined carbon laminate to absorb and damp inputs from the trail, minimizing upper body fatigue.
• Widths are measured center to center in the hoods. Widths at the drops are 12cm wider.

• Full carbon fiber road handlebar with thoughtful ergonomics highlighted by a short reach shallow drop geometry, and full electronic groupset compatibility.
• Ergonomics of the Road Bars are thoughtful and allow for a wide range of adjustability from tilt to brake/shift lever placement.
• To round off the finish, the ENVE Compact Road Handlebar can be routed externally for mechanical groupsets but is also drilled for internal electronic routing for modern electronic drivetrains including compatibility with Shimano RS-EW910 bar-end plug junction box installations.

• The body accounts for the majority of the aerodynamic drag while riding. In order to achieve the most gains in terms of aero efficiency, one must first look at their position.
• The SES Aero Road Bar is proven in the wind-tunnel as not only a very fast bar in itself but also one that puts the rider into a more aerodynamic position.
• Optimized for analog and electric drivetrain compatibility with molded ports for internal routing
• Listed measurements are at the drops. Width at the hoods is 5cm narrower

• Award-winning Vibrocore foam core provides vibration damping proven to reduce arm pump and hand-numbness
• 25° aggressively flared, wide drop bar for true off-road performance and comfort
• Short 110mm drop and 65mm reach geometry is perfect for aggressive riding in a more upright, balanced stance
• 8mm bar clamp extends through the top section providing enhanced hand support and comfort without multiple wraps of tape to increase diameter
• Round profile upper section facilitates wide range of rider/hand positions and maximizes grip on the bars in rough terrain

• Aerodynamic integrated Cable Routing (ACR)
• Alloy handlebar is designed for Adventure, Gravel and Cyclocross
• Sculpted contact points for the “hoods” and “drops” riding positions for better ergonomics
• Flared drops for better control and clearance when descending
SIZES
• Ø31.8mm x W400, 420, 440mm
• 120mm drop, 80mm reach
• 15° outward bend
FINISH
• Bead blasted anodized black
WEIGHT
• 292 grams (420mm)

• Newly designed, size-specific ergonomic top section and expanded clamping area for accessories
• 16 degree flare
• Improved ergo top section
• Easton MCD drop (Max Contact Drop)
• DI2 Internal Routing

• AR specific geometry, shaping, and drop flare for confidence inspiring
comfort and control
• AR specific full carbon laminate and construction
• Hidden wire/hose routing compatiblity allows the user to route wires/hoses internally when paired with compatible stem/headset combo or externally with any traditional stem and headset equipped bike.
• Compatible with stems from Trek, Specialized, Cannondale, Giant, and many others
• Bar tape termination step for clean taping
• 76mm reach, 127mm drop, 23.5mm flare

• 80mm reach and 125mm drop designed to fit a large number of riders
• Clip-on compatible
• Matte Black nano blast aluminum
• SRAM Model ID: HB-DBSC-SL80-A2

• 7050 aluminum for light weight and durability
• 80mm reach and 125mm drop for a medium-high position
• Flattened top shape with 3° backsweep for comfort
• Clip-on compatible (40, 42, 44cm sizes only)
• Di2 RS910 junction compatible
• Matte Black nano blast aluminum
• SRAM Model ID: HB-DBSC-SL8E-A2

• 70mm reach and 115mm drop allow a comfortable hoods position and a shallow drops position
• 5° drop flare and 11° drop outsweep creates a drops position 6cm wider than hoods
• Ergonomic top with 3° backsweep
• Matte Black nano blast aluminum
• SRAM Model ID: HB-DBSC-SL7X-A2

• 7050 aluminum for light weight and durability
• 70mm reach and 128mm drop for a short-low position
• Flattened top shape with 3° backsweep for comfort
• Clip-on compatible (40, 42, 44cm sizes only)
• Matte Black nano blast aluminum
• SRAM Model ID: HB-DBSC-SL7E-B2

• 7050 aluminum for light weight and durability
• 70mm reach and 128mm drop for a short-low position
• Clip-on compatible
• Matte Black nano blast aluminum
• SRAM Model ID: HB-DBSC-SL70-B2

• The ultimate handlebar for long days in the saddle.
• A 3° backsweep on the flat tops keeps the wrist in a comfortable position, essential for long days on
pavement or gravel, while the 10° ramp angle provides a smooth transition to modern shifter hoods.
• Unidirectional carbon built for stiffness, comfort, and light weight
• Matte Black finish
• SRAM Model ID: HB-DBSL-70E-A2

• 5° flare, 11° outsweep, and 3° backsweep
• 70mm reach, 115mm drop
• With hands on brake hoods, wrists remain in a neutral position for comfort. This is ideal for riders, who’ve long favored this as their dominant hand position.
• Bar drops provide a wider, balanced, and secure position with drops that are about 6cm wider than the hoods position for technical or intense riding.
• 305g
• SRAM Model ID: HB-DBSC-70X-A2

• New variable radius drop allows for multiple hand positions in the drop
• Flat transition to hoods
• 3 degree backsweep for wrist comfort.
• Clip-ons compatible on the 40cm and wider sizes.
• 70mm reach
• 128mm variable radius drop
• Di2® RS910 junction box compatible
• 295g
• SRAM Model ID: HB-DBSC-7E-B2

• 80mm reach
• 125mm drop
• Flattened top shape
• 3° backsweep for wrist comfort
• Anatomic drop shape
• Clip-on and Di2® RS910 junction compatible
• 315g
• SRAM Model ID: HB-DBSC-80E-A2

• Continuous carbon composite construction
• Aero-Ergo flat-top riser central section follows the natural arc of the arms with a 10-degree forward bend for more ergonomic climbing position and easier breathing
• Cable groove compatible with new Di2 systems w/ larger internal cable tunnel
• Reinforced and textured lever and stem clamping areas
• Bar width: center/center from the handlebar tails
