Wheels

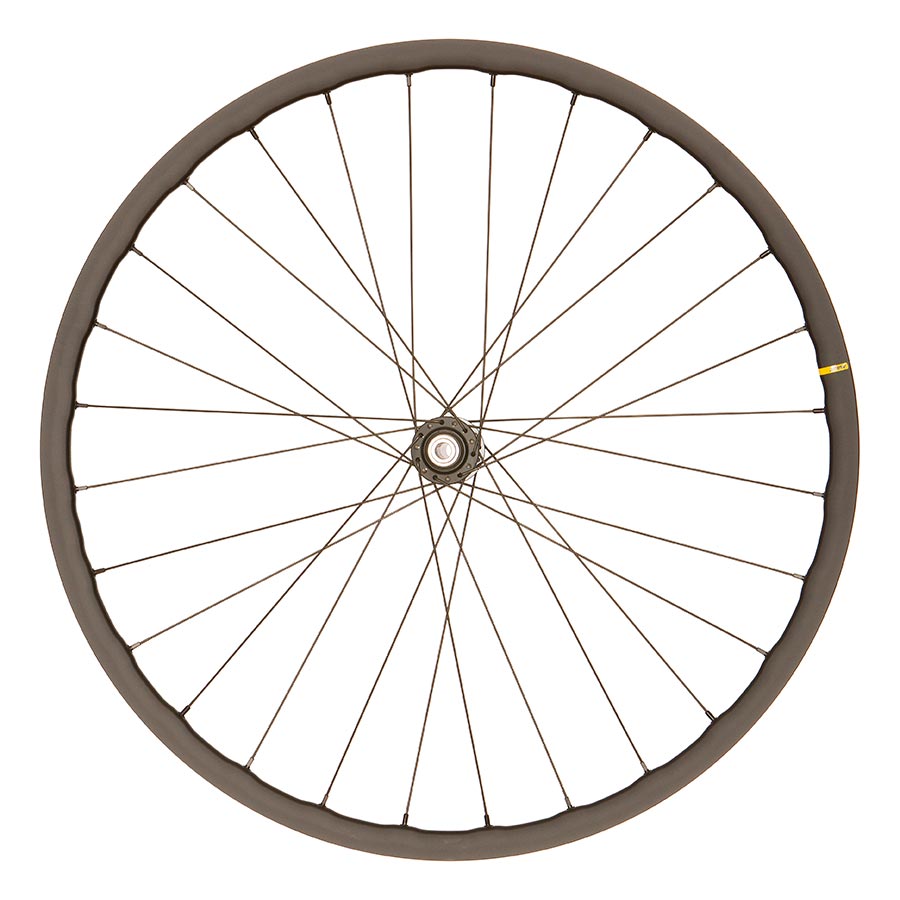

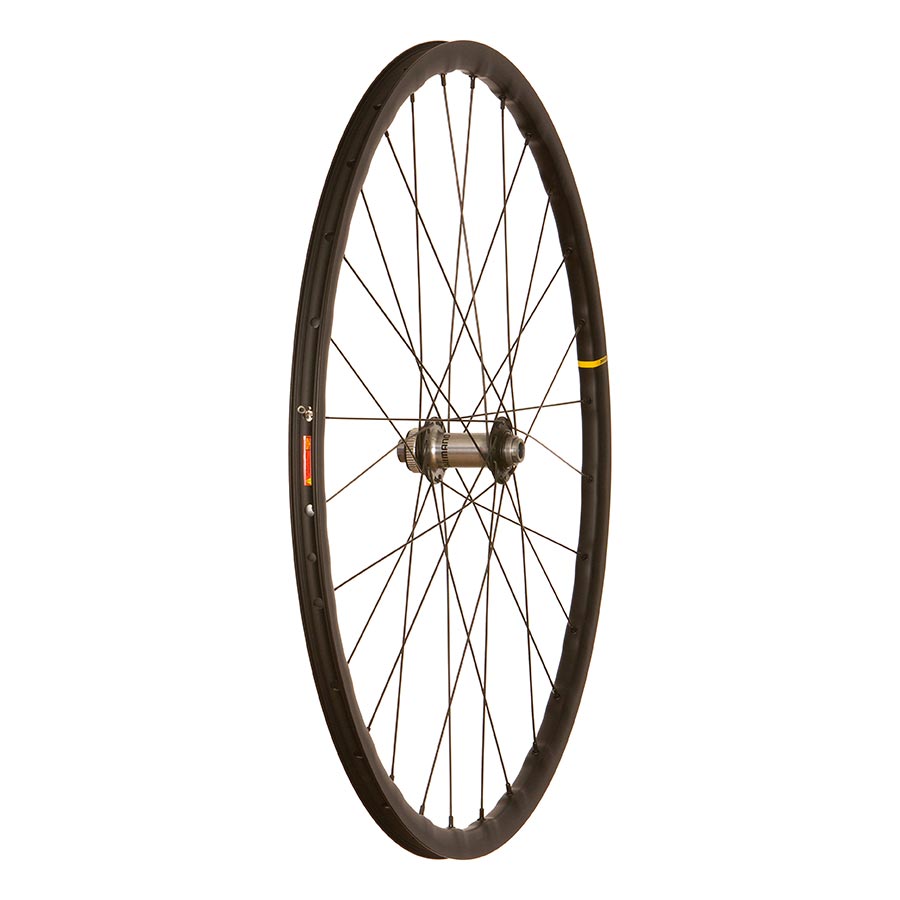

Rims: Mavic Open Pro Disc UST 700C (Black)
• ETRTO 662-19
• External width: 24mm
• Inner width: 19mm
• Mavic's own proprietary Maxtal aluminum alloy
• SUP Tech smooth welded rim joint
• Black eyelets
• For Presta valve
• Made in France
• Weight: 430g
• 28 holes

Front hub: Shimano HB-RS770 Ultegra series
• 12x100mm E-THRU (Axle not included)
• Center Lock
• Polished angular contact bearings
• Contact sealed hub

Rear hub: Shimano FH-RS770 Ultegra series
• 12x142mm E-THRU (Axle not included)
• Center Lock
• Polished angular contact bearings
• Contact sealed hub and freehub body
• Compatible with 11 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

• Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black) and 14mm Brass Polyax Nipples (Black)

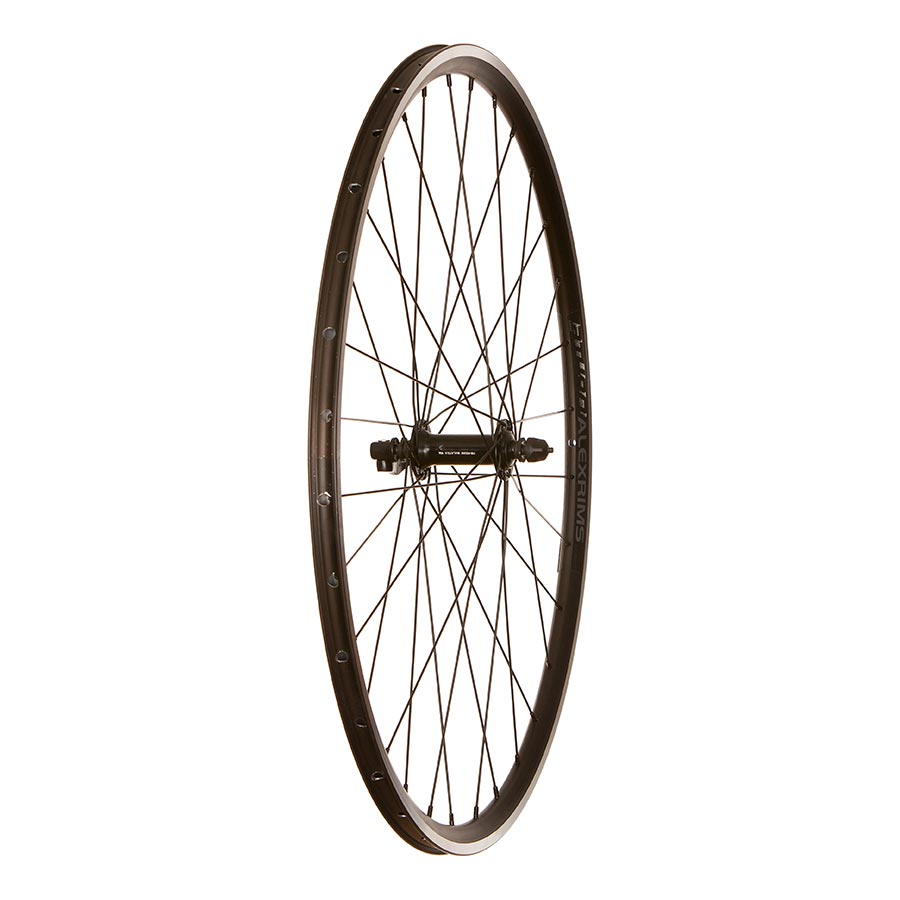

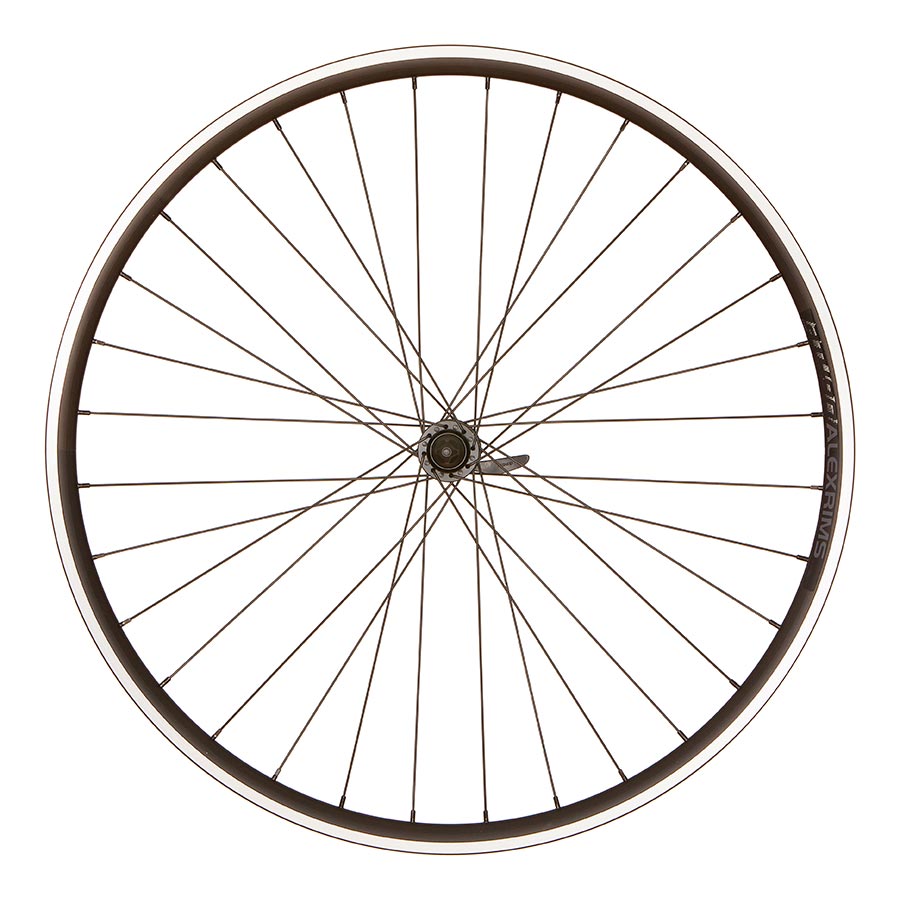

Rims: Alex AT490 700C
• ETRTO 622-17
• External width: 22mm
• Inner width: 17mm
• Profile height: 24mm
• CSW Machined Sidewall
• TRS Tubeless Compatible
• For Presta valve
• 32 holes

Front hub: Shimano Sora HB-RS300
• 9x100mm
• Angular contact bearings
• Contact sealed hub
• Quick Release Binder (Internal Cam) included

Rear hub: Shimano Sora FH-RS300
• 10x130mm
• Angular contact bearings
• Contact sealed hub and freehub body
• Quick Release Binder (Internal Cam) included
• Compatible with 8,9,10 speed

• Assembled in North America by experienced wheelbuilders with Sapim 14G Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

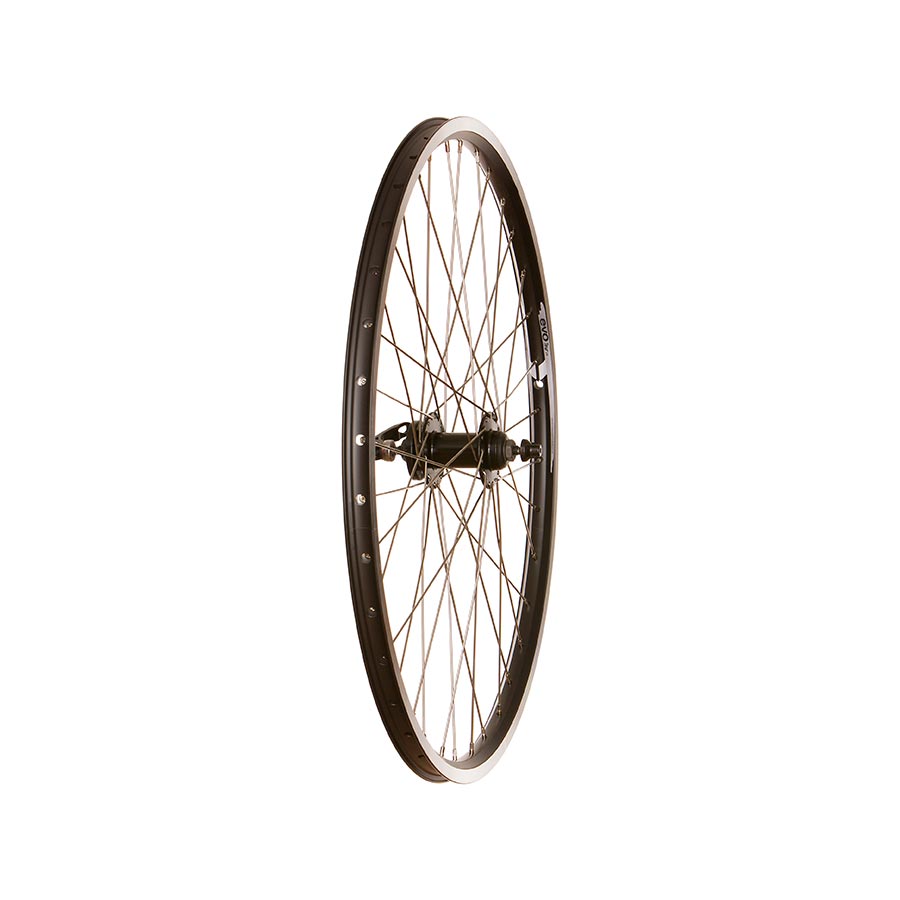

Rims: Evo Tour 19 26"
• ETRTO 559-19
• Inner width: 19mm
• 6061-T6 Alloy
• Double Wall
• Powder Coat satin black finish
• CNC machined sidewalls
• Drilled for Schrader valve
• Rim or Disc Brake compatible
• 36 holes

Front hub:
• QR 9x100mm (Quick Release binder included)
• 6-Bolt ISO disc mount
• 6061-T6 Alloy
• Anodized black finish
• Adjustable bearings
• Rubber seals

Rear hub:
• QR 10x135mm (Quick Release binder included)
• 6-Bolt ISO disc mount
• 6061-T6 Alloy
• Anodized black finish
• Adjustable bearings
• Rubber seals
• HG freehub compatible with 8/9/10 speed

Assembled in North America by experienced wheelbuilders with Sapim stainless steel spokes and 14mm Brass Polyax Nipples

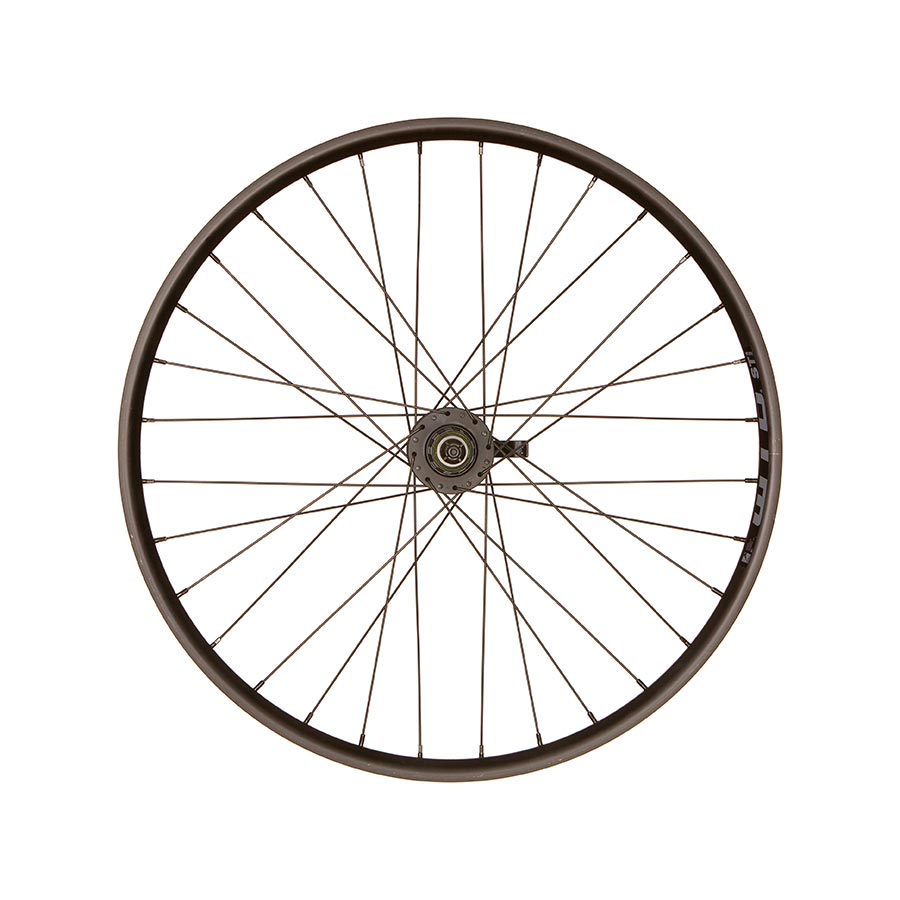

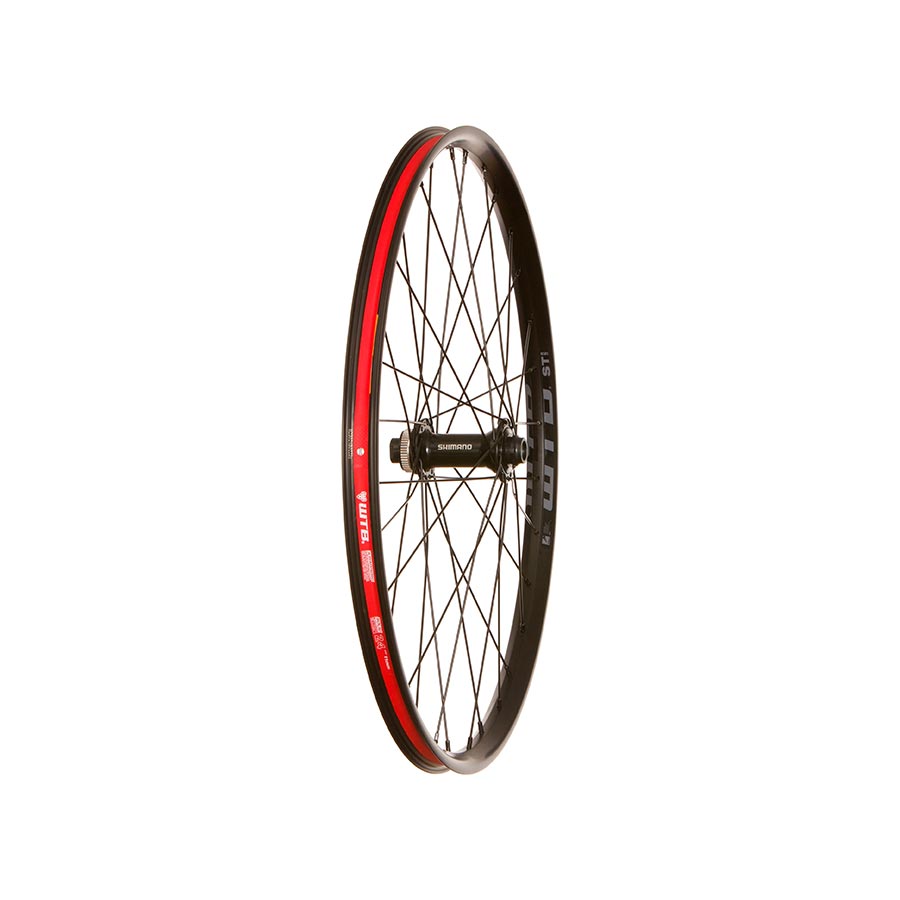

Rims: WTB ST i23 24"
• ETRTO 507-23
• Inner width: 23mm
• Disc Brake Only
• Drilled for Presta valve
• TCS 2.0 Tubeless System compatible
• Solid Strip (included)
• 32 holes

Front hub: Shimano HB-MT400-B Boost
• 15x110mm (Axle not included)
• Center Lock (6-Bolt adapter included)
• Angular contact bearings
• Contact sealed hub

Rear hub: Shimano FH-MT400-B Boost
• 12x148mm (Axle not included)
• Center Lock (6-Bolt adapter included)
• Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
• Compatible with 10 speed MTB (11/12 speed with 1.85mm spacer, not included)

Assembled in North America by experienced wheelbuilders with Sapim stainless steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

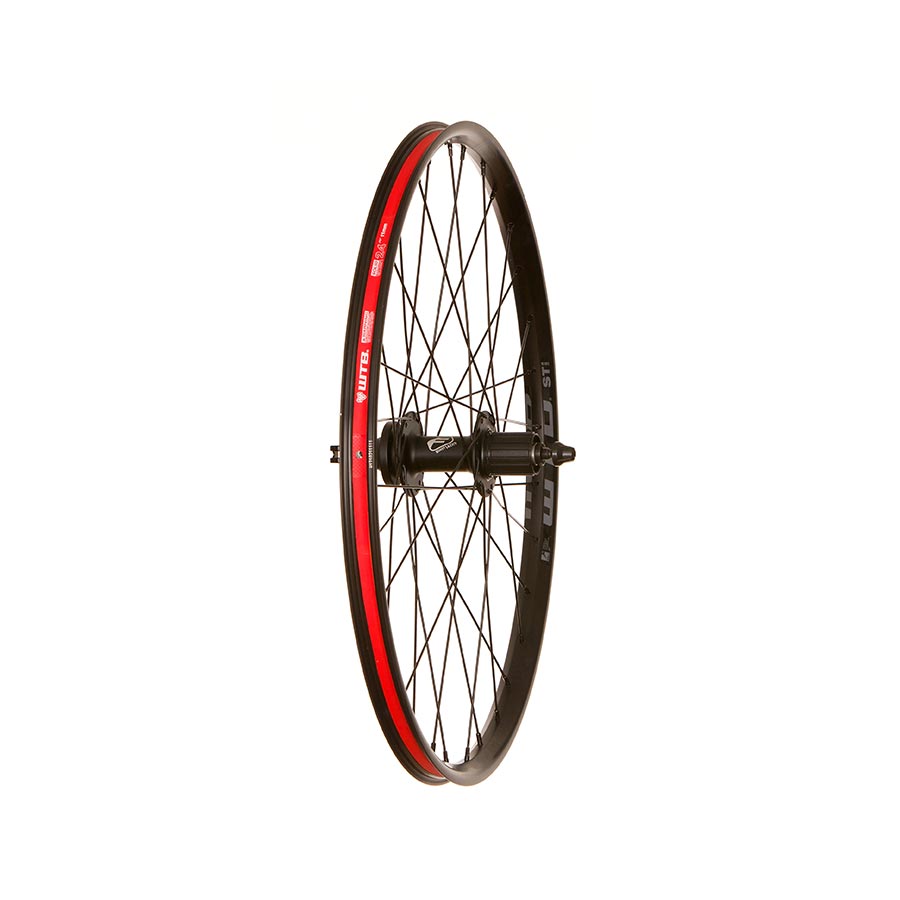

Rims: WTB ST i23 24"
• ETRTO 507-23
• Inner width: 23mm
• Disc Brake Only
• Drilled for Presta valve
• TCS 2.0 Tubeless System compatible
• Solid Strip (included)
• 32 holes

Front hub: Formula DC-20
• QR 9x100mm (Quick Release binder included)
• Anodized black with Laser Etched logo
• 6-Bolt ISO disc mount
• Adjustable bearings
• Rubber seal

Rear hubs options: Formula DC-22 (QR10x135mm) / DC-2241 (Boost QR 9x141mm)
• Quick Release binder included
• Anodized black with laser etched logo
• 6-Bolt ISO disc mount
• Adjustable bearings
• Rubber seal
• Compatible with 8-11 speed MTB (12 speed HG with 1.85mm spacer, not included)

Assembled in North America by experienced wheelbuilders with Sapim stainless steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

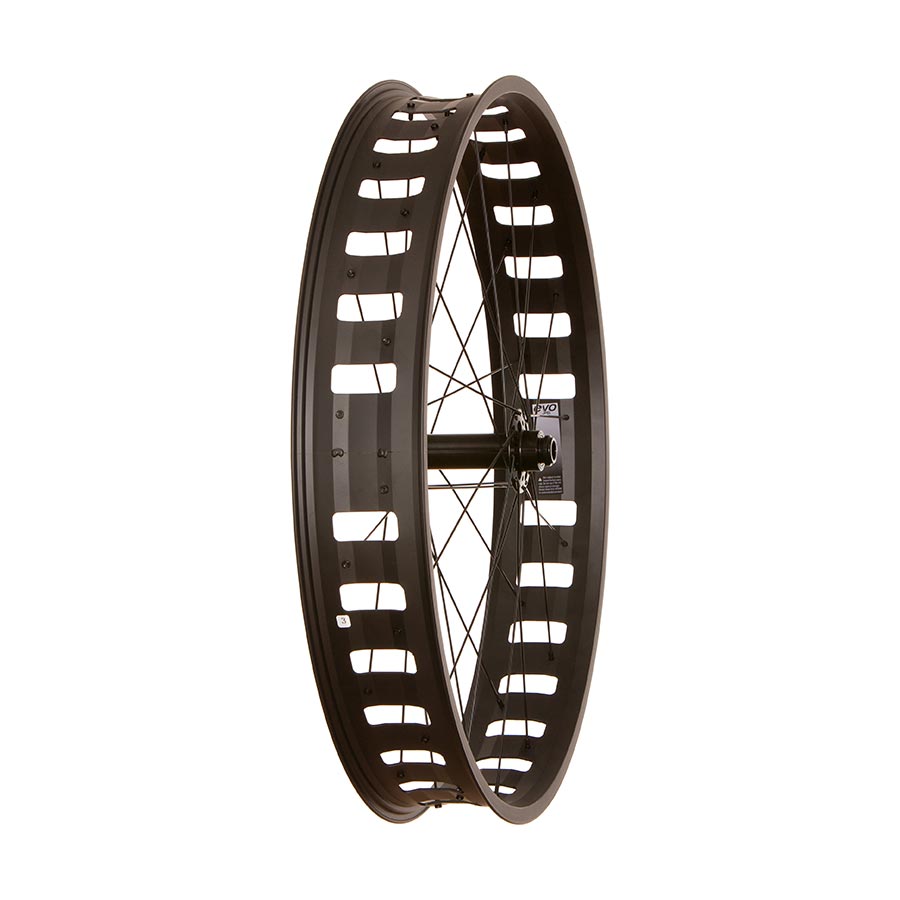

Rims: EVO JP95 27.5"
• ETRTO 584-94
• Inner width: 94mm
• Disc Brake Only
• Drilled for Schrader valve
• 32 holes

Front hub: Novatec D201SB
• 15x150mm (Axle not included)
• 6-Bolt Disc Mount
• Sealed cartridge bearings (x2)

Rear hub: Novatec D202SB
• 12x197mm (Axle not included)
• 6-Bolt Disc Mount
• Sealed cartridge bearings (x5)
• Compatible with 8-11 speed MTB (12 speed HG with 1.85mm spacer, not included)

Assembled in North America by experienced wheelbuilders with Sapim stainless steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

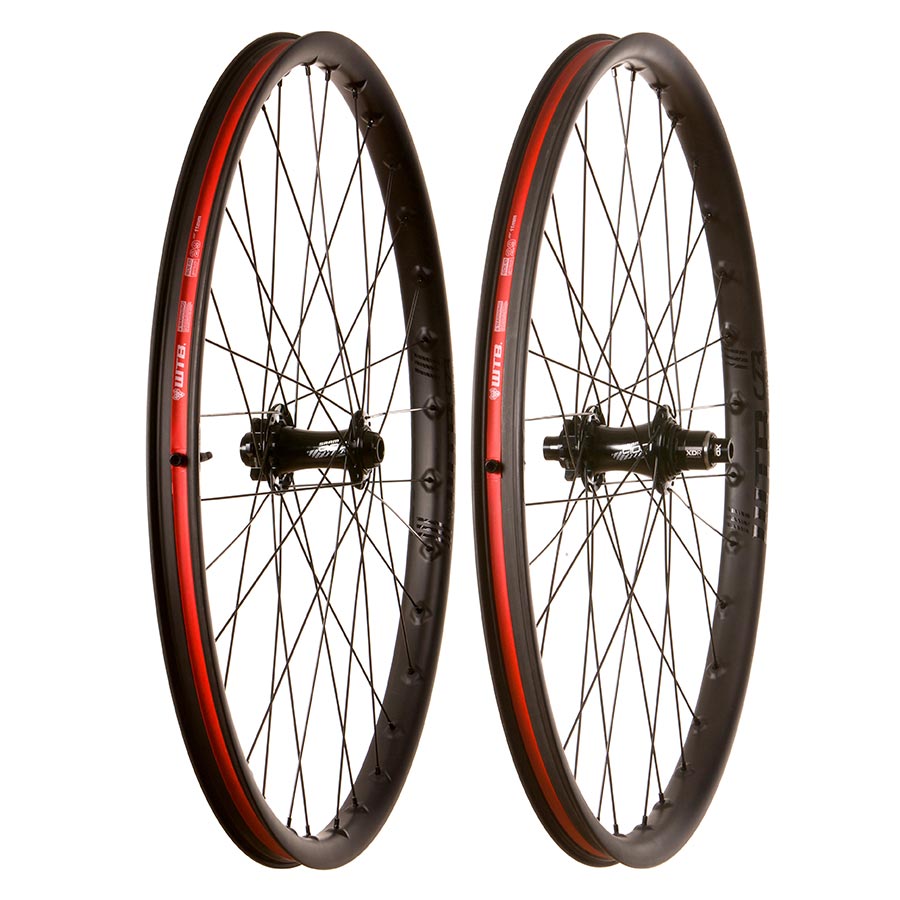

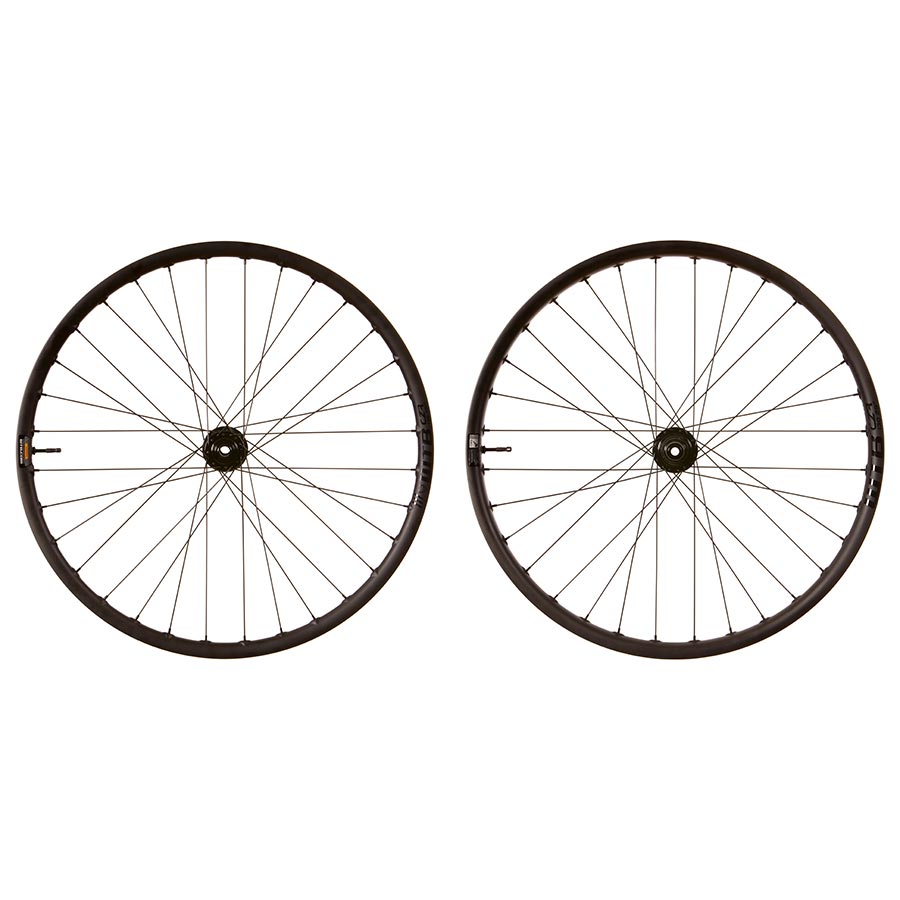

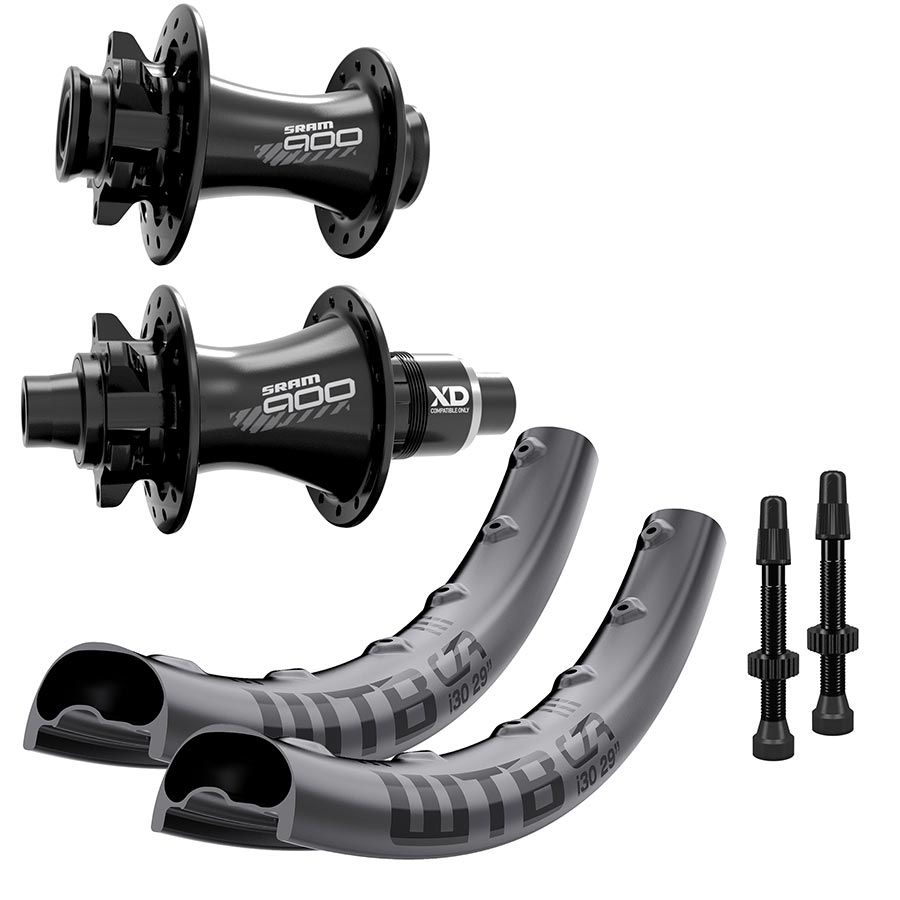

Rims: WTB CZR i30 Carbon 29"
• ETRTO 622-30
• Inner width: 30mm
• Made from Torayca T700 UD carbon fiber, striking a fine balance between stiffness and compliance
• Asymetric and angled spoke hole drilling distributes spoke tension more evenly
• Externally reinforced spoke bed
• Drilled for Presta valve
• TCS 2.0 Tubeless System compatible
• Solid Strip (included)
• 32 holes

Front hub: Sram 900 Boost
• 15x110mm Thru-Axle (Axle not included)
• 6 Bolt Disc Mount
• Sealed cartridge bearings

Rear hub: Sram 900 XDR Boost
• 12x148mm Thru-Axle (Axle not included)
• 6 Bolt Disc Mount
• Sealed cartridge bearings
• Sram Double Time 4-Pawl Ratchet Freehub, 52 Points of Contact, 6.9 degree engagement angle
• Compatible with 11,12 speed XD (1.85mm spacer included)

Sold in Pair, including:
• Tubeless Valve (x2)

Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)

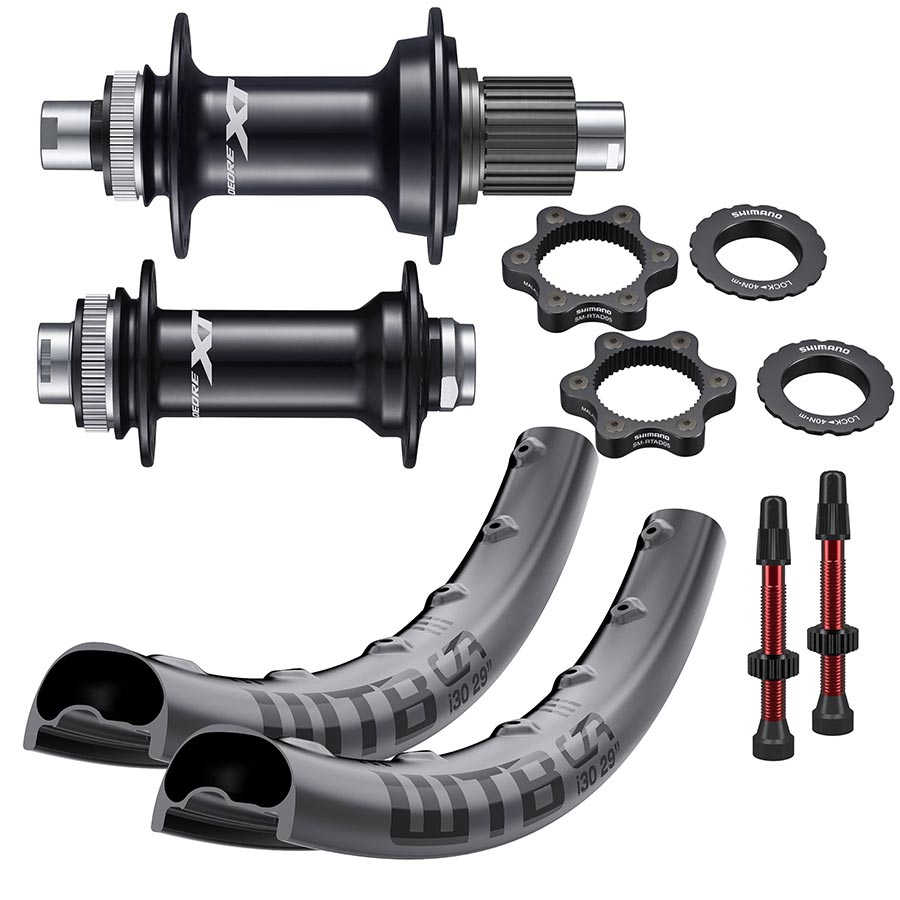

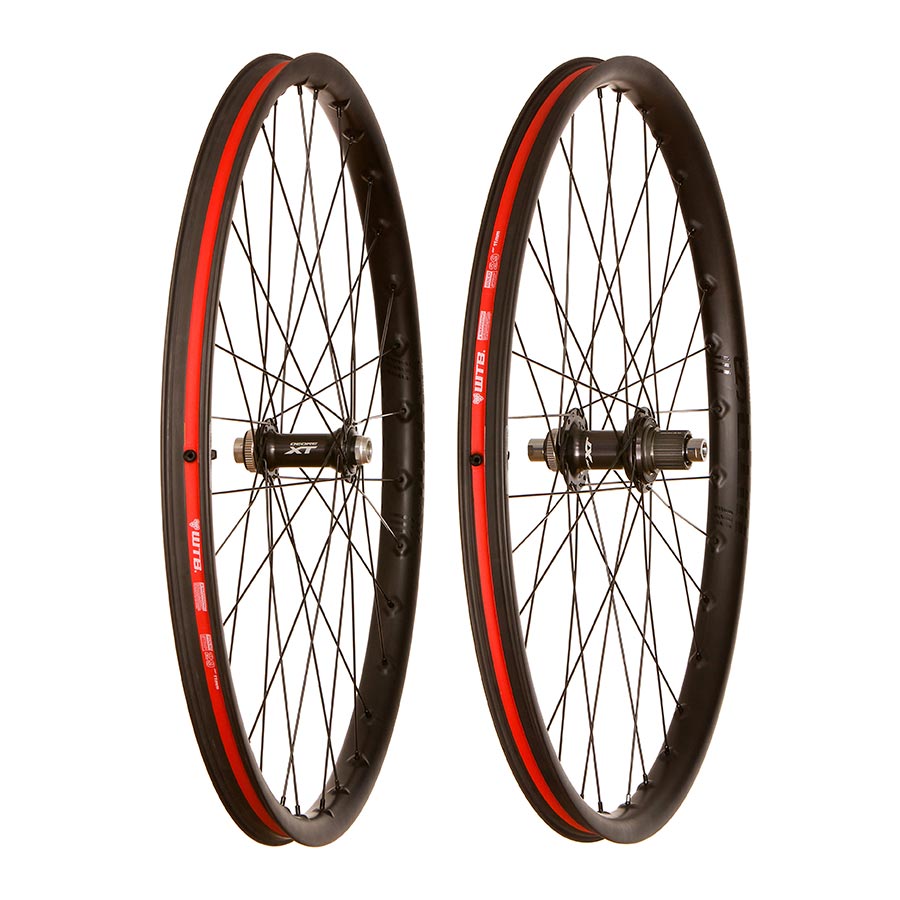

Rims: WTB CZR i30 Carbon 29"
• ETRTO 622-30
• Inner width: 30mm
• Torayca T700 UD carbon fiber for stiffness and compliance
• Asymetric and angled spoke hole drilling
• Externally reinforced spoke bed
• Drilled for Presta valve
• TCS 2.0 Tubeless System compatible
• Solid Strip (incl.)
• 32 holes

Front hub: Shimano XT HB-M8110-B Boost
• 15x110mm (Axle not incl.)
• Center Lock (6-Bolt adapter incl.)
• Polished angular contact bearings
• Contact sealed hub

Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
• Center Lock (6-Bolt adapter incl.)
• Quick Engagement Freehub, 36 Points, 10 deg. engagement
• HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
• MS compatible 12 Spd Shimano Micro Spline only

Sold in Pair, including:
• Tubeless Valve (x2)

Assembled in North-America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)

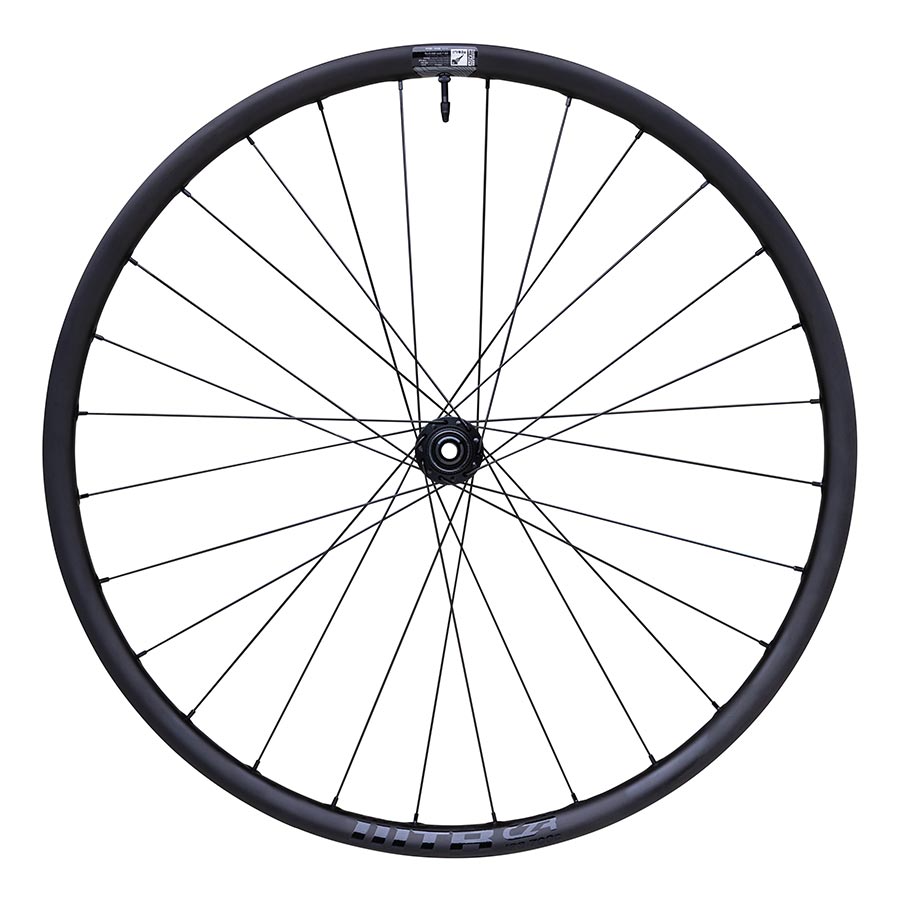

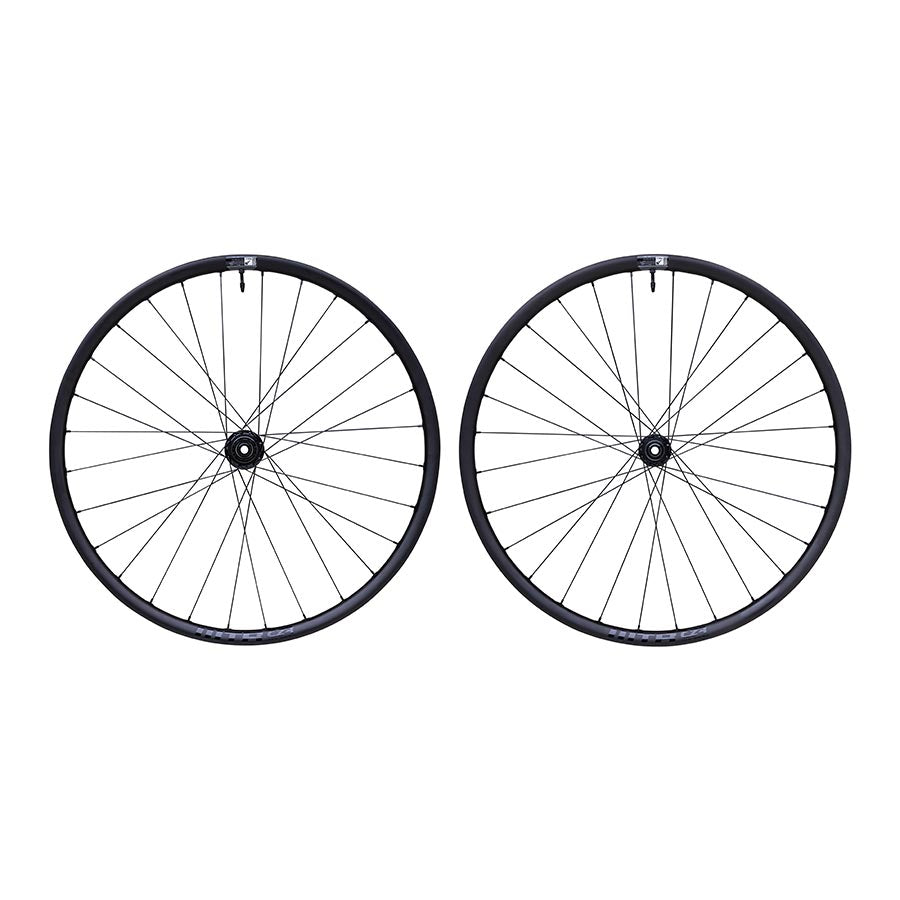

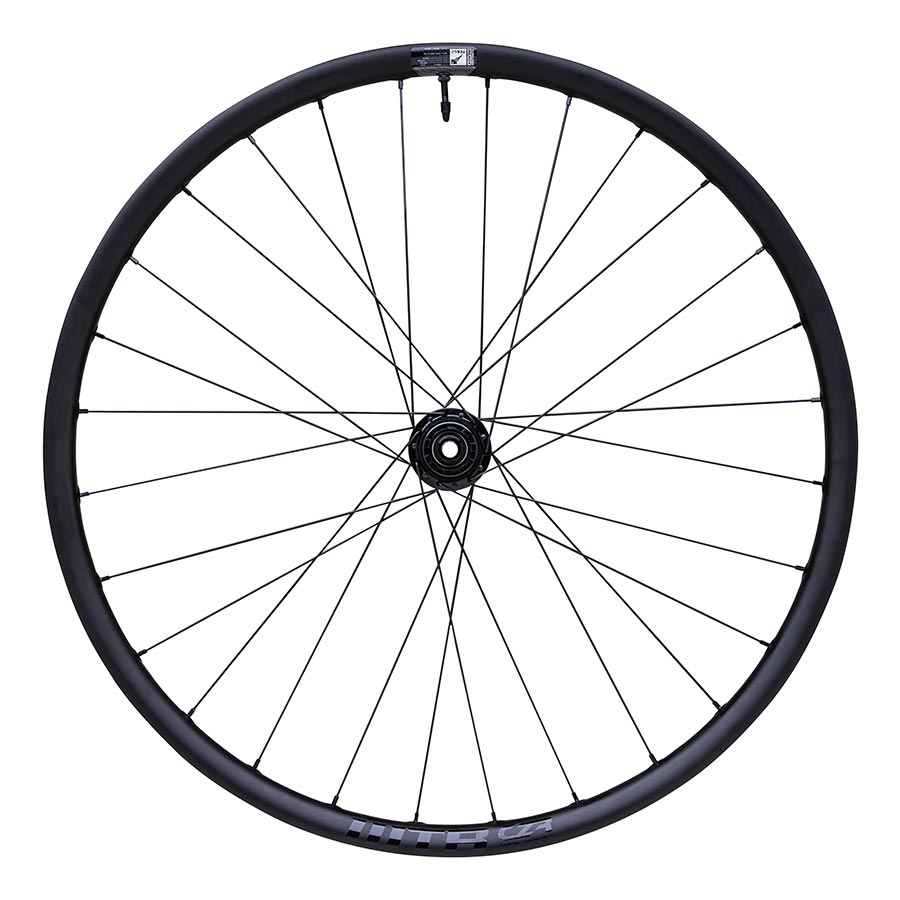

Rims: WTB CZR i23 Carbon 700C
• ETRTO 622-23
• Inner width: 23mm
• Torayca T700 UD carbon fiber for stiffness and compliance
• Asymetric and angled spoke hole drilling
• Externally reinforced spoke bed
• Drilled for Presta valve
• TCS 2.0 Tubeless System compatible

• 28 holes

Front hub: Shimano HB-RS770 Ultegra series
• 12x100mm E-THRU (Axle not included)
• Center Lock (6-Bolt adapter included)
• Polished angular contact bearings
• Contact sealed hub

Rear hub: Shimano FH-RS770 Ultegra series
• 12x142mm E-THRU (Axle not included)
• Center Lock (6-Bolt adapter included)
• Polished angular contact bearings
• Contact sealed hub and freehub body
• Compatible with 11/12 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

Sold in Pair, including:
• Tubeless Valve (x2)

Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Ni

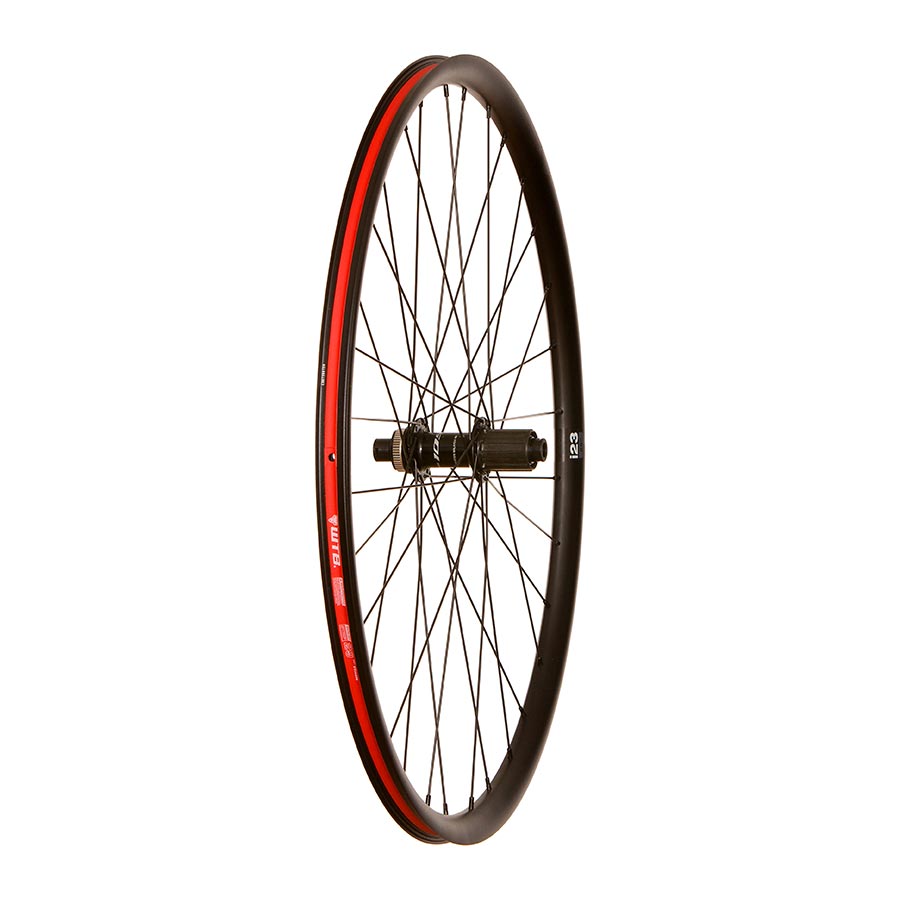

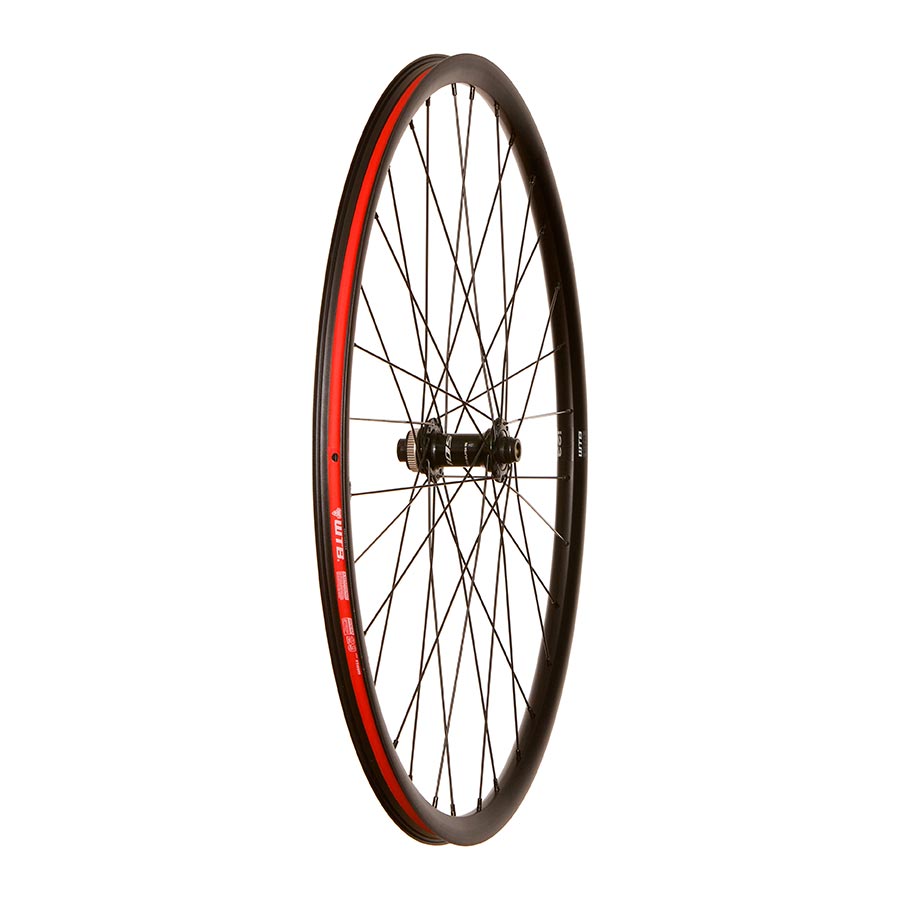

Rims: WTB EZR i23 700C
• ETRTO 622-23
• Inner width: 23mm
• Made from 6069 series Aluminum alloy
• Asymetric and angled spoke hole drilling distributes spoke tension more evenly
• Stronger and lighter rim using a sleeved joint
• Disc Brake Only
• Drilled for Presta valve
• TCS 2.0 Tubeless System compatible
• Solid Strip (included)
• 32 holes

Front hub: Shimano 105 HB-R7070
• 12x100mm E-THRU (Axle not included)
• Center Lock Disc Mount
• Polished angular contact bearings with Internal Grease Sleeve
• Contact sealed hub

Rear hub: Shimano 105 FH-R7070
• 12x142mm E-THRU (Axle not included)
• Center Lock Disc Mount
• Polished angular contact bearings with Internal Grease Sleeve
• Contact sealed hub and freehub body
• Compatible with 11/12 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

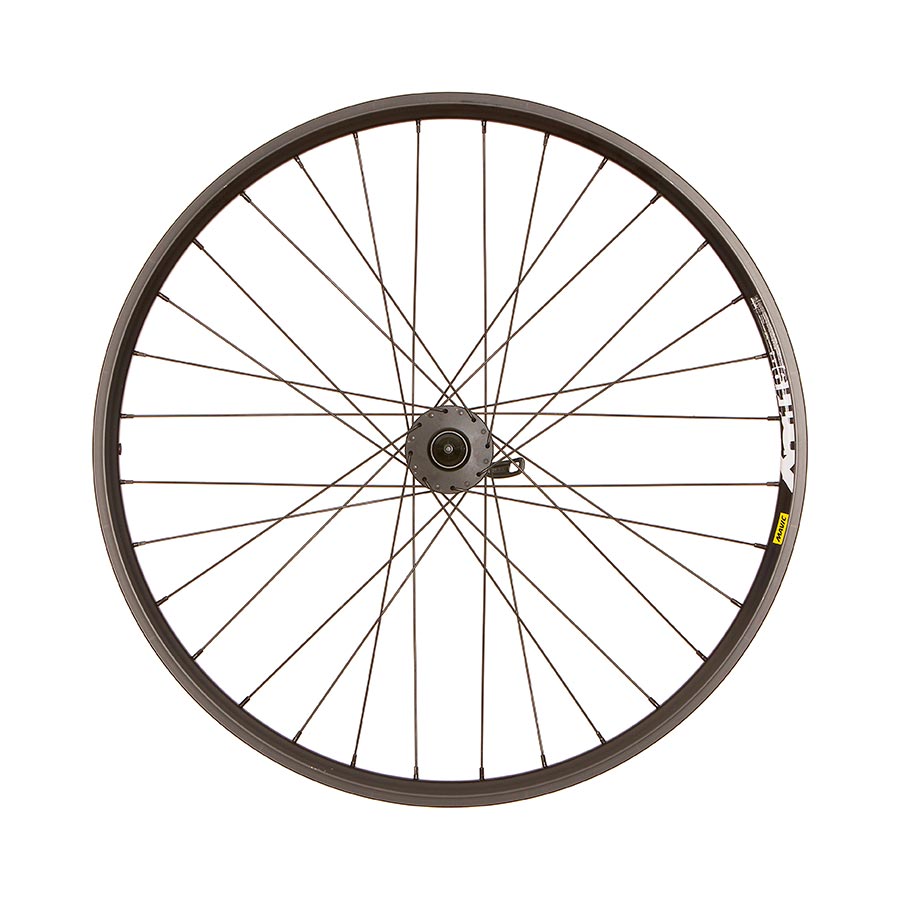

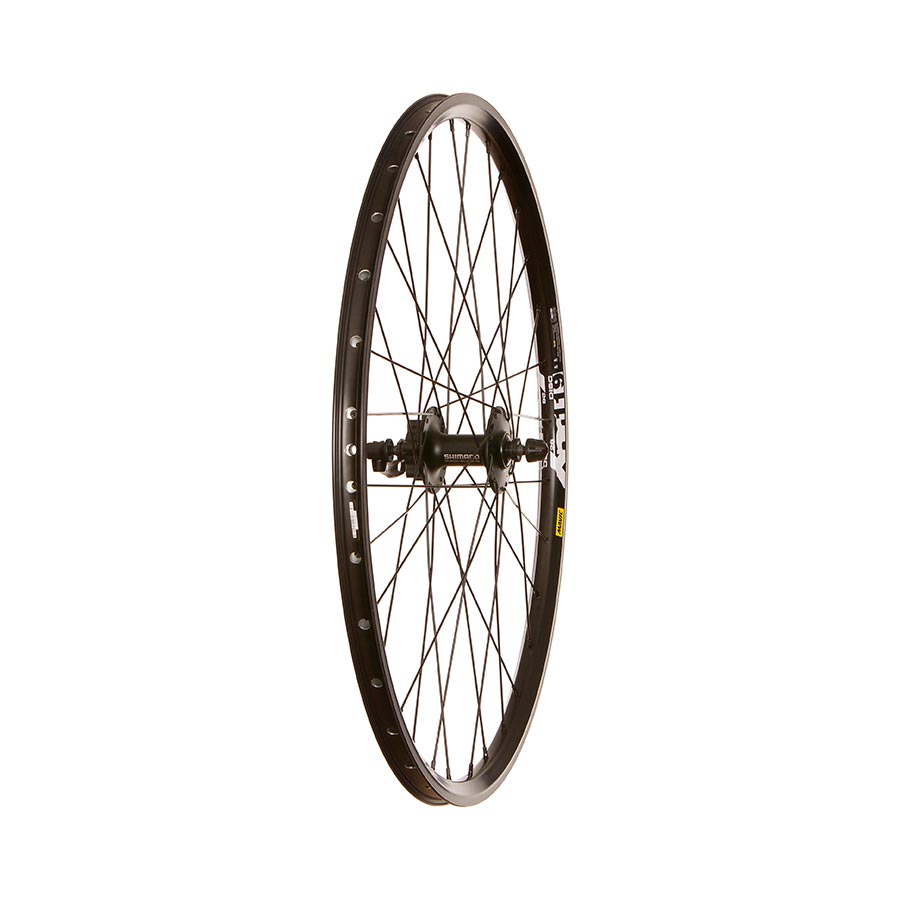

Rims: Mavic XM119 Disc (Black)
• ETRTO 559-19
• External width: 24mm
• Inner width: 19mm
• Profile height: 20.5mm
• Disc Brake Only
• For Schrader or Presta valve (Adapter included)
• 32 holes

Front hub: Shimano Deore HB-M525 (Black)
• 9x100mm
• 6-Bolt Disc Mount
• Super Polished Bearing Races
• Contact sealed hub
• Quick Release Binder included

Rear hub: Shimano Deore FH-M525 (Black)
• 10x135mm
• 6-Bolt Disc Mount
• Super Polished Bearing Races
• Contact sealed hub and freehub body
• Quick Release Binder included
• Compatible with 8,9,10 speed (MTB 11 speed requires 1.85mm spacer, not included)

• Assembled in North America by experienced wheelbuilders with Sapim 14G Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

• Laced with Sapim Laser triple-butted spokes and mechanically locking alloy nipples.
• M-pulse Hub
• RiACT system absorbs impacts and rolls faster
• Bead Socket Technology for unmatched tubeless performance
• WideRight rim design optimized for 2.00”-2.25” XC and Trail tires

• Designed, tested, and raced to victories on the World Cup DH and Enduro World Series circuits
• Tie beam triple-cavity rim design resists damage and prevents air loss under impacts

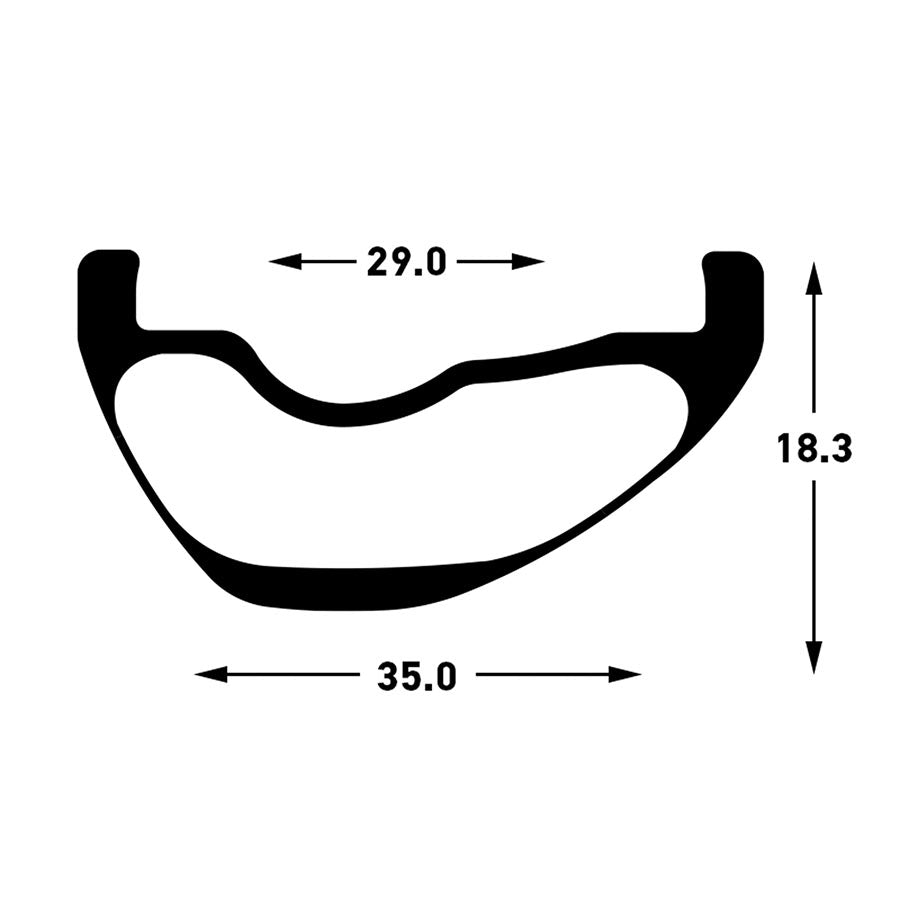

• 29mm internal width optimized for 2.35” to 2.8” Trail, All-mountain, and DH tires
• E-sync hubs

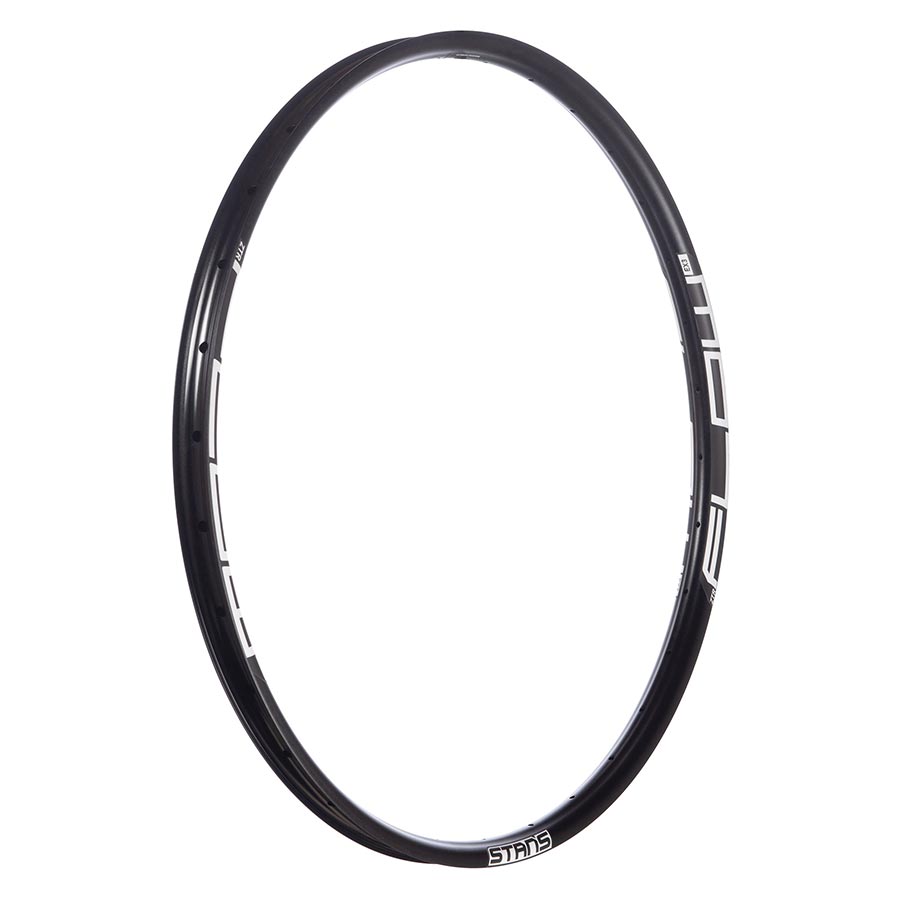

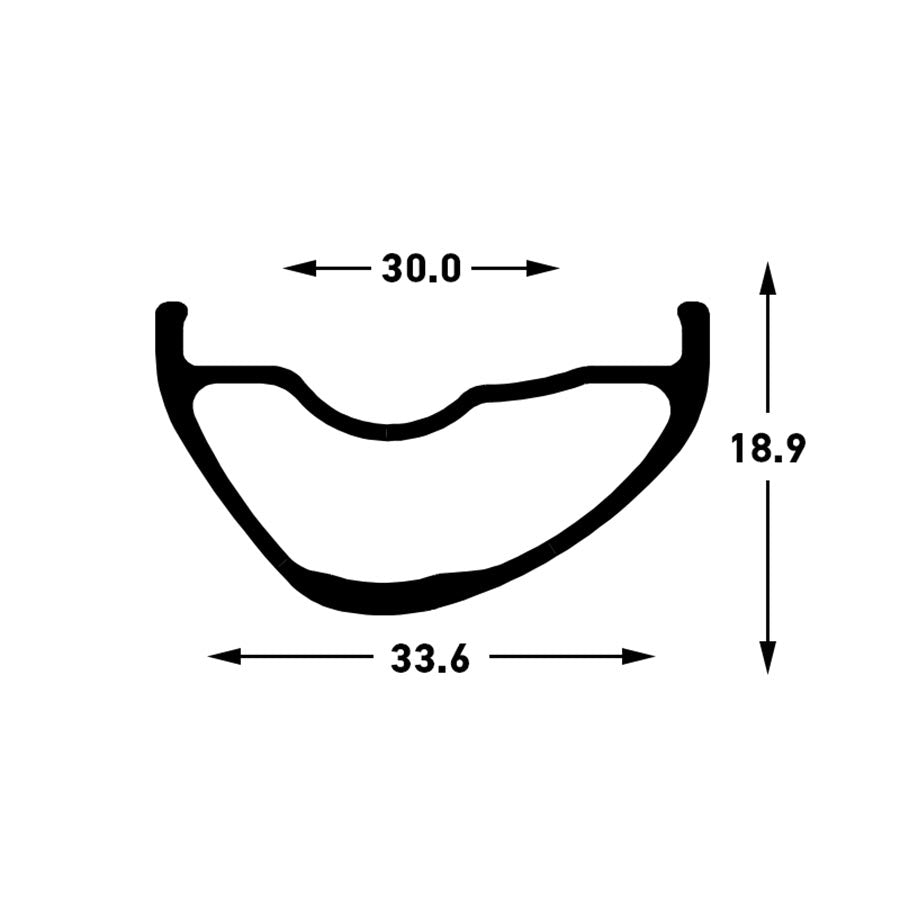

• Low-profile 30mm internal width optimizes tire shape, traction, and control for 2.3-2.6” tires
• Durable 6069 aluminum with welded joint and reinforced spoke bed

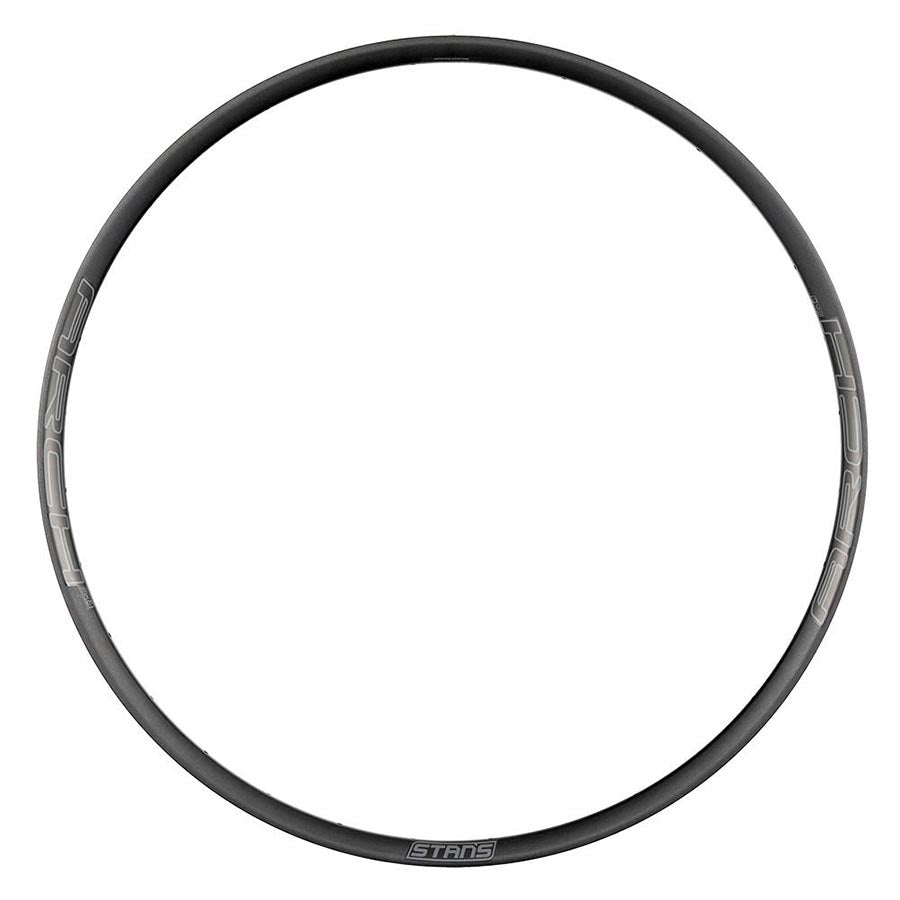

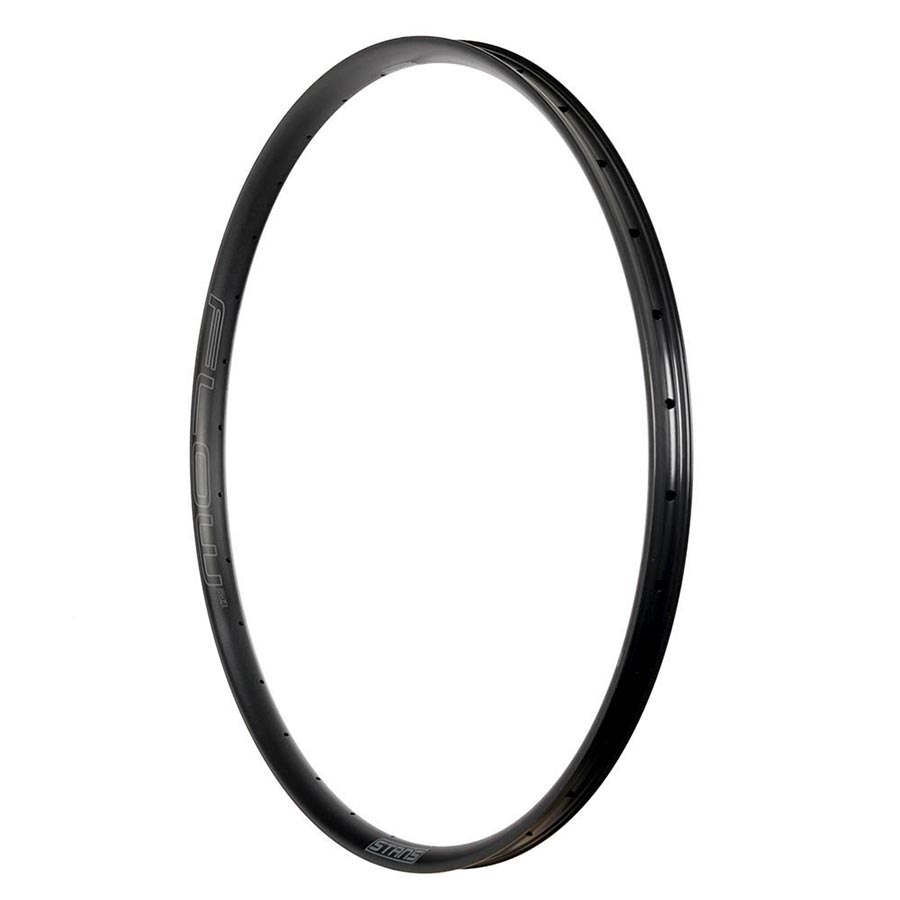

• BST Asymmetric design combines Stan’s legendary easy tubeless inflation with a stronger, more balanced wheel build
• Reinforced spoke bed, combined with the offset drilling of the asym design, builds into an incredibly durable wheel that brings added confidence to every ride.

• Light enough to take XC racing but was born from research and testing on the Enduro World Series circuit, making it a great rim for anyone looking to improve both descending and climbing
• Asymmetric rim design allows for a stronger wheel while offering the easy inflation and Stan’s trademark unmatched airtight seal.
• 28mm internal width ideal for 2.2-2.5" tires
• Light and durable 6069 aluminum with welded joint and reinforced spoke bed

• Asymmetric rim design allows for a stronger wheel while offering the easy inflation and Stan’s trademark unmatched airtight seal.
• 25mm width optimized for 40mm Gravel tires and up to 2.3” mountain tires
• Light and durable 6069 aluminum with welded joint and reinforced spoke bed

• Asymmetric Bead Socket Technology brings Stan’s legendary easy inflation and the most reliable airtight seal to wider, offset carbon rims
• Custom carbon layup equalizes impact forces on both the long and short sides of the rim, making both stronger
• Asymmetric rim shape with offset drilling improves bracing angle and balances spoke tension to create a stronger overall wheel
• M-pulse hubs
• 250lb Recommended Maximum Rider Weight

• Double Wall, Tubeless Ready TR25v Rim
• Shimano Deore 6-Bolt Disc 8-11 Speed Freehub
• Quick Release Skewer
• Rim Brake Compatible

• Double Wall, Tubeless Ready TR21v rim
• Bolt On skewer
• KT Alloy ATB hub

• X-Track 29er blk 32h
• -01: Formula 6-Bolt Disc
• -02: Formula 6-Bolt Disc 8/9 Spd Freehub

• For Dually V1
• AKM 100SXW Hub Motor
• 48V/500W 36H, 135MM
• MINDA MD147 26 x 3.5 Rim
• 13G Spokes
• 36H Alloy Rim

• For Dually V1 Front
• AKM 100SXW Hub Motor
• 48V/500W 36H, 135MM
• MINDA MD147 26 x 3.5 Rim
• 13G Spokes
• 36H Alloy Rim

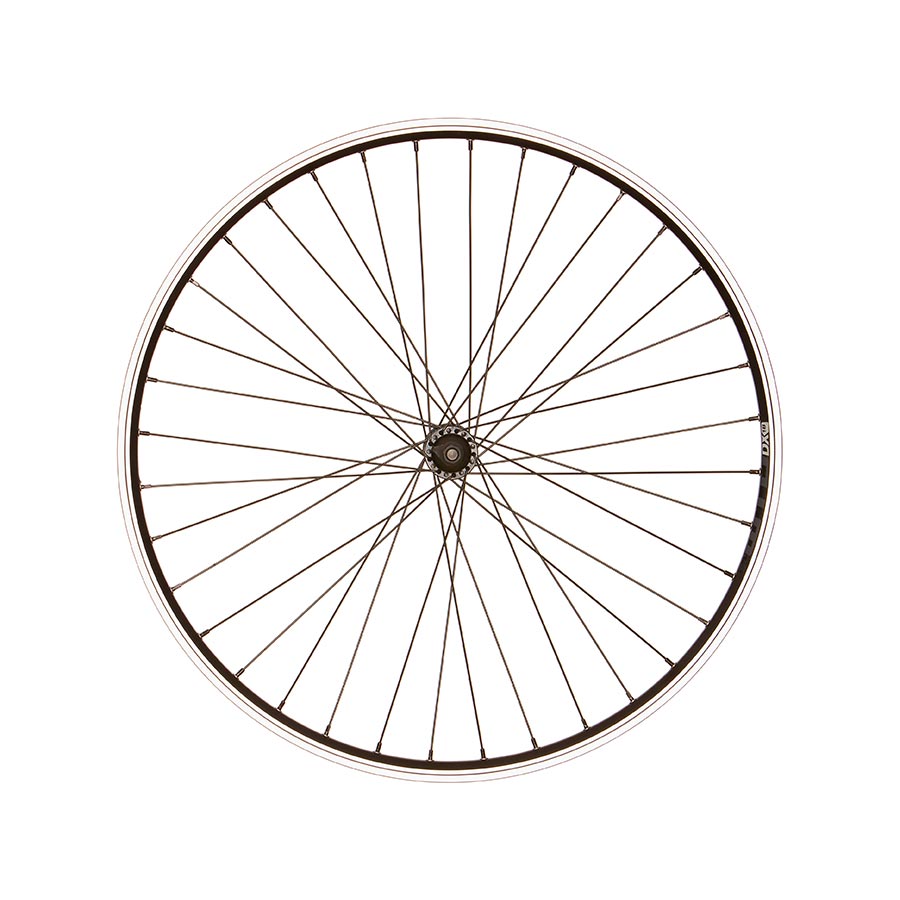

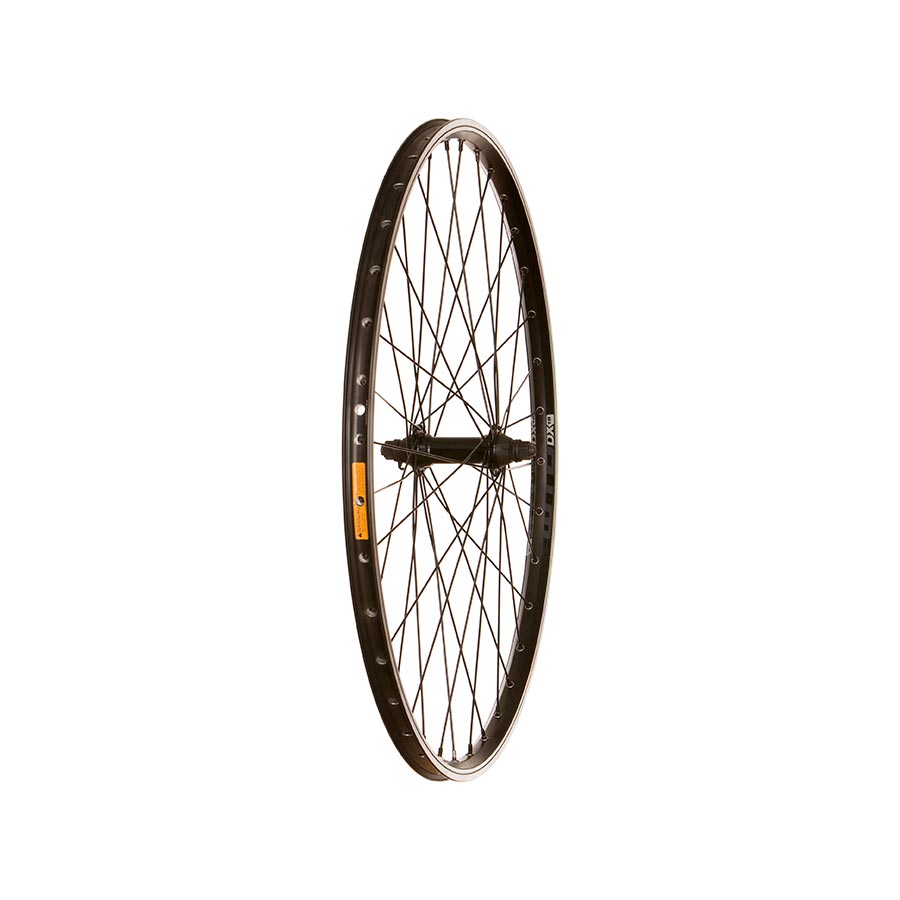

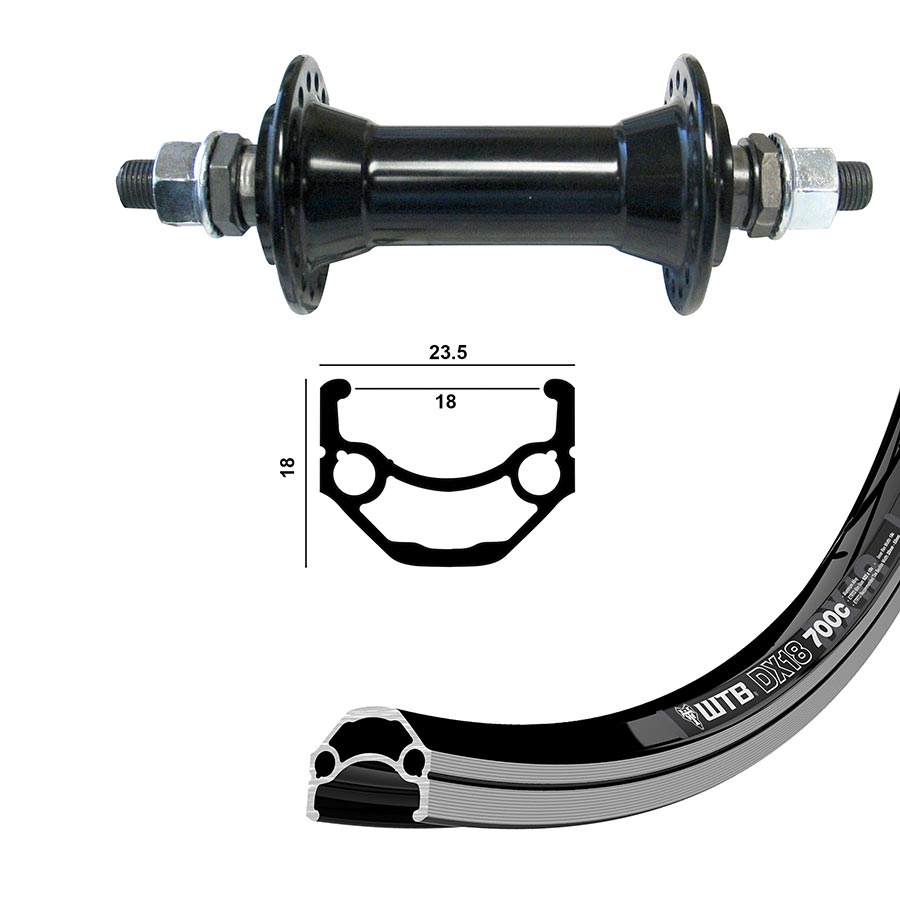

Rims: WTB DX18 26'' (ETRTO 559), inner width: 18 mm
• Anodized black finish
• CNC machined sidewalls
• Stainless steel eyelets
• Rim wear indicator
• Pinned joint
• Drilled for Schrader valve
• 36 holes

Front hub (-01):
• Alloy, Bolt-On, Solid CrMo axle 3/8'' x 100mm (L:140mm)
• Anodized black finish
• Adjustable bearings with rubber seal
• Flange Nuts included

Rear hub (-02):
• Alloy, Freewheel, Bolt-On, Solid CrMo axle 3/8'' x 135mm (L:175mm)
• Anodized black finish
• Adjustable bearings with rubber seal
• Flange Nuts included

Assembled in North America by experienced wheelbuilders using Sapim 14G Stainless Steel spokes and 14mm Brass Polyax Nipples

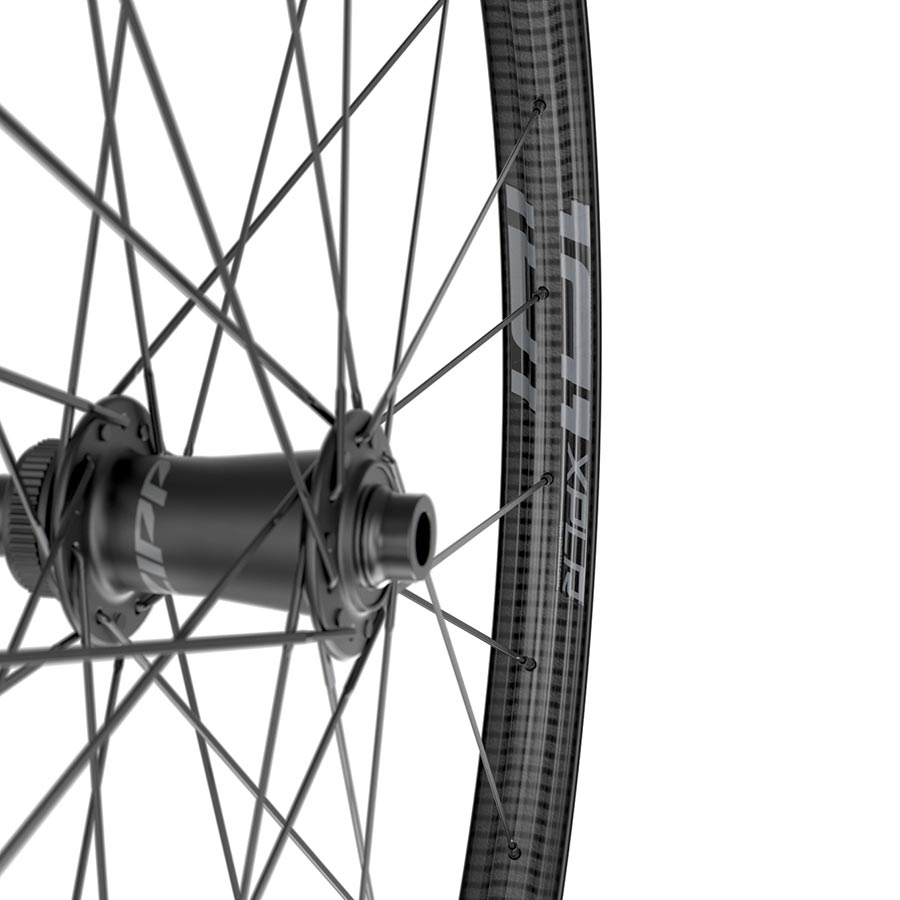

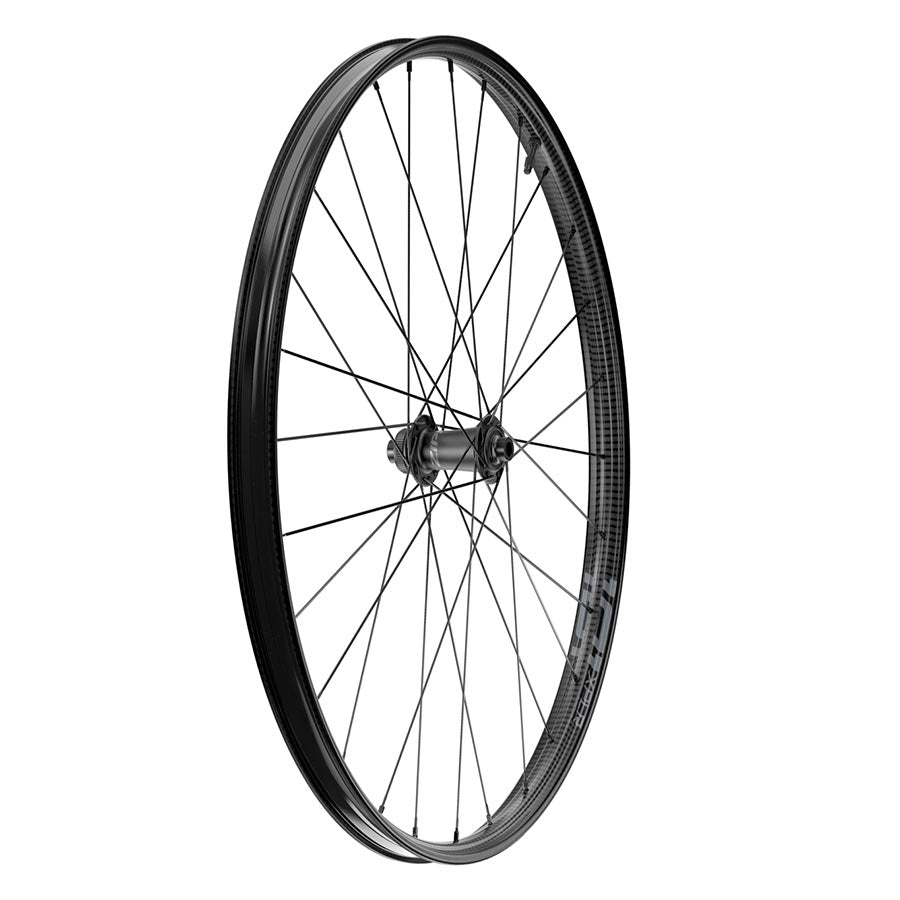

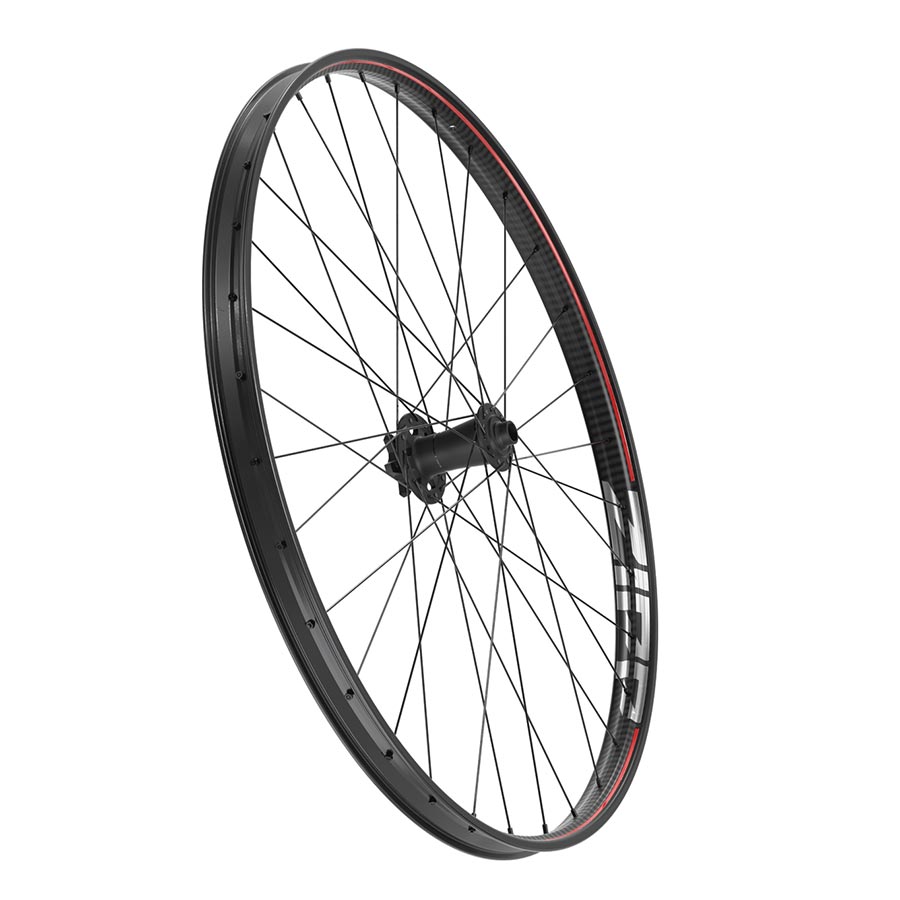

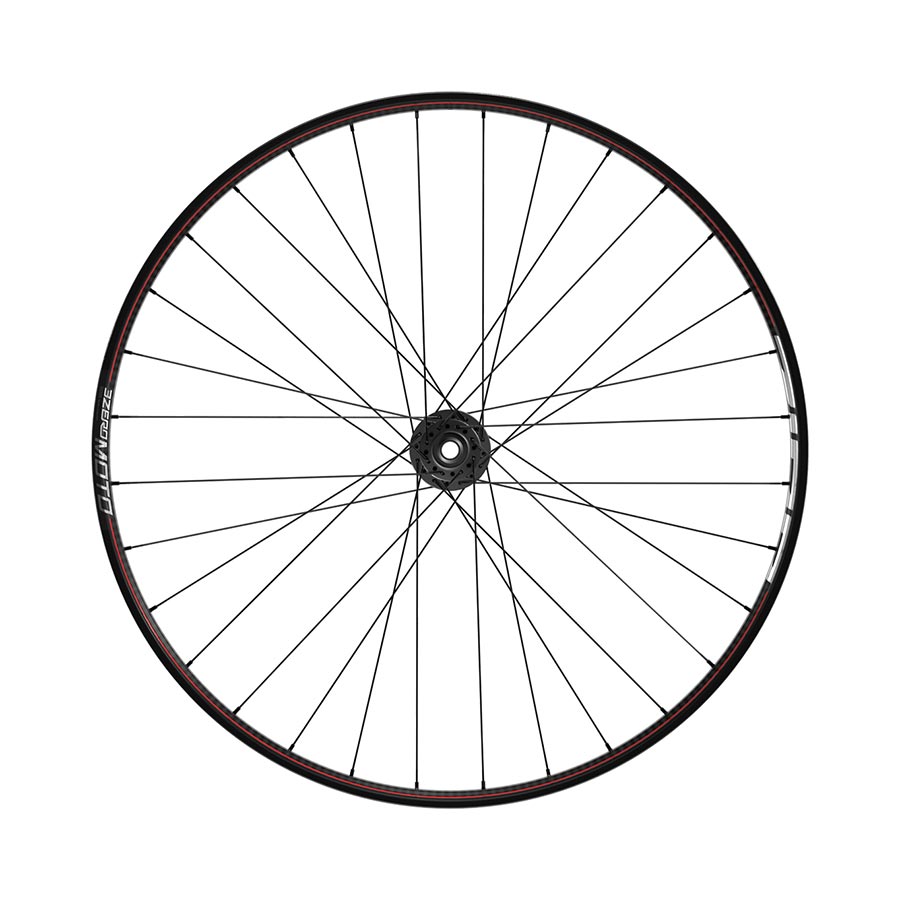

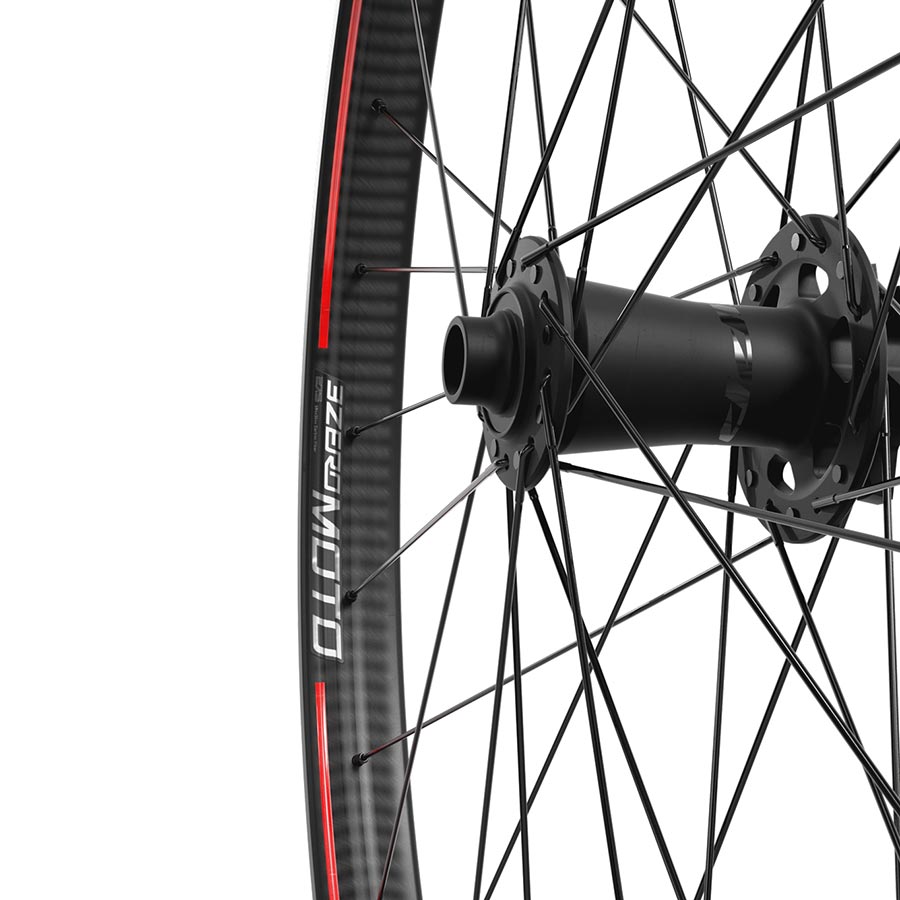

• MOTO Technology arms gravel cyclists with more control and durability over harsh terrain, providing a smooth ride quality that helps reduce fatigue.
• Single-wall rim construction provides excellent compliance and vibration damping. Less fatigue, allows you to ride longer and faster.
• 27mm wide internal profile for tires from 30mm to 50mm+
• ZR1 hubset
• Lifetime Warranty
• SRAM Model ID: WH-101-XPLR-A1

• Sta-Tru Wheels TR25v silver anodized alloy double wall rims
• Hybrid rim with comfortable profile
• Rim Brake Compatible

• 27.5"x20 KT Alloy ATB style front wheel
• STW A275 silver rim with silver hub
• UCP silver spokes

• STW ST1 26.5mm wide alloy rims
• KT QR ATB 9mm/100/108 axle
• Black UCP spokes

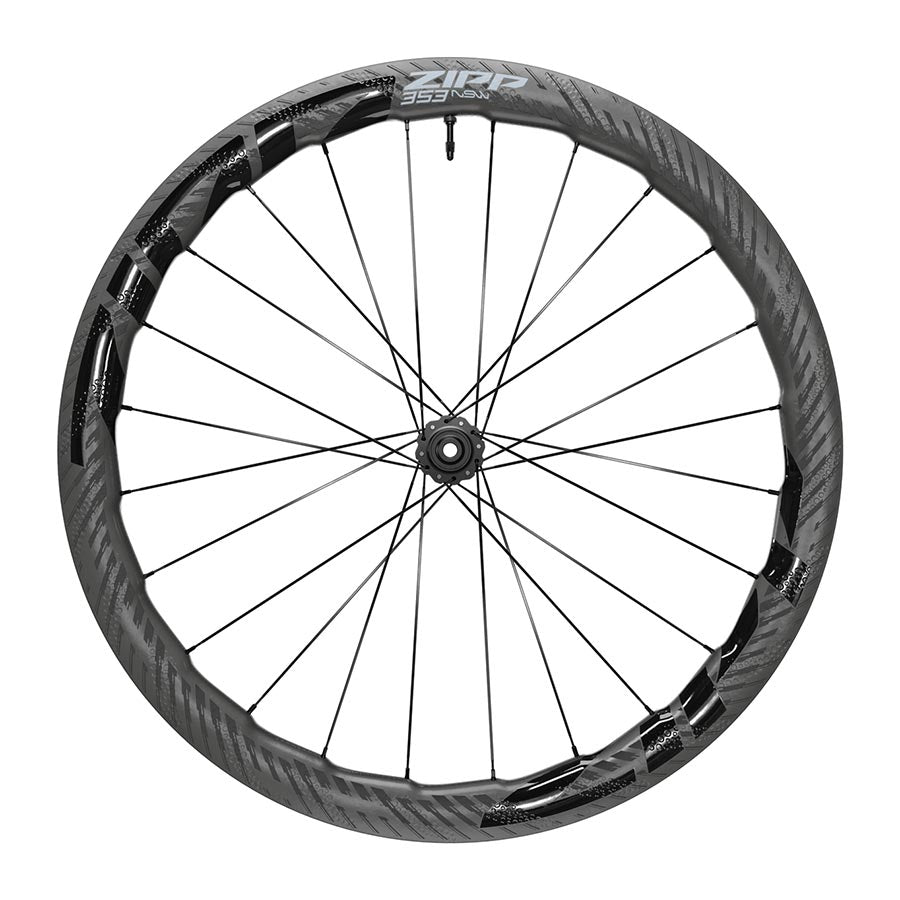

• Versatile aero wheelset for the modern road bike with tubeless and hookless rim profile
• Optimized tire bed for easy tire installation
• Wide 23mm rim profile creates a better tire interface to be fast on or off the road
• New ZR1 DB hub is engineered in Germany with better seal design for improved durability and quicker response with 66 points of engagement
• Ships with 12mm front and rear end caps
• Center locking rotor interface. Lockring is included with the wheels
• 1470g
• Lifetime warranty
• SRAM Model ID: WH-404-FTLD-B1

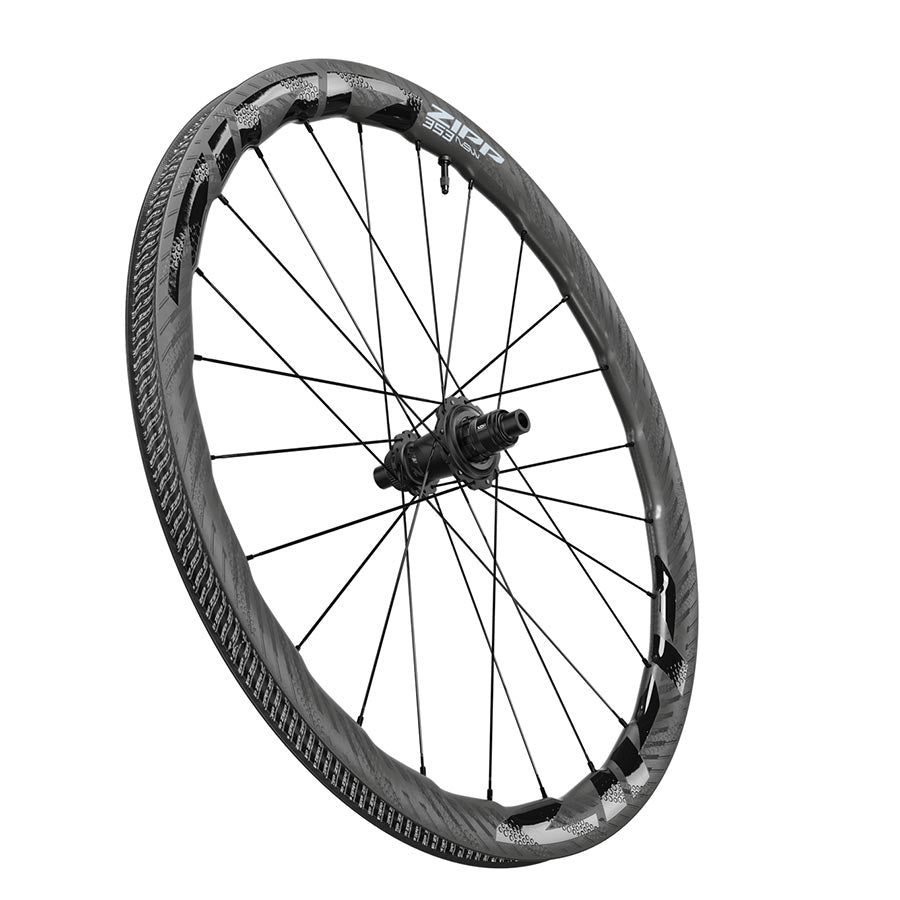

• Undulating 45-mm deep rim shape provides speed on every terrain with best-in-class aerodynamic efficiency and crosswind stability
• Hookless rims for a seamless, aerodynamic transition between tire and rim
• Total System Efficiency, or TSE, approach to wheel design: overcoming specific barriers to speed: wind resistance, gravity, rolling resistance, and vibration losses
• 25mm internal width is ideal for running wider tubeless tires at reduced air pressure for a more efficient ride.
• Cognition V2 Hubset with an updated Axial Clutch V2 mechanism for quicker engagement and lower friction as well as improved durability.
• Optimized tire bed for easy tire installation
• Center locking rotor interface. Lockring is included with the wheels
• 1255g
• Lifetime warranty
• SRAM Model ID: WH-353-NTLD-A1

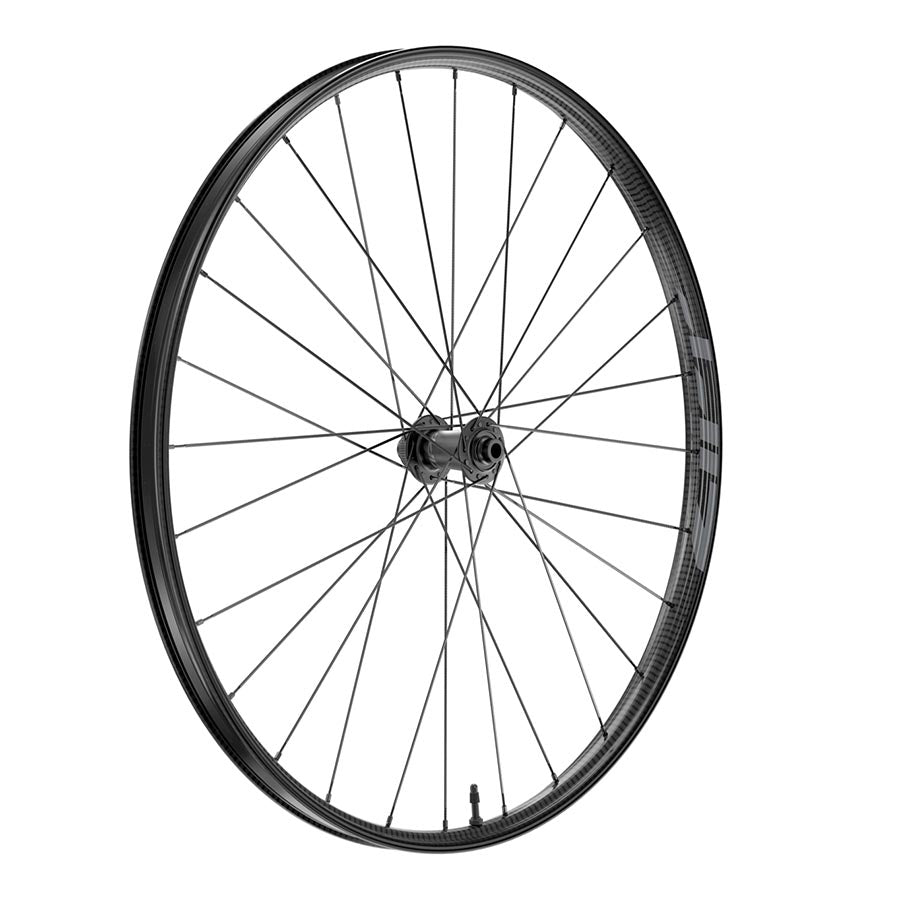

• Moto Technology’s single-wall rim is the optimal approach for an enduro/trail wheelset
• The 3ZERO rim can locally flex to stay parallel to the ground during cornering, increasing traction, providing higher impact resistance, reducing pinch flats, and reduced rider fatigue
• Frustration-free tire installation
• German-engineered hubset features 12 pawls and 132 points of engagement for quicker response and also has improved durability
• Lifetime Warranty
• SRAM Model ID: WH-MOTO-30-B1
